Description

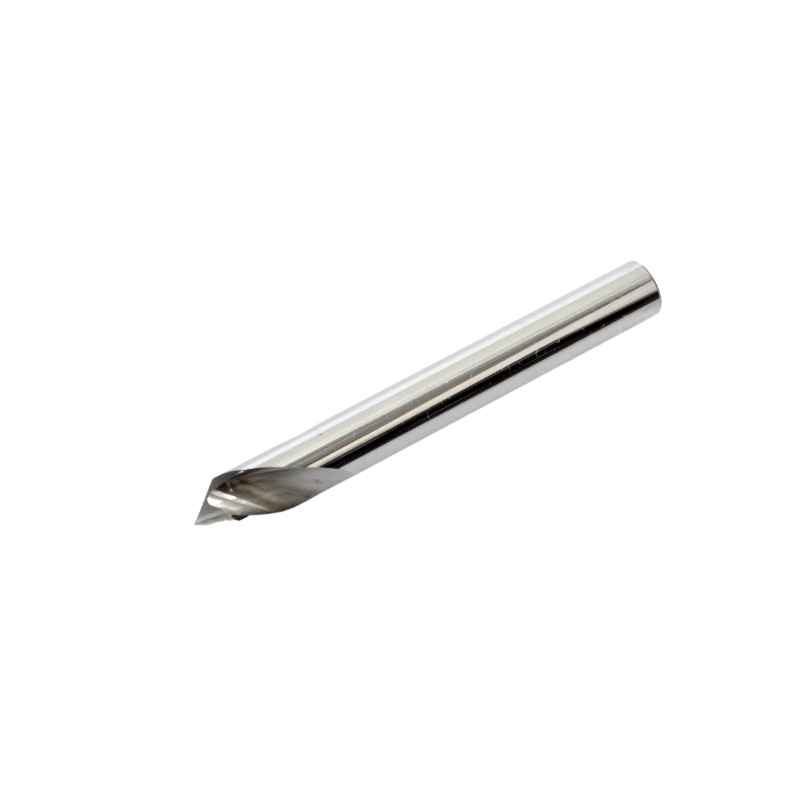

Achieve Precision and Durability with Our Chamfer V-Bit 90° 55HRC for Versatile Machining

With the ability to process materials up to 55HRC hardness, our Chamfer V-Bit 90° 55HRC is a highly versatile tool in the workshop. This bit is designed to deliver precision and durability, making it an essential addition to any machinist’s toolkit. Whether you’re chamfering sharp edges or countersinking machined holes, this tool ensures a clean and professional finish every time.

Key Features and Benefits:

High Versatility: Perfect for chamfering, deburring, and countersinking, the Chamfer V-Bit 90° 55HRC can handle a wide range of tasks with ease.
Solid Carbide Construction: Made from solid carbide, this bit offers exceptional durability and a long tool life, reducing the need for frequent replacements.
TiSIN Coating: The 3-Flute Bit is coated with Titanium Aluminum Nitride (TiSIN), which significantly enhances its strength and wear resistance, allowing it to maintain sharpness over extended use.
Precision Engineering: Designed for high-precision tasks, this bit ensures smooth and accurate cuts, enhancing the quality of your work.

Specifications:

Solid Carbide
55HRC

	2 Flute	3 Flute
Coating	Uncoated	TiSIN Coating
Angle	90°	90°
#Flutes	2	3
Shank Size	6mm	6mm
OVL	50mm	50mm

Suitable Materials

Soft Metals and Non-Ferrous Metals: Ideal for working with aluminium, brass, and copper, providing clean cuts without burrs.
Wood: Compatible with all types of wood, from softwoods to hardwoods, making it perfect for woodworking projects.
Plastics: Efficiently cuts through various plastics, ensuring smooth edges and precise shapes.
End Mill Libraries.

Download our end mill libraries for Fusion and Vectric below which include the Chamfer V-Bit 90° 55HRC!

Fusion360

Vectric:

Tips and tricks

Insert as much of the bit into the collet as possible to reduce runout and minimize the chance of tool damage.
For other Milling Bit options, check out all our listings.
