Technical Overview

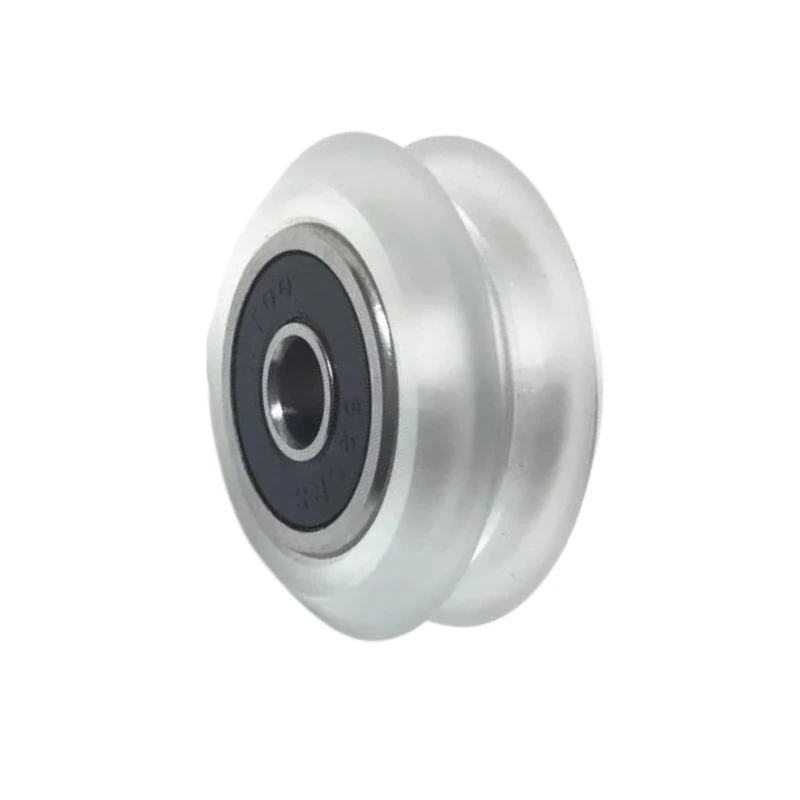

Engineers integrate this clear polycarbonate Xtreme Dual V Wheel Kit into linear motion setups to establish an accurate tracking path along structural extrusion channels. The component utilizes a dual V-groove profile that aligns directly with V-slot rails. By doing this, it ensures accurate linear translation under operational load. At the same time, each wheel is individually milled from solid polycarbonate material. Consequently, this precise manufacturing method provides high resistance to mechanical compression and surface wear. Because of this material selection, the hardware minimizes physical deflection during motion sequences. Furthermore, the design allows builders to deploy multiple units across a single gantry carriage layout. Therefore, this arrangement distributes mechanical forces evenly across the platform to maintain structural axis tolerances. Ultimately, the assembly features high Rockwell hardness and compressive strength to prevent tracking drift without introducing play into the system.
Applications
Builders choose this Xtreme Dual V Wheel Kit configuration to establish passive stabilisation and path guidance in automated machinery frames. Specifically, technicians deploy these components within linear guide systems, CNC routers, and modular milling machine platforms. For this reason, the hardware commonly serves as a heavy-duty alternative to Delrin wheels where force and weight are introduced into the system. These automated setups explicitly require a rigid tracking pivot to support directional changes under continuous dynamic load cycles. Beyond automated cutting systems, builders install the assembly in custom 3D printers, camera sliders, and commercial actuator layouts. Meanwhile, the clear polycarbonate composition ensures smooth rolling while minimizing material breakdown over long high-cycle runtimes. As a result, this design choice reduces alignment errors during precision operation. Ultimately, these characteristics make the wheel highly suitable for open-source hardware configurations, educational prototyping kits, and industrial positioning setups.
Technical Specifications
Maker Store Tips and Tricks
-
Pair these rollers directly with standard V-slot linear guide systems to achieve optimal track integration.
-
Distribute structural loads evenly across the gantry frame by utilizing multiple wheels in your carriage layout.
-
Periodically check track alignment and clean the V-grooves to prevent debris from inducing tracking deflection
