Description

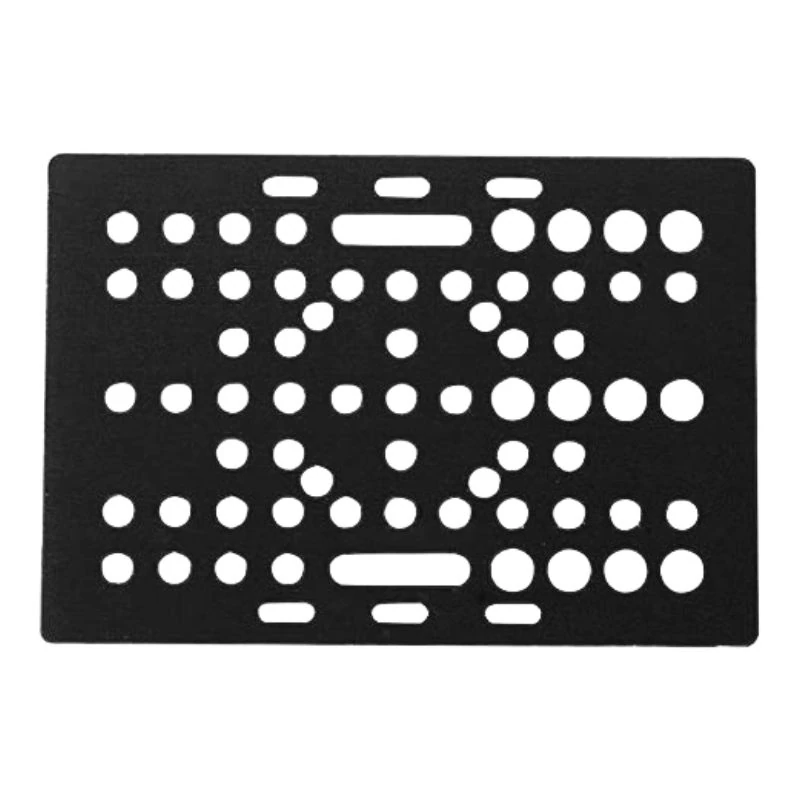

This plate was designed to be used with the Maker Store Actuator and it can be used on all sizes of V-Slot extrusions.

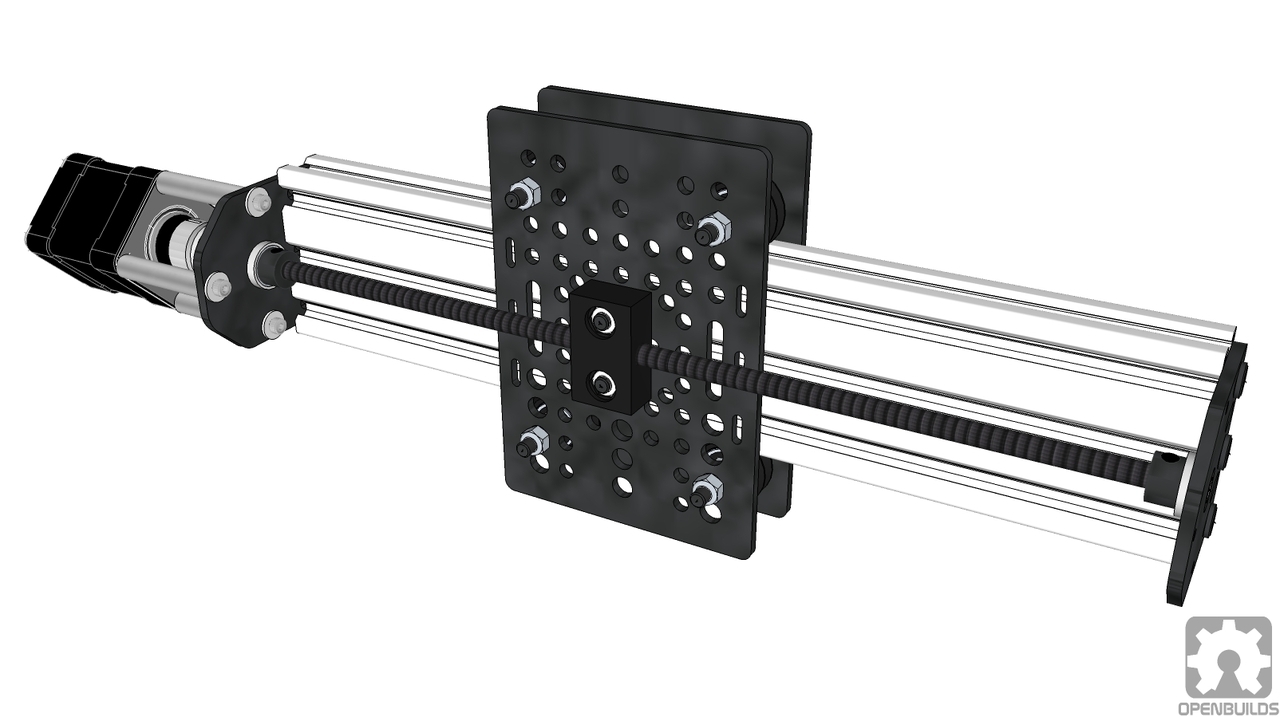

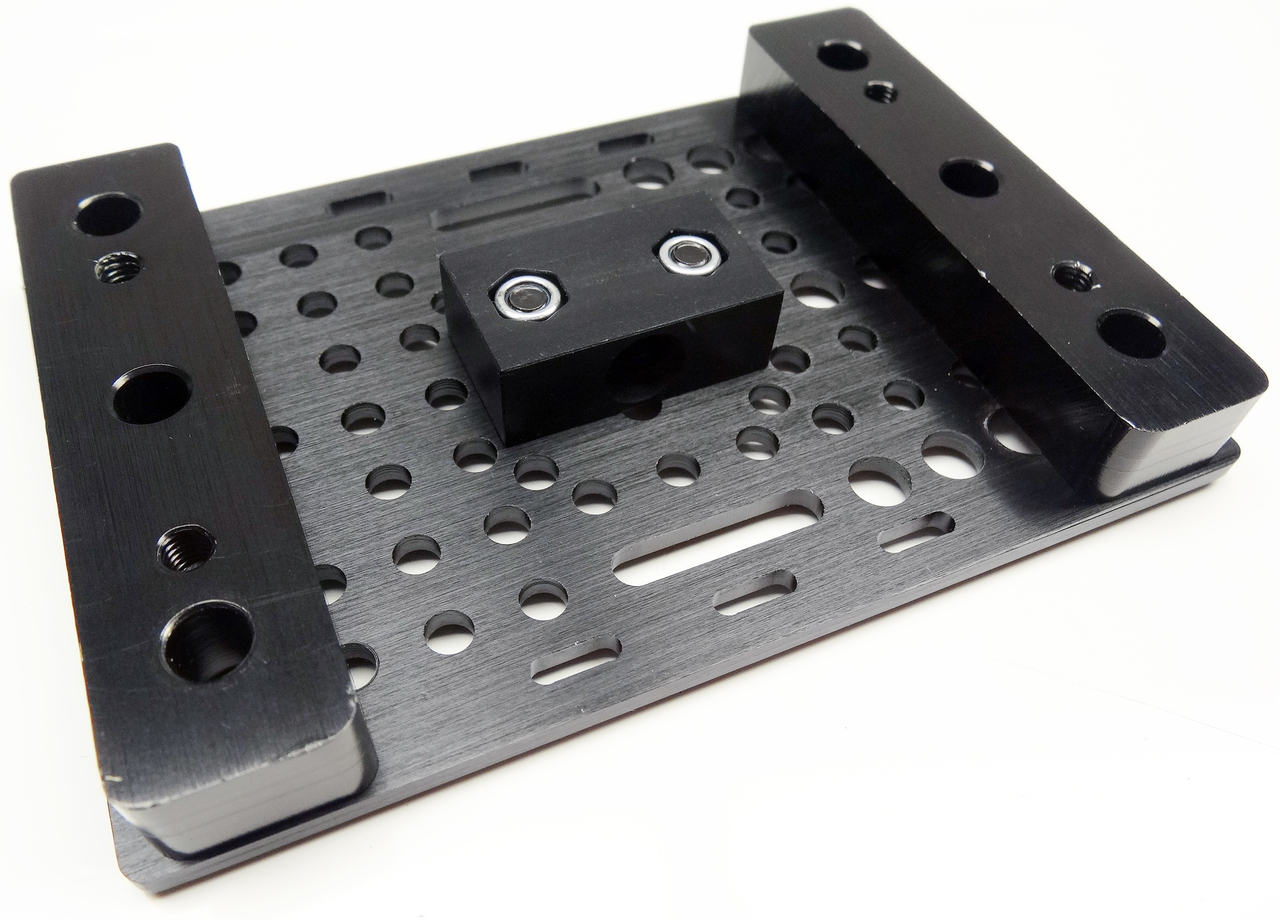

This plate is compatible with a variety of mounting options – including the Acme Nut Block and Lead Screw.

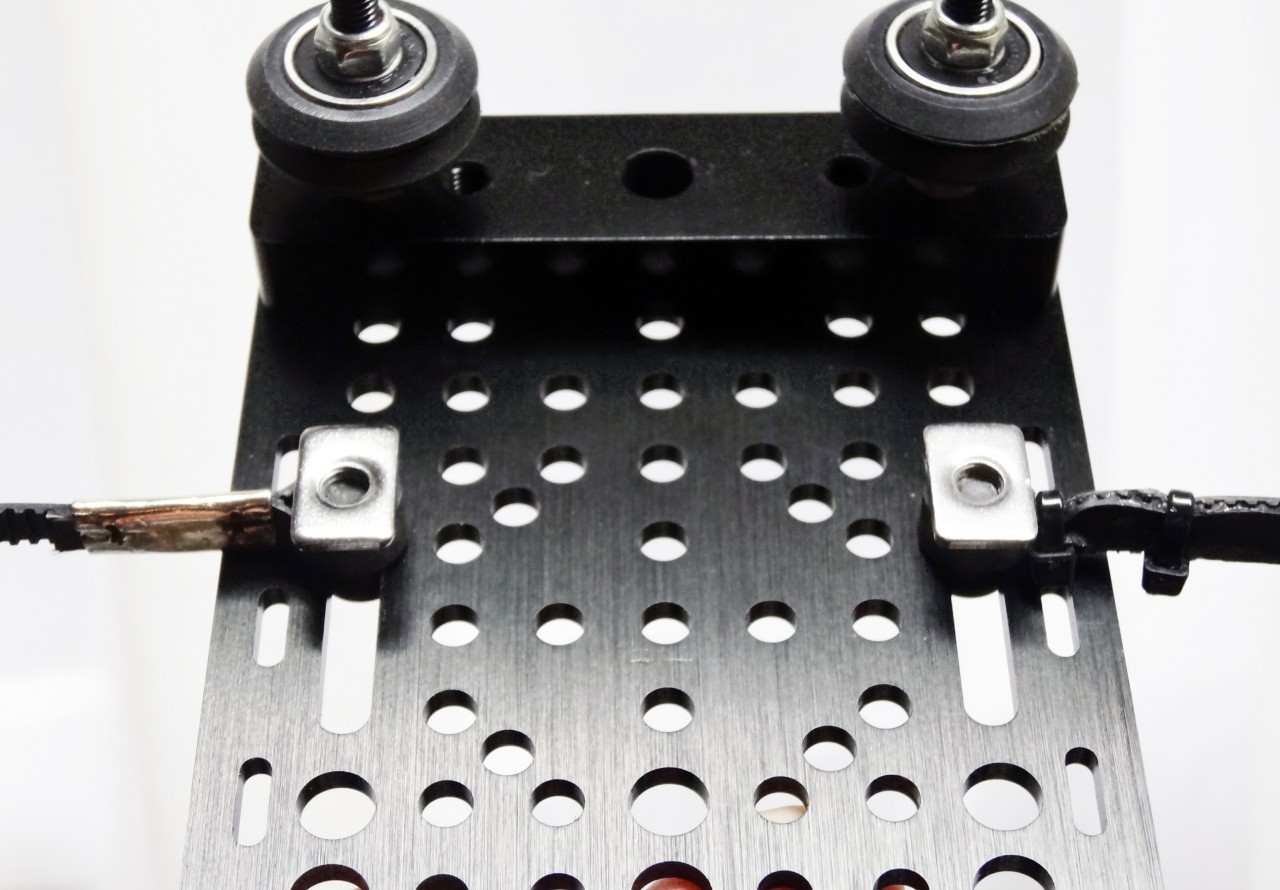

The idea behind this plate is to simplify construction. We wanted to ensure that we simplify belt clamping so we have incorporated ‘Fold-Through’ Slots to allow you to easily fold the timing belt teeth back onto themselves and zip tie or clamp them in place.
We have also added two 5mm slots that allow you to attach spacers for 90-degree belt mounts under or on top of the plate as well. This simplifies the overall building process and allows for quick assembly times of motion systems.
There are a lot of possible mounting configurations for this plate.
Buy individually or as a V-Slot Gantry Bundle.
Specifications:
- Compatible with: V-Slot 20×20 mm, V-Slot 20×40 mm, V-Slot 20×60 mm, V-Slot 20×80 mm, V-Slot 40×40 mm and C-Beam
- Thickness: 3mm
- Material: 6063 – T6 Aluminum.
- Finish: Anodized
- Colour: Black

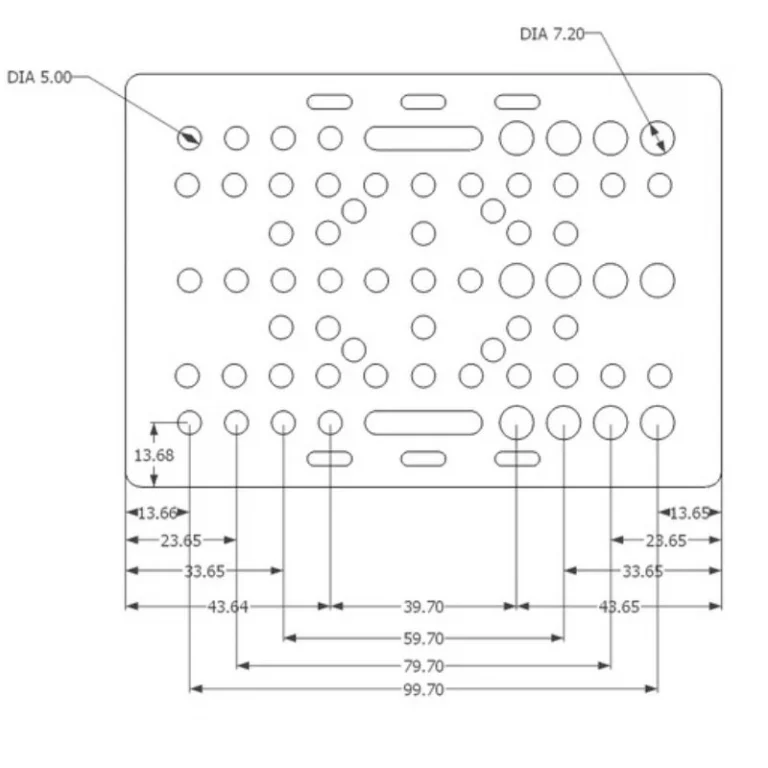

Technical Drawing:
