Description
Technical Overview

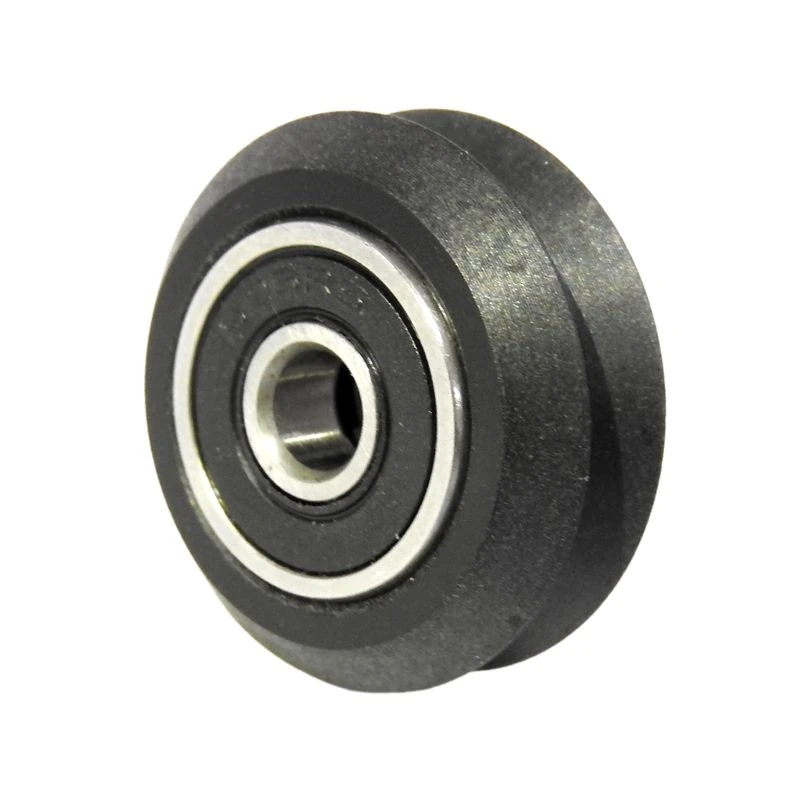

Engineers integrate the Delrin Dual V Wheel Kit into V-wheel linear guide systems. Consequently, this setup facilitates smooth and precise linear motion. We individually mill each wheel. Because of this, the manufacturing process maintains consistent high precision and tight tolerances. As a result, this feature ensures reliable travel along linear rails. Furthermore, the kit functions by mounting directly onto linear profiles. You can also pair these wheels interchangeably with Chrome Steel Dual V Wheel components. Similarly, they work with compatible plates and parts. Therefore, the assembly provides robust, low-friction guidance in compact mechanical systems.
Applications
Builders choose this wheel kit for V-Slot Extrusions and OpenRail systems. Specifically, it fits Standard Clear Coat, Black Anodized, or Hard Coat OpenRail configurations. For this reason, technicians commonly install the kit in 3D printers and CNC routers. In addition, they deploy it in other automated linear motion assemblies. Meanwhile, the Delrin material provides a durable, smooth-rolling interface. Thus, this composition makes the kit highly suited for precise positioning applications. Ultimately, it enhances DIY motion rigs and light industrial machines.
Technical Specifications

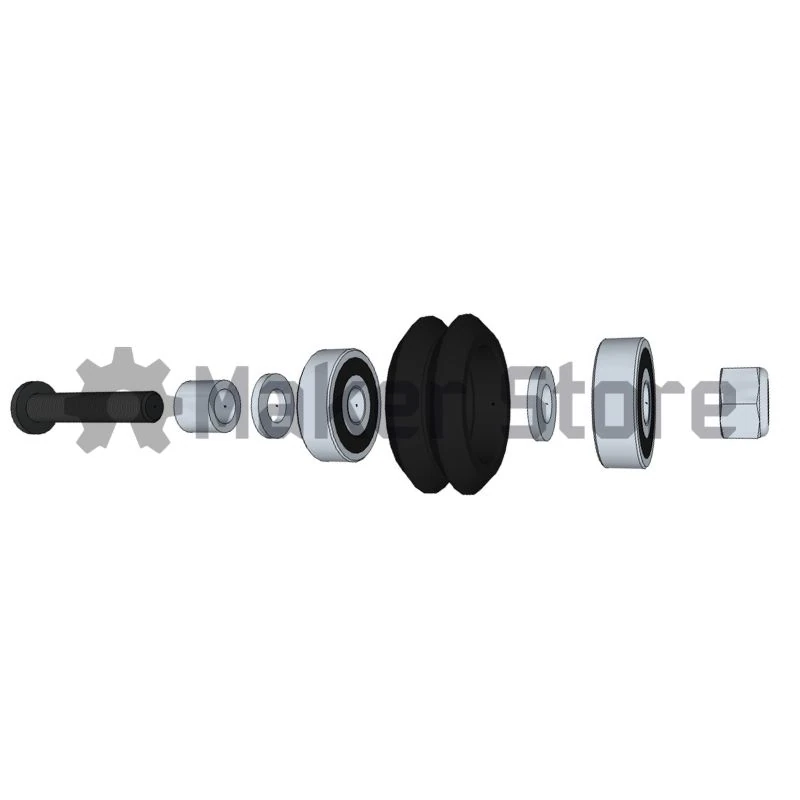

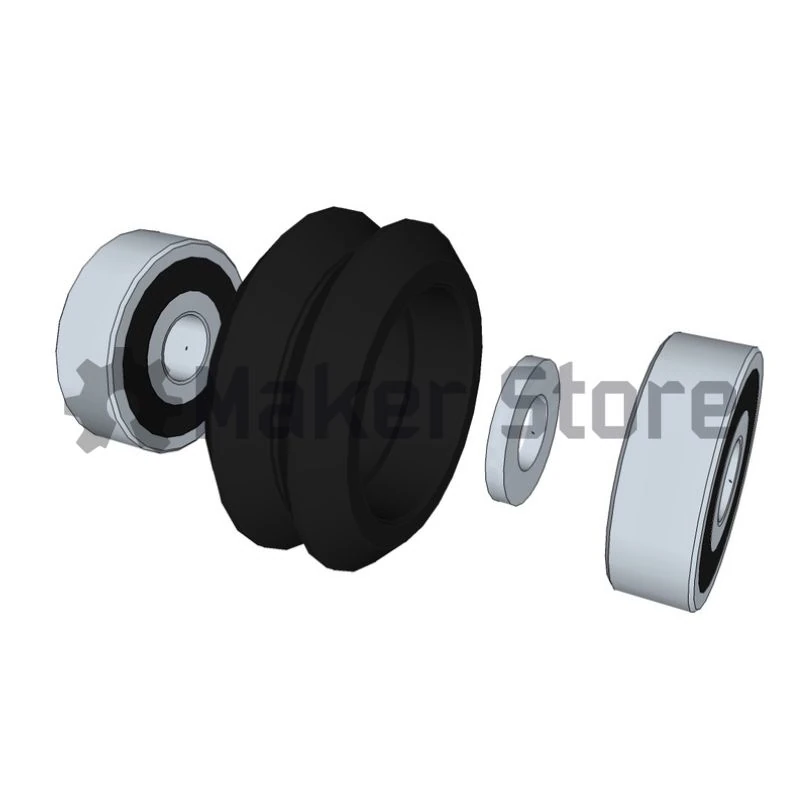

Technical Drawing:
Maker Store Tips and Tricks
-
Remember to purchase compatible Spacers, Eccentric Spacers, and Low Profile Screws separately to complete your assembly.
-
Do not over-tighten the nylon lock nut, as excessive pressure can bind the bearings and restrict smooth rotation.
-
Regularly inspect the Delrin wheels for wear or dust accumulation to ensure optimal linear travel precision.
