Description
Technical Overview

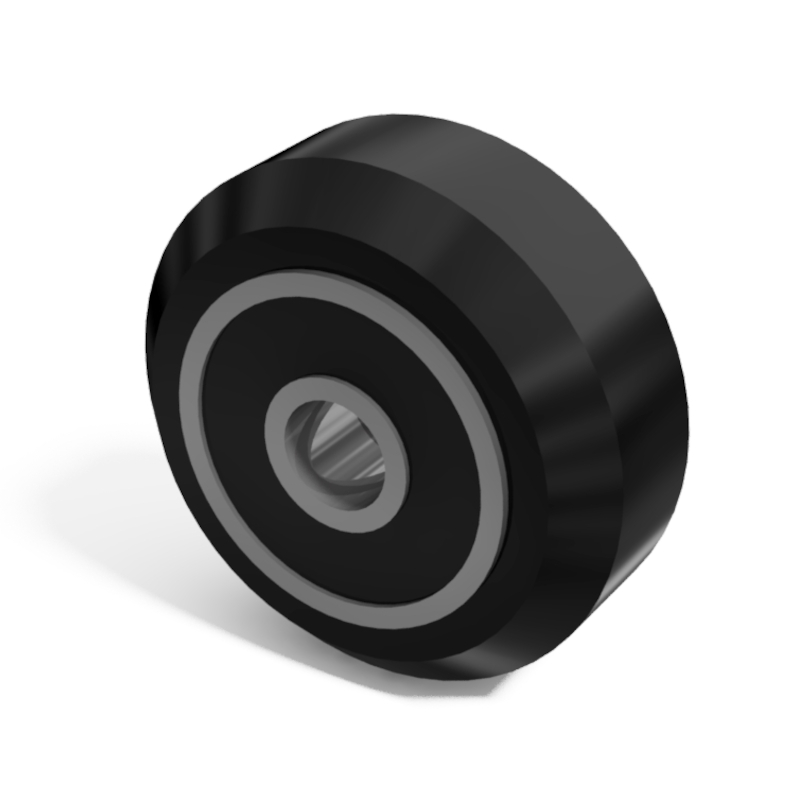

Linear motion assemblies and desktop machinery use the Solid V Wheel kit to create smooth, precise, and low-friction movement. Engineers specifically design this specialized roller kit to ride along the tracks of V-Slot aluminum extrusions.
To integrate into a system, the wheel kits assemble directly onto gantry plates and carriages to act as moving guides. When a machine axis operates, these rollers distribute structural weight evenly across the extrusion channels while enabling components to slide back and forth accurately. Unlike hollow variations, the solid core construction resists deflection or bending under pressure. Consequently, this design maintains rigorous system rigidity while safely handling increased weight capacities.
Applications
Operators primarily utilize this hardware kit in 3D printers, laser engravers, and smaller CNC routers or mills. Within these machines, the rollers provide the structural tracking necessary to support dynamic tool heads and heavy moving axes. Furthermore, the kits perform reliably in custom automation setups where builders require long-lasting, low-friction guide wheels.
To meet diverse structural demands, builders select from multiple engineering plastics depending on the application forces. Technicians typically choose wear-resistant Delrin (POM) wheels for standard, everyday machinery setups. In contrast, builders deploy heavy-duty polycarbonate (“Xtreme”) wheels for severe applications subjected to heavy load distributions and strong machining forces. Moreover, these assemblies successfully eliminate alignment drift to ensure continuous cutting and printing accuracy across all desktop manufacturing platforms.
Technical Specifications
Technical Drawing:
Maker Store Tips and Tricks
-
Pair your wheel kits with eccentric spacers on one side of the gantry to easily adjust the roller tension against the aluminum extrusion.
-
Avoid overtightening the assembly bolt, as excessive compression can pinch the internal bearings and cause binding during travel.
-
Regularly wipe down the V-Slot extrusion tracks to prevent dust accumulation from impeding smooth linear motion.
