Description

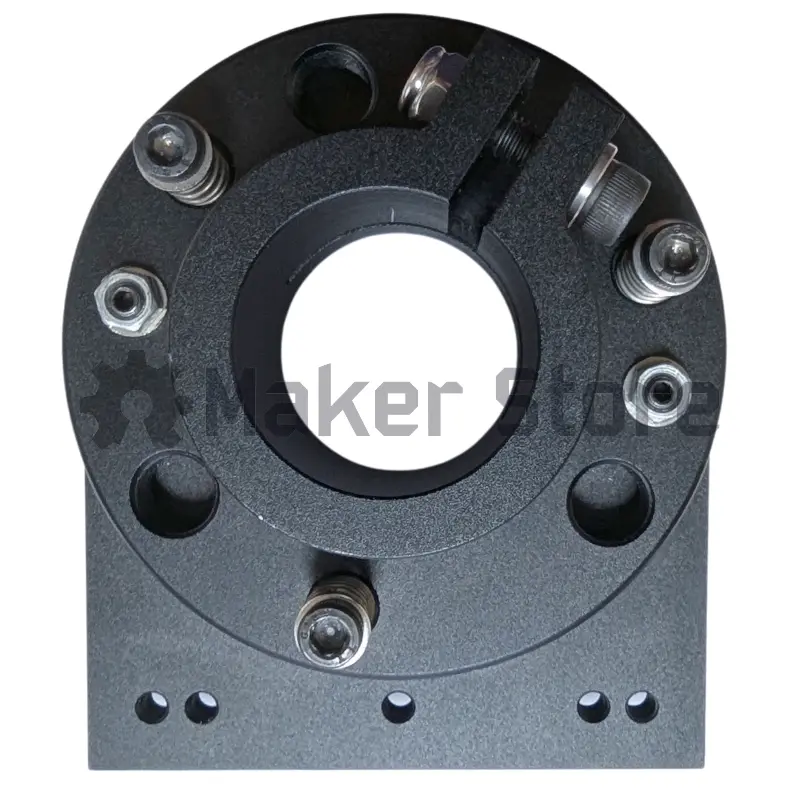

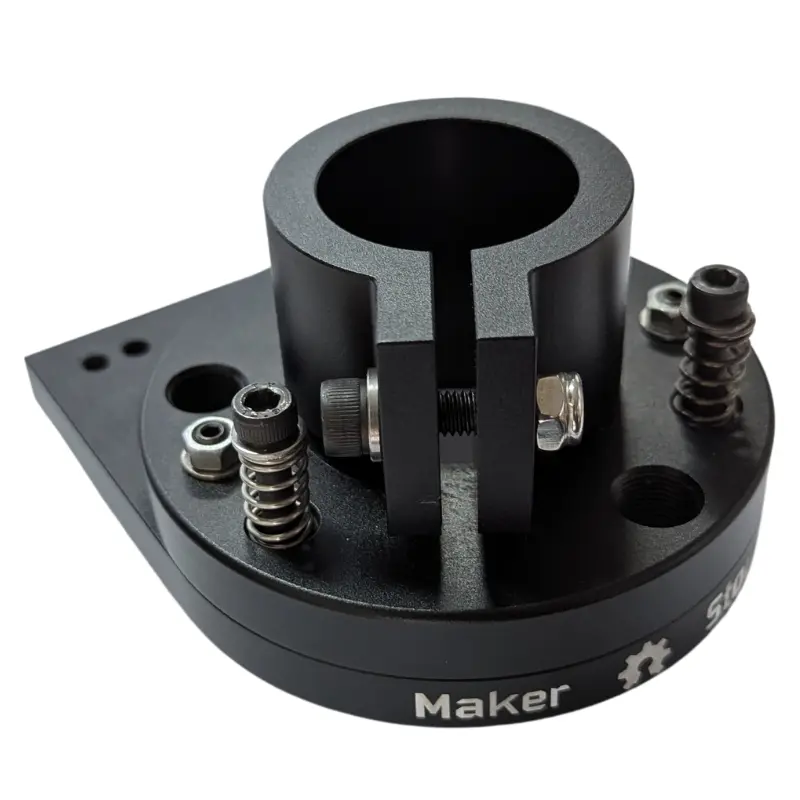

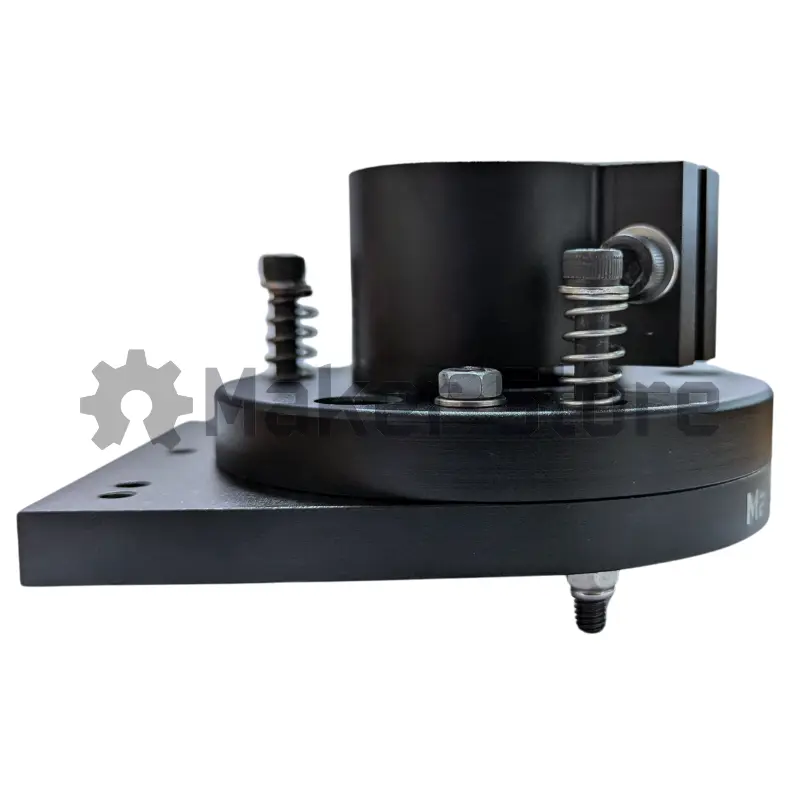

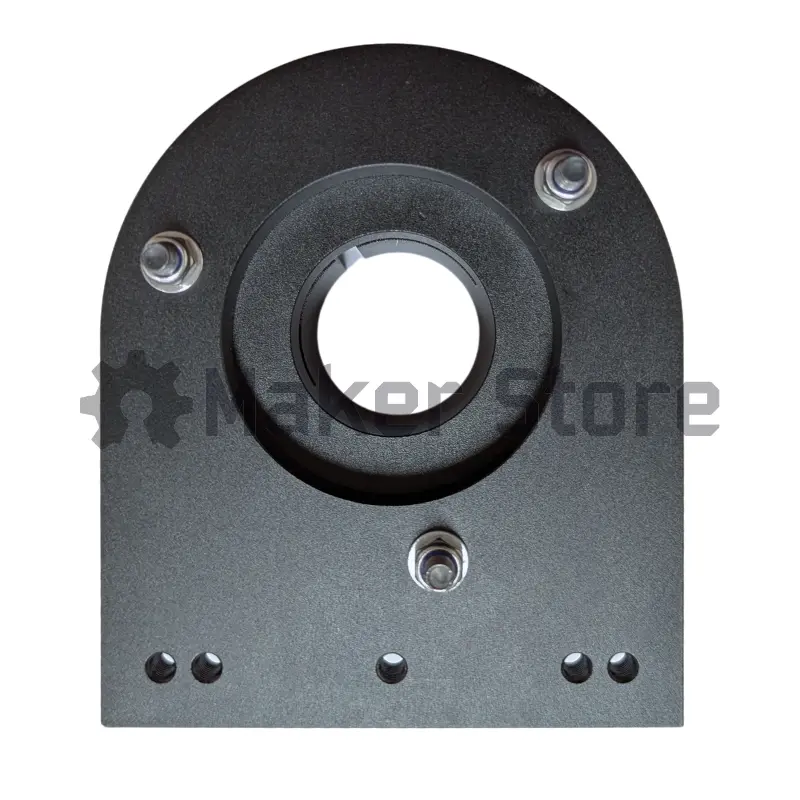

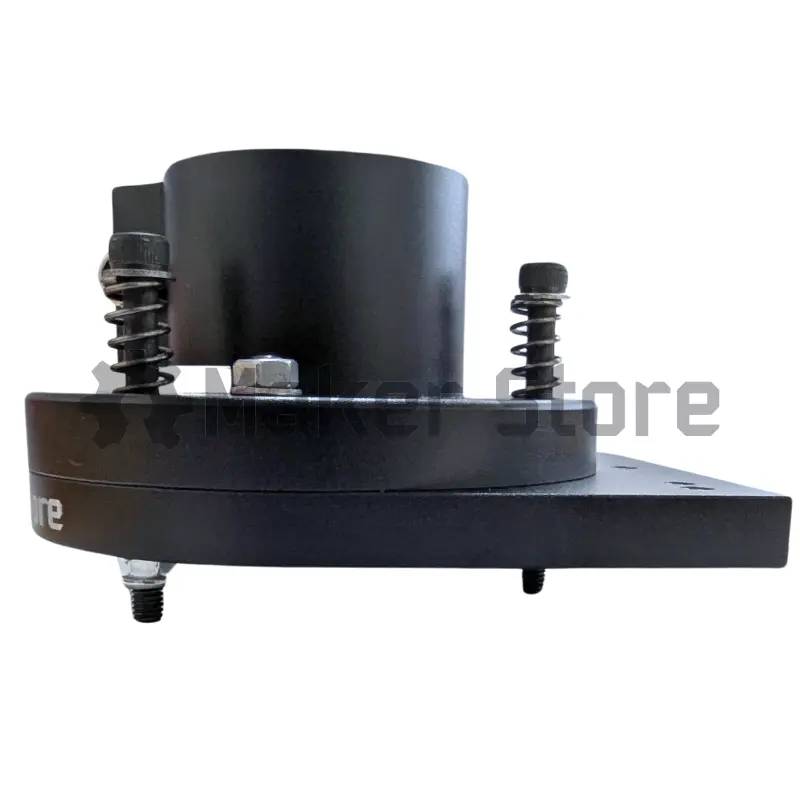

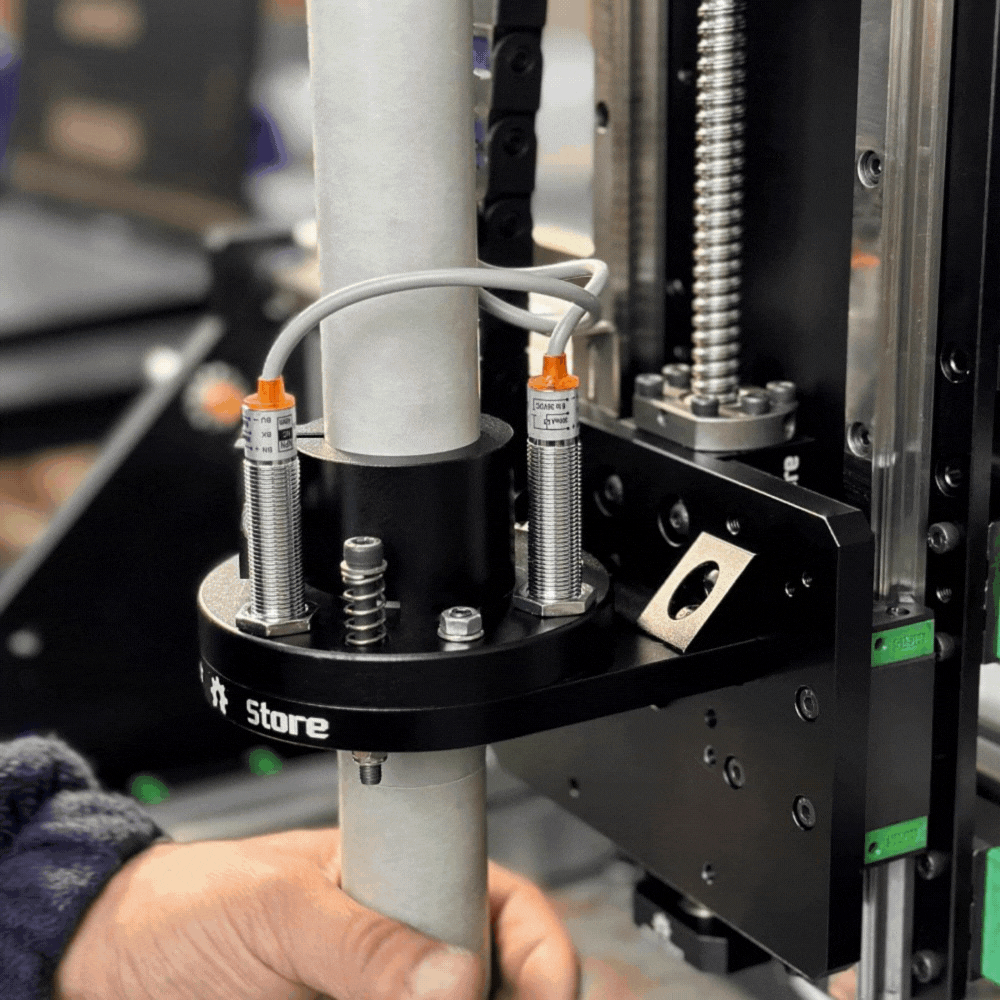

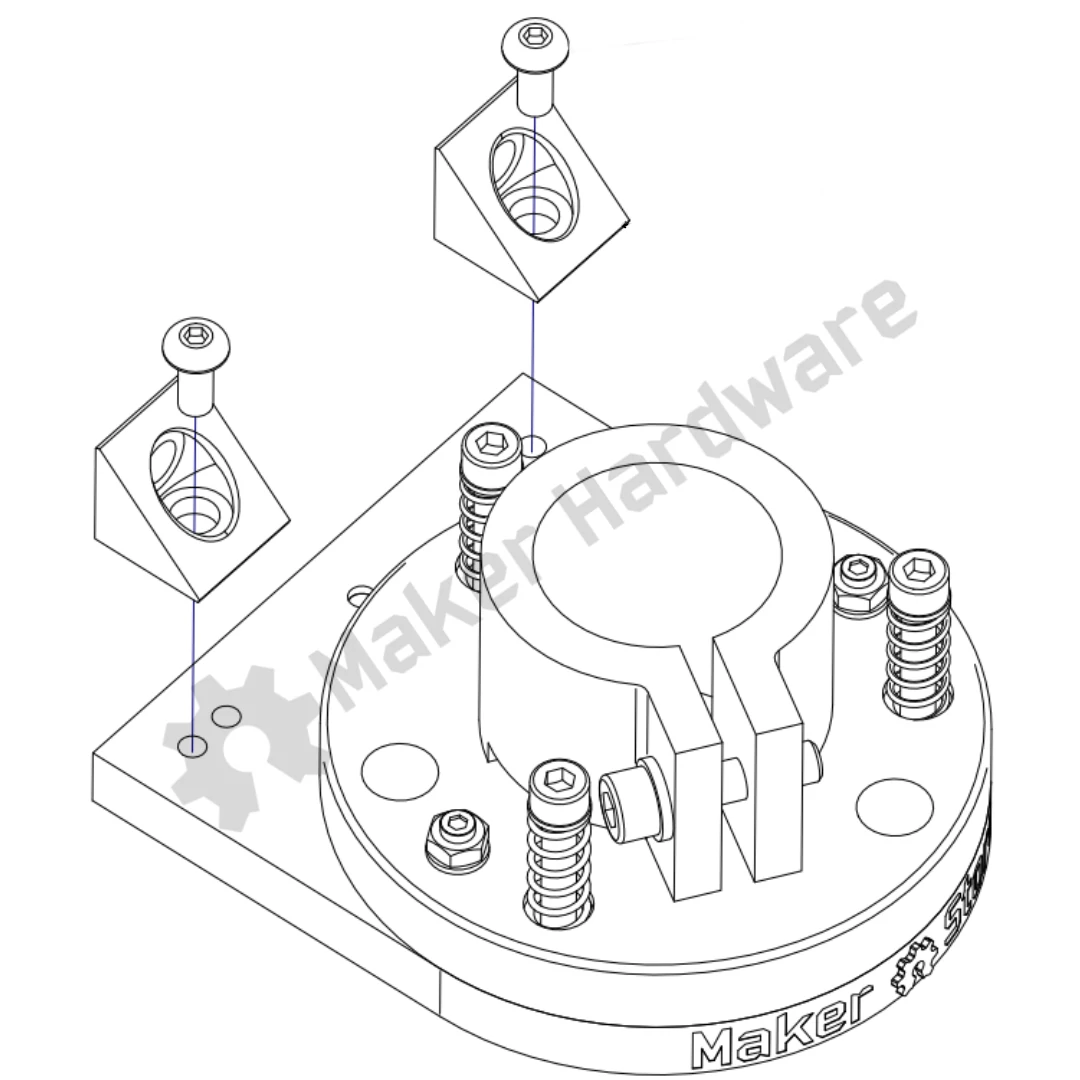

The Plasma Holder With Collision Detection for 35mm Plasma Torch is designed in-house at Maker Store to securely hold your plasma torch in place within the collision detection system. Made from durable Aluminium 6063-T5 with a Powder Coated Matte Black finish, this clamp ensures a firm and stable grip on the torch, allowing for accurate and reliable operation. It features mounting points for three Inductive Proximity Sensors and a central mount for the plasma torch. The clamp works in conjunction with the Collision Detection System Base Plate to provide a complete mounting solution for your plasma CNC machine.

A collision detection system is a crucial safety feature that all plasma machines should have due to its numerous advantages. This system not only safeguards the equipment but also improves the accuracy and quality of your work. By detecting collisions quickly, it helps maintain the integrity of both your machine and the materials being worked on. A collision detection system is a great addition for anyone looking to keep their machine in optimal condition and achieve precise results. Investing in a reliable collision detection system can save you time and money in the long run by preventing costly repairs and downtime.

Looking to enhance your machine’s safety and precision? The Plasma Holder With Collision Detection works seamlessly with our included Inductive Proximity Sensor – NPN NC- LJ12A3-AX. This sensor will enhance the collision detection capabilities of your system, ensuring that any potential issues are detected fast, thereby preventing damage to both your machine and material and ensuring smooth operation.

Use the Collision Detection System in conjunction with the MyPlasm CNC System with Interface which has been specially designed to give you the power and precision you need to take your cutting projects to the next level! This integration ensures that you benefit from advanced features, enhancing both the safety and efficiency of your operations. Below is a connection diagram to show how to connect the proximity sensors, making the setup process straightforward and hassle-free.

General Connection Diagrams

Please Note: This is a general connection diagram, please refer to your machine configuration and design to make the connections.
Click Here for the Connection Diagram

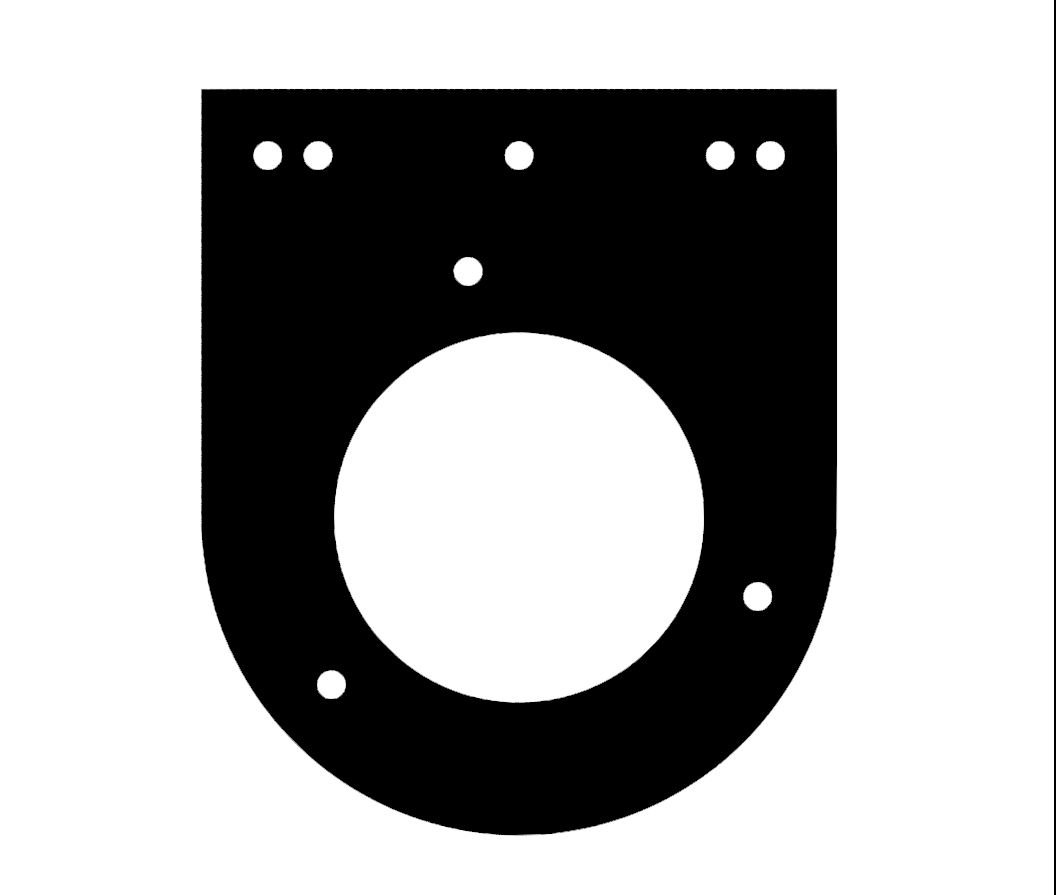

	1x Collision Detection Base Plate

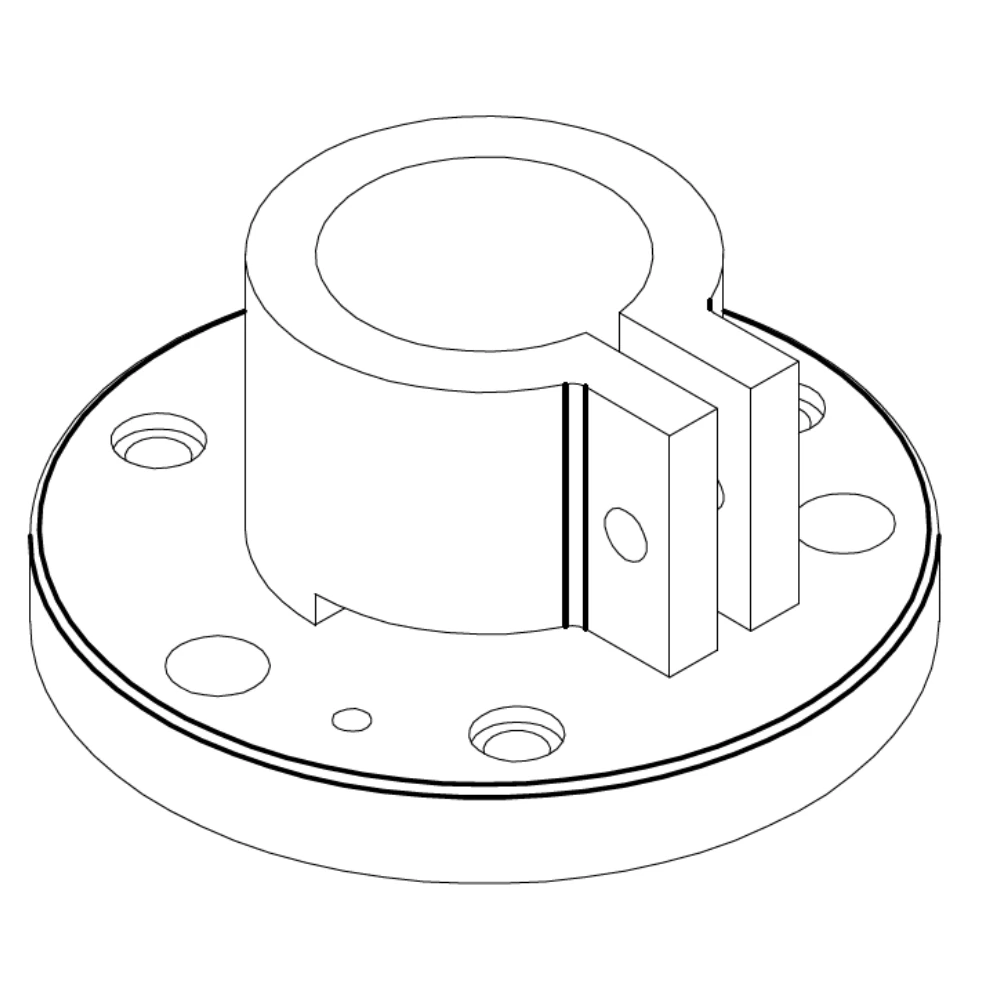

	1x Collision Detection Plasma Mounting Bracket

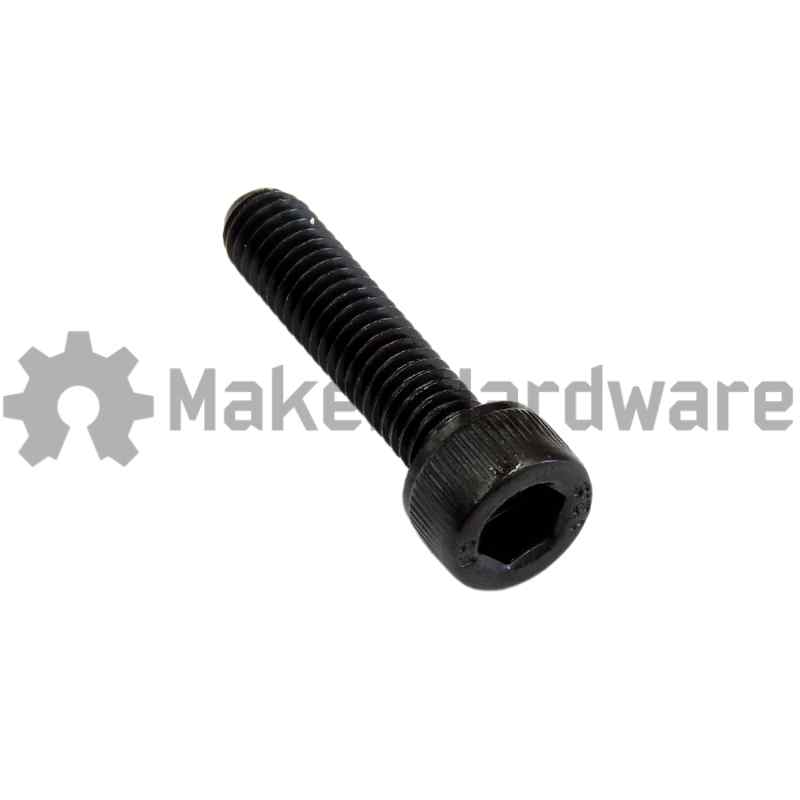

	1x M6 Cap Head Bolts -25mm
	1x Precision Shim 12×6.4×1.6mm

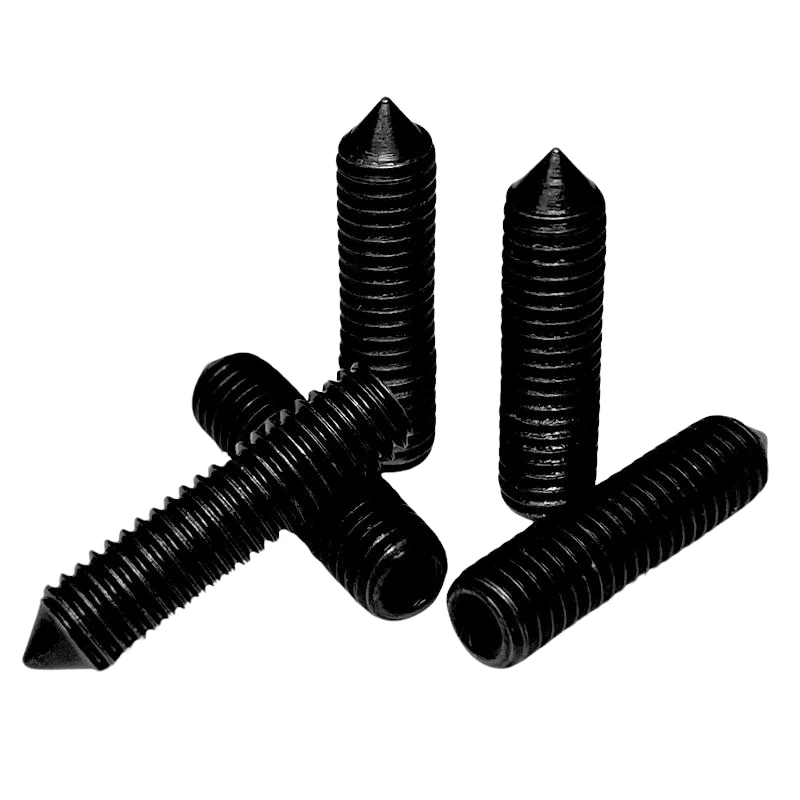

	2x M5 Grub Screw – Point- 20mm

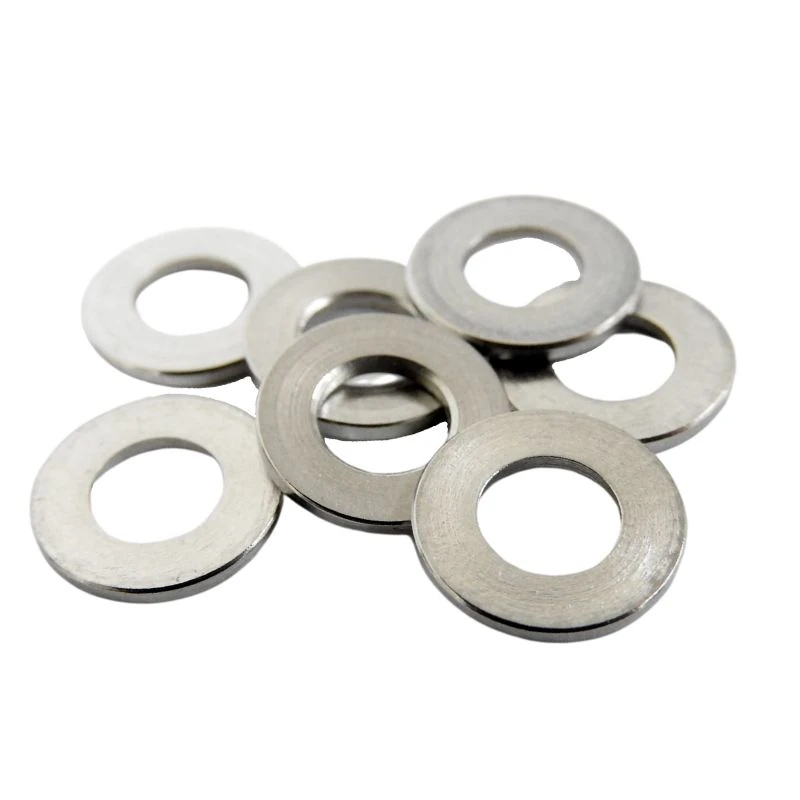

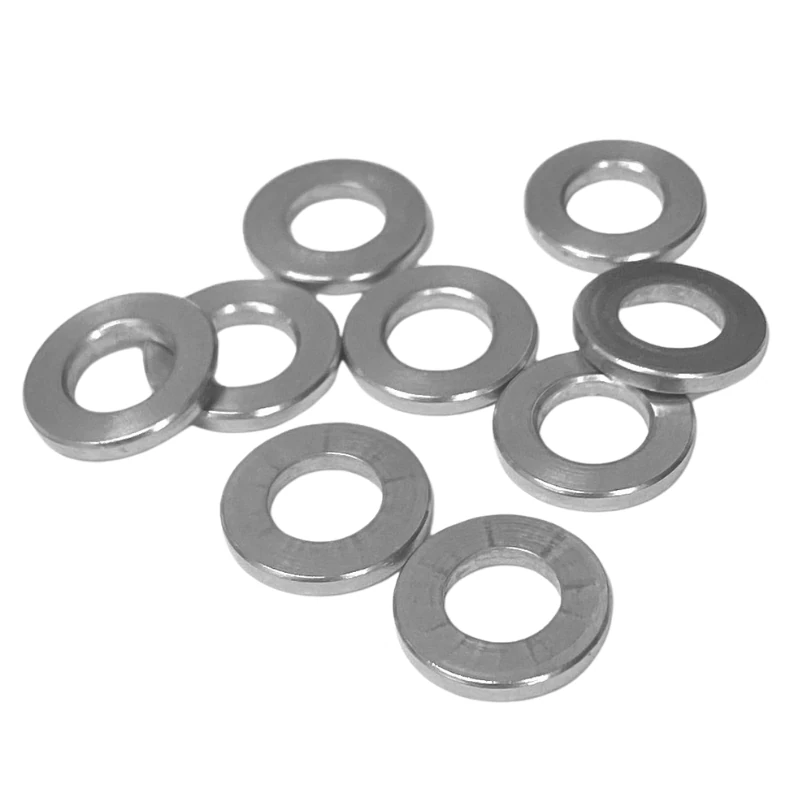

	8x Precision Shim – 10x5x1mm

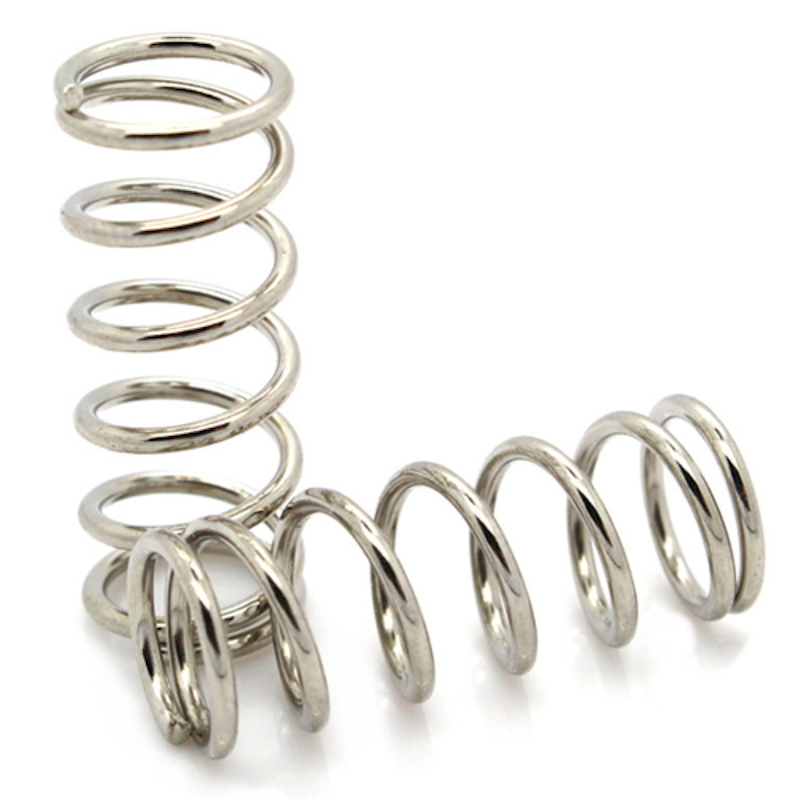

	3x Spring – 1 x 9 x 22mm

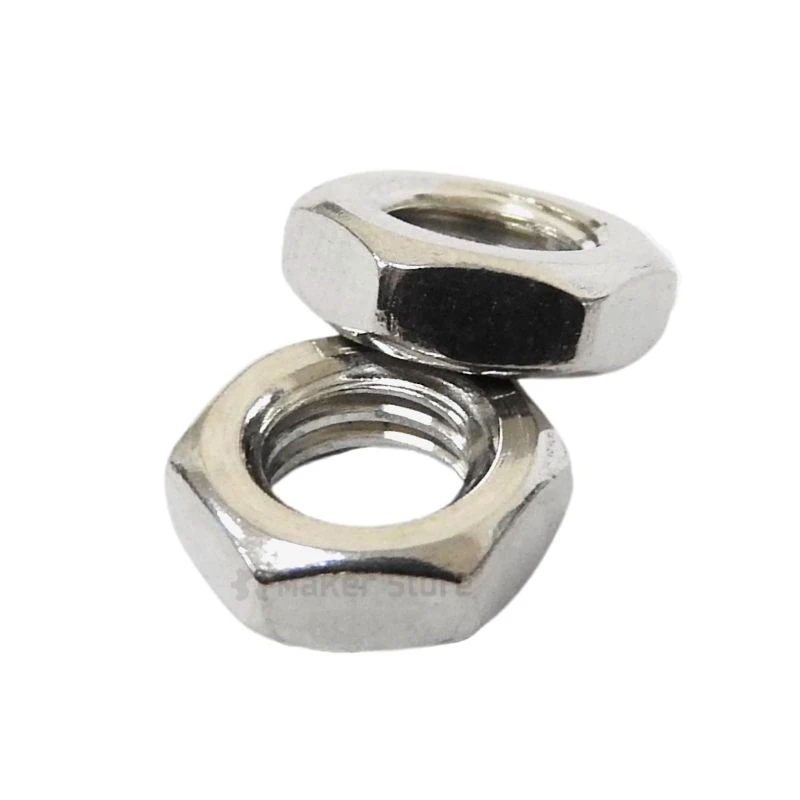

	2x M5 Jam Nuts

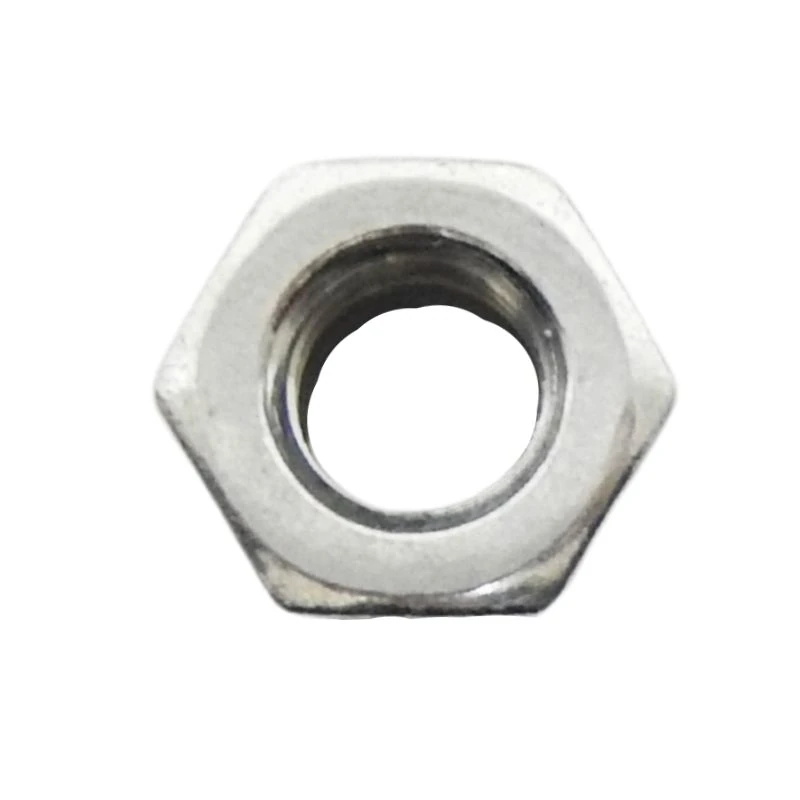

	3x Nylon Insert Hex Locknut – 5mm
	1x Nylon Insert Hex Locknut – 6mm

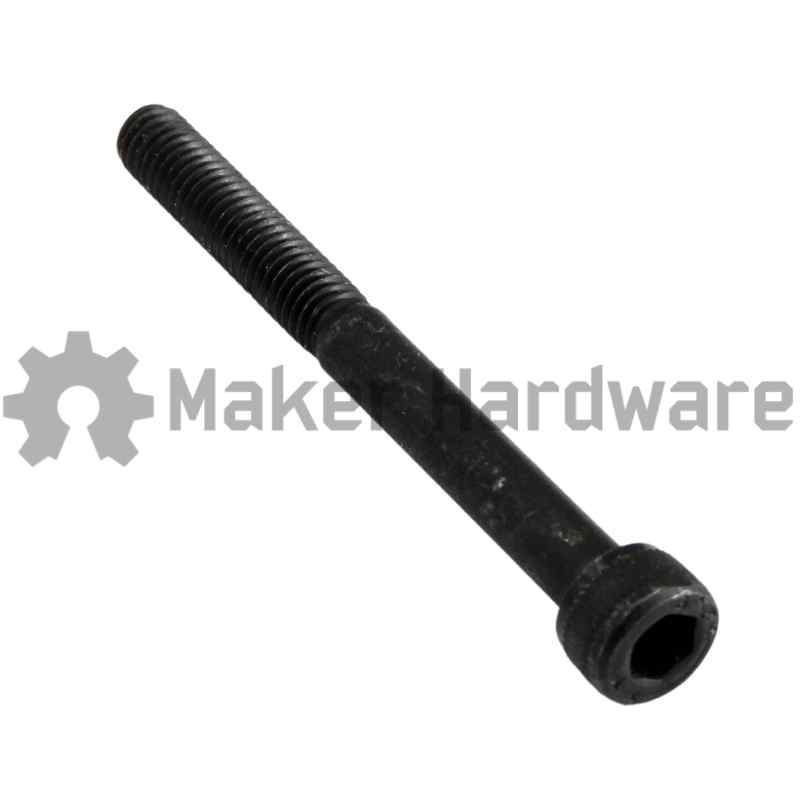

	3x M5 Cap Head Bolt- 50mm

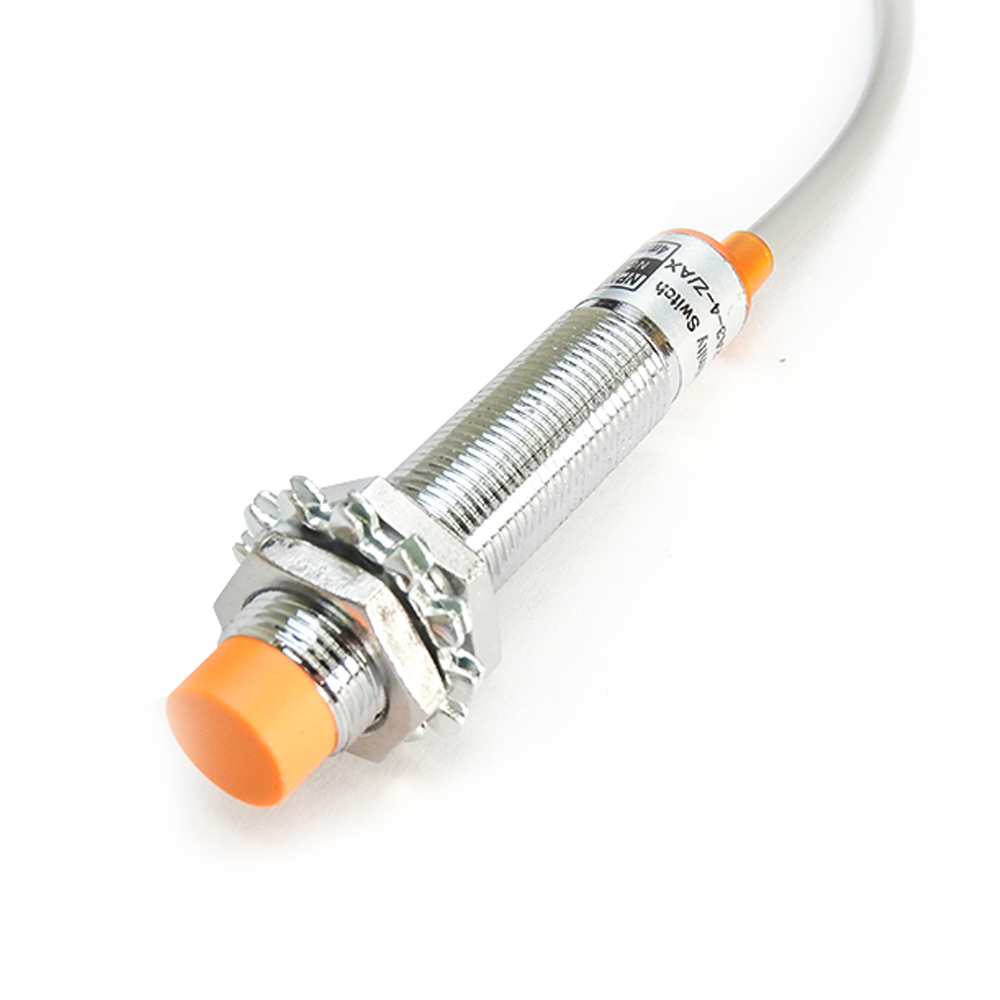

	3x Inductive Proximity Sensor – NPN NC- LJ12A3-AX

Specifications:

Collision Detection Plasma Mounting Bracket

• Overall Dimensions: 95 x 95 x 47 mm
• Material: Aluminium 6063-T5
• Finish: Powder Coated Matte Black

Collision Detection Base Plate

• Dimensions: 111.50 x 95 x 10 mm
• Material: Aluminium 6063-T5
• Finish: Powder Coated Matte Black

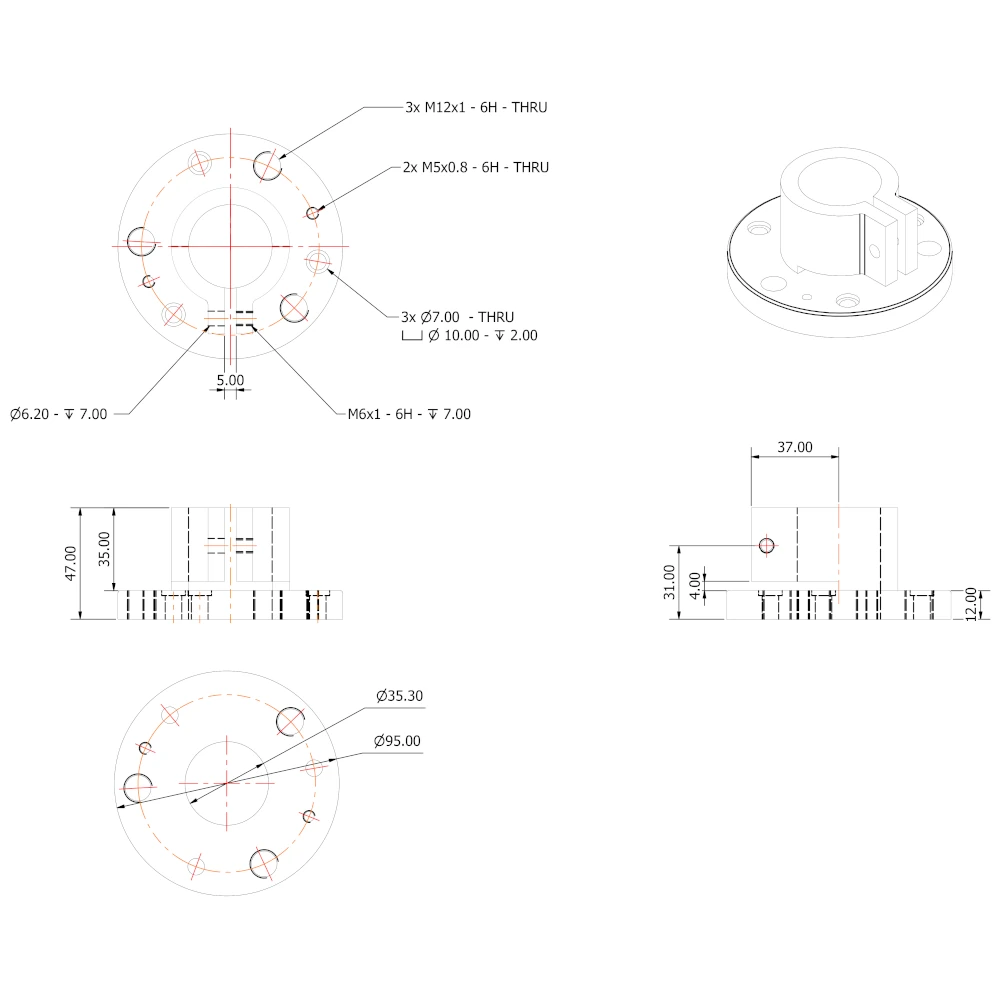

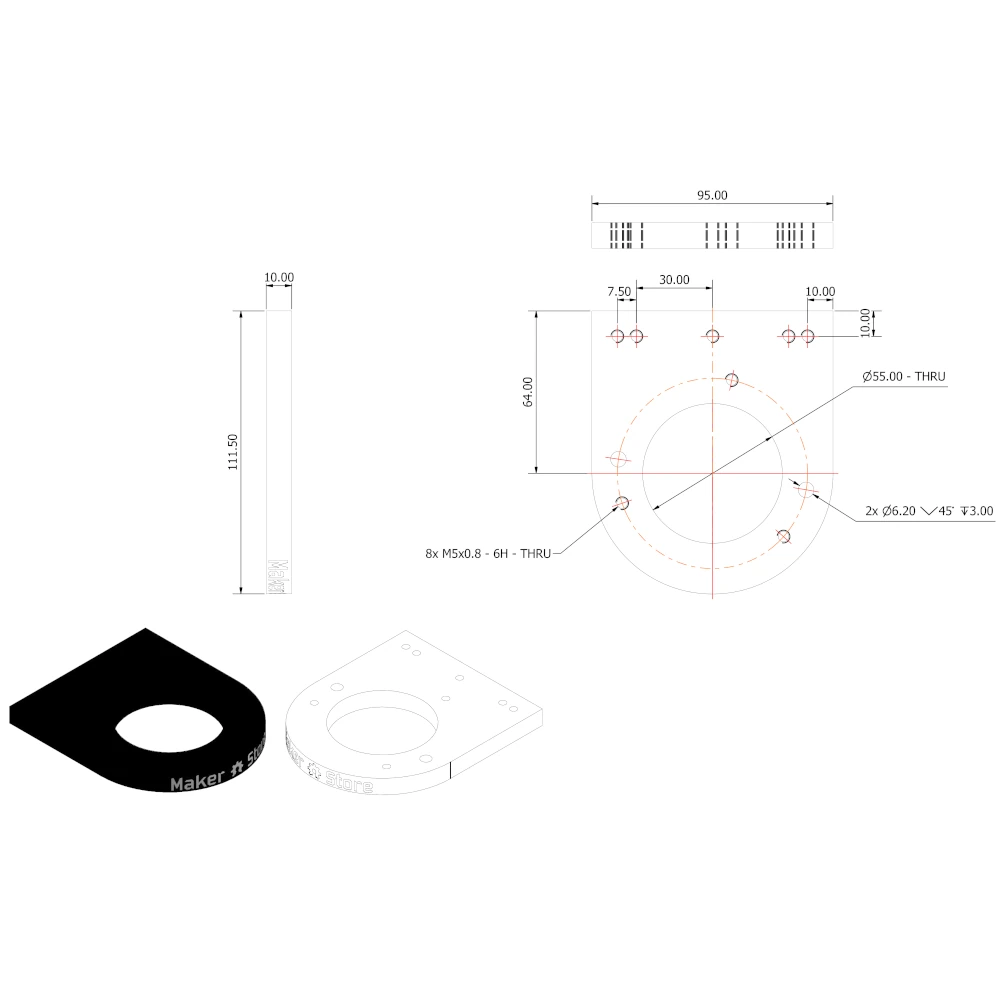

Technical Drawings:

Plasma Holder With Collision Detection Data Sheet:

Click HERE to Download Datasheet
