Name: End Cap 2020 V-slot
SKU: BRAC-ENDCAP
Price: 2.52 AUD
Availability: InStock

End Cap 2020 V-slot

$2.52 Inc. GST

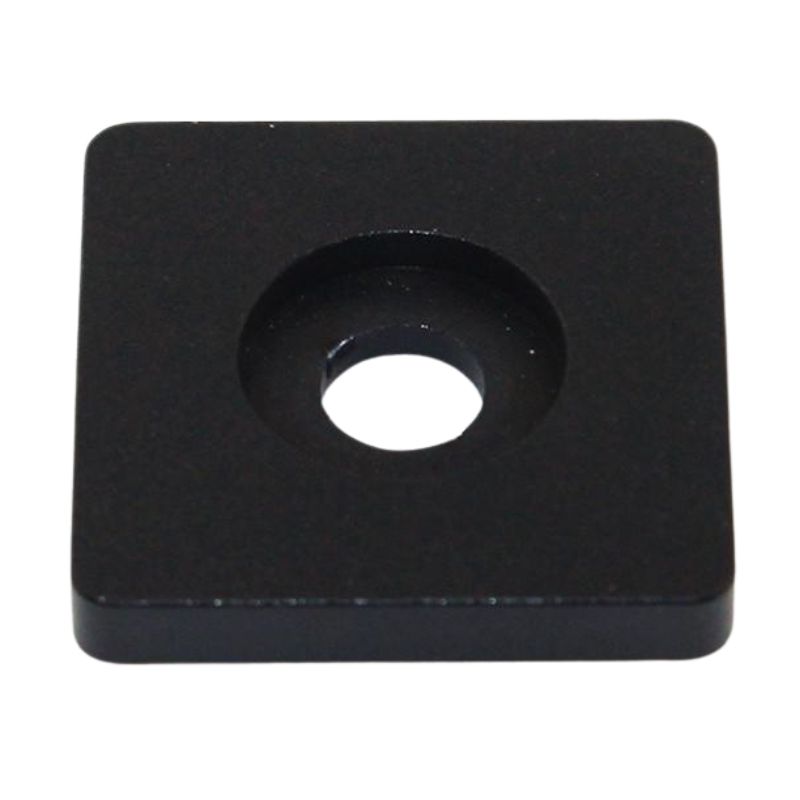

This black anodised aluminium end cap functions as a protective finishing plate to conceal raw cut ends and prevent debris ingress within 2020 V-Slot aluminium extrusion profiles. Featuring a stackable layout, it adapts across multiple extrusion combinations to provide a uniform, flush finish that maintains an unobstructed profile for adjacent moving components or machinery enclosures. Typical applications include serving as enclosure points on modular industrial machinery, custom workstations, automated test jigs, and desktop 3D printer structures. The component seals internal channels against contamination while ensuring visual consistency across automated equipment frames.

Compatible With

In stock

Description

Technical Overview

The 2020 V-Slot end cap functions as a protective finishing component for 2020 aluminum extrusion profiles. Specifically, you mount this component directly onto the exposed raw ends of an extrusion rail. Consequently, the cap conceals sharp edges and prevents debris from entering the internal channel profile. Ultimately, this simple installation completes the raw structure.

Furthermore, this plate features a unique stackable design layout. In contrast to single-profile caps, you can adapt this hardware across multiple extrusion combinations. Because of this configuration, builders can establish a clean aesthetic finish across different rail sizes. As a result, the flat surface creates an unobstructed external profile for adjacent moving components or final machinery enclosures.

Applications

Generally, builders install linear extrusion end caps across many different projects. For example, these include modular industrial machinery, custom workstations, automated test jigs, and desktop 3D printer structures. On these frames, the caps serve as clean enclosure points. Therefore, they block foreign objects and contamination from collecting inside the inner extrusion channels.

During installation, you align the cap directly with the end profile of a 2020 rail segment. Next, you pass fasteners through the predefined mounting holes. This action secures the flat plate tightly against the raw metal face. Furthermore, the black anodized surface treatment perfectly matches standard framing elements. Thus, the component ensures visual and functional consistency across light-to-medium automated equipment frames.

Maker Store Tips and Tricks

Use button head or low-profile screws to keep the outer face as flat as possible during final framing.
Verify that your fastener thread engagement depth perfectly accounts for the 3mm thickness of this aluminum plate to achieve a rigid mount.
Tighten the mounting screws evenly to ensure uniform clamping pressure and avoid angling the plate relative to the rail face.
