Description

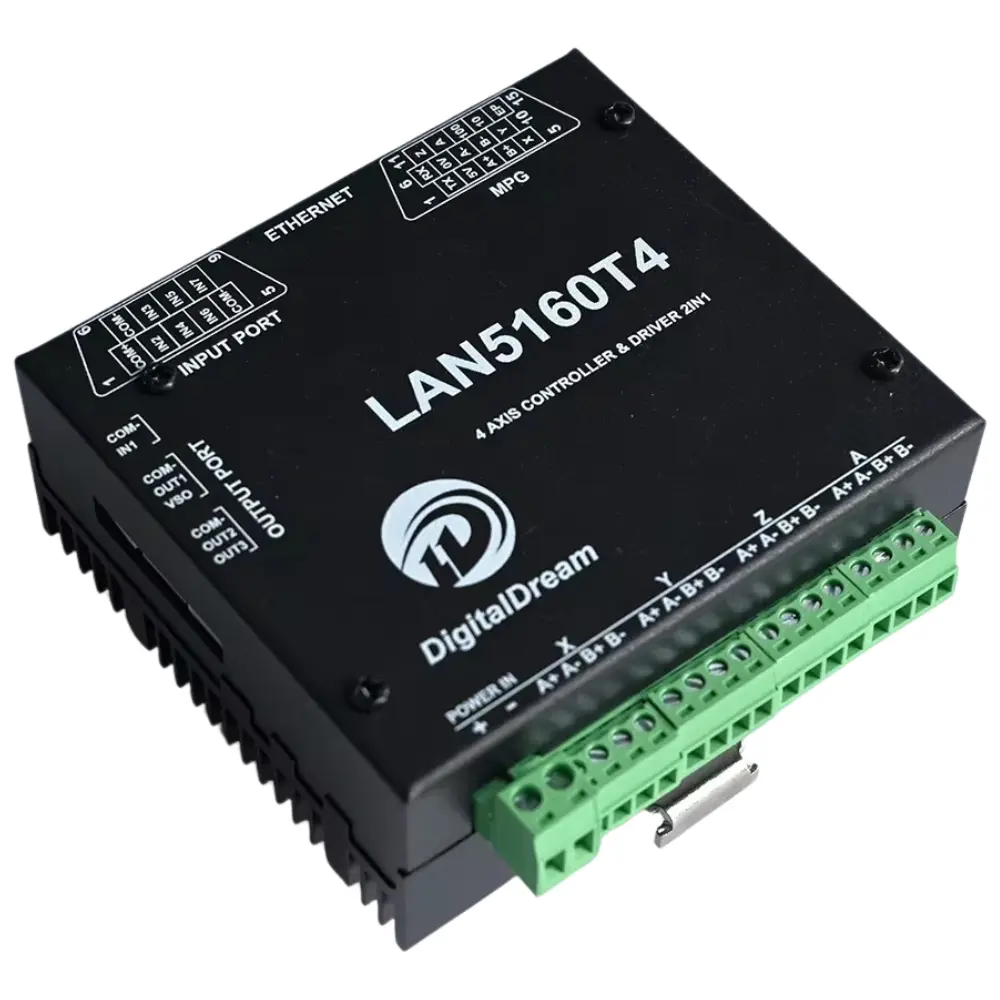

Introducing the Mach 3 4-Axis Ethernet CNC Motion Control Board
A cutting-edge four-axis drive control board developed by Digital Dream. It is a versatile 2-in-1 Mach 3 controller and driver, eliminating the need for additional motor drives. Designed for 4-axis CNC milling machines, it integrates a CNC motion controller and 4-axis stepper drivers into a single, compact board. This all-in-one design simplifies installation, ensures seamless compatibility with a variety of stepper motors, and saves valuable space by combining the Mach3 control card and stepper drivers into one unified system. Communication with Mach3 software is handled efficiently via Ethernet, providing reliable and fast performance.

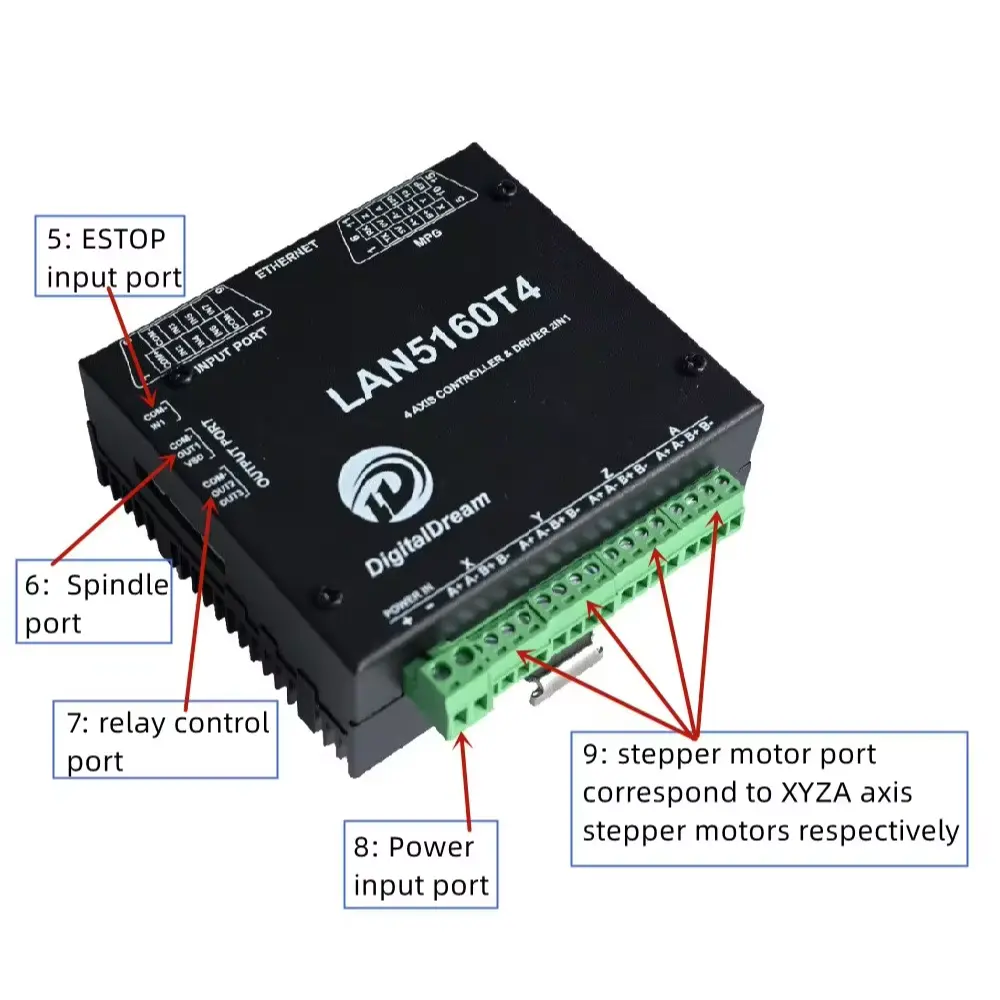

Features of the Mach 3 4-Axis Ethernet CNC Motion Control Board
- Supports Ethernet communication
- 7 digital input ports
- 3 digital output ports
- 1 analog spindle speed output port (0-10V) that can be switched to PWM output
- Supports 4-axis stepper motor systems with a 300KHz pulse output for each axis
- ARM-based motion control chip

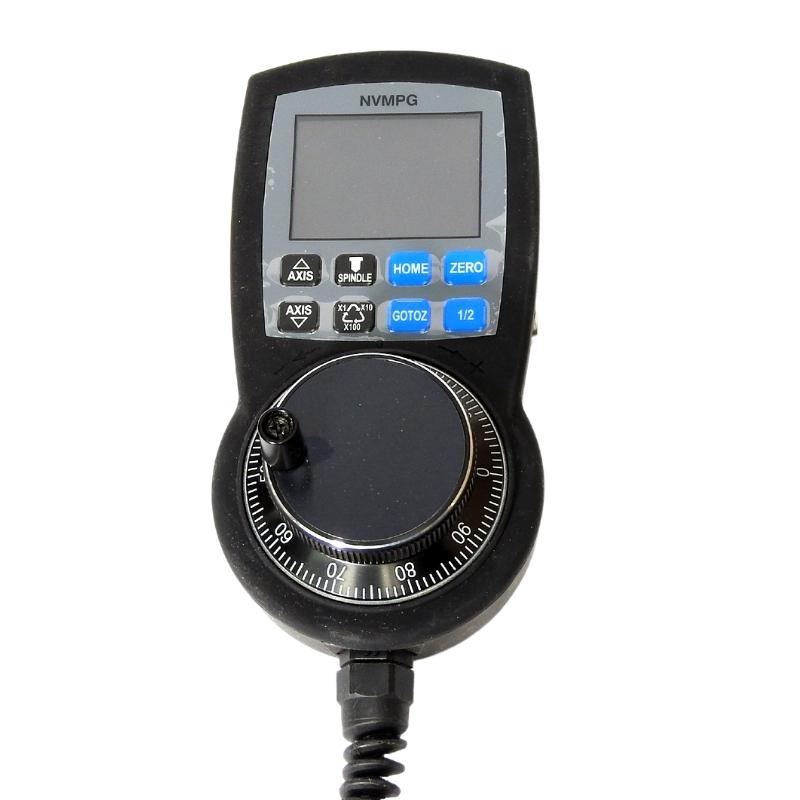

- Compatible with MPG
- Each axis driver supports up to 1/256 micro stepping
- Each axis driver supports up to 6A current
- Adjustable static current, running current, and micro stepping settings via the Mach3 plug-in interface
Specifications
- Controller Type: Mach3 Motion Controller & Stepper Driver 2-in-1
- Axis: 4 Axis
- Maximum Output Frequency: 300KHz for each axis
- Communication Methods: Ethernet
- Input Interface: 7 ports
- Output Interface: 3 ports
- Spindle Control: Analog Voltage Output 0-10V (can be changed to PWM)
- Control Cycle: 2ms

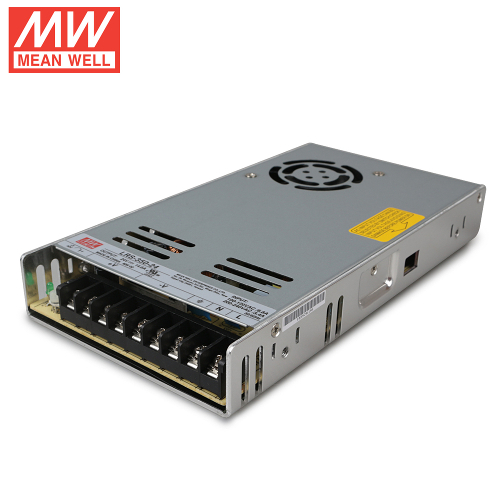

- Power Supply: 24VDC
Don’t Forget The Mach 3 Software
Mach3 turns a typical computer into a CNC machine controller. It is very rich in features and provides great value to those needing a CNC control package.
Mach3 works on most Windows PCs to control the motion of motors (stepper & servo) by processing G-Code.
While comprising many advanced features, it is the most intuitive CNC control software available. Mach3 is customizable and has been used for many applications with numerous types of hardware.
Resources
Mach 3 – LAN5160T4 Plugin
The LAN5160T4 is a motion controller that interfaces with CNC software like Mach3. You need to download the plugin to use Mach3 with the LAN5160T4 controller to ensure seamless communication between the Mach3 software and the hardware controller.
Click HERE to Download PluginUser Manual
Click HERE to Download ManualQuick Start Guide
Learn how to interface the LAN5160T4 Controller with your CNC machine. Click the image below to be directed to the user manual.
