Panel Mount Emergency STOP Button N/C Switch

Name: Panel Mount Emergency STOP Button N/C Switch
SKU: ELEC-ESTOP-PM
Price: 5.25 AUD
Availability: InStock

$5.25 Inc. GST

Essential to all builds is a big red STOP switch. Easy to see and hit in an emergency.

When pushed it will latch in the down position and must be rotated to be released. This helps prevent accidental re-activation.

In stock

Description

Essential to all builds is a big red STOP switch. Easy to see and hit in an emergency.

When pushed it will latch in the down position and must be rotated to be released. This helps prevent accidental re-activation.

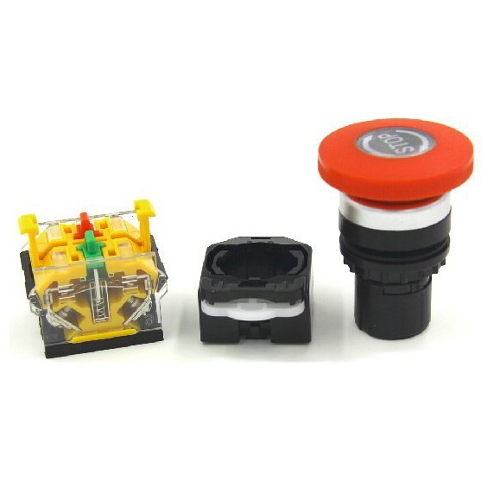

It is a panel mount E-Stop switch so you can mount to your custom case. The mushroom button can easily be removed for mounting.

Protection Level: IP65
Contact Type: 1NO1NC
Max. Current: 10A
Max. Voltage:240V
Switch Rating:
- AC: 15 36V / 10A 110V / 10A 220V / 5A 380V / 2.7A 660V / 1.8A
- DC: 13 24V / 4A 48V / 4A 110V / 2A 220V / 1A 440V / 0.6A
Contact Resistance: ≤50mΩ
Insulation resistance: ≥10mΩ
