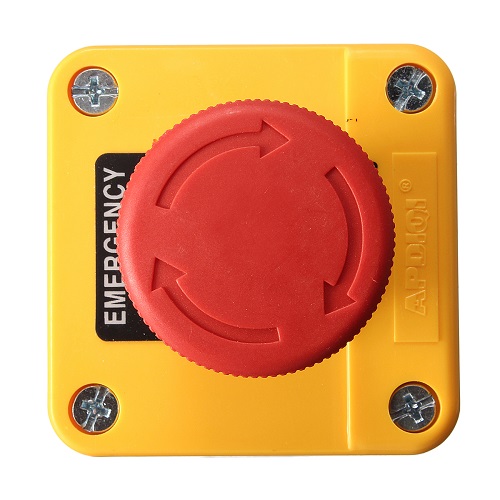

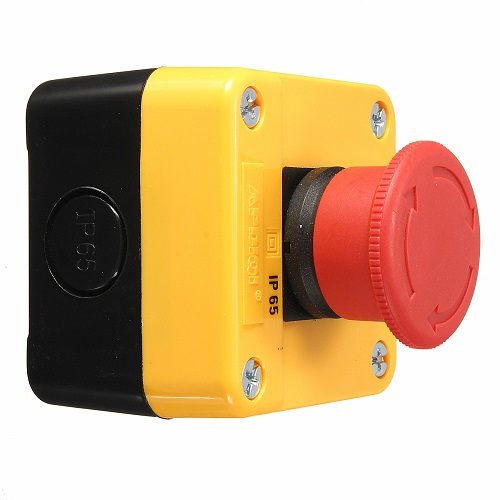

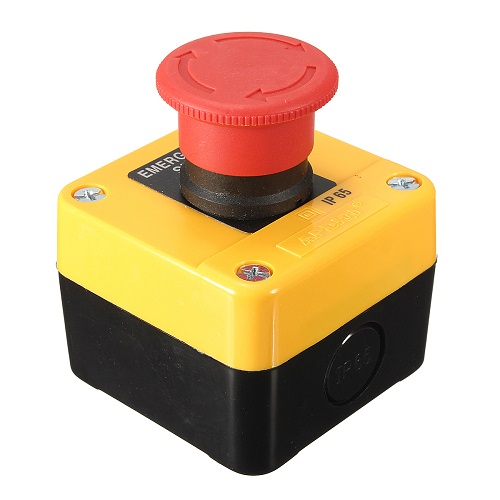

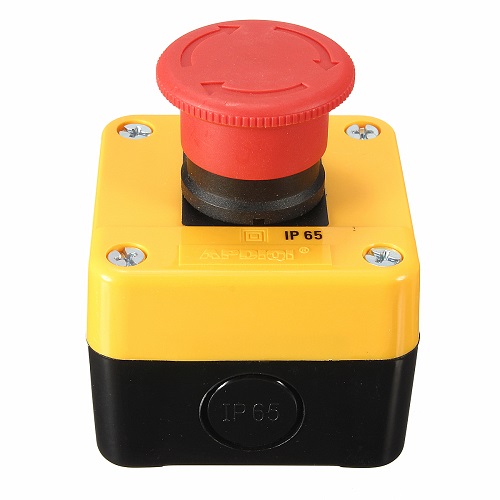

Emergency STOP Button N/C Switch

$8.95 Inc. GST

Essential to all builds is a big red STOP switch. Easy to see and hit in an emergency.

When pushed it will latch in the down position and must be rotated to be released. This helps prevent accidental re-activation.

In stock

LCN: E-04-V / H-13-R SKU: ELEC-ESTOP Categories: , , , , , Tags: , , , , , , , ,

Description

Essential to all builds is a big red STOP switch. Easy to see and hit in an emergency.

When pushed it will latch in the down position and must be rotated to be released. This helps prevent accidental re-activation.

Specifications:

  • Diameter of Red Mushroom: 40 mm
  • Contact Configuration: 1NC
  • Turn to release type
  • Dimension: 66mm X 66m
  • Torque: 0.9 NM’s
  • Waterproof and Impermeable IP65
  • Mechanical Life: 300,000
  • Current rating: 10A

Additional information

Weight .16 kg
Dimensions 7 × 7 × 9 cm
