Description

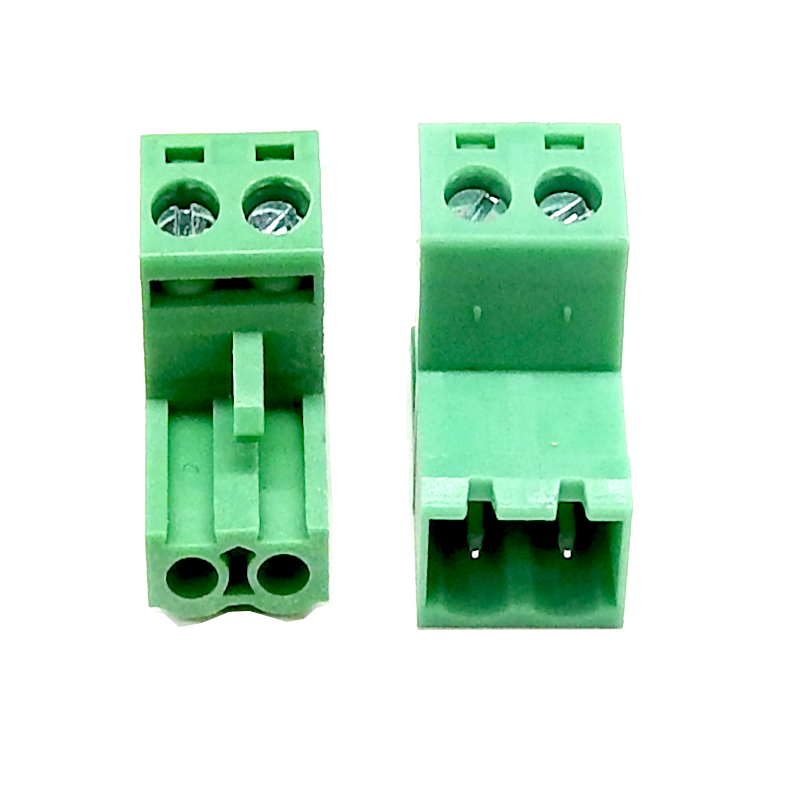

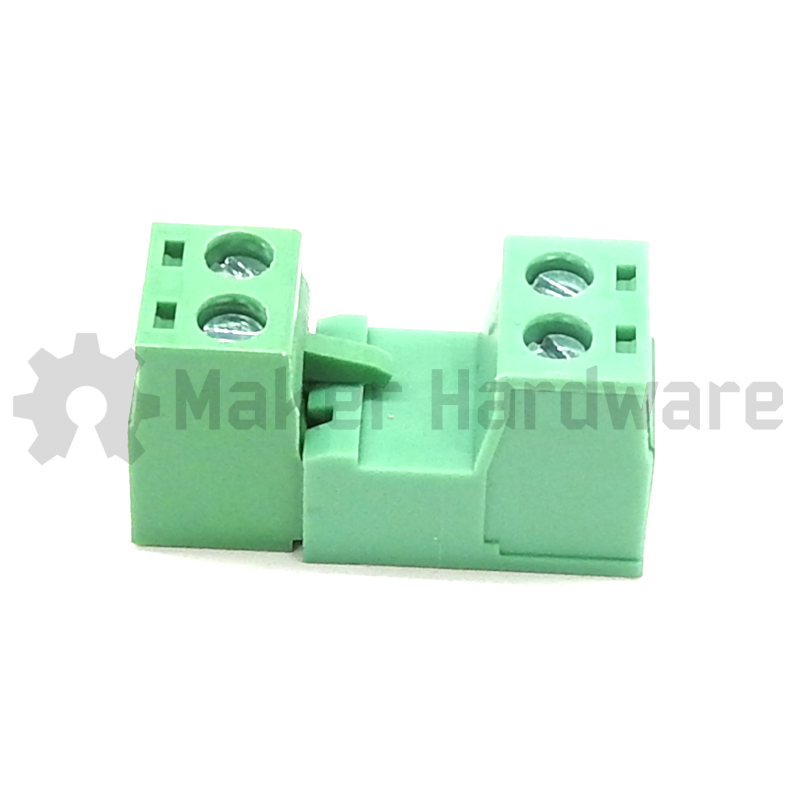

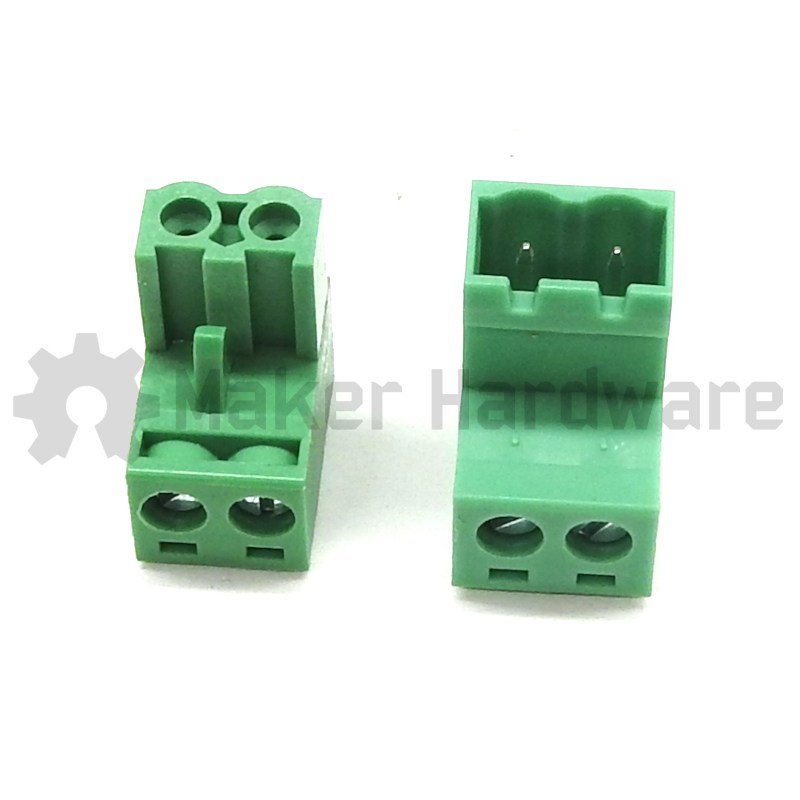

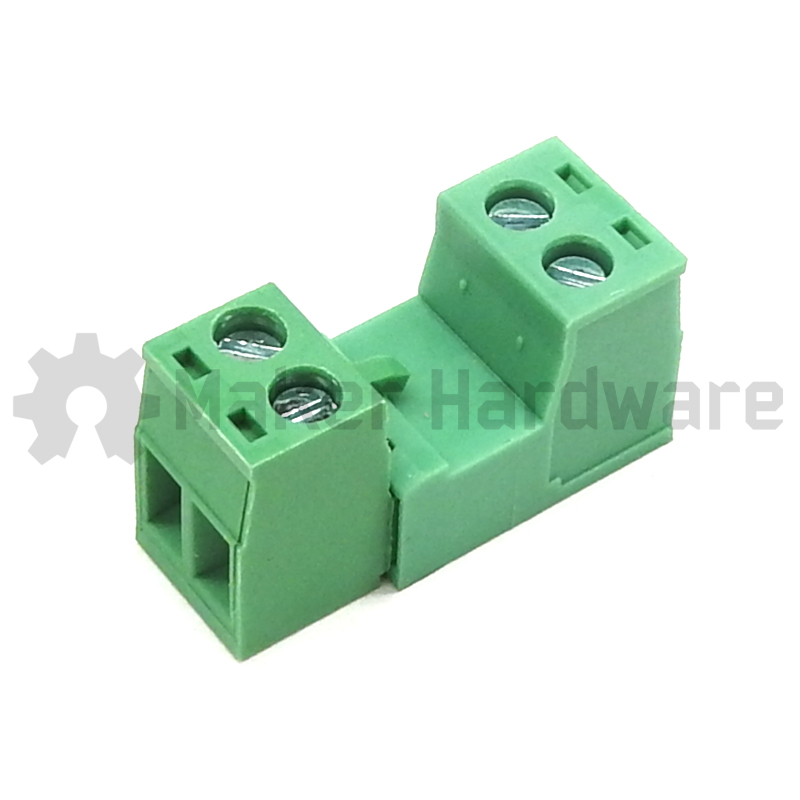

These Plug-in Connector Terminal Blocks are a simple and efficient and method of terminating your electrical connections.
These Connector Blocks comes in a pair of Male and Female connectors. Distance between the centre of each terminal is 5.08mm
Specifications:
- SKU: ELEC-EDG-P-508

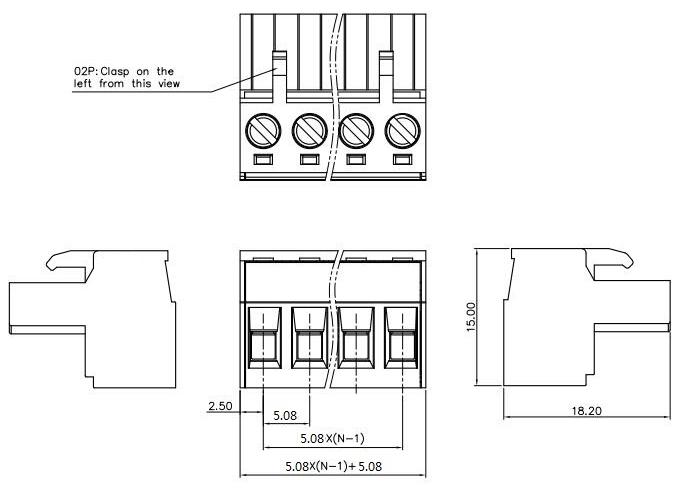

- Distance between contacts (centre): 5.08mm
- Terminal orientation: Straight
- Connector type: Plug terminal block
- Connector kind: Male / Female
- Pieces: 2
- Terminal type: Cage clamp, Screw terminal (flat head)
- Colour: Green
- Rated voltage: 300V
- Rated Current: 10A
- Locking system: Friction lock
- Operating temperature: -40-105°C
- Terminal size: Suitable for 2.5mm² wire
- Housing material: PA66
- Recommended stripping length 7-8mm
- Number of terminals (poles): 2 Pin
Pro Tips:
- For stranded wire: Strip wire to appointed length, mate with the corresponding type of ferrule or lug. Alternatively tin ends with solder.
- Tighten by hand, do not use power tools.
