Description

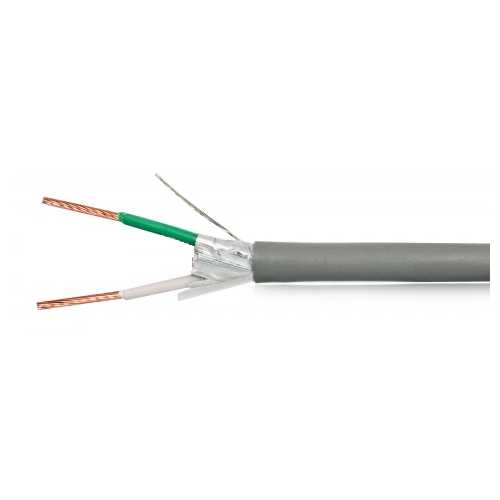

Shielded 2 Core Cable 7/0.2
This cable can be used with our limit switches and limit switch kits. The shielding reduces the signal noise and helps eliminate false triggers.
Note:
Sold by the meter. If you order 5 meters, you will receive one 5-meter length.
Colours of internal and external wires are subject to change.
Details:
- Number of Cores: 2
- Conductor No/Dia (mm): 7/0.2
- Nominal Area (mm2) per core: 0.22
- Amp Rating: 1.4
- Insulation Thickness (mm): 0.3
- Sheath Thickness: 0.76
- Electrical Resistance @20°C ohm/km: 88.2
- Nominal OD (mm): 4.2
- Sheath Colour: Grey
Screen:
- Aluminium / Polyester Laminate Tape Screen with a 7/0.2mm Tinned Copper Drain Wire
Colours indicative only.
NOTE:
- Maximum working voltage 300 Volts
- Not Suitable For Connection To Mains Power GPO
- AUSTEL APPROVED A93/CA/0111
