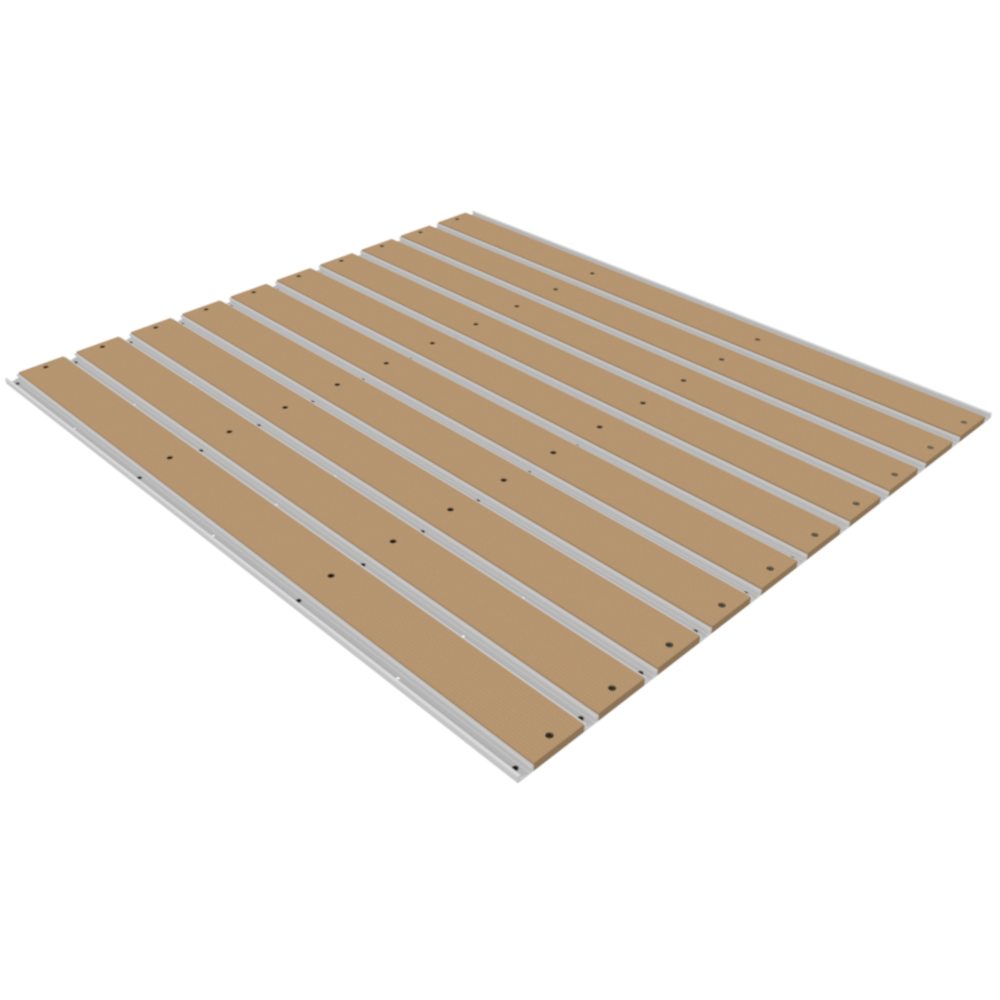

Spoiler Board For Outback CNC – 1500x1500mm
Spoiler Board 1500×1500 is specifically designed for the OutBack CNC 1500x1500mm, combining a robust MDF working surface with precision T-Tracks for enhanced clamping flexibility. This versatile solution is perfect for woodworkers, makers, and CNC enthusiasts who require accuracy and durability in every project
The spoiler board features high-quality 16mm MDF sheets and custom T-Tracks to provide a smooth, flat, and customizable work surface for routing, milling, and engraving. The integrated T-Track system allows for quick and secure clamping of workpieces, ensuring efficiency and precision throughout your operations.
Features:
- Durable Material: Made from premium MDF for strength, flatness, and stability.
- Protective Function: Shields your CNC bed and tooling from wear and tear during operation.
- Easy to Replace: Pre-cut and ready for installation—ensures minimal downtime.
- Work Surface Support: Provides a smooth, level surface for accurate cuts and engravings.
Benefits:
- Enhanced Workpiece Clamping: Custom T-Tracks make securing materials fast, flexible, and precise.
- Long-Lasting Solution: High-quality MDF and robust hardware ensure durability.
- Protection for CNC Machine: Safeguards your CNC bed and tooling during through-cuts and engraving operations.
- Easy Installation: Pre-configured drilling patterns and provided hardware make setup quick and efficient.
Why Choose This Spoiler Board?
The Spoiler Board 1500×1500 mm is designed with precision and practicality in mind. It combines a strong MDF surface with a fully integrated T-Track clamping system, enabling flexibility and reliability for any CNC project.
Bill Of Materials
| QUANTITY | ITEM DESCRIPTION | PART SKU |
|---|---|---|
| 10 | MDF Sheet 100-103x1500x16mm-OTB | MAT-MDF-16X100-103X1500MM-OTB |
| 11 | Maker Store Custom T-TRACK 1500mm | T-TRACK-MS-S-1500 |
| 55 | M5 Low Profile Screws 8mm | SCREWS-M5-LP-8-1 |
| 5 | M5 Cap Head Bolts 12mm | BOLT-M5-CAP-012-10PC |
| 55 | Sliding T-Nut | HARD-TNUT-SLIDING-M5 |
| 50 | Spring Loaded Tee Nut – M5 | HARD-TNUT-SPRING-1PC |
| 11 | T-Track Drilling Pattern – 1500 – OTB | T-TRACK-CUSTOM-20S-1500-OTB |
| 4 | Hold Down Clamp – Type 30 T-Track | T-TRACK-HDC-V2 |
Note: This kit includes all the necessary hardware to construct a robust Spoiler Board 1500x1500mm, designed specifically for the OutBack CNC 1500x1500mm setup.
The OutBack CNC Machine are sold separately. Click here to learn more about the OutBack CNC Machine.
