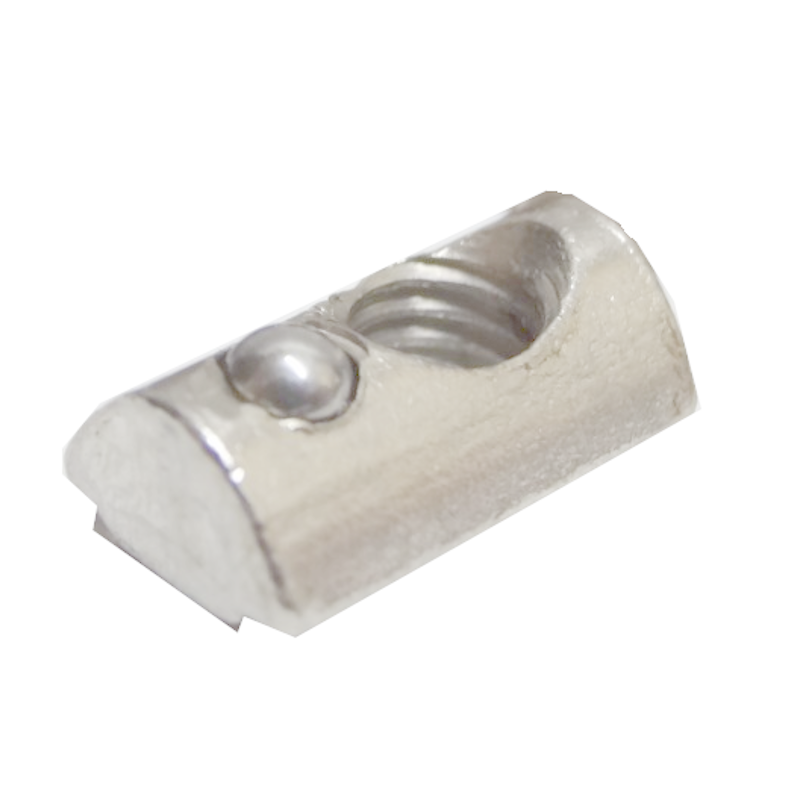

Spring Loaded Tee Nut – M5

Name: Spring Loaded Tee Nut - M5
SKU: HARD-TNUT-SPRING-1PC
Price: 0.55 AUD
Availability: InStock

$0.55 Inc. GST

This M5 threaded fastener is designed for use within aluminium extrusions, specifically matching standard V-slot or T-slot rail profiles. The component incorporates an integrated spring-loaded ball or leaf mechanism that exerts tension against the internal channel walls to prevent shifting or gravitational slippage during vertical or multi-axis frame construction. Featuring a roll-in insertion profile, the nut can be angled directly into the rail face at any point along an established structure, eliminating the requirement to dismantle existing assemblies. Typical applications for this component include the construction and modification of 3D printers, CNC routers, laser cutters, robotics frames, automated systems, and modular industrial workstations.

Compatible With

In stock

LCN: E-04-S SKU: HARD-TNUT-SPRING-1PC Categories: 20 Series V-Slot, 20 Series V-Slot Hardware Tags: 20S Hardware, M5, Spring, Spring Loaded, T-nut, tee nut, tnut

Description
Additional information

Description

Technical Overview

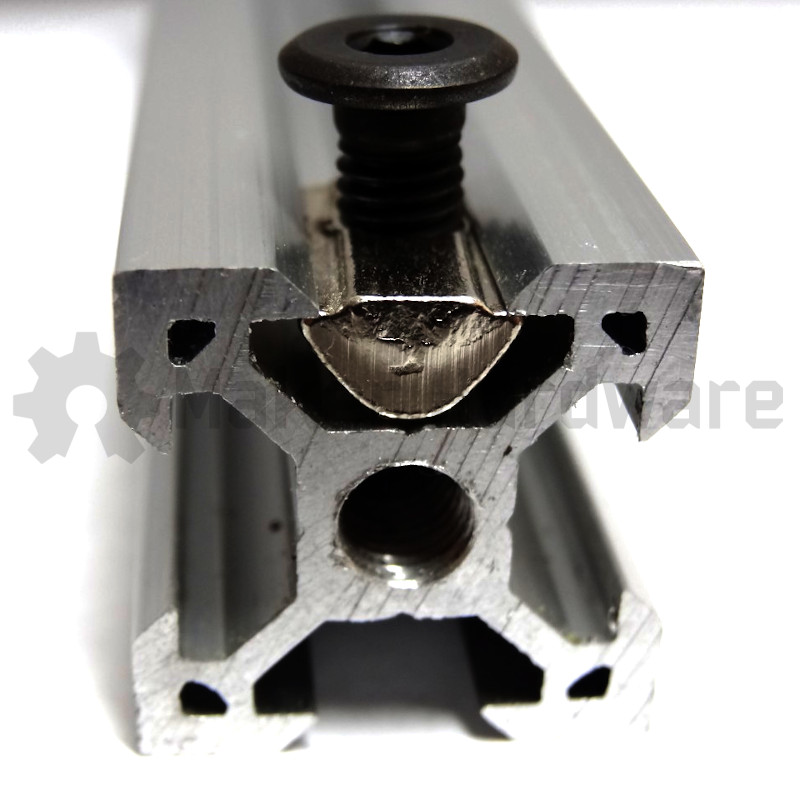

The Spring Loaded Tee Nut – M5 provides a specialized fastening solution for aluminum extrusions, such as V-Slot or T-Slot rails. To achieve this, it utilizes an integrated spring-loaded ball or leaf mechanism that actively applies tension against the inner profile wall. Consequently, this mechanism prevents the nut from sliding or falling out of the extrusion groove under gravity during assembly. Ultimately, this smart design ensures secure positioning and reliable retention within aluminum profiles while you assemble structural frames and mechanical systems.

Applications

Builders highly favor this spring-loaded tee nut when attaching components at vertical or awkward angles, especially since these setups require precise position adjustments without loosening surrounding hardware. Furthermore, because the nut features a roll-in insertion design, you can angle and insert it directly into the rail face at any point. As a result, you can easily add new components to a pre-built frame without dismantling the existing structure.

Accordingly, typical applications include:

3D Printers: Where precise, reliable frame adjustments are crucial.
CNC Routers and Lasers: To maintain stability under vibrant mechanical movement.
Robotics and Automation Frames: Facilitating rapid prototyping and structural modifications.
Custom Workstations: Allowing users to easily reposition shelves, mounts, or accessories.

Technical Specifications

Specification	Value
Threading	M5 (compatible with standard M5 bolts or screws)
Mechanism	Spring-loaded ball or leaf
Insertion Type	Roll-in (can be angled directly into the rail face)
Compatibility	V-Slot or T-Slot aluminum extrusions

Maker Store Tips and Tricks

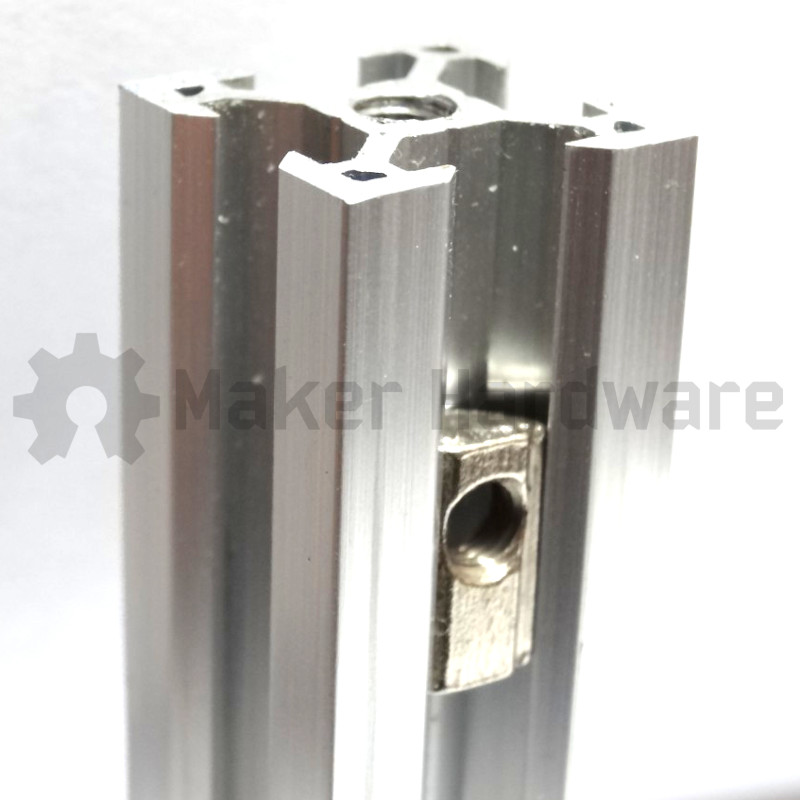

Roll-In Insertion: Angle the nut directly into the face of the slot at any point on the rail, eliminating the need to slide hardware in from the open ends of the profile.
Tension Alignment: Check that the spring-loaded mechanism is fully seated against the inner channel wall to guarantee the nut stays firmly in position before fastening hardware.
Thread Engagement: Ensure your M5 bolts match the proper depth requirement so they pass smoothly into the nut without pushing the spring assembly out of its alignment track.
