Description

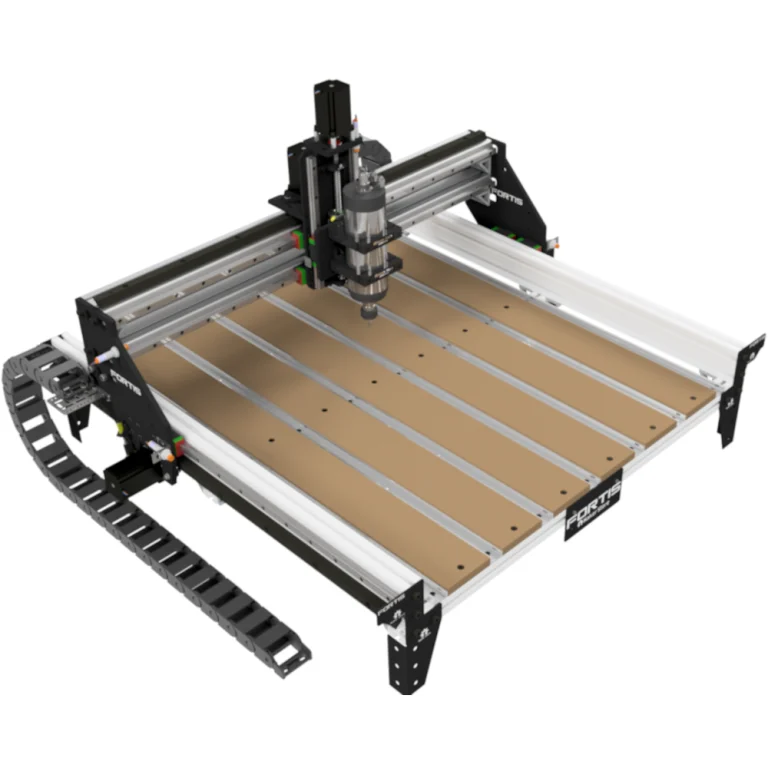

Spoiler Board For FORTIS CNC – 1000x1000mm
The Spoiler Board 1000x1000mm is specifically designed for the FORTIS Router CNC 1000x1000mm, combining a robust MDF working surface with precision T-Tracks for enhanced clamping flexibility. This versatile solution is perfect for woodworkers, makers, and CNC enthusiasts who require accuracy and durability in every project
The spoiler board features high-quality 16mm MDF sheets and custom T-Tracks to provide a smooth, flat, and customizable work surface for routing, milling, and engraving. The integrated T-Track system allows for quick and secure clamping of workpieces, ensuring efficiency and precision throughout your operations.
Features:
- Durable Material: Made from premium MDF for strength, flatness, and stability.
- Protective Function: Shields your CNC bed and tooling from wear and tear during operation.
- Easy to Replace: Pre-cut and ready for installation—ensures minimal downtime.
- Work Surface Support: Provides a smooth, level surface for accurate cuts and engravings.
Benefits:
- Enhanced Workpiece Clamping: Custom T-Tracks make securing materials fast, flexible, and precise.
- Long-Lasting Solution: High-quality MDF and robust hardware ensure durability.
- Protection for CNC Machine: Safeguards your CNC bed and tooling during through-cuts and engraving operations.
- Easy Installation: Pre-configured drilling patterns and provided hardware make setup quick and efficient.
Why Choose This Spoiler Board?
The Spoiler Board 1000x1000mm is designed with precision and practicality in mind. It combines a strong MDF surface with a fully integrated T-Track clamping system, enabling flexibility and reliability for any CNC project.
Bill Of Materials
| QUANTITY | ITEM DESCRIPTION | PART SKU |
|---|---|---|
| 6 | MDF Sheet 100-103x1000x16mm | MAT-MDF-X16X100-103X1000MM |
| 7 | Maker Store Custom T-TRACK 1000mm | T-TRACK-MS-S-1000 |
| 21 | M5 Low Profile Screws 12mm | SCREWS-M5-LP-12-1 |
| 18 | M5 Cap Head Bolts 16mm | BOLT-M5-CAP-16-1 |
| 21 | 40 Series Sliding T-Nuts – 1 Piece | HARD-40S-TNUT-STEEL-SLID-M5-18-1PC |
| 18 | 40 Series Ball Spring T-Nuts | HARD-40S-TNUT-SPRING-M5-1PC |
| 7 | T-Track Drilling Pattern | T-TRACK-CUSTOM-40S-1000-001 |
| 4 | Hold Down Clamp – Type 30 T-Track | T-TRACK-HDC-V2 |
Note: This kit includes all the necessary hardware to construct a robust Spoiler Board 1000x1000mm, designed specifically for the FORTIS Router CNC 1000x1000mm setup.
The FORTIS CNC Machine are sold separately. Click here to learn more about the FORTIS CNC Machine
