Description
Technical Overview
The 90 degree Angle Corner Connector (V-Slot) serves as a heavy-duty structural joining component engineered specifically to establish robust right-angle joints within aluminium extrusion assemblies. Milled directly from solid aluminium block, this precision-machined component ensures exceptional mechanical stability when linking V-Slot linear profiles or standard structural tracking systems.
Furthermore, because the block features a highly versatile layout, builders can alternative-use it as an adjustable wheel block within linear guide systems. This multi-functional geometry delivers straightforward integration into modular automation setups, motion systems, and custom framework lines without requiring dedicated secondary brackets.
Applications
Engineers and builders primarily use this corner connector to build rigid right-angle frame joints, structural reinforcements, or adjustable gantry wheel blocks within motion tracking layouts. Consequently, it delivers a reliable mechanical connection point for stabilizing linear motion gantries, 3D printer frames, CNC machinery, and modular automation enclosures.
In addition, the physical profile of the connector matches seamlessly with 20mm V-Slot linear rail and standard 2020 structural extrusion layouts. By utilizing specialized low-profile fastening routes, users can securely join system tracks together or attach custom peripherals directly onto the structural machine frame.

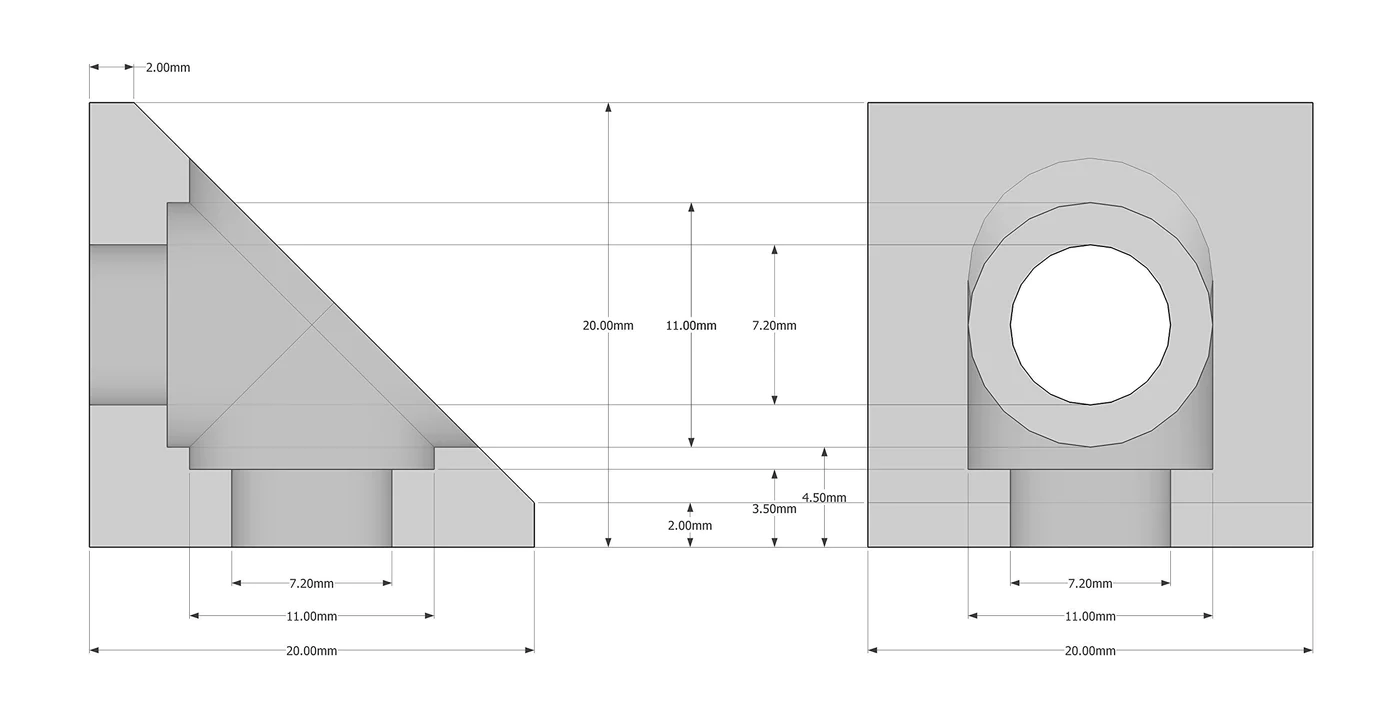

Technical Drawing:
Maker Store Tips and Tricks
-
Pair this connector with M5 x 8mm Low Profile Screws and standard tee nuts to ensure flush seat clearances inside the extrusion lines.
-
Align the alignment guides of the corner block precisely inside the profile’s tracking groove before applying final assembly torque.
-
Routinely check fastener tightness in continuous dynamic systems to prevent vibration-induced mechanical looseness over time.
Unsure if this product is compatible with our aluminium extrusions?
Look for the Maker Store Compatibility Badges!
