Description
Technical Overview

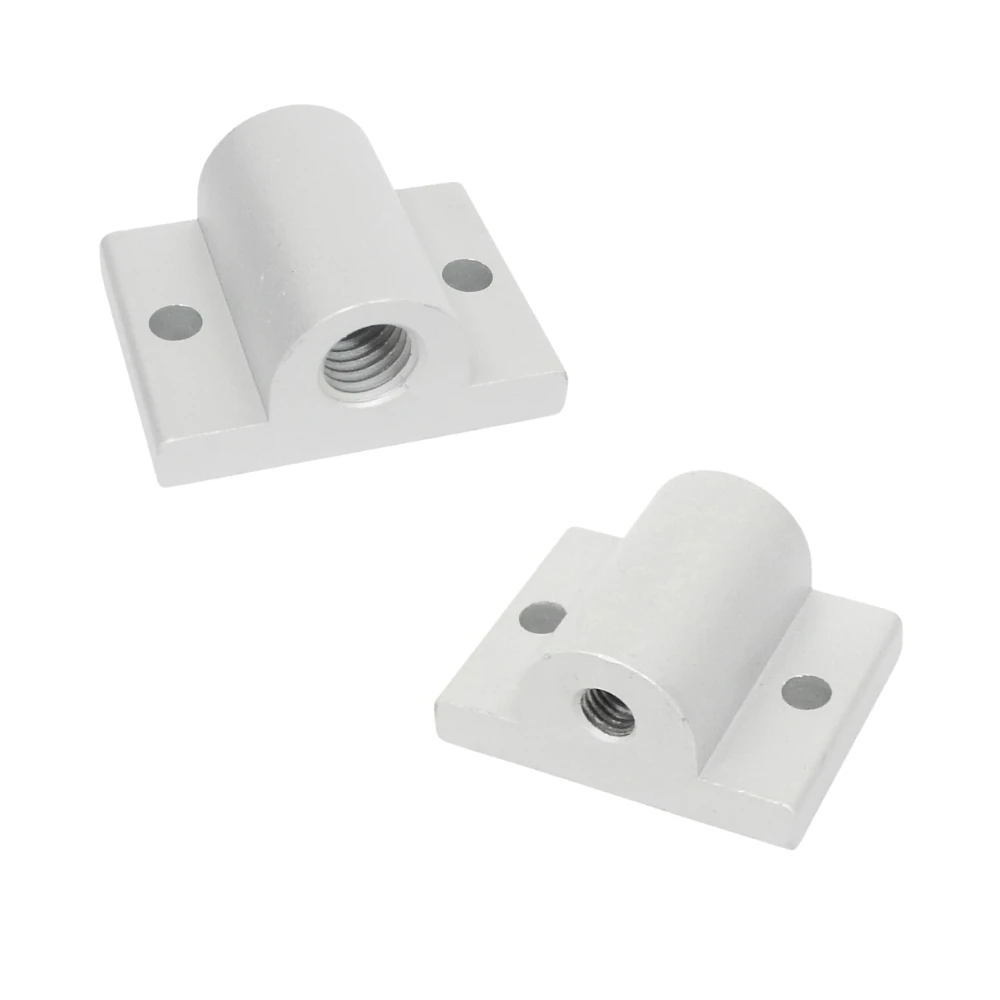

Structural assembly teams deploy the Side Wheel Bracket to mount wheels, mobile casters, or adjustable feet onto modular frameworks. For instance, high-strength 6063-T5 aluminium forms the core composition of the component. This chosen material incorporates a protective silver anodised surface finish. Consequently, the bracket provides high durability, rust resistance, and structural stability in industrial workshops. Furthermore, the specialized design positions the mounting point to the side of the profile channel. This unique placement connects directly into 40 Series aluminium profiles using standard M8 or M12 screws. Ultimately, the mechanism allows for secure attachment without compromising the internal workspace of the framing. As a result, operators easily convert stationary structures into mobile assemblies.
Applications

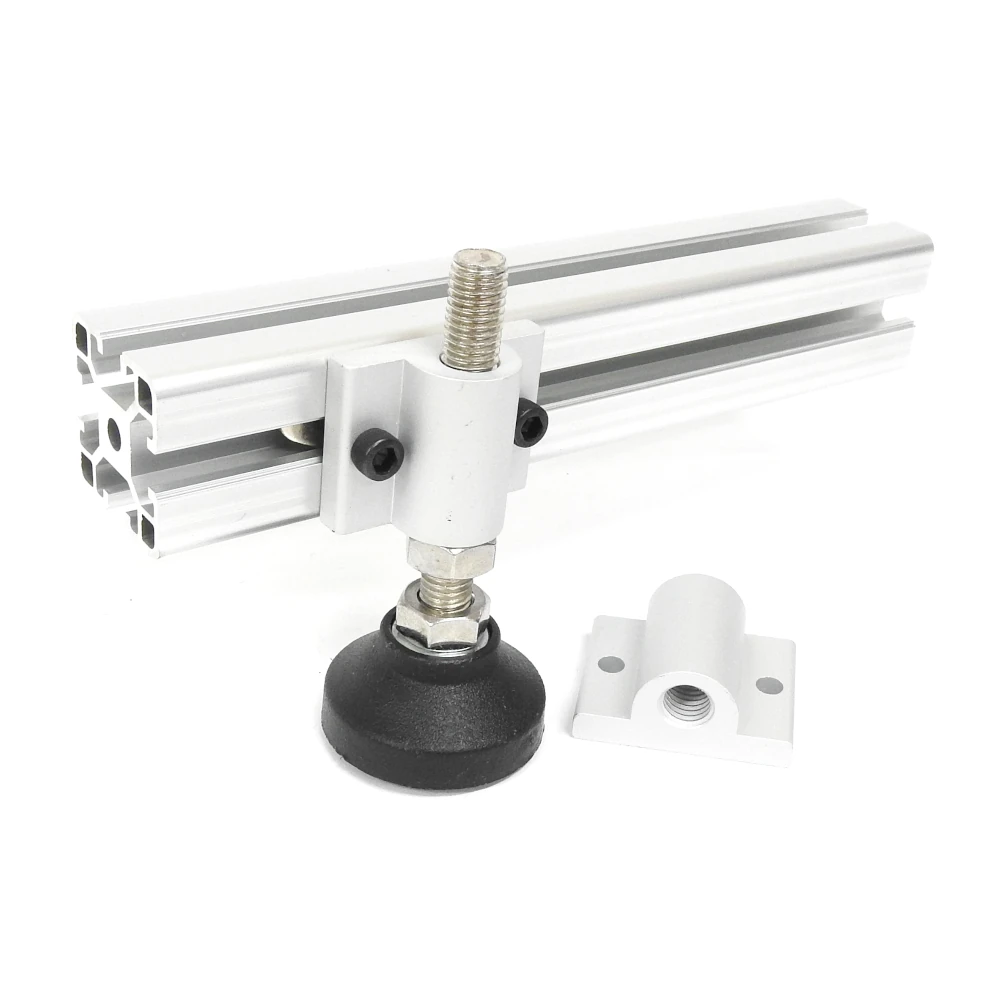

Industrial builders actively select the Side Wheel Bracket to add mobility or leveling capabilities to modular structural frameworks. Specifically, the unit excels in setups requiring frequent transport or floor height adjustments. For example, technical teams install it on trolley and cart frames to optimize movable workstation setups. It also supports heavy machinery by facilitating direct wheel and caster mounting for dynamic mobile applications. Additionally, builders attach adjustable feet to the bracket to ensure stable, vibration-free placement on uneven workshop floors. The lightweight component provides sturdy structural support while maintaining a low footprint on the framing layout. Consequently, it improves automation equipment frames, material handling fixtures, and custom factory partitions. Finally, the system ensures parallel alignment and maintains strong mechanical connections across all material handling operations.

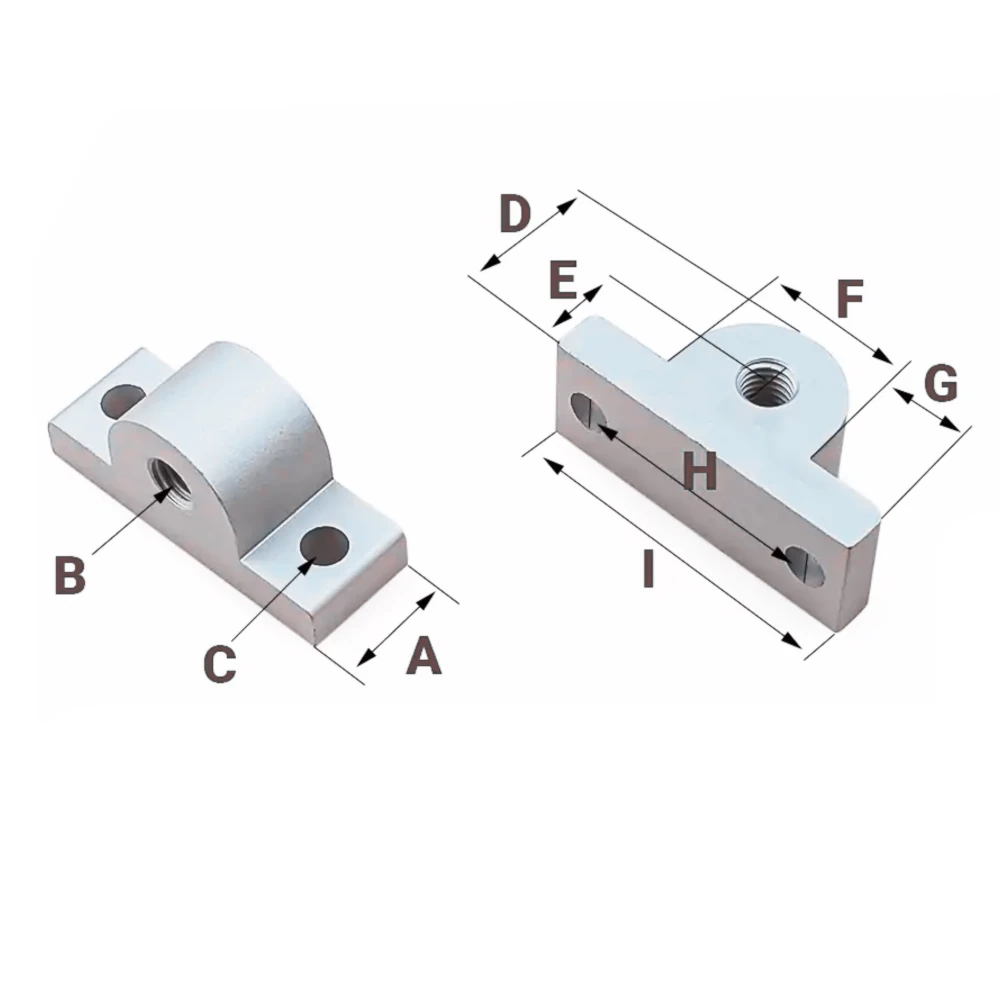

Side Wheel Bracket Technical Drawings:
| A | B | C | D | E | F | G | H | I |
| 38 | M8/M12 | 6.2 | 24 | 14 | 24 | 13 | 37 | 50 |
Maker Store Tips and Tricks
-
Ensure the face of the 40 Series profile is completely free from burrs to establish a perfectly flush mount.
-
Use T-nuts inside the profile channel to distribute clamping force evenly when tightening mounting screws.
-
Match the specific hole size configuration on your selected bracket variant to either an M8 or M12 fastener thread.
-
Periodically verify fastener torque specs in dynamic caster setups prone to structural movement or vibration.
Products to Pair with Side Wheel Bracket – 40 Series
-
Adjustable Foot – M12
$8.35 Inc. GST Add to cart -
Adjustable Foot – M8
$5.20 Inc. GST Add to cart -
Caster Wheel – Light Duty – M8, 76.2mm (3″)
$9.66 Inc. GST Read more -
Caster Wheel – Medium Duty – M12, 76.2mm (3″)
$27.83 Inc. GST Add to cart -
Leveling Caster Wheel – 100kg – M8
$20.96 Inc. GST Add to cart -
Leveling Caster Wheel – 250kg – M12
$30.35 Inc. GST Add to cart -
T-Slot 40 x 40mm – 40 Series – HEAVY Duty – Silver
Price range: $27.57 through $92.88 Inc. GST Select options This product has multiple variants. The options may be chosen on the product page -
T-Slot 40 x 80mm – 40 Series – HEAVY Duty – Silver
Price range: $72.74 through $225.21 Inc. GST Select options This product has multiple variants. The options may be chosen on the product page
What makes T-Slots such an easy assembly task?
Building frames out of T-Slot extrusions is easy because they eliminate the need for specialised tools or welding, simplifying the assembly process. Building frames using T-Slot Linear Rail will require;
- 40 Series T-Slot Extrusions: These are the main structural components, usually made of aluminium, with slots along their lengths that allow you to easily connect various parts and accessories.
- 40 Series Brackets and Connectors: These are specialised components designed to fit into the T-Slot extrusions and secure them together at various angles. They include corner brackets, T-nuts, L-shaped brackets, and other connectors.
- Fasteners: Bolts, screws, and nuts are required to attach the brackets and connectors to the T-Slot extrusions securely.
- Tools: Basic hand tools like wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths.
