Description

Technical Overview

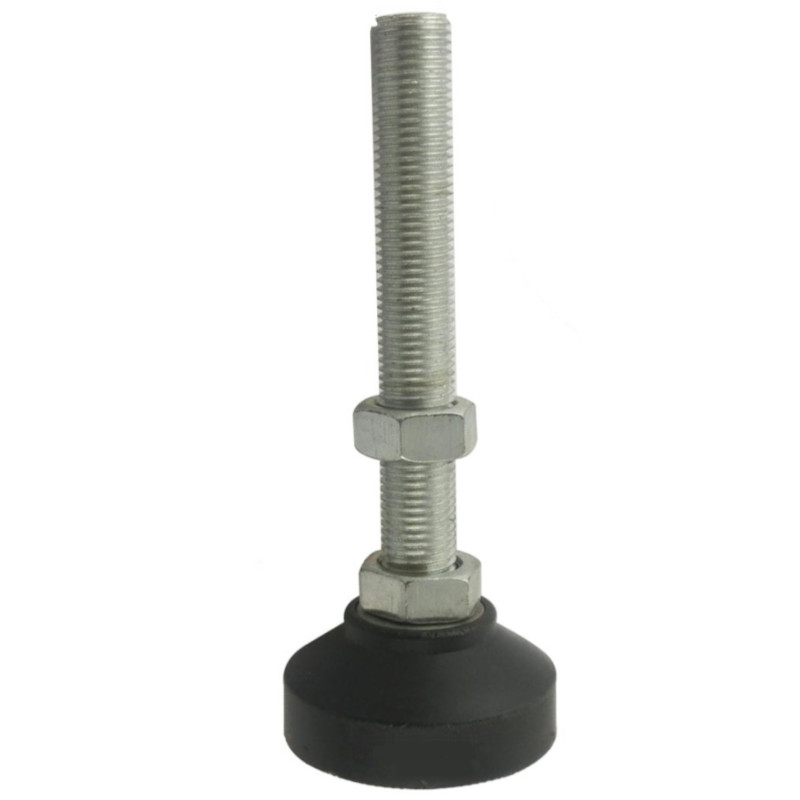

This levelling component establishes a stable, adjustable base for structural framing assemblies. Specifically, you integrate this unit into 40 Series T-Slot aluminium profile structures. By doing this, you successfully provide critical vertical height regulation across your system. Furthermore, you compensate for uneven floor surfaces across your workspace layout. Additionally, the assembly utilizes an M12 threaded stud. Consequently, you simply rotate this threaded shaft to raise or lower the attached framework. As a result, you position your machinery at the exact height required. Furthermore, the design incorporates an articulating ball-and-socket joint. Because of this feature, the foot base tilts dynamically on sloped floors. Therefore, the hardware maintains flat, full surface contact with the ground. In this manner, you ensure that the system distributes systemic downward vertical loads uniformly across the entire grounding footprint.

Applications

Engineers incorporate this adjustable levelling foot into industrial conveyors, packaging machinery, and manufacturing assembly lines. Crucially, these systems rely on stable, planar alignments to function correctly. Otherwise, they fail during continuous, high-speed operation. Technicians primarily deploy the hardware to level custom workstations, workshop benches, and automated machinery bases. For example, they install these feet onto 3D printer or CNC machine enclosures. By doing so, they drastically minimize vibration transfer to adjacent equipment. Moreover, the articulating design renders the foot highly suitable for industrial furniture. Likewise, you can safely deploy it within cleanroom structural frameworks. However, you must pair this component with an M12 foot bracket or an aluminium foot plate. Consequently, you secure it firmly to 40 Series profiles. Thus, builders achieve absolute structural equilibrium across both flat and slanted industrial floor surfaces.

Technical Specifications

Maker Store Tips and Tricks

• Thread the M12 stud completely through the foot plate or mounting bracket before executing final levelling adjustments.

• Ensure all feet share the vertical structural load equally to prevent localized stress points on the frame footprint.

• Check the locking nut tightness periodically in applications exposed to constant machine vibration or cycling.

Unsure if this product is compatible with our aluminium extrusions?
Look for the Maker Store Compatibility Badges!
