Cable Bundles

Our Cable Bundles are a great way to get all the wiring you need for you CNC Machine without having to purchase the electronics as well. If you already have a CNC Controller or have decided to bring your own, take advantage of our pre-terminated cables designed to work with our CNC Machines of many sizes.

The 4 core cables come pre-terminated allowing for a simple ‘plug and play’ with our Nema23 and Nema23 High Torque Stepper Motors.

Two sizes are available:

Small – Designed for machines of the following sizes Large – Designed for machines of the following sizes
  • 500mm x 750mm
  • 750mm x 750mm
  • 750mm x 1000mm
  • 1000mm x 1000mm
  • 1000mm x 1500mm
  • 1500mm x 1500mm

There are two options to choose from: Mach3 Based Cable Bundle, GRBL Based Cable Bundle

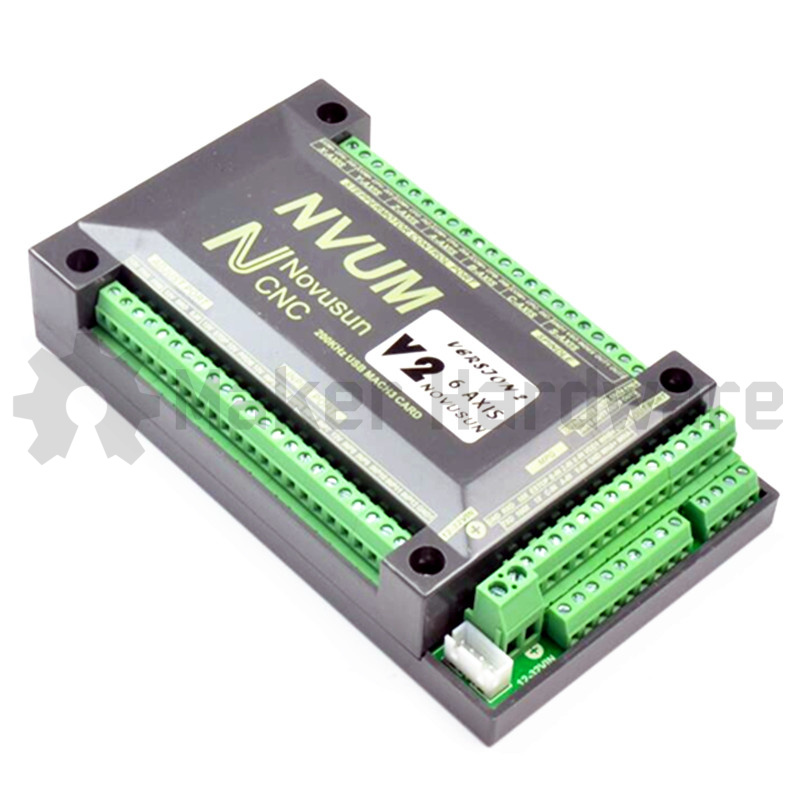

The Mach3 Based Cable Bundle is ideal for the BlackBox Motion Control System, Novusun Controllers and other CNC Controllers that use screw terminals for cable termination.

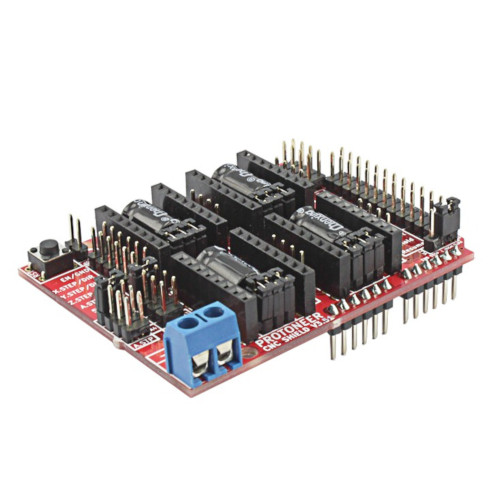

The GRBL Based Cable Bundle is ideal for the CNC Shield, Arduino Controllers, and other CNC Controllers that use header pins for cable termination.

Small:

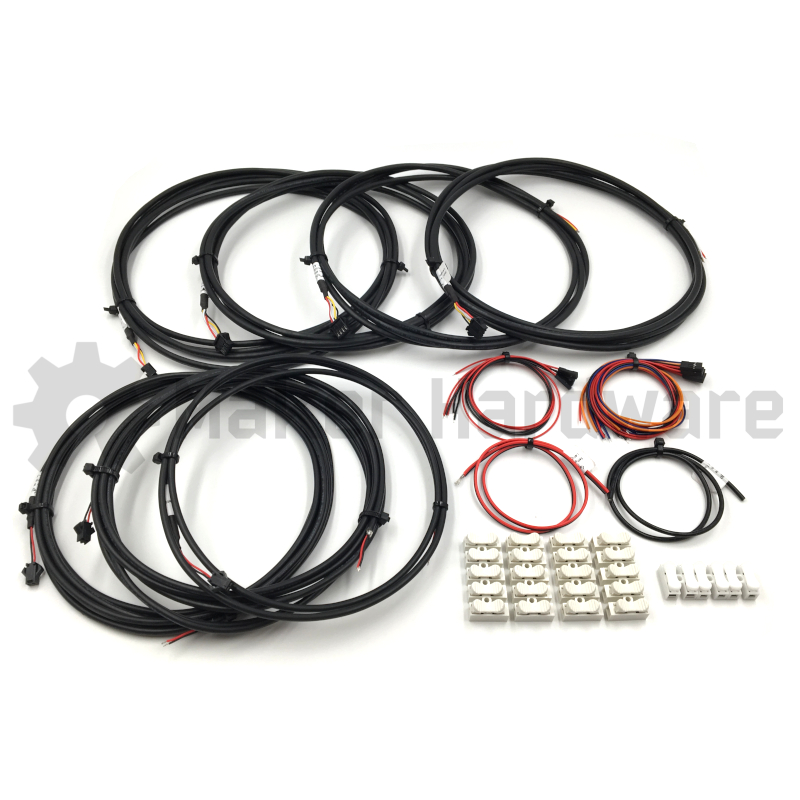

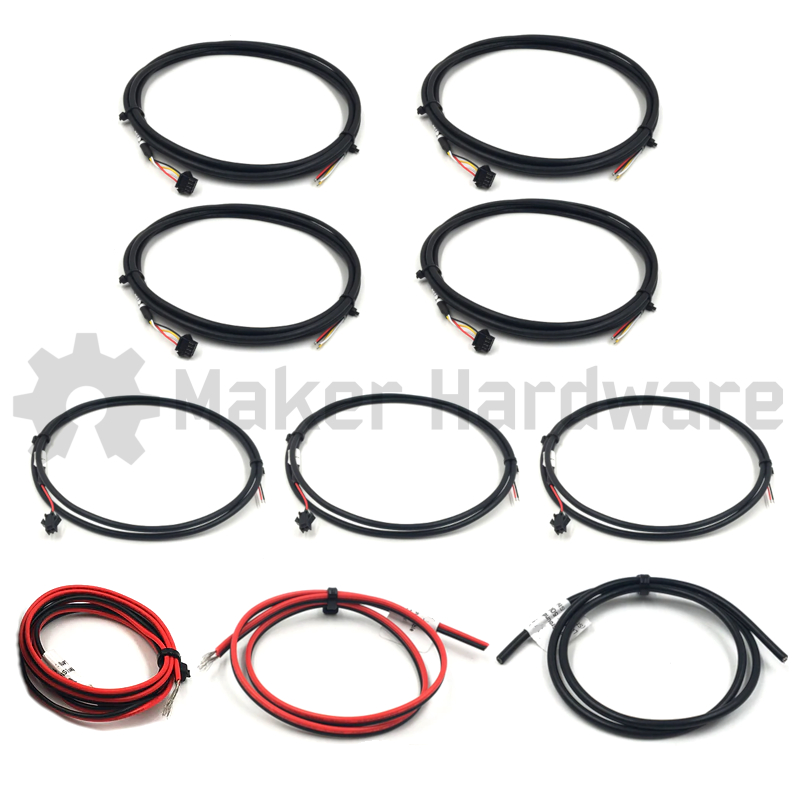

Mach3 Cable Bundle – Small GRBL Cable Bundle – Small

4 Core Shielded Stepper Cables terminated at one end with JST SM 4P (Connector to Stepper Motors):

  • 1 x 2500mm
  • 2 x 3250mm
  • 1 x 3500mm

2 Core Shielded Signal Cables terminated at one end with JST SM 2P:

  • 1 x 1500mm
  • 1 x 3250mm
  • 1 x 3500mm

DC Power Cable 22 AWG

  • 1 x 500mm

Ground Wire 20 AWG

  • 1 x 500mm

EStop Cable 22 AWG

  • 1 x 1000mm

4 Core Shielded Stepper Cables terminated at one end with JST SM 4P (Connector to Stepper Motors):

    • 1 x 2500mm
    • 2 x 3250mm
    • 1 x 3500mm

2 Core Shielded Signal Cables terminated at one end with JST SM 2P:

    • 1 x 1500mm
    • 1 x 3250mm
    • 1 x 3500mm

DC Power Cable 22 AWG

    • 1 x 500mm

Ground Wire 20 AWG

    • 1 x 500mm

Stepper Cables (CNC Shield to Connectors)

    • Dupont Female Connector at one end
    • 4 x 300mm

EStop Cable 22 AWG

    • 1 x 1000mm

4 x Terminal Block 5 Pole
3 x Terminal Block 3 Pole

Large:

Mach3 Cable Bundle – Large GRBL Cable Bundle – Large

4 Core Shielded Stepper Cables terminated at one end with JST SM 4P (Connector to Stepper Motors):

    • 1 x 3000mm
    • 2 x 4500mm
    • 1 x 4750mm

2 Core Shielded Signal Cables terminated at one end with JST SM 2P:

    • 1 x 1500mm
    • 1 x 4500mm
    • 1 x 4750mm

DC Power Cable 22 AWG

    • 1 x 500mm

Ground Wire 20 AWG

    • 1 x 500mm

EStop Cable 22 AWG

    • 1 x 1000mm

4 Core Shielded Stepper Cables terminated at one end with JST SM 4P (Connector to Stepper Motors):

    • 1 x 3000mm
    • 2 x 4500mm
    • 1 x 4750mm

2 Core Shielded Signal Cables terminated at one end with JST SM 2P:

    • 1 x 1500mm
    • 1 x 4500mm
    • 1 x 4750mm

DC Power Cable 22 AWG

    • 1 x 500mm

Ground Wire  20 AWG

    • 1 x 500mm

Stepper Cables (CNC Shield to Connectors)

    • Dupont Female Connector at one end
    • 4 x 300mm

EStop Cable 22 AWG

    • 1 x 1000mm

4 x Terminal Block 5 Pole
3 x Terminal Block 3 Pole

Grab a Cable Bundle Here!
