Description

Technical Overview

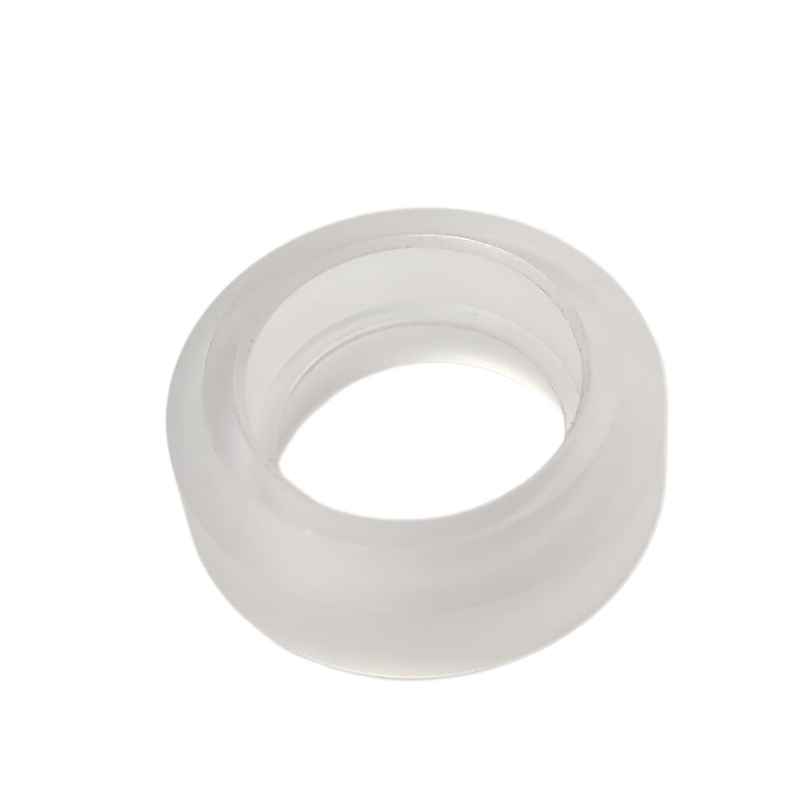

Engineers integrate these polycarbonate Solid V Xtreme Wheel into high-load structural linear guide assemblies. Specifically, the hardware functions by mounting onto gantry plates to interface directly with linear extrusion profiles. We individually mill each wheel from clear polycarbonate polymer. Because of this specialized processing, the manufacturing method ensures consistent high precision and tight dimensional tolerances. Furthermore, the un-recessed, solid design profile minimizes material compression and surface wear under operational stress. As a result, this material rigidity maintains structural precision when strong forces are introduced into the system. Therefore, the completed setup functions interchangeably with compatible linear components to ensure accurate tracking along the structural frame. Ultimately, combining multiple wheels across a single gantry assembly facilitates an even distribution of heavy mechanical loads.

Applications

Builders choose this polycarbonate Solid V Xtreme Wheel configuration for tracking applications inside linear motion paths subjected to high load distributions. In particular, technicians deploy the hardware within belt-driven or pinion-actuated gantries where tracking deflection must be avoided under pressure. For this reason, builders commonly implement the wheel as a rigid alternative to Delrin variants in the construction of modular CNC routers, industrial mills, and automated machinery platforms. In addition, they deploy it in custom actuator setups where the non-recessed rim serves as a flat guide path under heavy moving axes. Meanwhile, the clear polycarbonate material provides excellent resistance to physical wear. Thus, this layout makes the unit exceptionally well-suited for automated assemblies that demand maximum stability and close operational tolerances.

Maker Store Tips and Tricks

• Distribute heavy mechanical loads evenly across your gantry plate by integrating multiple polycarbonate wheels into the assembly array.

• Regularly clean the structural tracking channels to prevent debris from degrading the precision-milled V profile.

• Verify that the internal bearing alignment is fully seated prior to final axle torqueing to prevent introducing localized rotational resistance.
