Technical Overview

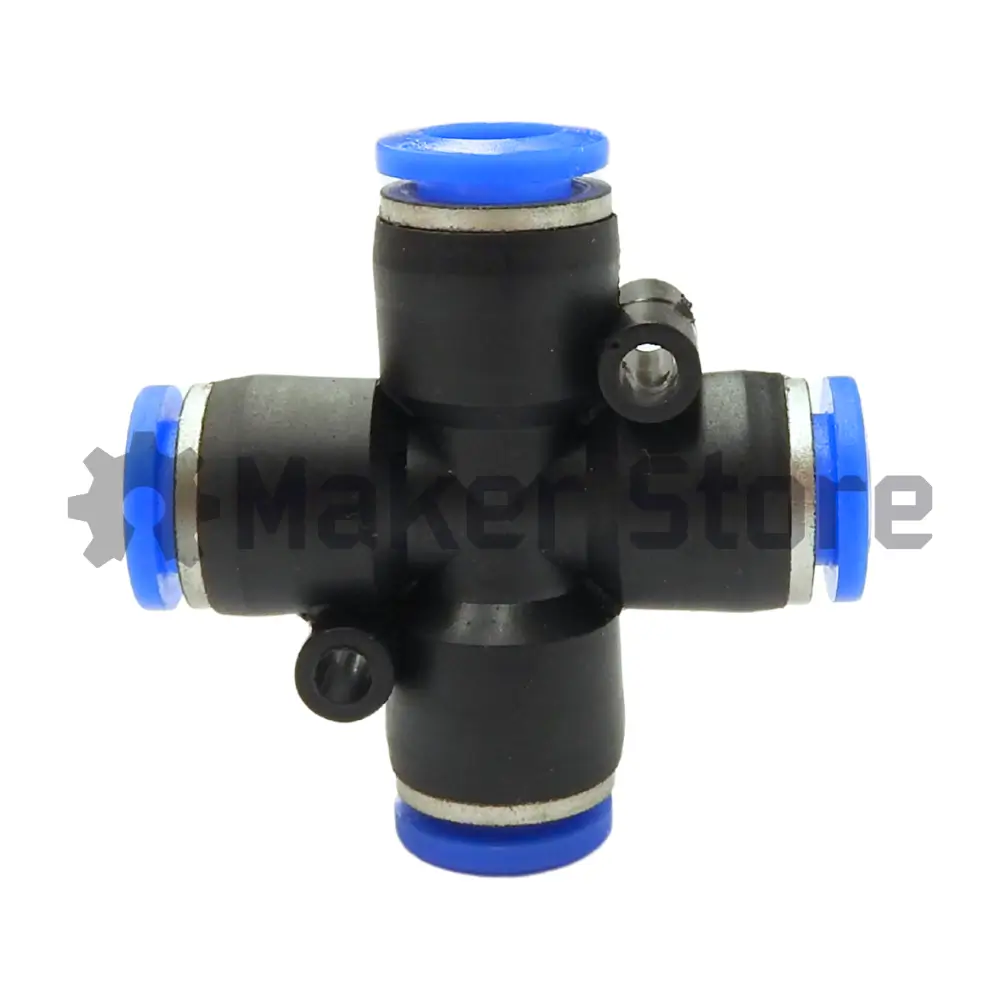

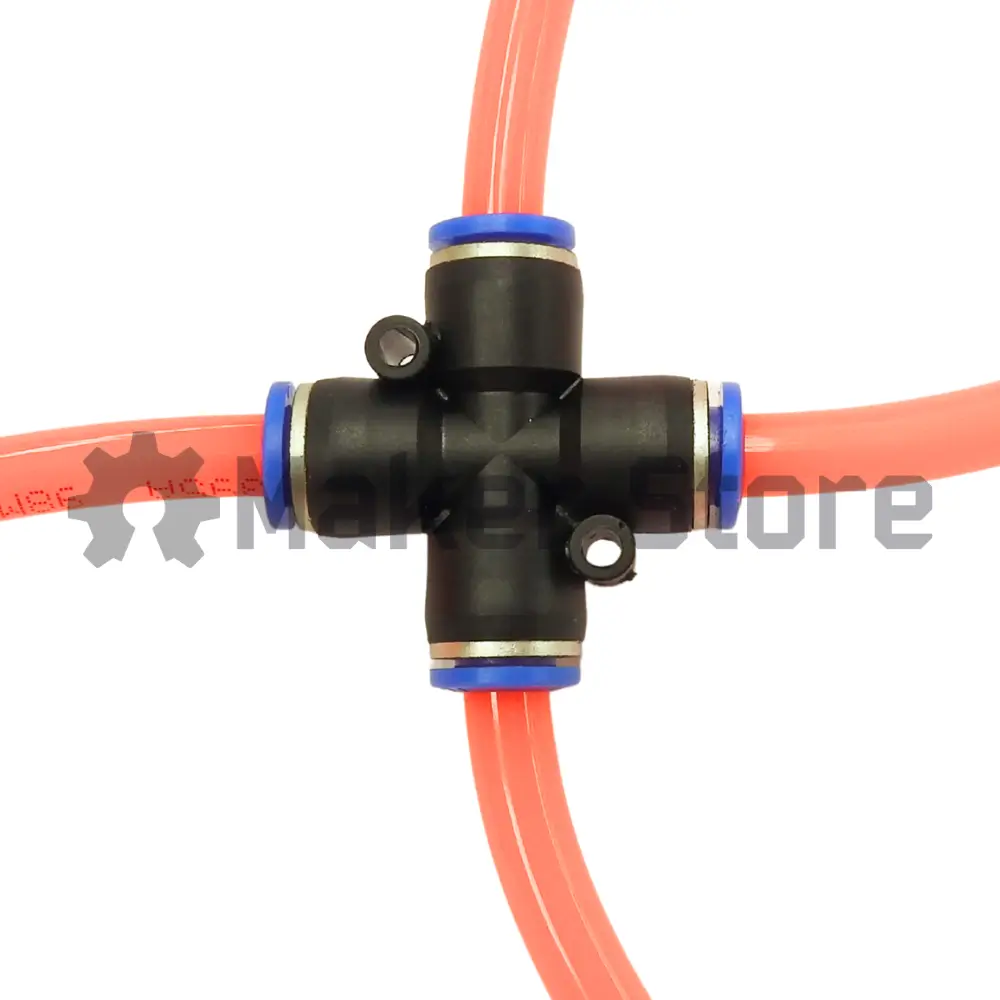

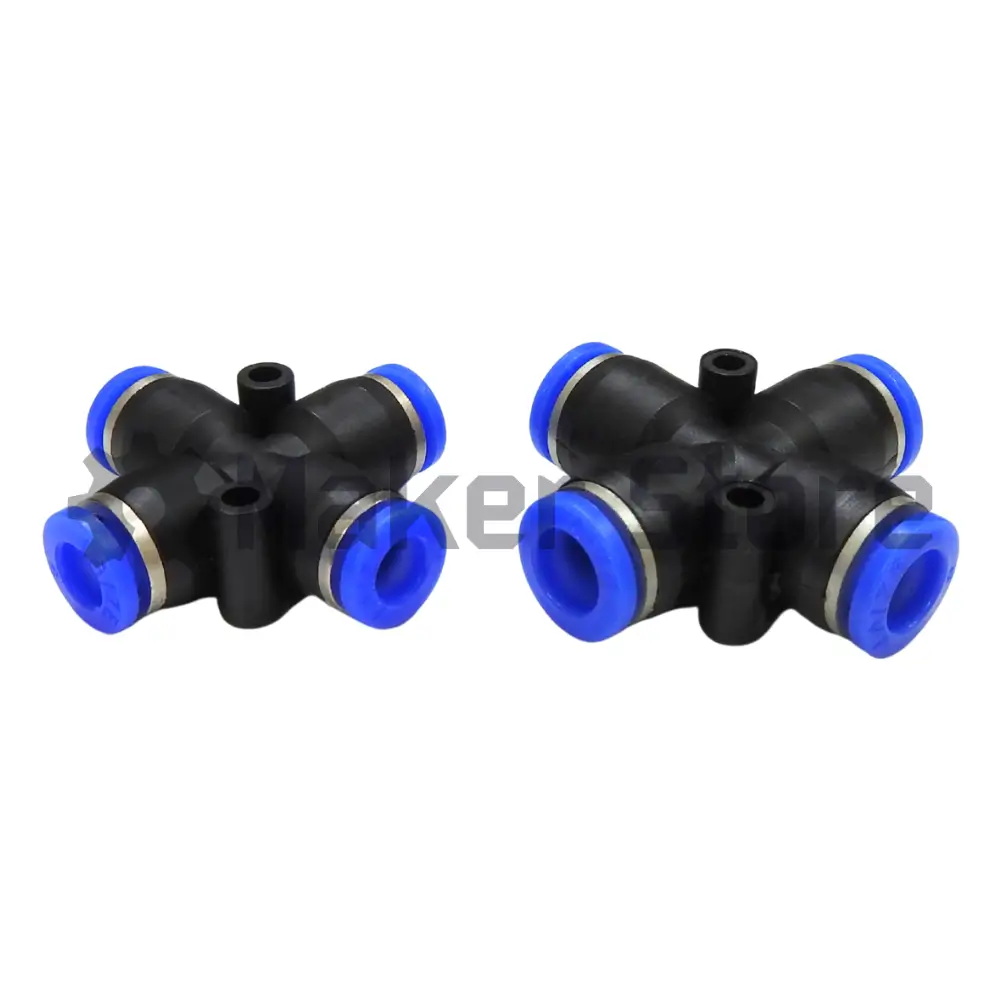

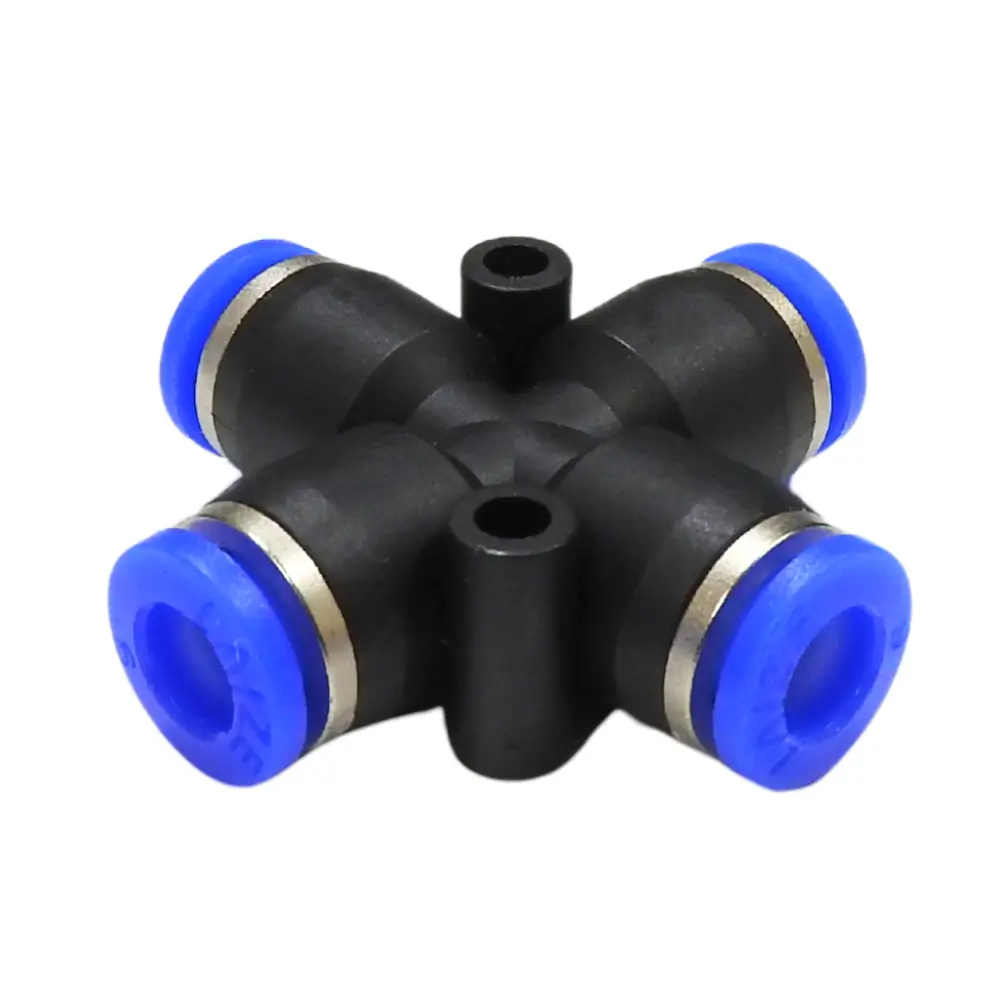

Engineers connect four pneumatic tubes at right angles using the Pneumatic Push Fit Union Cross. First, workers insert tubes directly into all four ports without any tools. The integrated mechanism seals the lines immediately and securely. Consequently, this component serves as a central junction point in automated fluid circuits. It creates clean directional splits. Furthermore, it eliminates the need for extra threading or inline adapters.

Additionally, operators quickly release flexible tubing like polyurethane and nylon using the integrated push-ring release mechanism. Meanwhile, the unit’s low-profile construction saves valuable space. Therefore, technicians route lines straight through dense mechanical enclosures. Ultimately, it fits neatly inside compact control cabinets.

Applications

Technicians frequently install this push-fit union cross in multi-directional pneumatic circuits, automated assembly lines, and industrial air distribution manifolds. For instance, it splits single air lines into four distinct paths. As a result, it efficiently feeds air to tools, solenoids, control valves, and actuation systems.

Moreover, teams integrate this fitting into factory automation, pneumatic control systems, and robotics. In these environments, engineers constantly need fast assembly times. Likewise, they require modular reconfigurations and swift maintenance. Thus, the fitting simplifies daily upkeep while ensuring continuous system operation.

Technical Specifications

Specification	Value
Fitting Type	Pneumatic Push Fit Union Cross
Configuration	4-Way Junction (90° branch)
Compatible Tubing Materials	Nylon, Polyurethane
Fitting Material	Nickel-Plated Brass, Polymer Body
Mechanism	Push-in connection with release ring
Colour	Black / Blue
Reusability	Fully Reusable

Maker Store Tips and Tricks

• Ensure the pneumatic tubing is cut clean and square before pushing it firmly into the port to achieve a full, leak-free seal.

• Depress the release ring evenly against the body prior to pulling the hose outward to prevent damage to the internal gripping collet.

• Verify that the system pressure is completely vented before removing or replacing tubing from the cross junction.
