Description

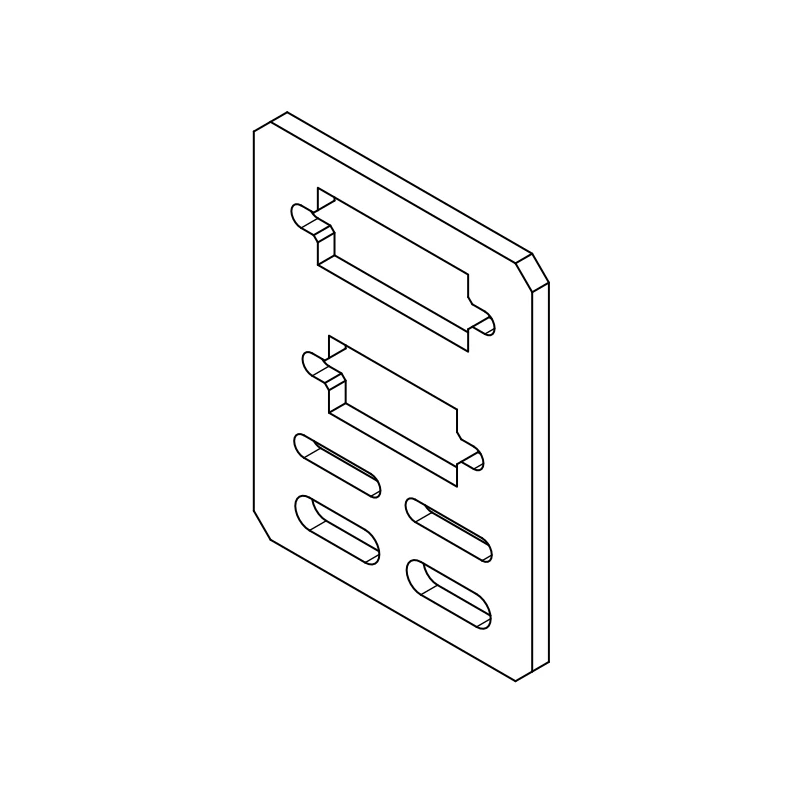

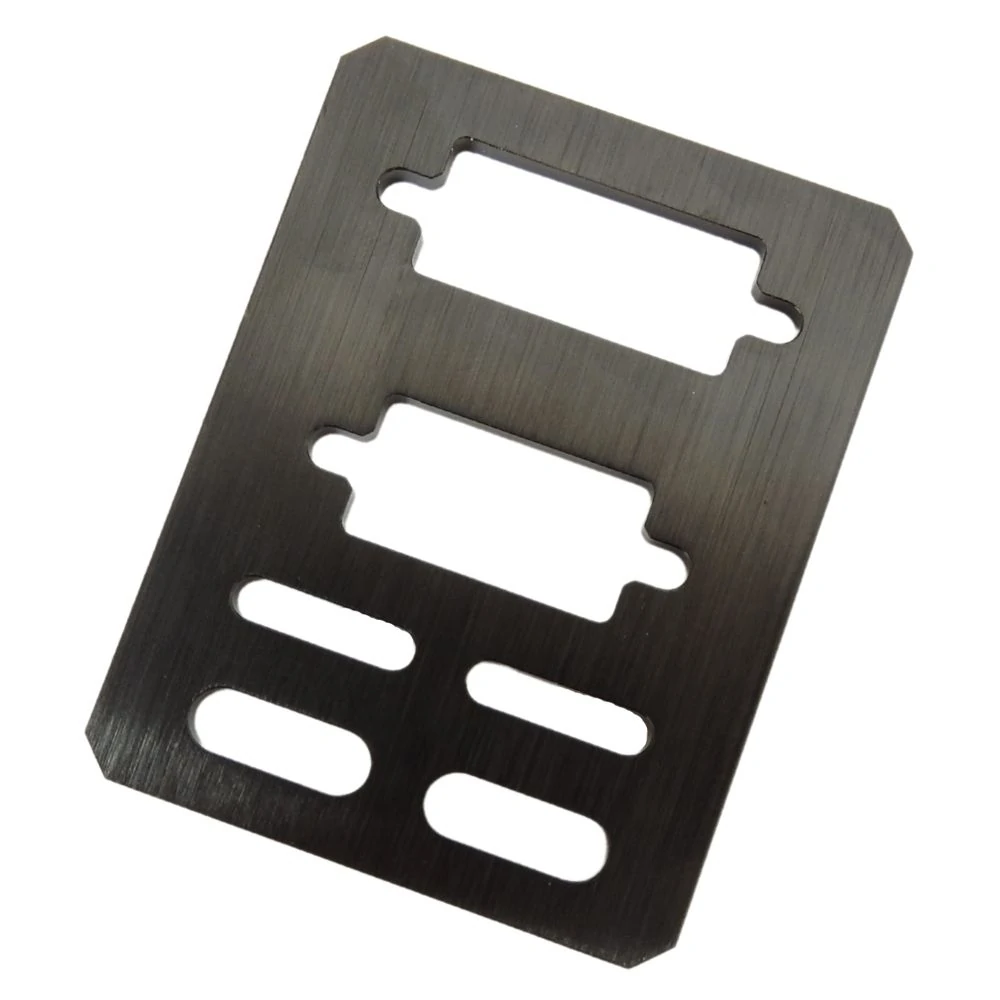

Designed here at Maker Store, the EDG Connector Mounting Plate is a perfect choice to organise your cable connections. Made to match the Through-Wall Connector Terminal Block 3 and 4 Pin – EDG 3.81mm, this plate has to fix slots that can be mounted to our Aluminium Extrusions and also at the back of our Nema 23 Motors.

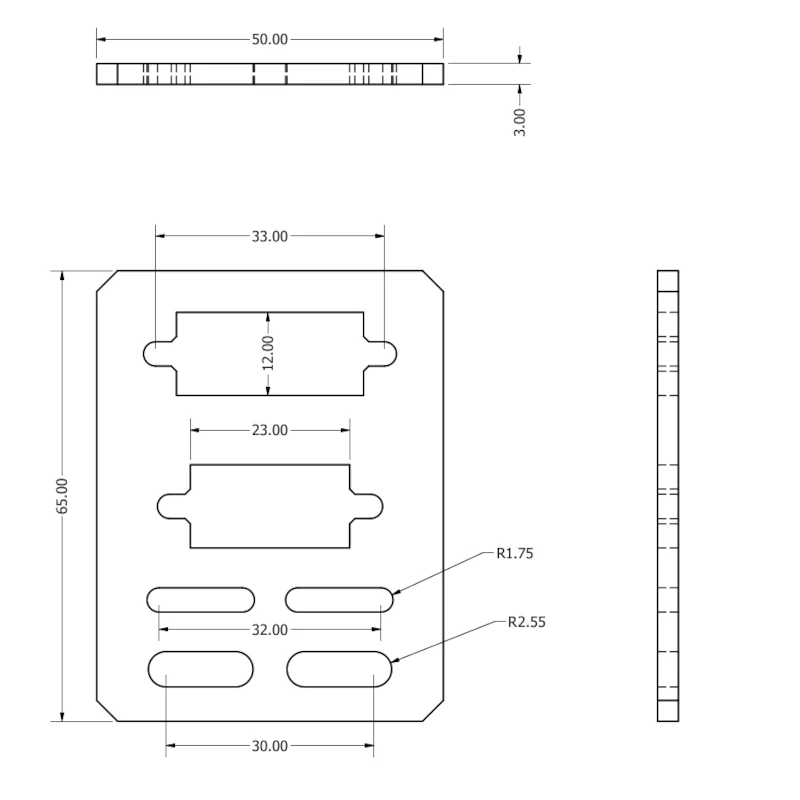

Made out of Aluminium, this plate has also 4 mounting slots. The top row slot is compatible with M3 hardware while the bottom slots can be used with M4 or M5 hardware.

Specifications:

Material: Aluminium
Plate Thickness: 3mm
Finish: Brushed Anodised
Colour: Black

Pro Tips:

• The recommended Hardware to attach EDG Connector to this plate is 4x M3x10mm screw and 4x M3 nuts.
