Description

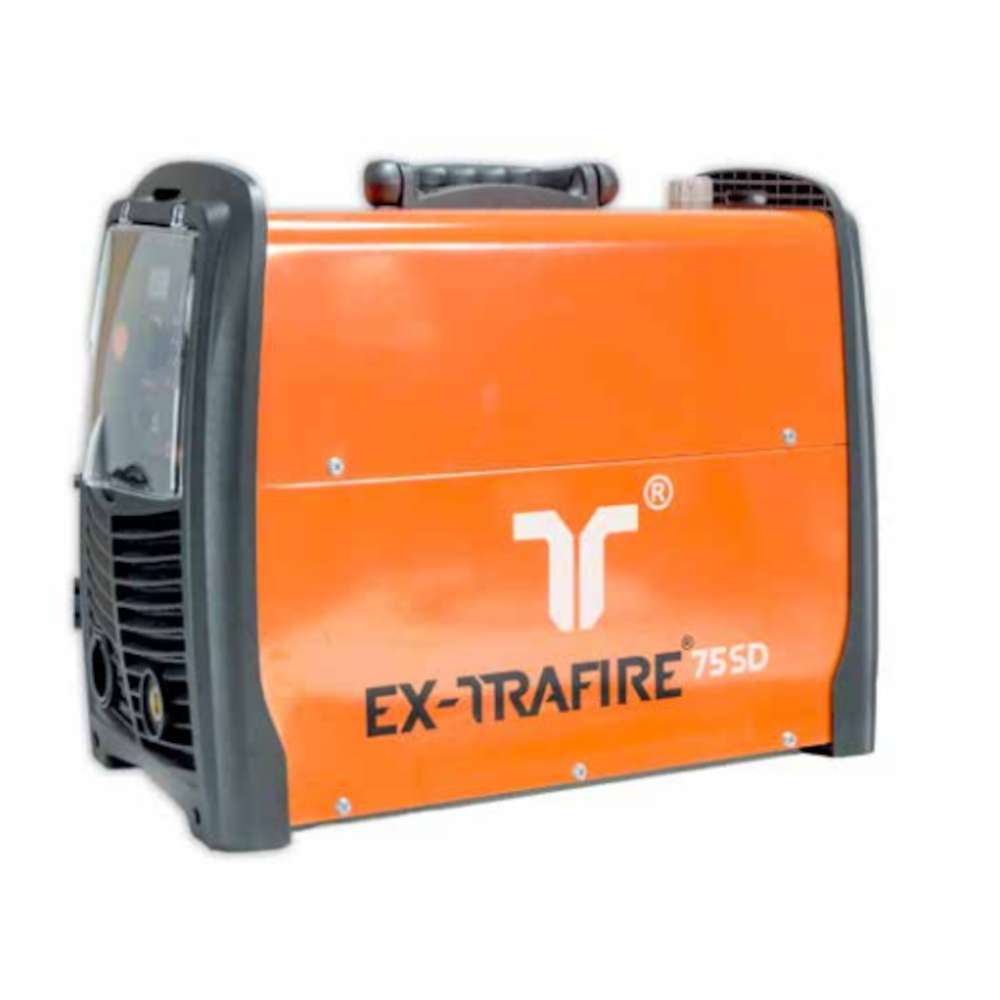

THERMACUT® EX-TRAFIRE® 75SD Plasma Cutter with 8m Mechanised Torch – Fully Compatible with FORTIS Plasma CNC & MyPlasm CNC Controller

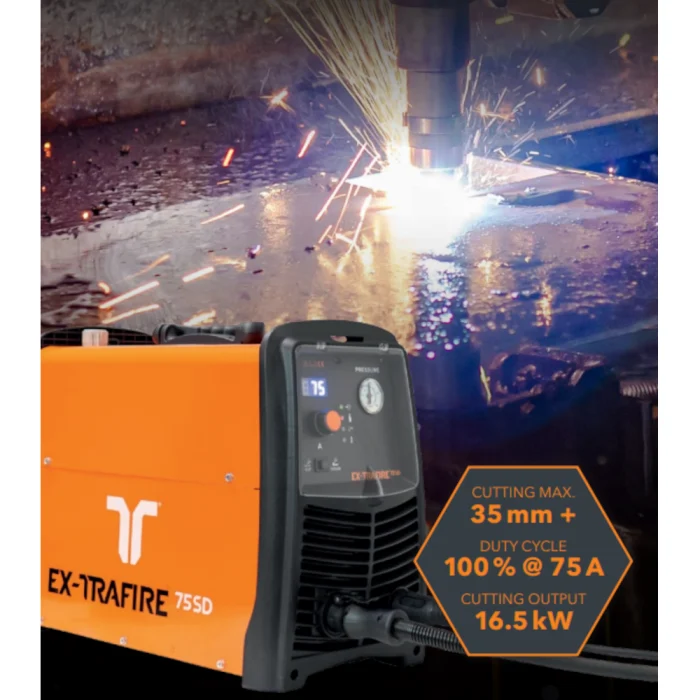

The Thermacut EX-TRAFIRE 75SD Plasma Cutter is engineered for precision, reliability, and ease of use, making it the perfect choice for your CNC cutting applications. With an impressive 75 Amp output, this machine can handle a variety of materials with clean, accurate cuts. Whether you’re cutting thin or thick metals, the 75SD delivers consistent performance every time. This model is equipped with an 8-metre mechanised torch, giving you the flexibility and reach required for larger CNC Machines such as 1500x3000mm.

The 75SD model requires a 3-phase Circuit.

---

Key Features:

• CNC Ready: This model can be turned fully controlled via CNC Controller.
• Powerful 75 Amp Output: Ideal for cutting steel, stainless steel, aluminium, and other conductive materials up to 35mm in thickness.
• 8-Metre Mechanised Torch: Provides ample reach for a variety of applications, with a durable, high-performance design.
• Pilot Arc Function: Allows for cutting without direct contact, improving both precision and consumable lifespan.
• Lightweight and Compact: With a rugged design, this machine is easy to transport and set up in any workspace.
• Low Power Consumption: Delivers energy savings while still maintaining top-notch performance.

---

EX-TRAFIRE 75SD Plasma Cutter Compatibility:

Fully Compatible with FORTIS Plasma CNC & MyPlasm CNC Controller:

The Thermacut EX-TRAfire 75SD is fully compatible with the FORTIS Plasma CNC Machine and MyPlasm CNC Controller offered by Maker Store.



---

Applications:

• Metal Fabrication: Perfect for industrial, automotive, and structural cutting.
• Automated Plasma Cutting: Compatible with CNC systems for automated, high-precision cuts.
• Sheet Metal Cutting: Ideal for various thicknesses of metal sheets.

---

What’s Included:

• Thermacut EX-TRAFIRE 75SD Plasma Cutter
• 8-metre Mechanised Torch
• Operator Manual
• Consumables Starter Pack
• Air Filter

---

EX-TRAFIRE 75SD Plasma Cutter Specifications:

• Recommended Cutting Capacity: 25mm (Mild Steel)
• Piercing Capacity: 20mm (Mild Steel)
• Input Voltage: 3 Phase, 400 VAC ± 15 %
• Output Voltage: 170 V (extra-boost 220 V)
• Output Current Range: 30-75 A
• Duty Cycle: 100% at 75A
• Input Flow Rate and Air Pressure: 110 l/min at a pressure of 5.2 bar.
• Dimensions (LxHxW): 560x400x265 mm
• Weight: Approx. 24 Kg

For more specifications, please consult the resources at the bottom of this page.

---

Torch Dimensions:

---

Resources:

• Manual | Torch Manual | Fact Sheet
