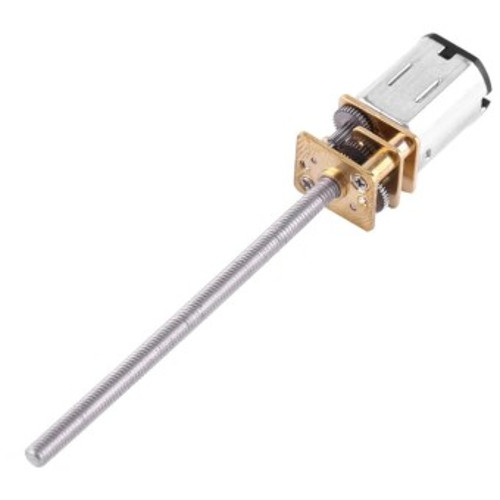

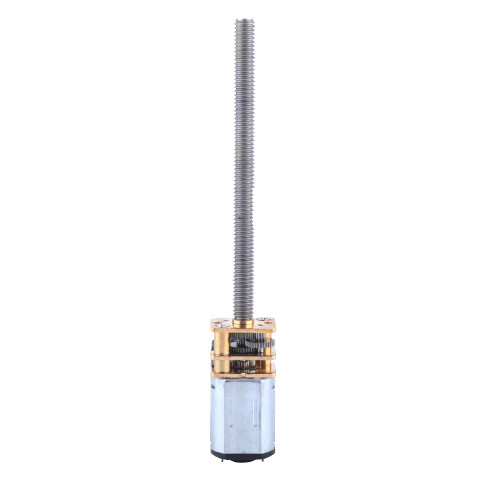

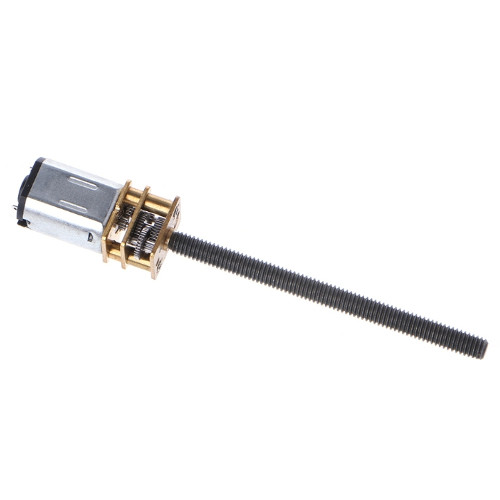

Description
This is a high quality geared motor. It has a full metal structure, including metal gear reducer with precise micro gears. With high torque and small noise they can be used on electronic locks, intelligent model cars, robots, etc.
Features:
- Long output shaft
- High Torque – all metal gears are durable and not easy to damage
- Small size, large torque and small current, with larger reduction ratio
- Output shaft is a M4 thread and with the addition of a nut can easily become a linear actuator
- Can be used on electronic door locks, automatic door locks, intelligent robots, model vehicles, etc.
Specifications:
- Motor Length: 16mm
- Gear Box Length: 9mm
- Cross Section Dimension: 12mm x 10mm

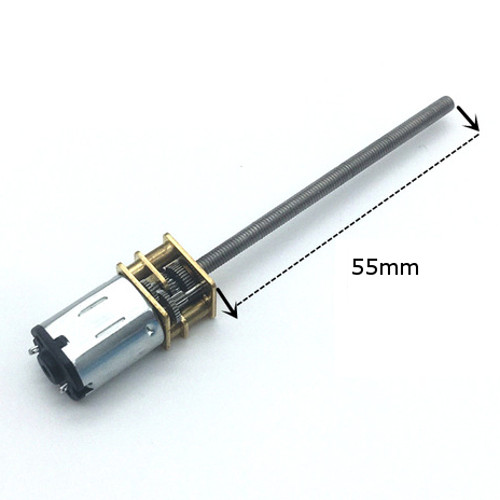

- Output Shaft Length: 55mm
- Output Shaft Diameter: M4
- Original Speed: 20000RPM
- Error: ± 10%
- Weight: 18g (approx.)
6V 100RPM
- Rated Speed: 100RPM
- No Load Current: 10mA
- Max Efficiency Speed: 80RPM
- Max Efficiency Current: 30mA
- Max Efficiency Torque: 0.40kg/cm
- Stall Torque: 3.20kg/cm
- Stall Current: 1.20A
12V 60RPM
- Rated Speed: 60RPM
- No Load Current: 40mA
- Max Efficiency Speed: 80RPM
- Max Efficiency Current: 70mA
- Max Efficiency Torque: 2.50kg/cm
- Stall Torque: 16.0kg/cm
- Stall Current: 400mA
12V 200RPM
- Rated Speed: 200RPM
- No Load Current: 40mA
- Max Efficiency Speed: 160RPM
- Max Efficiency Current: 70mA
- Max Efficiency Torque: 1.50kg/cm
- Stall Torque: 7.00kg/cm
- Stall Current: 1.00A

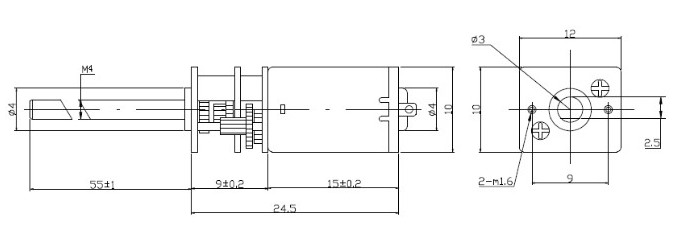

Drawings:
