Description
Technical Overview
Engineers integrate the 58mm Aluminium Omni Wheels as a specialized motion component to provide multidirectional mobility for larger robotic vehicles. Although this component functions similarly to a standard wheel, it features multiple nylon rollers around its circumference. Specifically, these rollers sit perpendicular to the main rotation axis. Consequently, this architectural layout allows the wheel to slide freely sideways while still maintaining driven forward and backward motion. By coordinating the rotation of multiple units within a single drive system, the vehicle achieves precise sideways, diagonal, and rotational movement. Therefore, the entire mechanical system can maneuver dynamically without changing its physical orientation.
Applications
Maintenance technicians primarily deploy these 58mm aluminium omni wheels in larger robotic vehicles, automated guided vehicles (AGVs), and multi-axis mobile platforms. Because these advanced applications require precise omnidirectional maneuvering, this hardware serves as a core locomotion component. For instance, builders regularly install it within educational, research, and light industrial robotic systems. During assembly, operators typically pair the wheel unit with geared motors featuring 6mm or 8mm diameter shafts. Ultimately, this specific combination allows teams to construct highly maneuverable holonomic drive bases with ease.
Technical Specifications

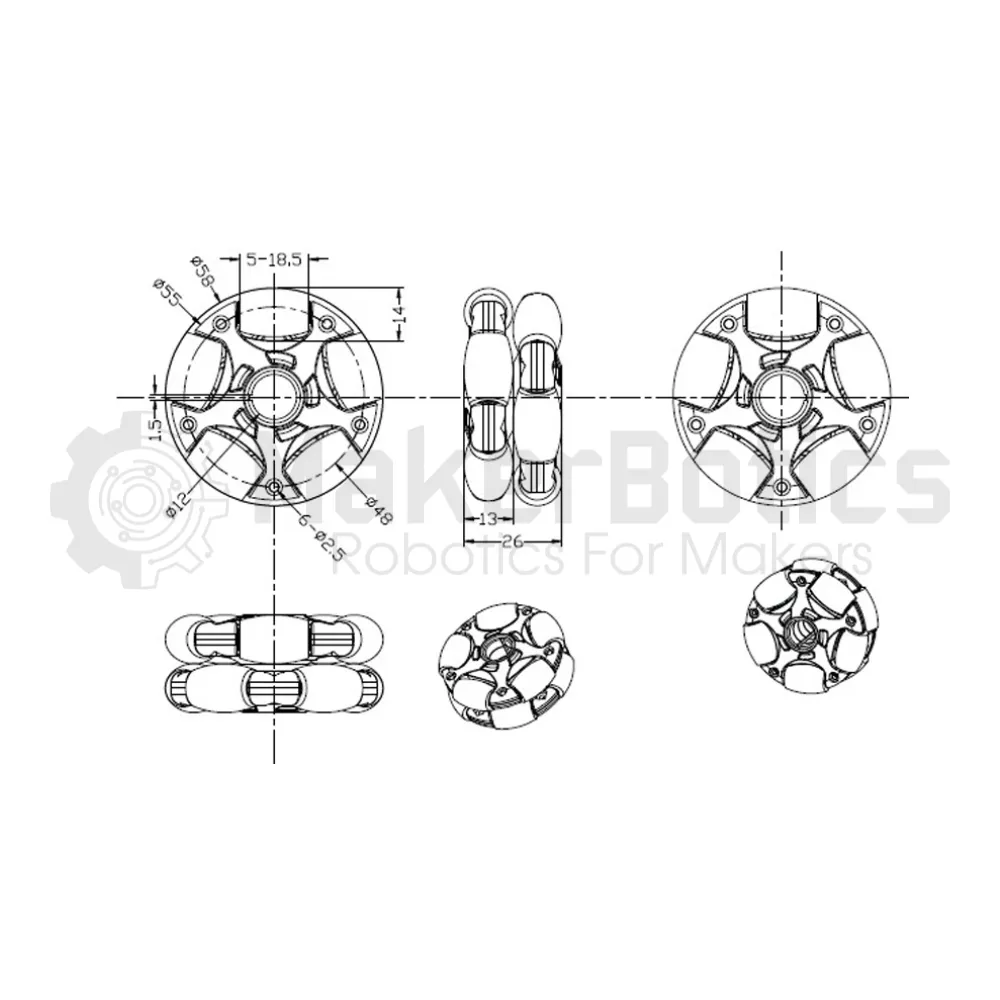

Technical Drawings:
Maker Store Tips and Tricks
-
Motor Integration: These wheels integrate directly with geared motors or any motor utilizing a 6mm or 8mm diameter shaft without requiring additional mounting hardware.
-
Installation: Secure the motor shaft directly into the included hub receptacle to complete the mechanical connection.
-

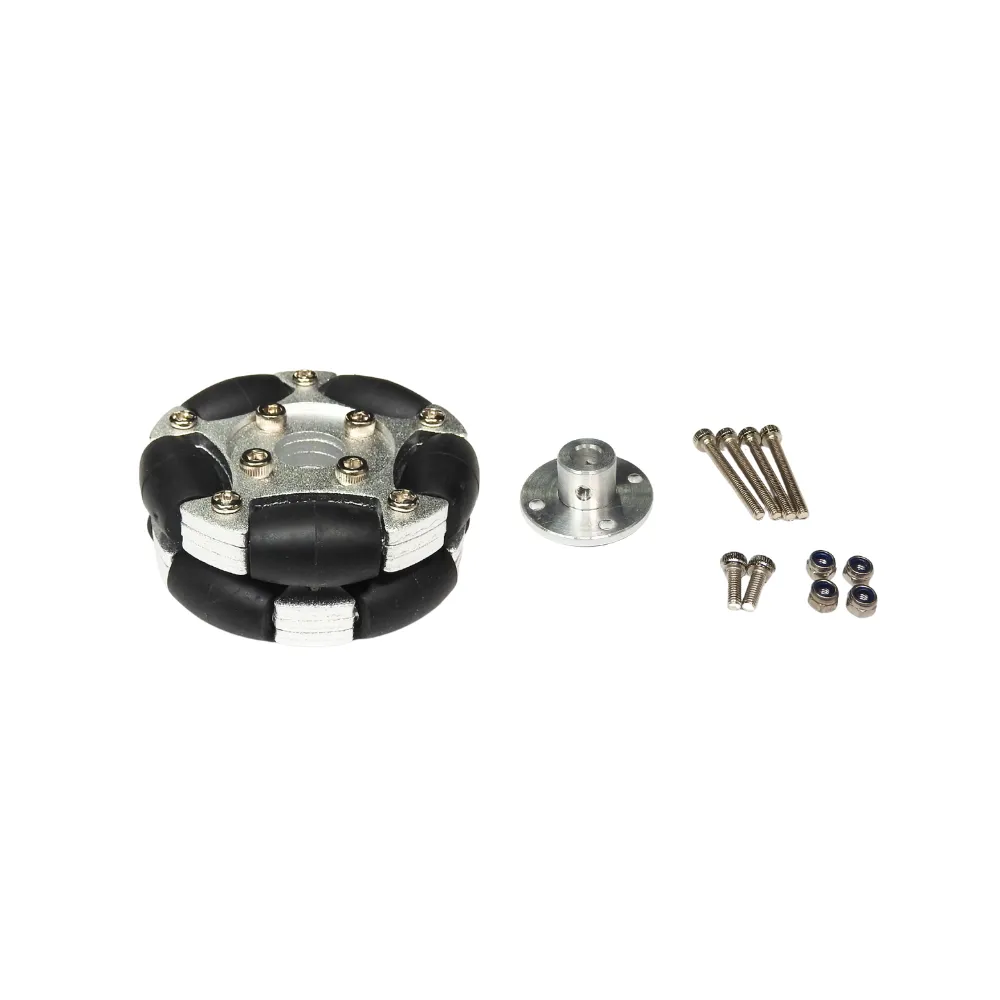

Kit Contents: Each kit contains one omni wheel and one matching hub (6mm or 8mm). Geared motors must be purchased separately.
