Description
Please Note: The Encoder Cable is included with the motor.

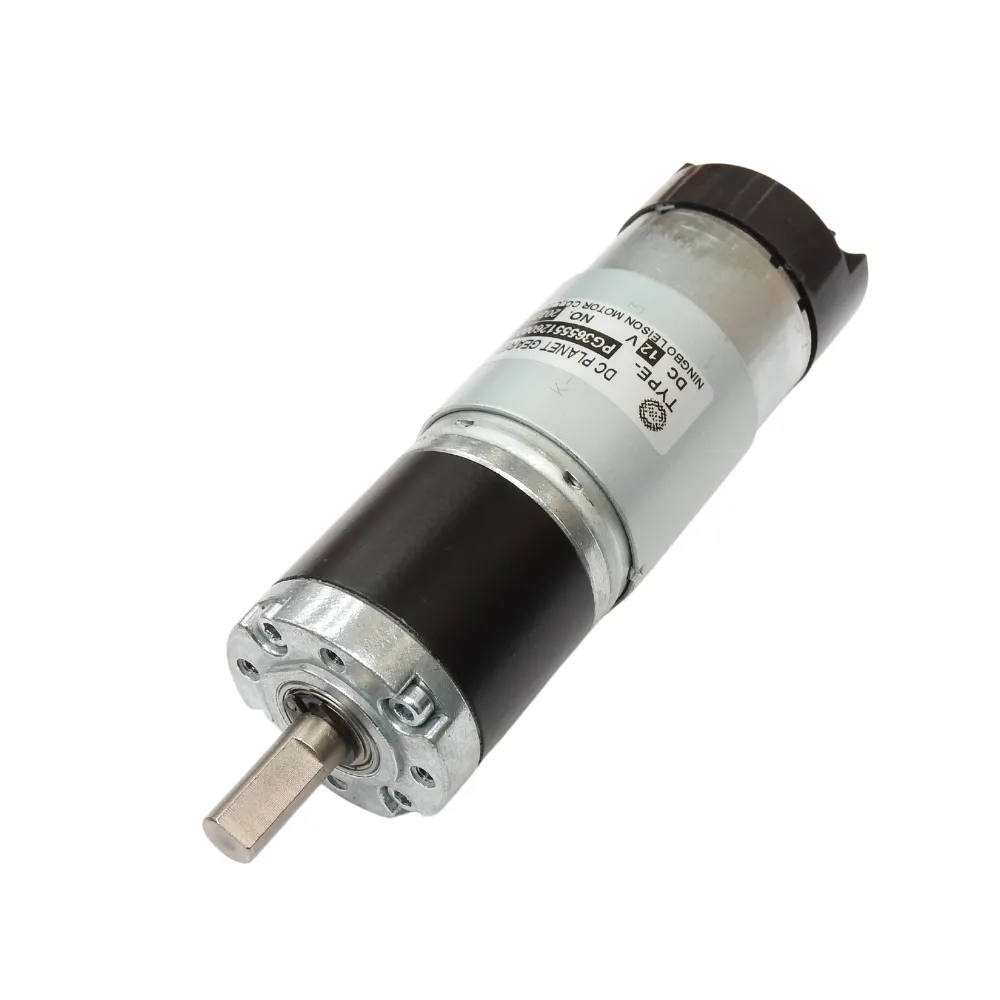

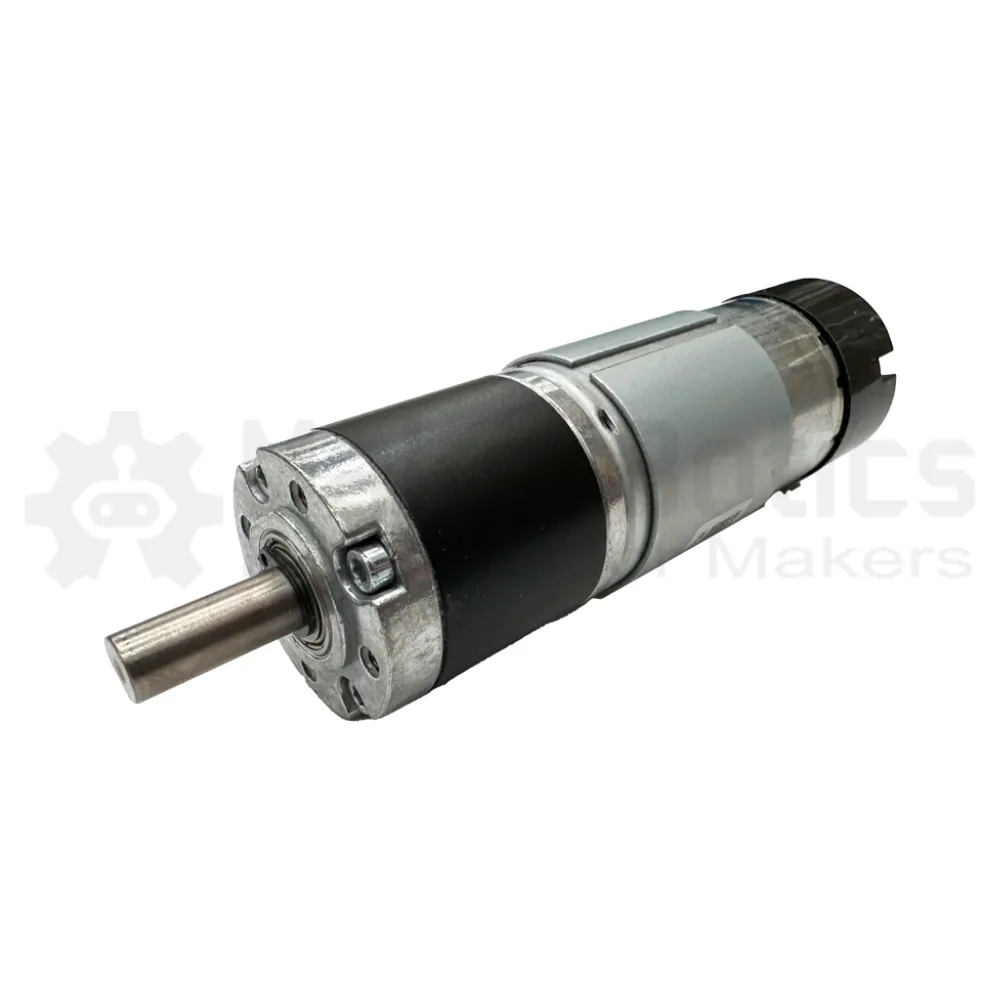

These heavy-duty 36mm planetary geared DC Motors paired with an encoder offer high torque and precise control depending on your projects. These 12V 195RPM DC Motors are great for robotics projects where high torque is required which include but are not limited to; small-medium scale mobile robots and heavy-duty linear actuators. The gearboxes feature all metal planetary gear sets ensuring a long service life and reliability.

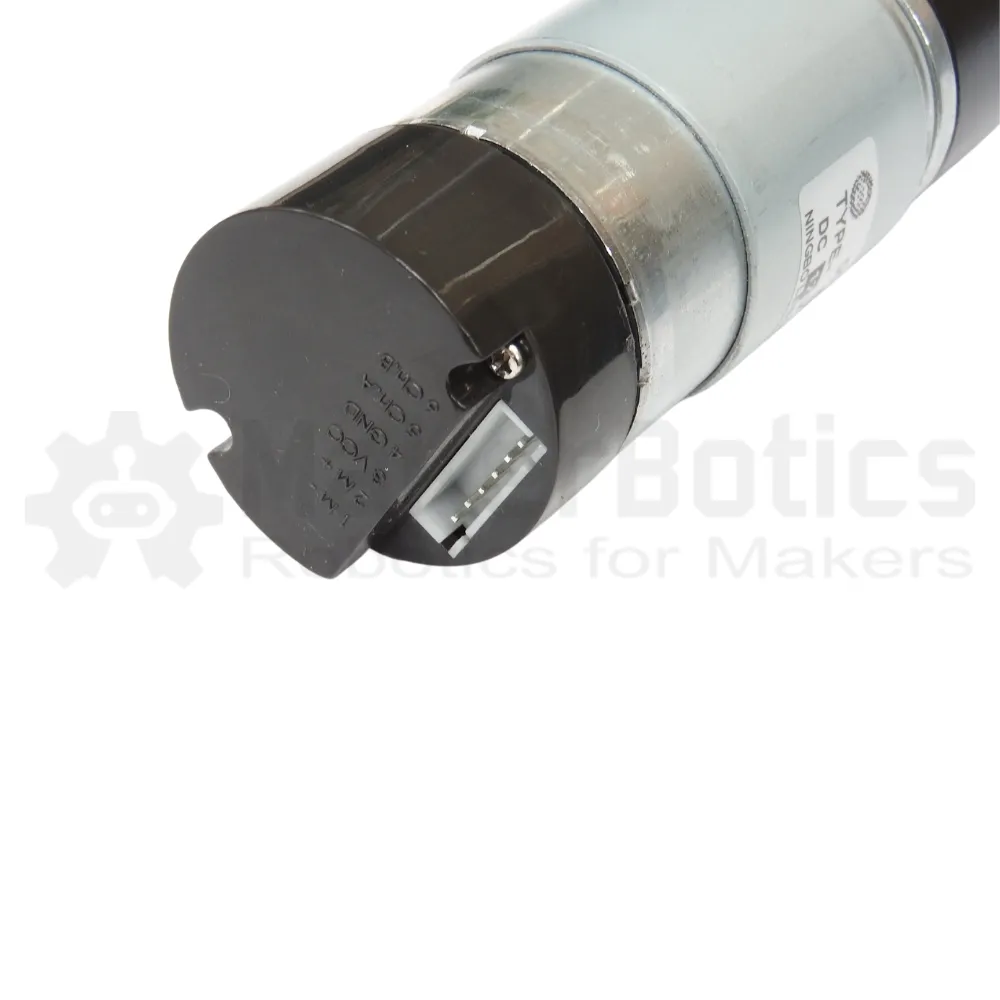

The Makerbotics 36mm planetary geared motors feature an encoder that allows you to gain precise position and speed feedback, allowing for accurate control and motion monitoring. This enhances the overall performance and efficiency of your robotic systems, enabling precise positioning, feedback-based navigation, and smooth operation. The encoder also facilitates closed-loop control, ensuring consistent and reliable performance, making it an invaluable addition for applications that require high precision, such as robotic arms, autonomous vehicles, and industrial automation.
Note: This variant is the 12V 195RPM variant.
The motor can easily be controlled by the Roboclaw series of motor drivers, the 24V 7A Dual-Channel DC Motor Driver or the BTS7960 motor driver.
Motor Specifications:
- Rated Voltage: 12VDC
- Motor Brush Type: Graphite
| SKU | No Load Speed | Load Speed | No Load Current | Load Current | Rated torque Kgf.cm |
| MB-ELC-PGM-555-12V-195 | 195 | 180 | 0.65A | 2.5A | 7 |

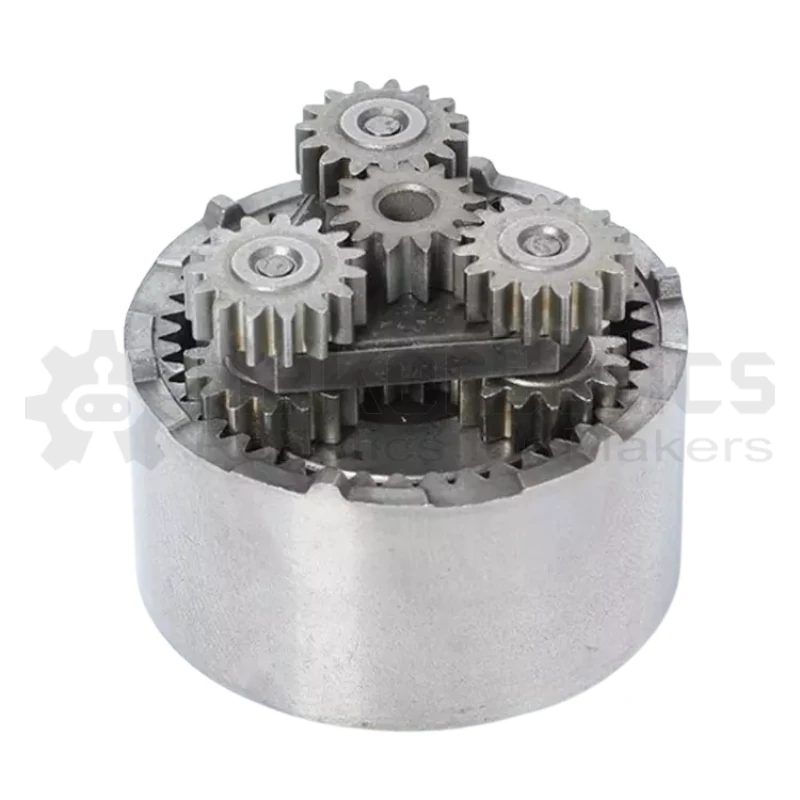

Planetary Gearbox Specifications:The 555 motors are paired with a high-performance planetary gearbox with metal gears, offering a reliable system with high torque in a compact package.
|
|
Encoder Details:Specifications:

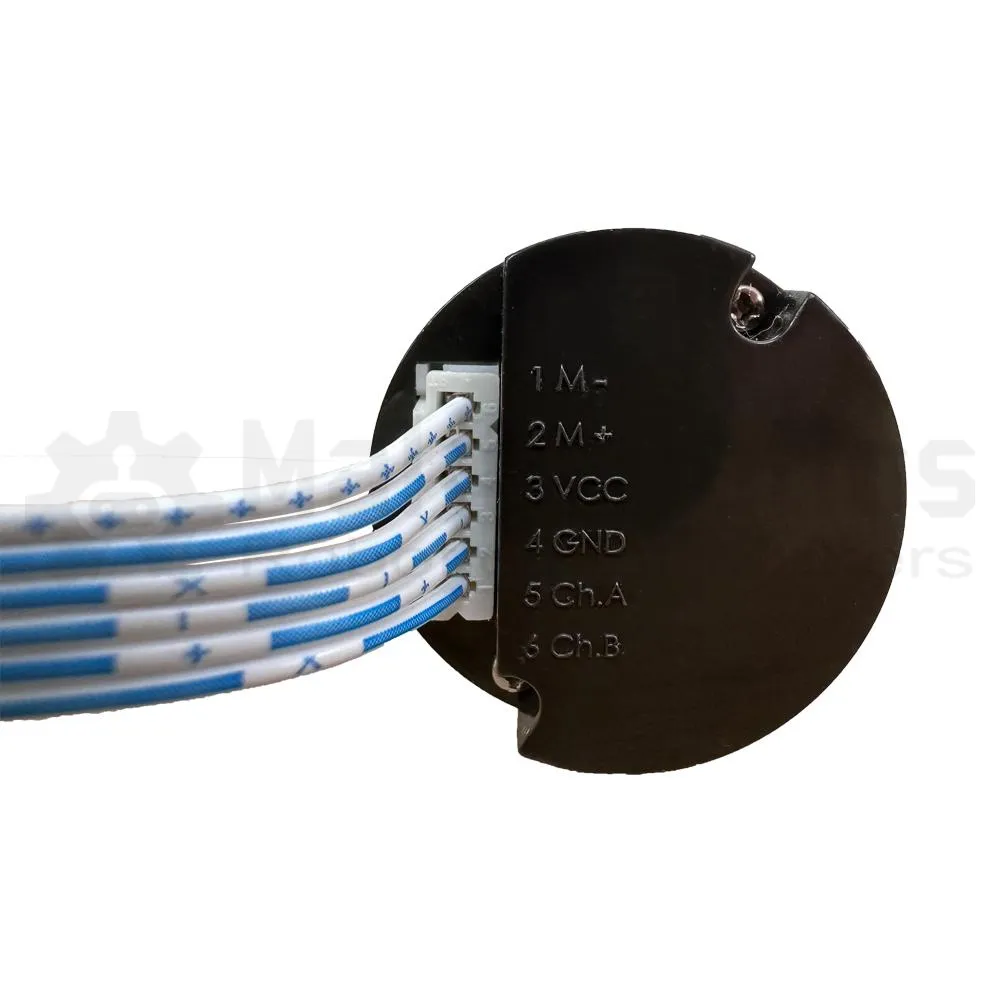

Encoder Pinout:
|
|

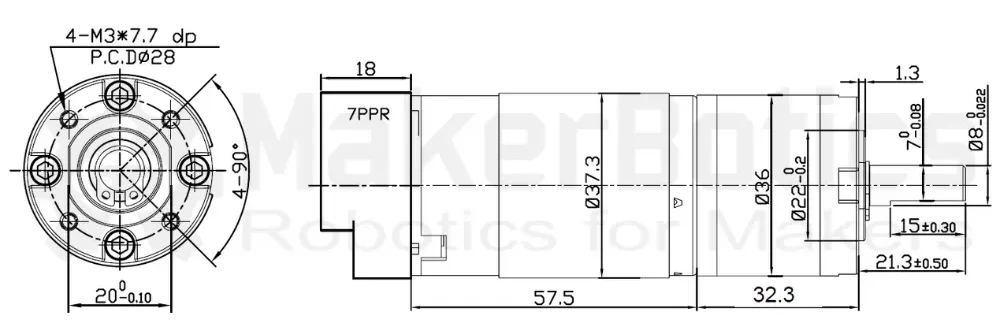

Engineering Drawings
Note: All dimensions are in mm
Tips and Tricks:
- Pair these motors with our Roboclaw series of drivers for advanced closed-loop control.
Included:
- 12V Planetary Geared Motor
- Encoder Cable
