V-Slot C-Beam HEAVY – 20 Series

Inc. GST

All of our 3050mm 20-Series extrusions conveniently come standard with an M5x0.8mm 10mm deep tap!

Need a custom length?

If you would like your extrusion to be cut to a custom length, just let us know in the order notes! We’ll happily accommodate your request by providing a custom-cut quote once we receive your order.

Compatible With

Description

V-Slot C-Beam HEAVY – 20 Series Details

Name: V-Slot C-Beam HEAVY - 20 Series
SKU: LR-CHV-S
Availability: InStock

Shipping Information

Please Note:

All lengths up to and including 1.0 meters are covered under our flat-rate shipping.
Extrusions longer than 1.0 meters are not eligible for flat-rate shipping. We will provide a quote for oversized road freight.
Please Contact us for more information

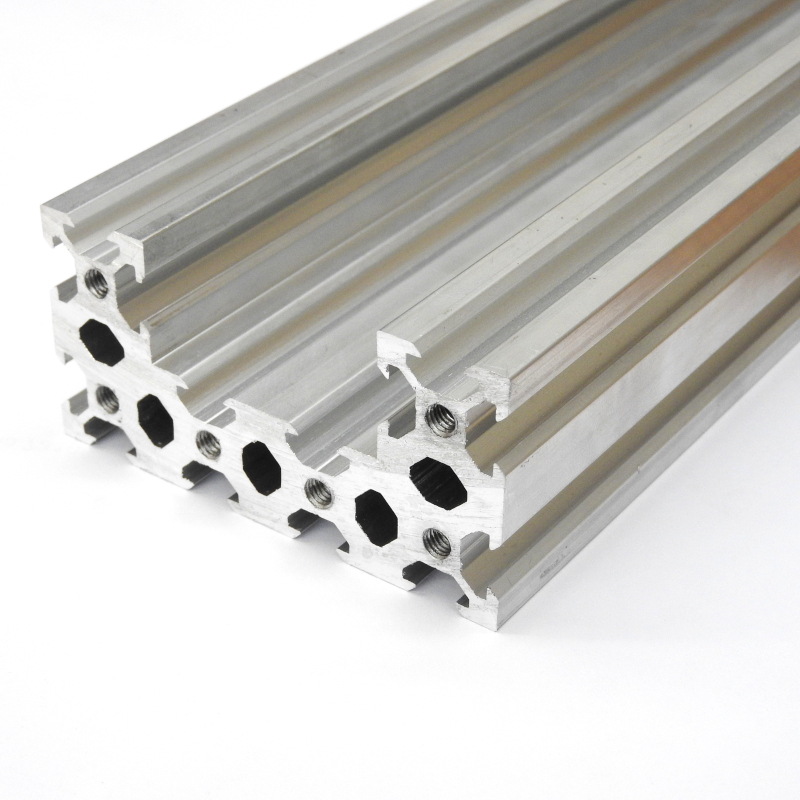

What is V-Slot C-Beam HEAVY – 20 Series?

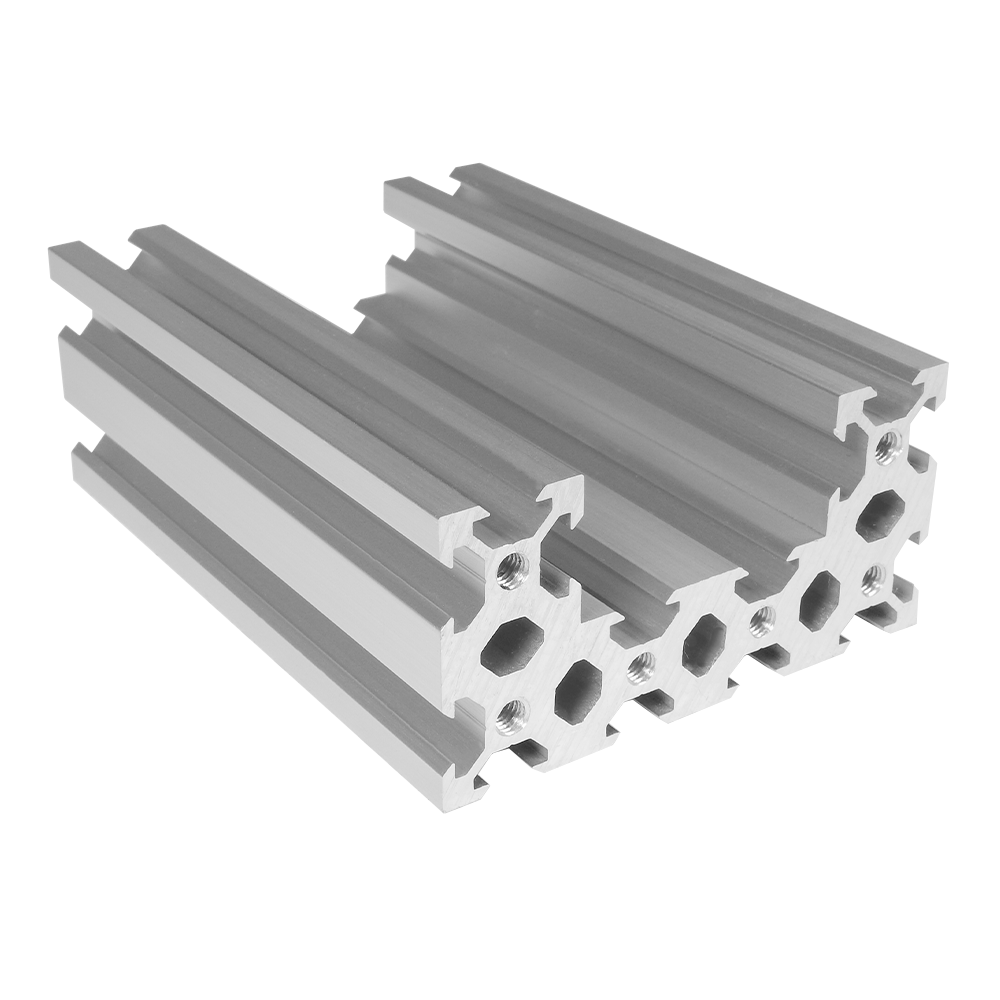

V-Slot C-Beam HEAVY – 20 Series is a versatile profile that is based on the widely used V Slot linear guide system. Its square shape gives it extra strength and functionality. All standard V Slot parts and accessories are compatible as it is a part of the V Slot line. It comes in three different lengths: 1000mm, 1500mm, and 3000mm.

This upgraded version of the C-Beam Linear Rail has a wall thickness 2.7 times that of the regular version. It was designed in-house by the Maker Store team for use in heavy-duty applications such as CNC machines, framing, and heavy-duty actuators. These high-precision linear rails are based on the open-source C-Beam Linear Rail by Openbuilds.

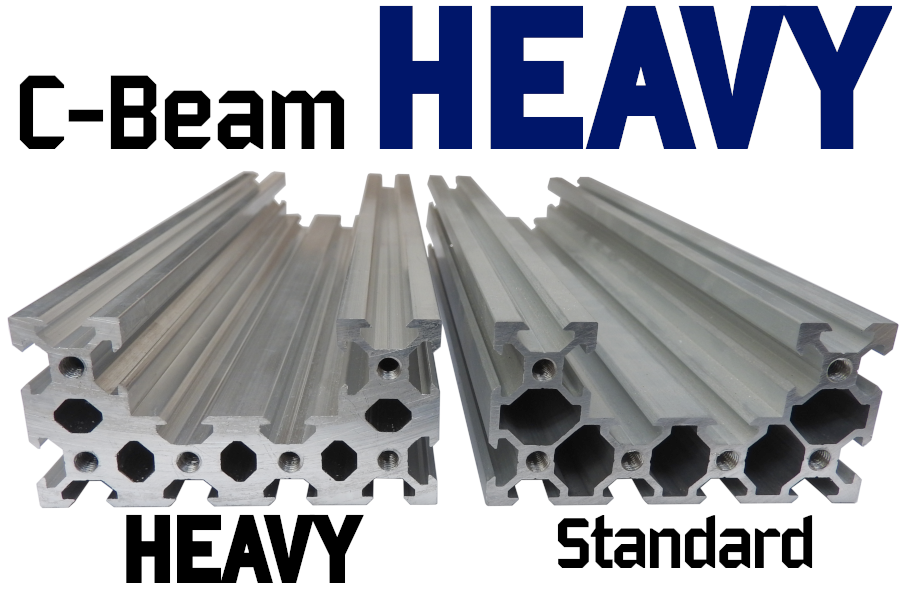

The increased wall thickness has resulted in a 72% increase in strength, while only adding 60% to the weight of the standard C-Beam. This makes C-Beam HEAVY ideal for weight-critical applications with its great weight to strength ratio.

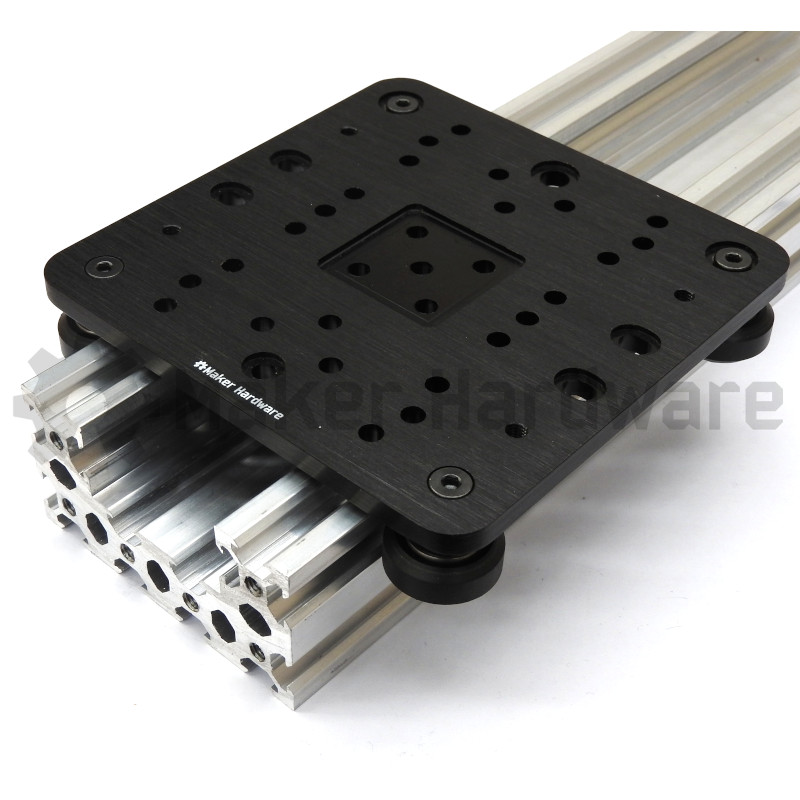

What can the V-Slot C-Beam HEAVY – 20 Series be used for?

Industrial Machinery: Construct sturdy machine frames, conveyor systems, and automation equipment with ease. The secure fastening provided by this extrusion ensures reliability in demanding industrial environments.
Custom Workstations: Design ergonomic and efficient workstations for your laboratory, workshop, or manufacturing facility.
Automation and Robotics: Develop custom automation solutions and robotic arms. The C-beam shape provides the rigidity needed for precise and repeatable movements.
Exhibition Booths: Craft modular and reusable exhibition booths for trade shows and events. The extrusion’s adaptability allows for quick setup and teardown.
Retail Displays: Craft eye-catching retail displays that draw customers in. The extrusion’s sleek black finish adds a professional touch to your designs.
Aerospace Prototyping: Rapidly prototype aerospace components and structures. The extrusion’s lightweight 6063-T5 aluminium is ideal for aerospace applications.
Solar Panel Frames: Build durable frames to support solar panels in residential and commercial installations. The secure fastening ensures the longevity of your solar arrays.

Specifications

Material: Aluminum Grade: 6063-T5
Compatibility: 20 Series V-Slot Hardware

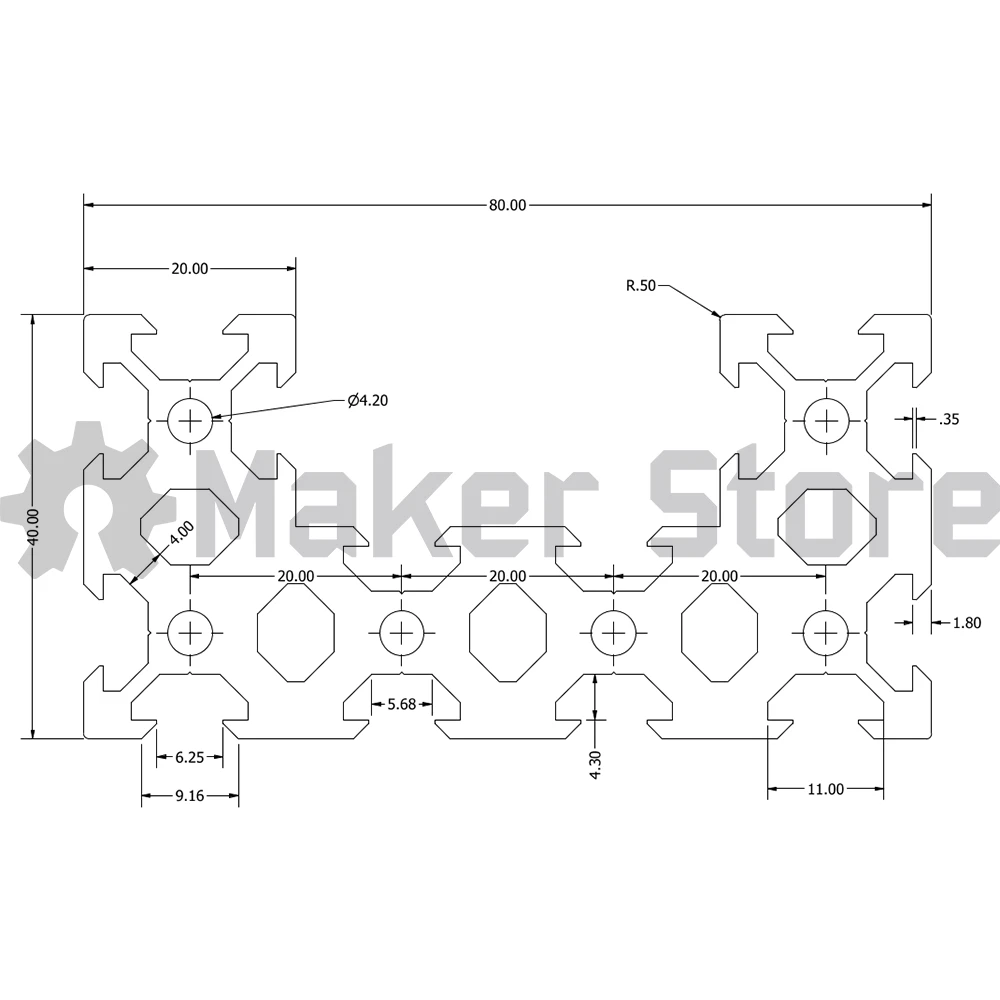

Profile Dimensions: 40mm x 80mm
Colour: Silver

Tapping for V-Slot C-Beam HEAVY Extrusions

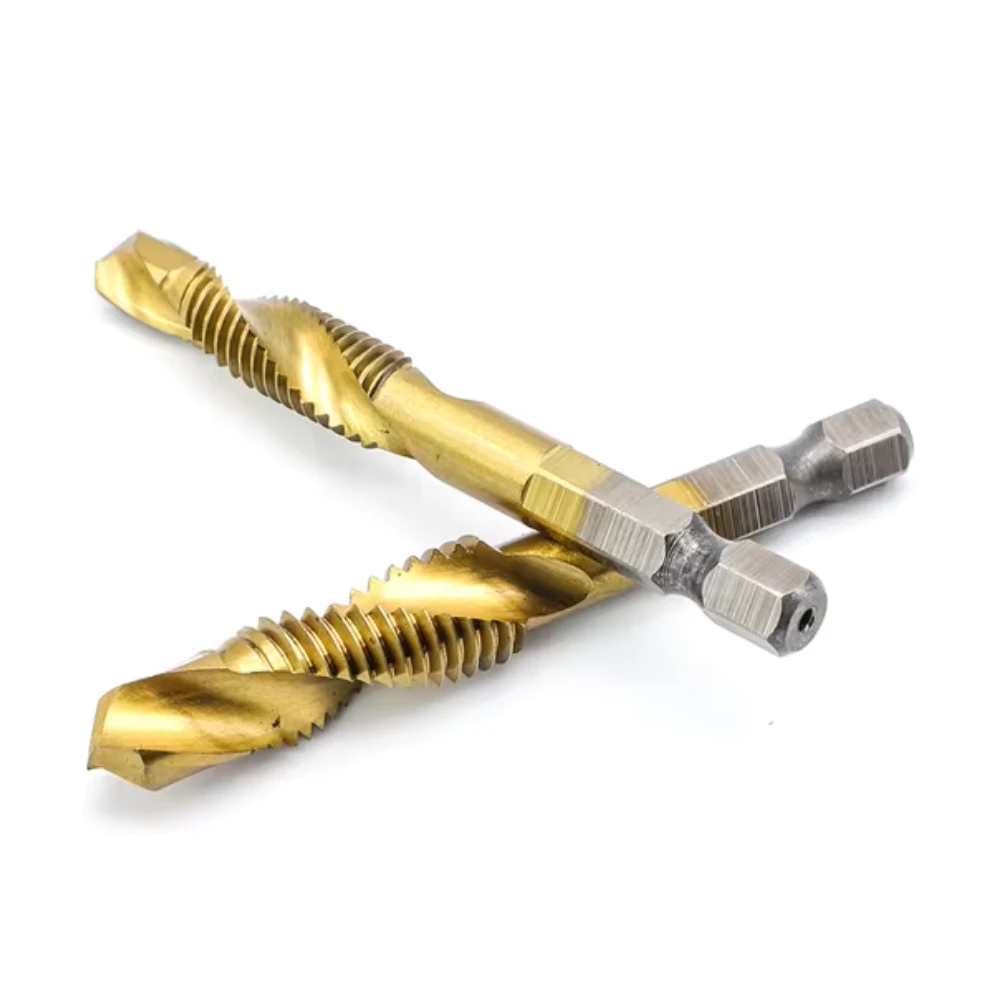

Tapping is the process of using a tool called a tap to create threads inside a hole by carving precise grooves. This enables screws or bolts to securely attach to the ends of the extrusion.

Our 3050mm extrusions come standard with an M5x0.8mm 10mm deep tap, If you’re opting to cut the extrusion, you may benefit from our optional tapping service. To use this, please leave a note in the order notes stating your required cuts and if you need tapping, we will reach out.
