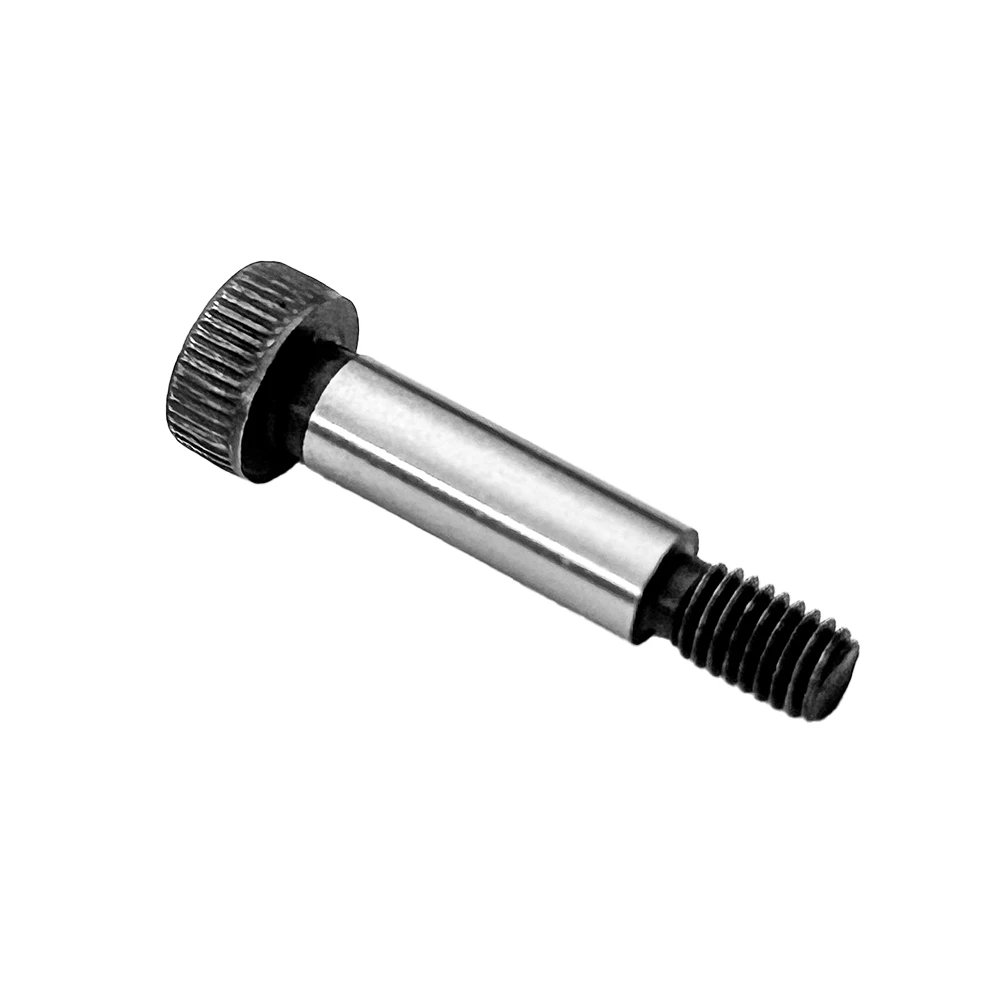

M5 Hex Socket Cap Head Shoulder Bolts are meticulously engineered to meet the rigorous demands of precision engineering and advanced manufacturing. Featuring a hex socket cap head for easy installation and a smooth shoulder for precise alignment, our M5 Hex Socket Cap Head Shoulder Bolts are ideal for applications requiring reliable fastening and accurate rotational movement.

Designed with both durability and performance in mind, these bolts ensure that your projects maintain optimal functionality and longevity. Whether you’re working on intricate CNC machining tasks, ensuring the stability and precision of 3D printer components, or enhancing the mobility and accuracy of robotic assemblies, our bolts provide the perfect fastening solution. The M5 Hex Socket Cap Head design allows for high torque application, ensuring a secure fit, while the shoulder section provides a smooth, precise bearing surface for rotating parts.

By choosing our M5 Hex Socket Cap Head Shoulder Bolts, you benefit from:

• Precision Engineering: Each bolt is crafted to exacting standards, ensuring consistent performance and reliability.
• Ease of Use: The hex socket cap head design makes installation straightforward and secure with a standard Allen key or hex wrench.
• Versatility: Suitable for a wide range of applications, from high-precision CNC machines to advanced robotics and 3D printing projects.

Applications:

Our M5 Hex Socket Cap Head Shoulder Bolts are perfect for a variety of uses, including:

• CNC Machines: Ensure secure and precise assembly of moving parts, enabling your machine to perform intricate and accurate operations.
• 3D Printers: Maintain stability and alignment of components, which is crucial for producing high-quality prints with fine details.
• Robotics: Facilitate smooth movement and precise control of robotic joints and linkages, enhancing the performance and reliability of your robots.

Specifications:

• Thread Size: M5 (5mm nominal diameter)
• Head Type: Hex Socket Cap Head, designed for Allen key or hex wrench
• Shoulder: Smooth cylindrical section providing a precise bearing surface
• Material: Carbon steel with a Black finish

Overall Length (Without Head Height)	A – Head Diameter	B – Allen key Size	C – Head Height	D – Shoulder Length	E – Thread Length	F – Hex Depth	G1 – Shoulder Diameter	G2 – Thread Diameter
25.5mm	9.8mm	3mm	4.5mm	16mm	9.5mm	2.8mm	6mm	M5
29.5mm	9.8mm	3mm	4.5mm	20mm	9.5mm	2.8mm	6mm	M5
34.5mm	9.8mm	3mm	4.5mm	25mm	9.5mm	2.8mm	6mm	M5
39.5mm	9.8mm	3mm	4.5mm	30mm	9.5mm	2.8mm	6mm	M5
44.5mm	9.8mm	3mm	4.5mm	35mm	9.5mm	2.8mm	6mm	M5
49.5mm	9.8mm	3mm	4.5mm	40mm	9.5mm	2.8mm	6mm	M5

Package Includes:

• 1 x M5 Hex Socket Cap Head Shoulder Bolt

Unable to find the correct Bolts & Screws you need for your application? Explore our selection of Bolts & Screws in our store.
