Description
Technical Overview
Manufacturers produce 40 Series Drop-In T-Nuts to facilitate direct hardware integration within standard modular framing tracks. To establish high tensile strength, engineers fabricate the part from carbon steel. Consequently, this materials architecture prevents thread stripping and delivers dimensional stability under persistent directional loading. Furthermore, the nut geometry incorporates a specialized drop-in assembly profile. This specific shape functions actively as a post-assembly insertion interface within profile channels. As a direct result of this design, the hardware allows users to install fasteners directly into pre-assembled structures without requiring the disassembly of existing frame segments.
Additionally, the base layout features a profile configured specifically to sit squarely into internal profile channels. For instance, the extra material thickness across the chassis body maximises the thread-to-screw engagement area. By doing so, it successfully distributes localized mechanical clamping stress over a wide contact zone to deliver tighter fastening. Moreover, the complete design accommodates multiple internal metric thread sizes including M4, M5, M6, and M8 options. Therefore, these varying thread lines anchor standard machine bolts firmly against internal profile shoulders. This direct integration securely locks adjacent cross-members into place to streamline modification and adjustment workflows.
Applications
Designers specify this modular fastening component primarily for structural framework tracking utilizing standard 40 Series T-Slot linear profile systems. To build these precise robotic and automated setups, technicians apply the hardware to anchor linear rails, actuator brackets, and structural tie-plates. Specifically, they install the nuts into precision CNC machines, industrial 3D printers, and automated robotic arms to maintain tracking alignment under mechanical load. Furthermore, the assembly provides highly predictable mechanical load distribution across high-vibration equipment frames. It also secures heavy testing instrumentation towers and sensitive measuring equipment enclosures that undergo frequent mechanical adjustment.
Simultaneously, the completed hardware tracking layout drops evenly into profile channels to enable uniform weight distribution across multi-axis joint configurations. Because the component inserts directly into the external profile slots from any point along the track, users can adjust or reposition structural mounting points dynamically. Therefore, this spatial flexibility allows you to adapt the machinery framework to suit changing geometric configurations over time. Ultimately, this functional versatility makes the part highly suitable for securing custom tool gantry plates, modular workspace fixtures, and material handling enclosures. It also reinforces high-vibration dynamic frames that are regularly subjected to cyclic industrial stresses.
Technical Specifications

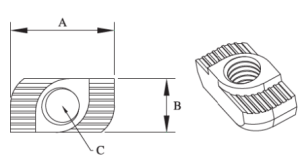

Drawings
| A | B | C | kg |
| 19-20mm | 7.7-8mm | M4-M8 | 0.007 |
Maker Store Tips and Tricks
-
Ensure the drop-in nut rotates a full 90 degrees inside the extrusion channel when torqueing the screw to guarantee proper engagement with internal profile shoulders.
-
Guide the component vertically into the profile slots from above the frame during modifications to integrate new sub-assemblies without stripping down the primary layout.
-
Periodically inspect the tightness of connected fasteners in high-vibration CNC or automation machinery settings to prevent joint tracking drift over long operation cycles.
