Description

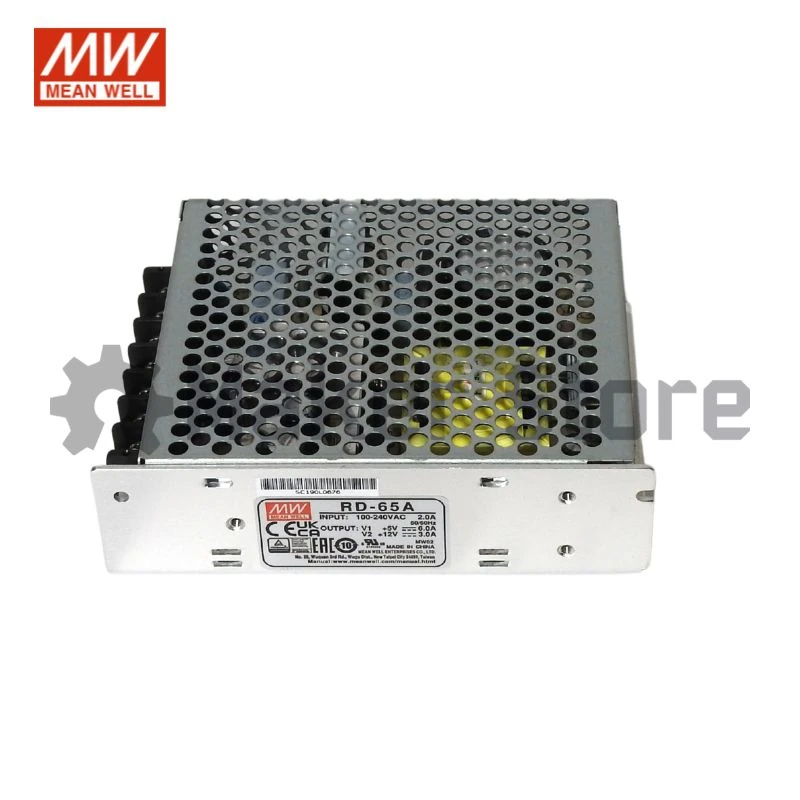

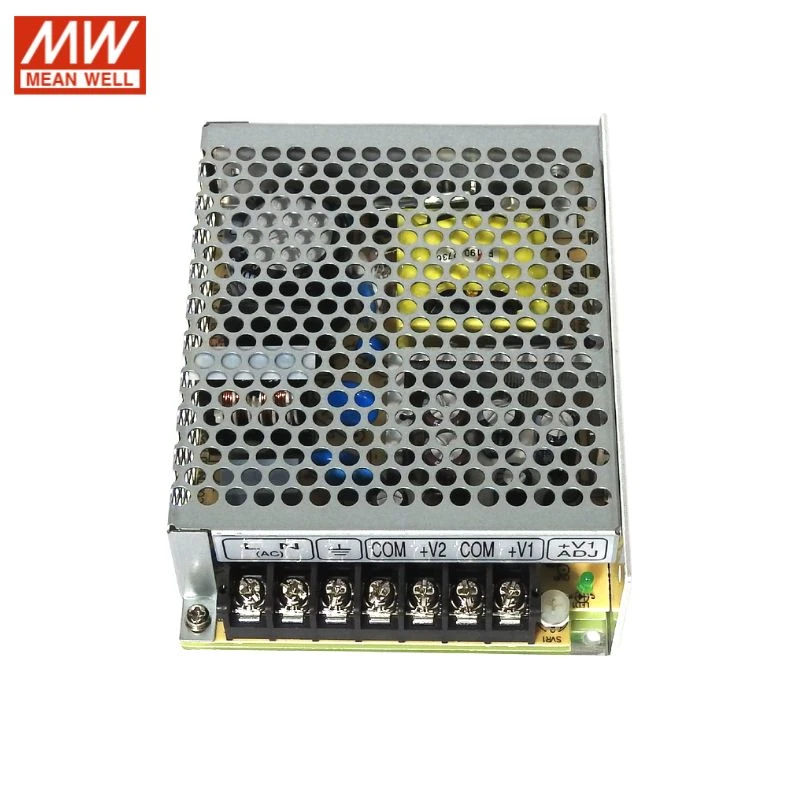

The Mean Well RD-65A series 66W dual outputs AC to DC enclosed switch mode power supply has an output current rating of 6A at 5VDC and 3A at 12VDC. It has a universal input supply voltage rating ranging from 88VAC to 264VAC/125VDC to 373VDC.
Features and Specifications:
- Adjustable output voltage for dual output types on output 1, -5% to 10%
- Dual outputs have a minimum load requirement
- Easy installation
- High efficiency
- High operating temperature up to 70°C
- High reliability
- Long-life electrolytic capacitors 105°C
- Miniature size, high power density
- Output current data
- Overload and overvoltage protection
- Screw terminals
- Short circuit Protection
- The total load must not exceed the rated output power
