Description

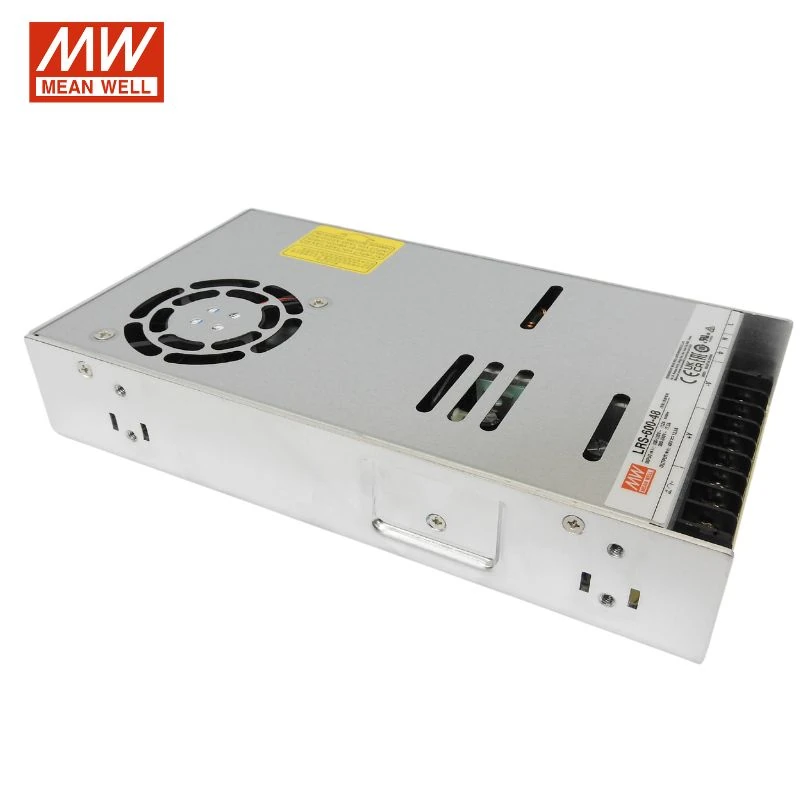

The Mean Well LRS-600 600W AC/DC Single Output is a single-output enclosed type power supply with 41mm of low profile design. Adopting an input of 115 VAC or 230 VAC (select by switch), the inbuilt long-life fan allows the LRS-600 power supply to work from -20ºC to +70ºC with a full load. This power supply has complete protection functions and 5G anti-vibration capability.
Specifications:
- Manufacturer: Mean Well
- Output Voltage: 48V
- Output Power: 600W
- Output Current-Channel: 12.5 A
- Voltage Regulator: 45.6 ~ 52.8V
- Open Frame/Enclosed: Enclosed
- Input Voltage: 90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (switch on 230VAC)
- Input Current: 12A/115VAC 7.5A/230VAC
- Inrush Current: 35A/115VAC 60A/230VAC
- Protections: Short Circuit, Overload, Over Voltage and Over Temperature.
- Mounting Style: Chassis

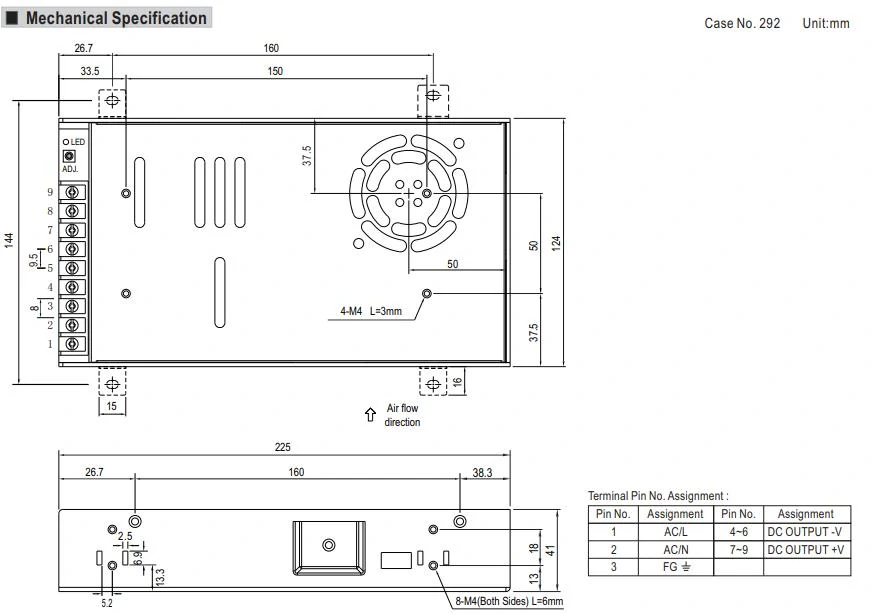

- Length: 225 mm
- Width: 124 mm
- Height: 41 mm
- Input Frequency: 47 ~ 63Hz
- Unit Weight: 950 g
Resources:
LRS-600 DATASHEET
Note: Any Mains power connections must be installed by a Licensed Electrician or suitability qualified person.
