Description

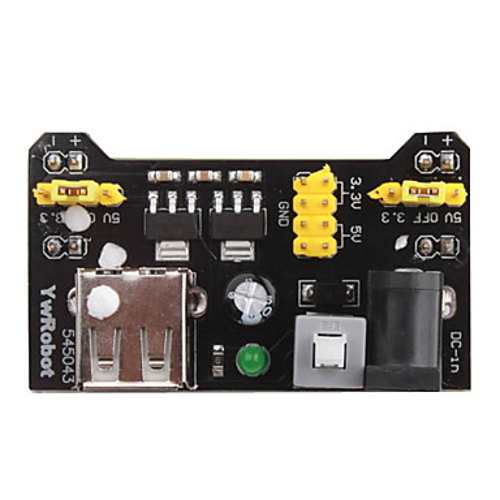

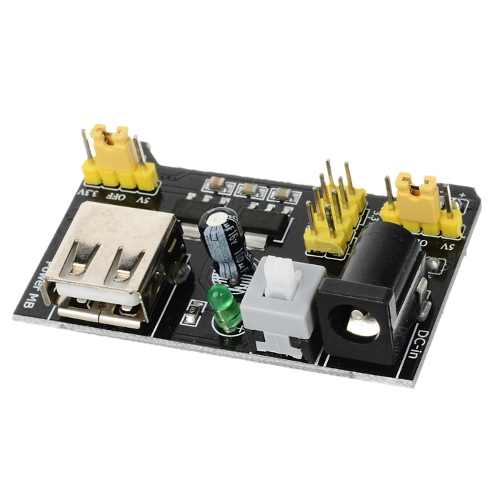

This 3.3V and 5V Breadboard Power Supply Module comes with series diode and polarity reversal protection. The module can take 6.5V to 12V input and produces 3.3V and 5V. Can also output 5V on USB connector and can also take input through USB connector.
Its a must have product for experimenters those have to test/prototype electronic circuits on breadboard or perforated/veroboards.
Specifications:
- Breadboard power supply module, with 5 V, 3.3 V output voltages

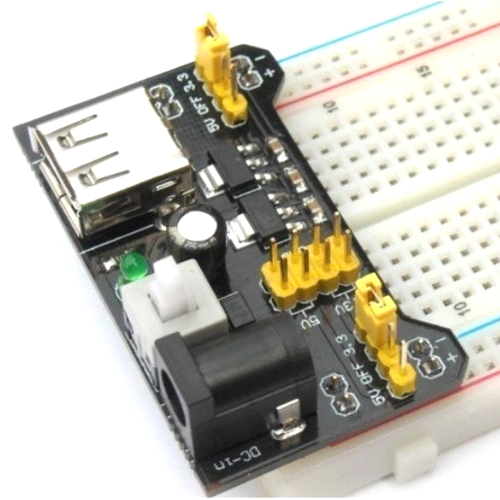

- Fits MB102 Standard breadboard
- Input voltage: 6.5-12 V (DC) or 5V USB power supply
- Output voltage: 3.3V and 5V can switch over
- Maximum output current: <700 ma
- Input voltage ON/OFF switch
- Independent control of upper and Lower Bread Board Power Rails. Can switch over to 0 V, 3.3 V, 5 V using jumpers on any rail.
- On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
- Connectors:
- 1x Barrel 5mm Connector (center +ve) for Input Power
- 1x USB connector for 5V input or 5V output

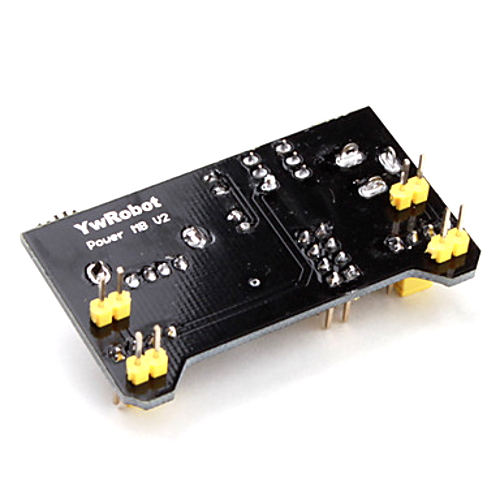

- 4x 2Pin Headers pointing downward for 3.3V or 5V output
- 1x 2×4 Header for 3.3V and 5V output
- 2x 1×4 selection jumper for 3.3V/OFF/5V
1x Power Supply Module (breadboard not included)
