Description

Technical Overview

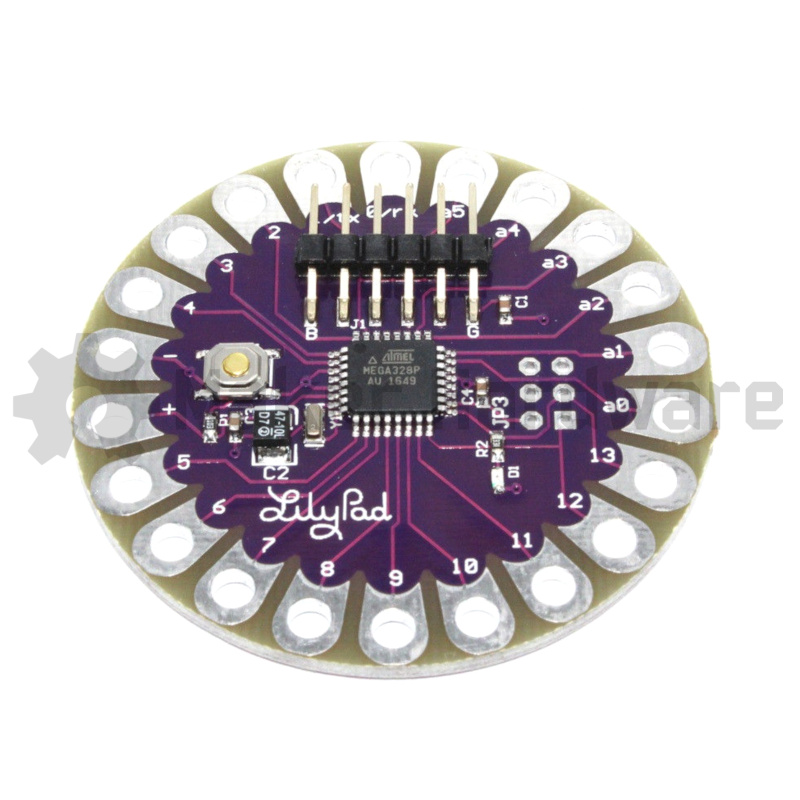

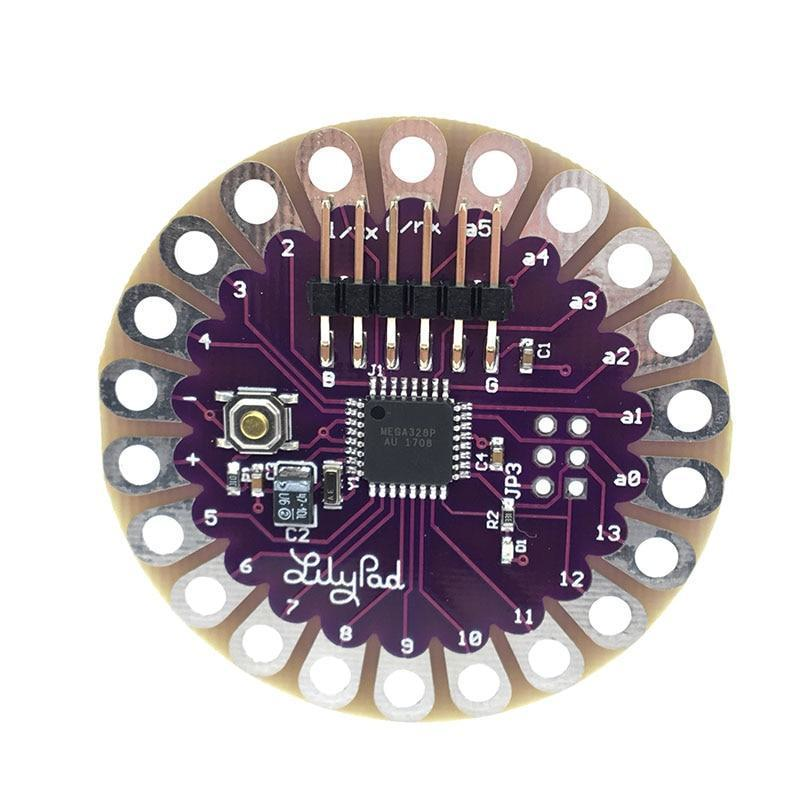

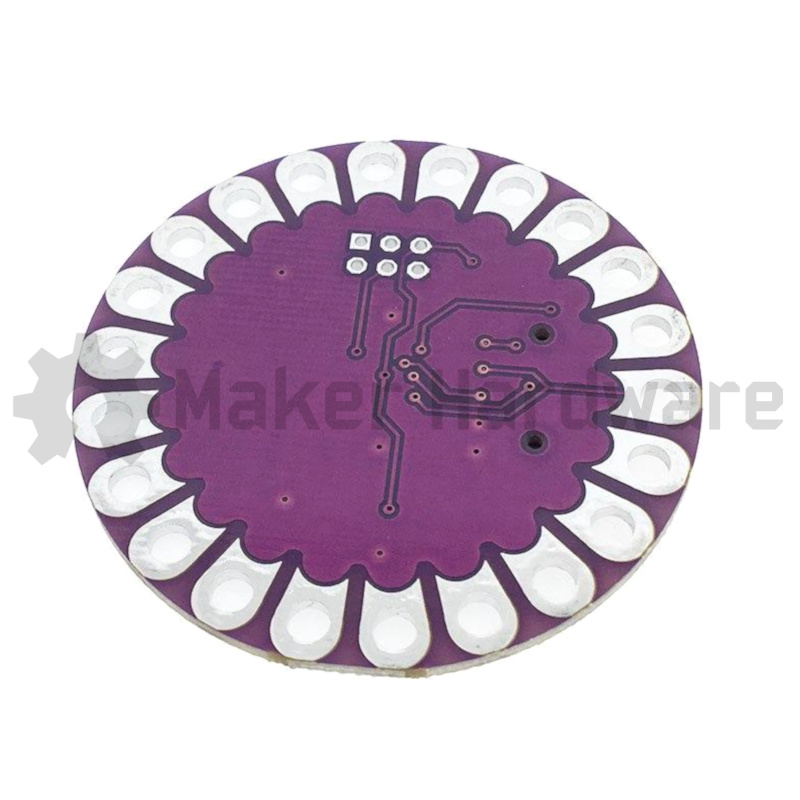

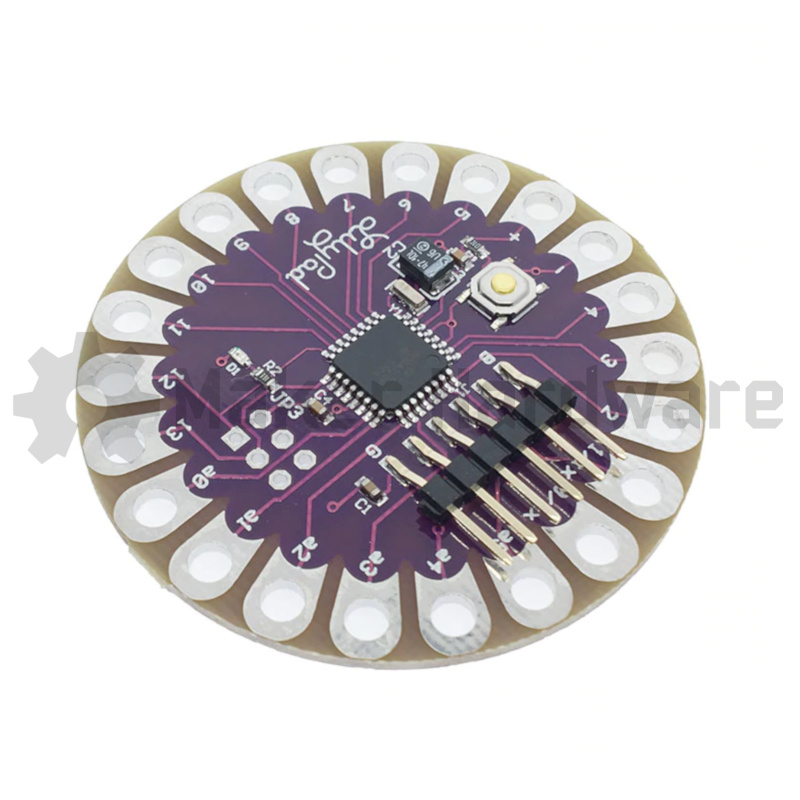

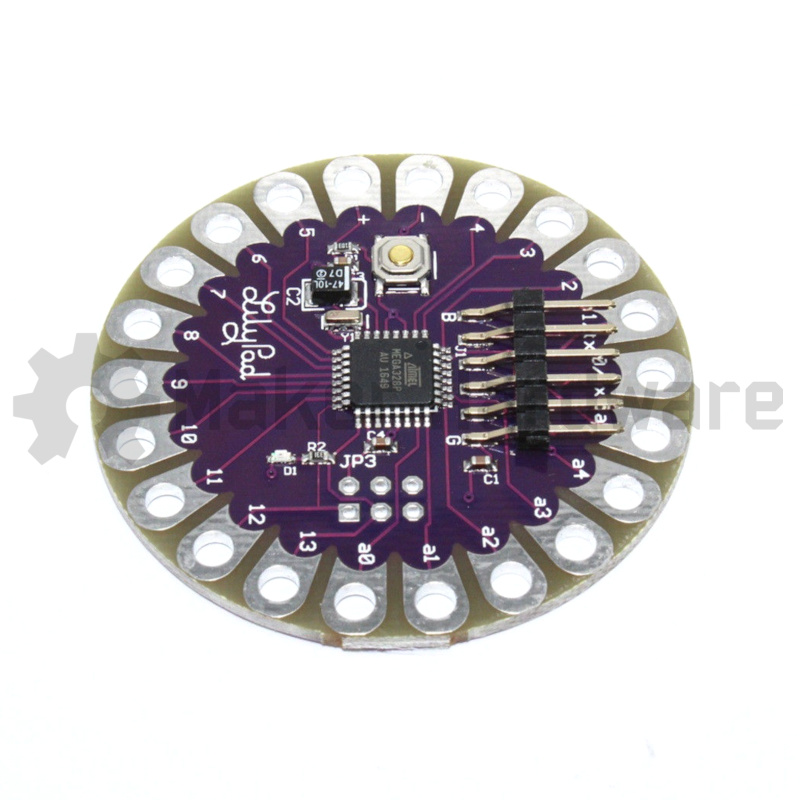

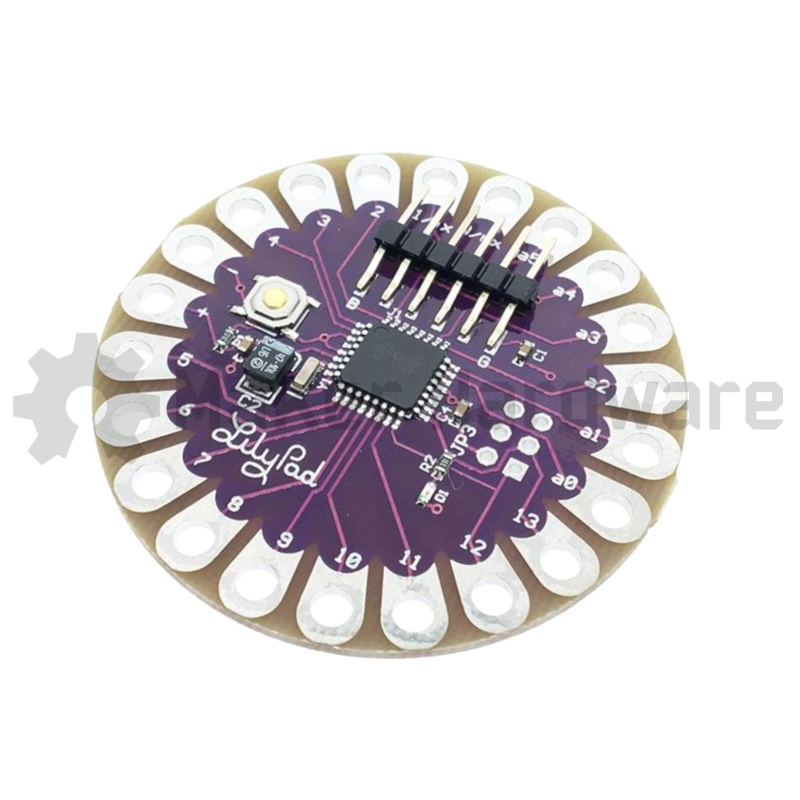

Engineers actively integrate the LilyPad Arduino 328 Main Board into wearable electronic textiles and e-textile systems. Specifically, this innovative board features an ATMega328V microcontroller at its core. Furthermore, designers purposefully shaped the unit into a thin, lightweight, and round form factor. Consequently, this compact design completely eliminates sharp edges, which ultimately prevents fabric snagging during assembly. Moreover, the board utilizes highly minimal external componentry in order to save space. At the same time, it also includes the standard Arduino bootloader to maximize overall efficiency. Because of these deliberate design choices, the hardware successfully drives your entire wearable project network as the primary control node.

Applications

Creators primarily deploy this LilyPad Arduino 328 Main Board in smart clothing, wearable installations, and interactive textile systems. For instance, these advanced setups frequently require a highly compact, low-profile microcontroller. To solve this design challenge, wide circular tabs allow you to anchor the module directly onto fabric substrates. From there, you can easily sew the pieces together by using conductive thread. In addition to this setup, builders typically pair the unit with flexible input and output components. Indeed, these additions include textile switches, sensors, wearable motors, and low-power LED matrices. Ultimately, this comprehensive hardware combination enables discrete, sewable mechanical integration into dynamic apparel designs.

Technical Specifications

Maker Store Tips and Tricks

• Ensure all conductive thread traces are completely insulated or spaced appropriately to avoid short-circuiting adjacent sewable pin-out holes.

• Do not wash or submerge the board while it is actively connected to a power supply or battery source.

• Verify your operating voltage stays within the 2V to 5V threshold; exceeding 5V can permanently damage the ATMega328V microcontroller.
