Description
Technical Overview

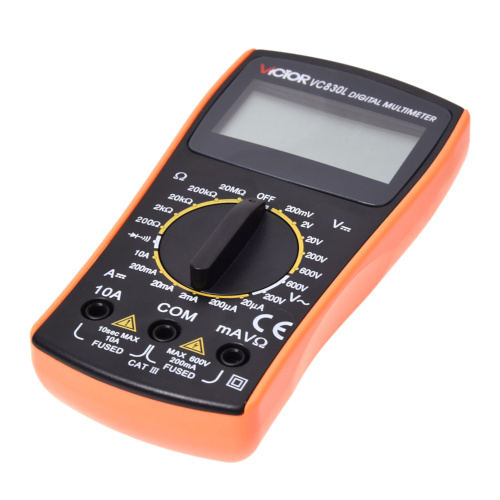

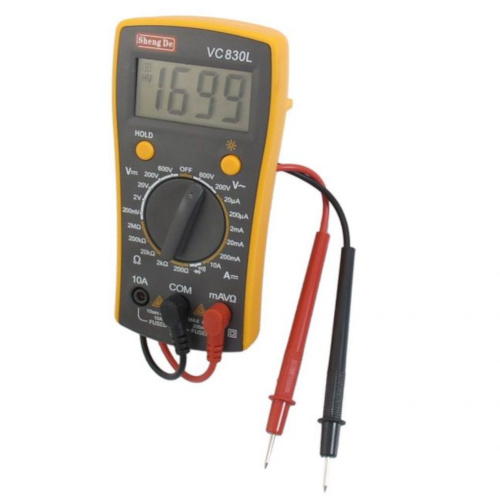

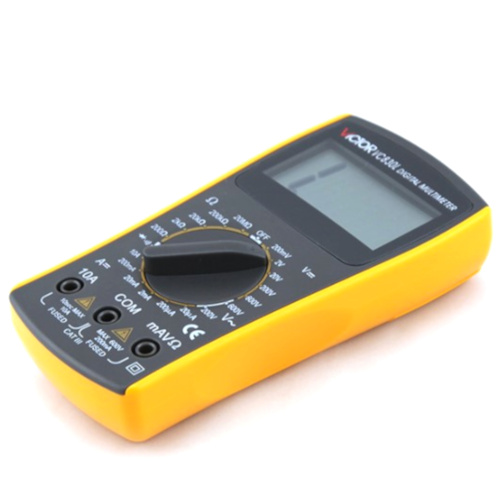

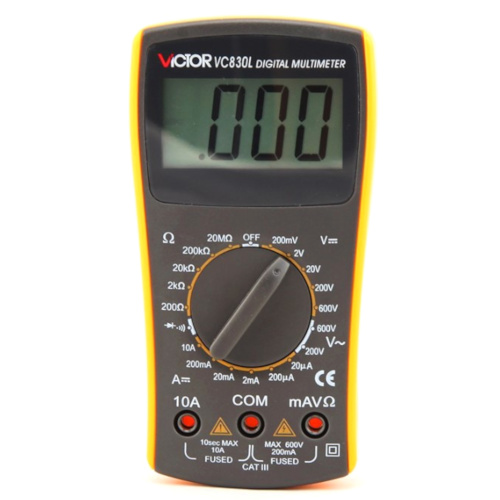

The VC830L is a handheld digital multimeter engineered to measure diagnostic variables in electrical circuits and electronic assemblies. Specifically, this battery-operated instrument quantifies DC voltage, AC voltage, DC current, and electrical resistance. Consequently, the sensor system processes inputs via quality test probes and outputs electrical values directly onto an integrated digital LCD interface. In addition, the internal architecture integrates a specialized continuity buzzer and diode testing functions. Therefore, these features allow operators to check circuit integrity and troubleshoot semiconductor components smoothly.

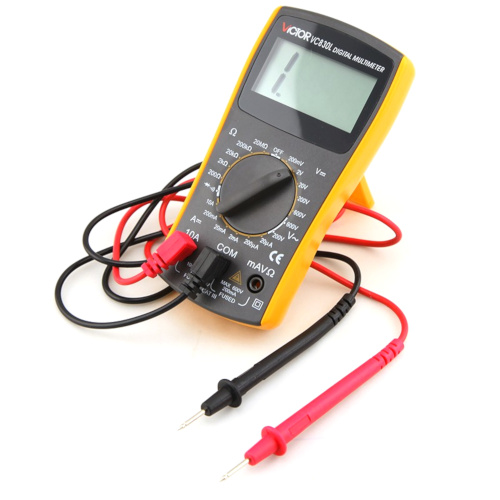

Furthermore, this test unit functions as a vital diagnostic reference instrument within electronic prototyping systems, school laboratory benches, and repair environments. For instance, operators hook up the black and red test leads to exposed electrical conductors to evaluate circuit drops or component failures. At the same time, the robust rotary dial selector switches safely between distinct operational ranges. As a result, this manual configuration safeguards the internal shunt pathways while delivering stable, non-invasive electrical readings to the user.
Applications
Technicians and electronics hobbyists regularly utilize this digital meter for consumer electronics repair, power rail verification, and custom circuit prototyping. Additionally, educators employ the instrument as a foundational training tool within electrical engineering workshops, STEM labs, and automotive diagnostic spaces. For example, operators frequently deploy the unit into breadboard verification tasks, power supply calibrations, and wire harness tracing. By doing so, they can accurately verify battery voltages, resistance profiles, or general circuit routing loops.
Because the system supports multi-parameter measurement ranges, it operates interchangeably across low-voltage microcontroller testing and mains-level diagnostic tracking. Therefore, maintenance teams seamlessly deploy the tool across diverse workbench configurations without requiring separate dedicated ammeters or ohmmeters. It successfully confirms circuit parameters to isolate shorts, faulty components, or power drops during active development.
Technical Specifications
Maker Store Tips and Tricks
-
Never connect the probe leads to voltage sources exceeding 600VDC or 600VAC to avoid catastrophic damage.
-
Set your measurement ranges appropriately using the manual dial; if you are uncertain of the load value, always start at the highest range scale.
-
Do not modify or alter the internal circuitry of the meter, as this invalidates the calibration metrics.
-

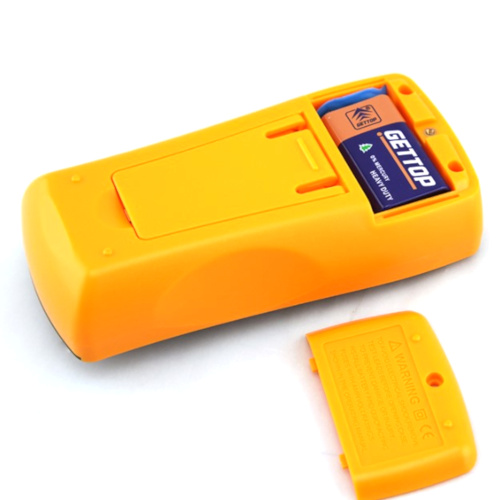

Ensure a compatible operating battery is sourced prior to operation, as the power cell is not included in the standard pack.
Package includes :

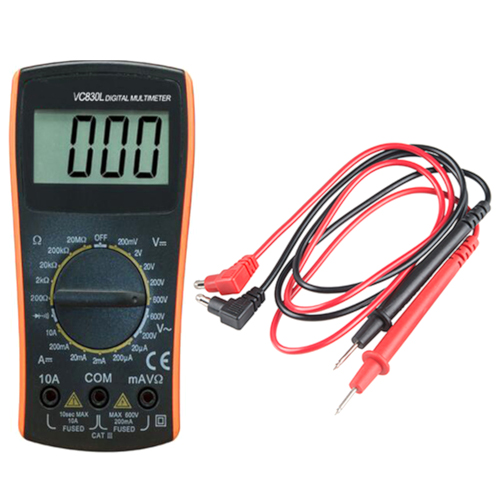

- 1 x VC830L Digital LCD Multimeter
- 1 x Test Leads line (red & black)
- 1 x User Manual
