Description
Please Note:These 22mm Latching Push Buttons are sold separately. Don’t forget to grab a connector and a 22mm Nut Wrench for your projects! |
| Connector and Cable for 22mm Push Button
|
22mm Nut Wrench
|
$3.41 Inc. GSTAdd to cart |
$3.69 Inc. GSTAdd to cart |

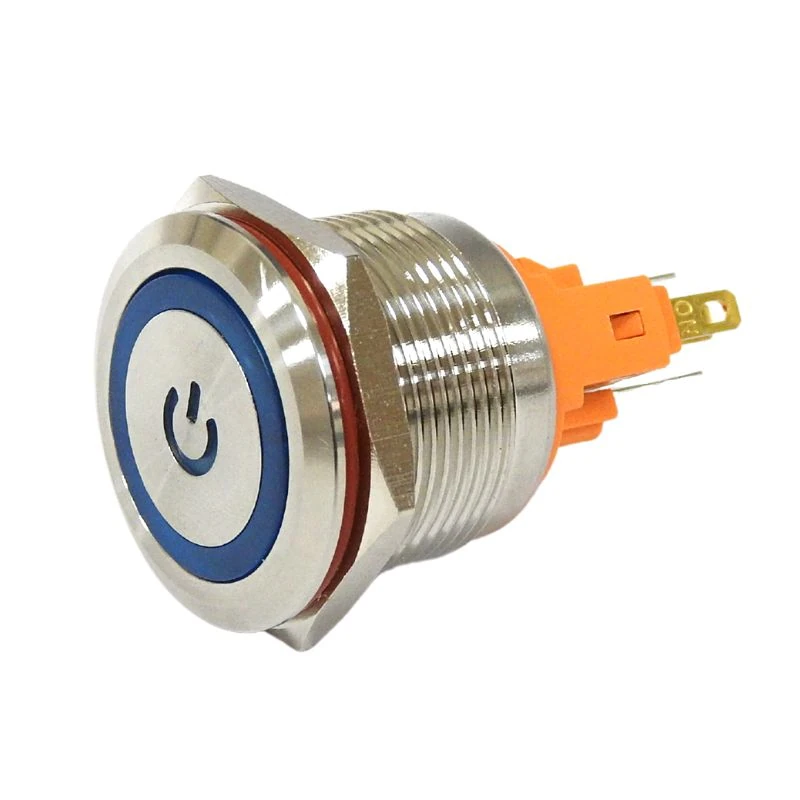

Our Maker Store Panel Mount 22mm push buttons are the perfect pairing for applications that need visual feedback when a device is ON/OFF. These buttons can switch loads up to 10A, and they are Ideal to be used with a contactor to control even heavier loads or to send digital signals to a PLC or a microcontroller.
Specifications:
- LED Colour: Blue
- LED Current Consumption: 20mA
- LED Voltage: 9-24V
- Indicator Symbols: Ring and Power Symbol
- Switching Mechanism: Latching
- Electrical Contact: 1NO1NC
- Electrical Contact Current: 10A
- Mechanical life: 100,000 Times
- Finish: Chrome Plated Brass
- Panel Mounting Hole: 22mm
- IP Rating: IP65

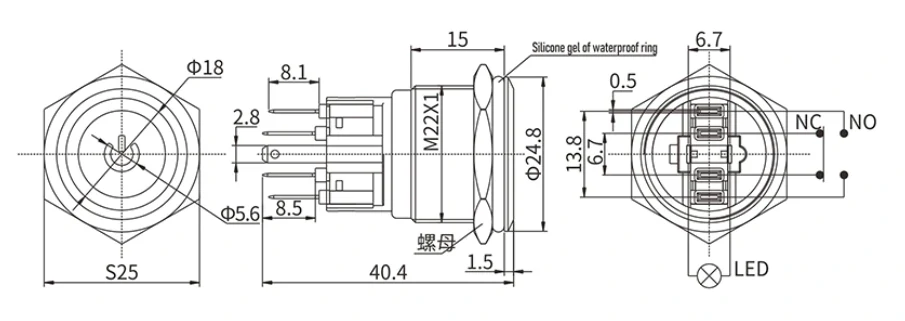

Technical Drawing:
Pro Tips:
- Don’t forget to grab a connector too! They are perfect pairings for these buttons. The connector is designed to save time and effort by avoiding tedious soldering.
- To Avoid overtightening, you can use a 22mm Nut Wrench that was specifically designed for Push Buttons and Led Panel Indicators.
