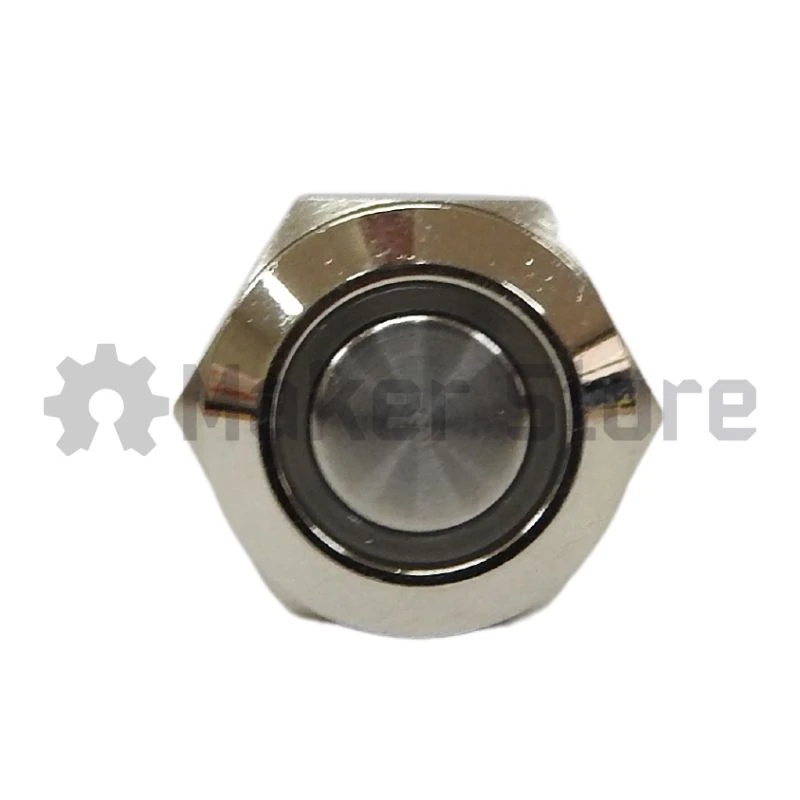

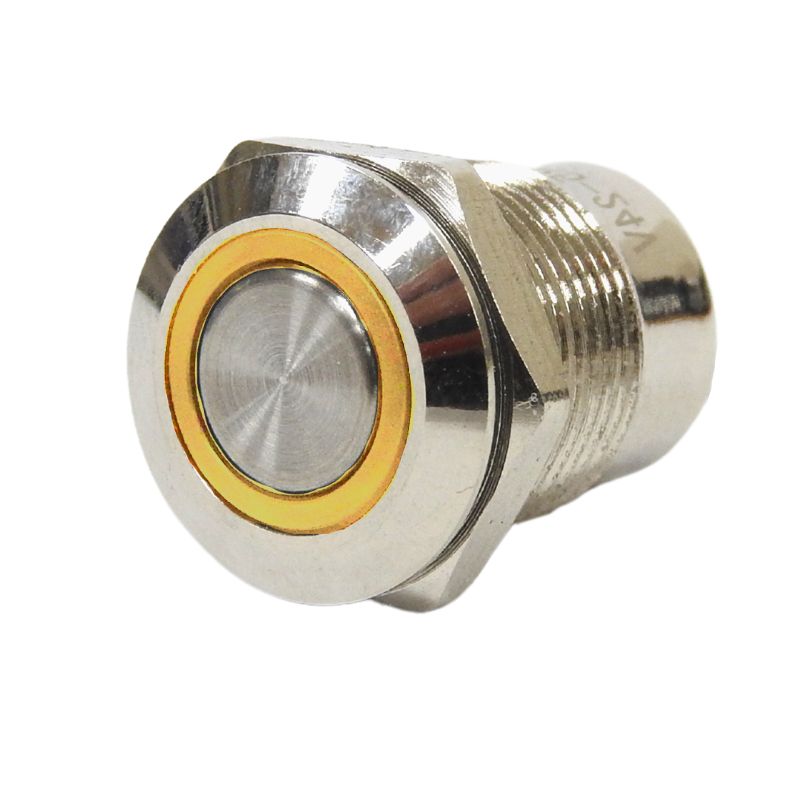

Our Maker Store Panel Mount 12mm push buttons are the perfect pairing for applications that need visual feedback when a device is ON/OFF.  These buttons can switch light loads up to 3A and they are Ideal to be used with a relay to control heavier loads or to send digital signals to a PLC or microcontroller.  With an ultra-short design, you can easily mount them in a room with a limited amount of space. These push buttons come with silver pins that are perfect for soldering or matching with our special connector.

Specifications:

• LED Colour: Yellow
• LED Current Consumption: 20mA
• LED Voltage: 9-24V
• Switching Mechanism: Latching
• Electrical Contact: 1NO
• Electrical Contact Current: 3A
• Mechanical life: 100,000 Times
• Finish: Chrome Plated Brass
• Panel Mounting Hole: 12mm
• IP Rating: IP65

Technical Drawing:

Pro Tips:

• When using this button with a microcontroller or a PLC, ensure to have your input pulled High or Low to avoid misreadings.
• Don’t forget to grab a connector too! They are perfect pairings for these buttons. The connector is designed to save time and effort by avoiding tedious soldering.

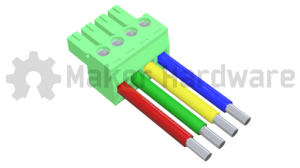

• You can extend the connector cable by using an EDG 4 Pin Connector and a Shielded 4 Core Cable 14/0.2.

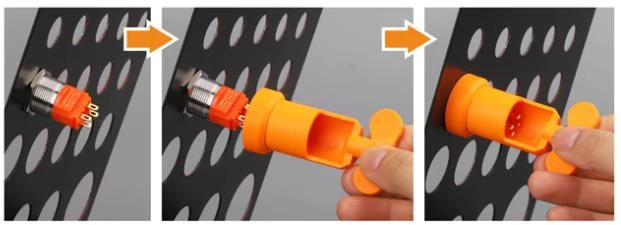

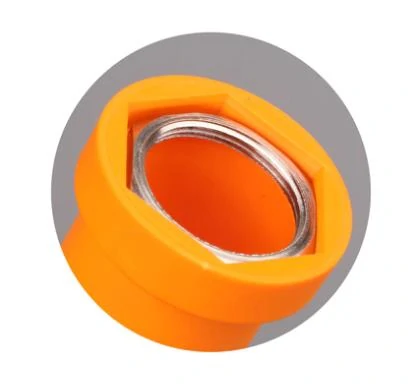

• To Avoid overtightening,  you can use a 12mm Nut Wrench that was specifically designed for Push Buttons and Led Panel Indicators.
