Description
Please Note:This bundle comes with a longer cable to suit the following sizes Mechanical Kit Size: 3000x3000mm.
|
This extra-large 400W Air Cooled Spindle Bundle includes everything you need to run this small high-quality spindle with our 3000 x 3000mm Ox Gear Machine kit.
The 400W spindle is capable of cutting wood, plastic, structural foam, carbon fibre and even soft metals such as aluminium. It is powerful enough for hobby applications, and noise during operation is similar to a standard router. This spindle would best suit a small CNC machine and is a perfect entry-level spindle.
Included is all the hardware for mounting a 400W Air Cooled Spindle on your MiniMill, C-Beam Machine, C-Beam Machine XL, Lead CNC, Ox CNC, MakerBee or another CNC machine.
We stock an ER11 collet set here.

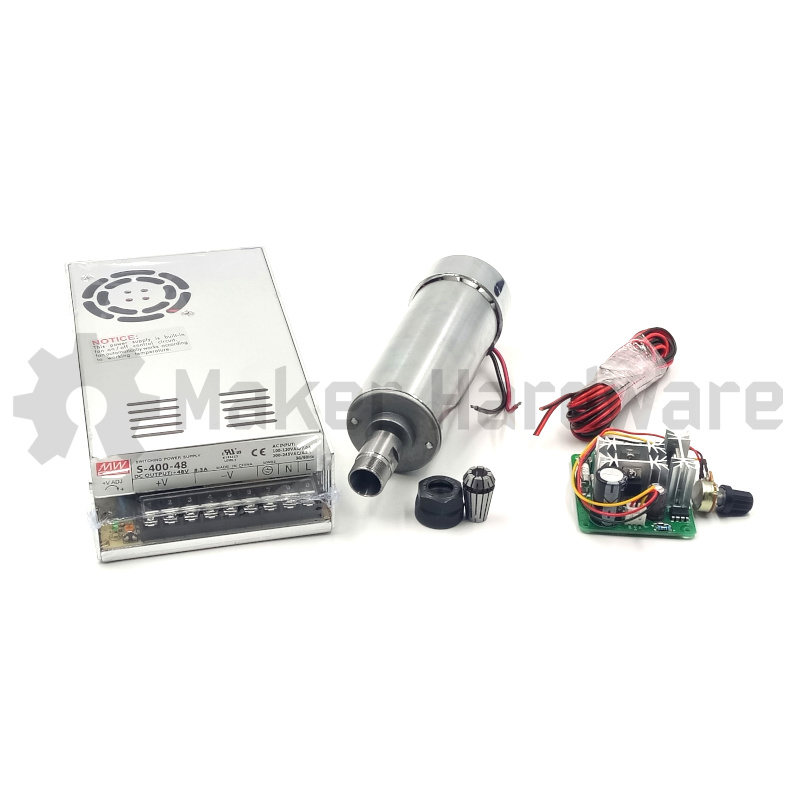

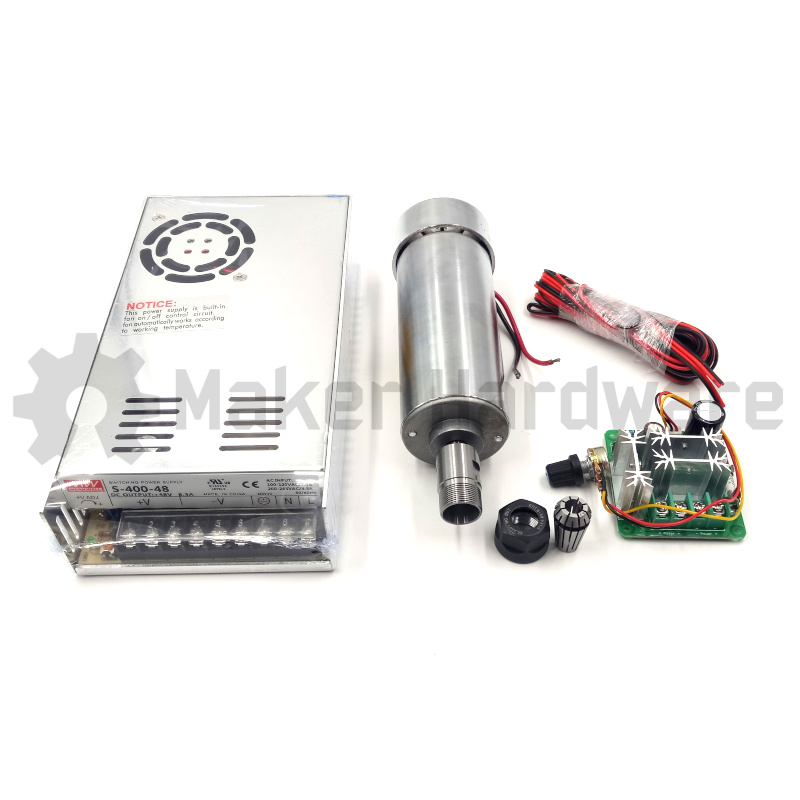

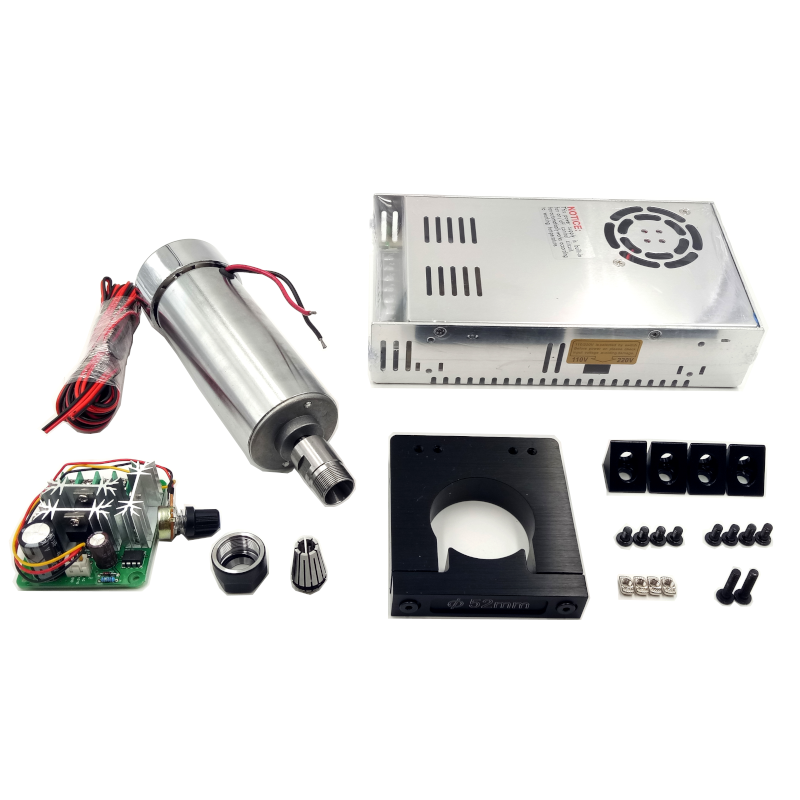

Bundle Includes (Bill of Materials):
| QTY | Description |

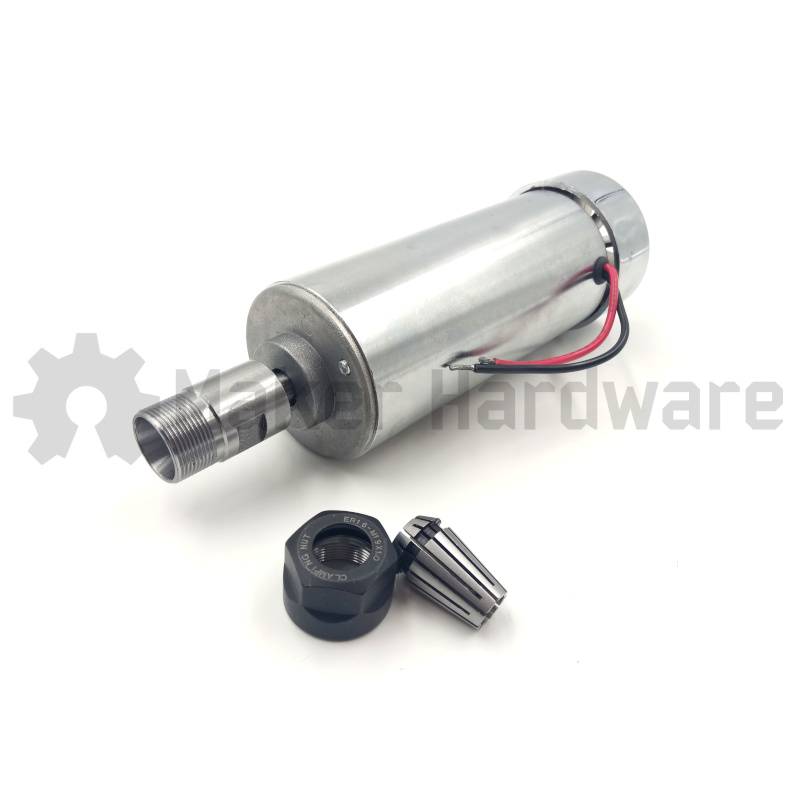

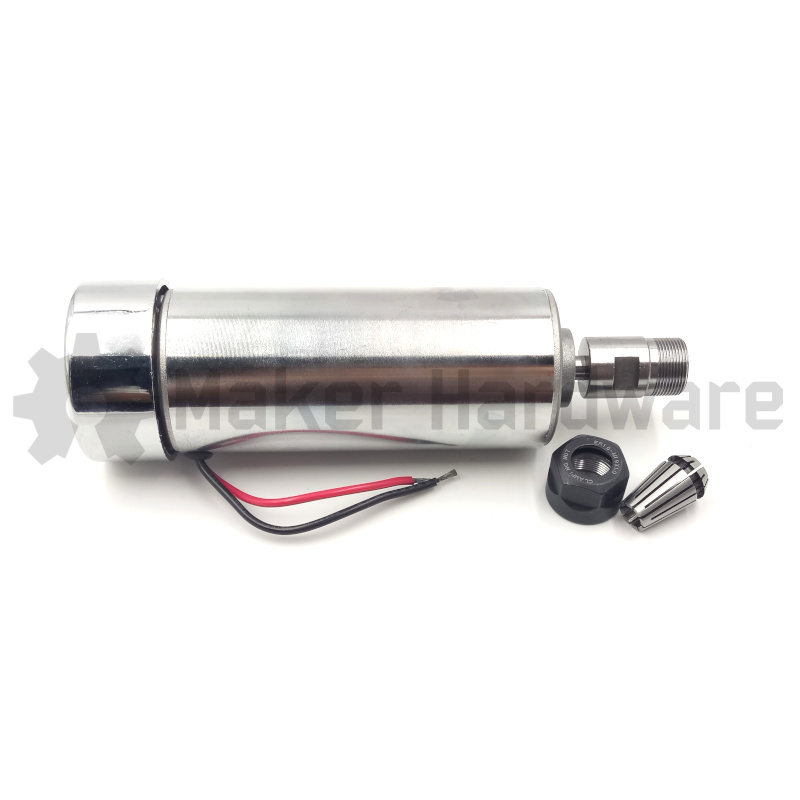

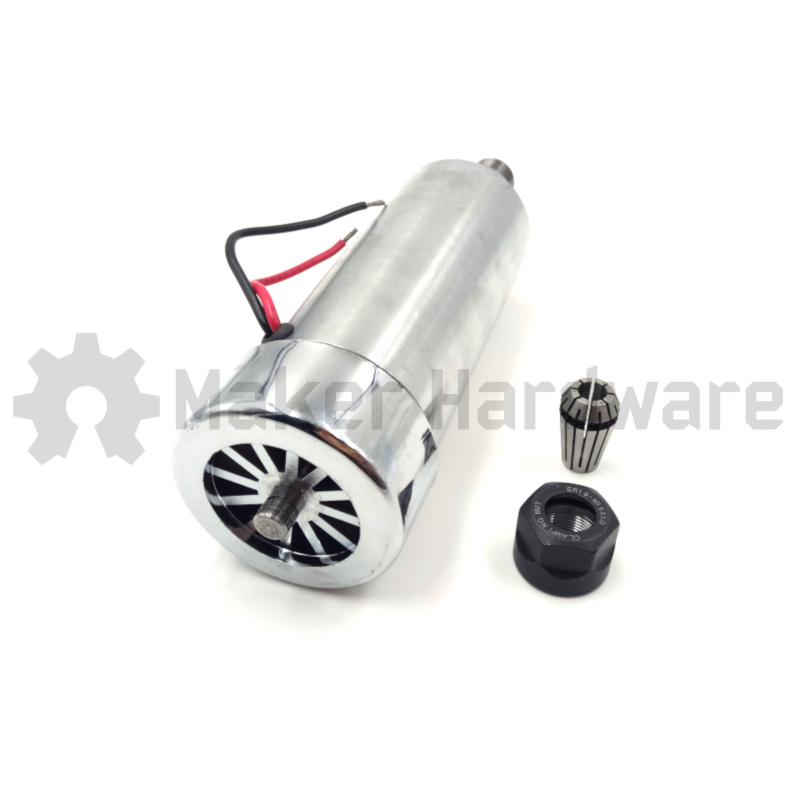

| 1 | Air Cooled CNC Spindle 400W |
| 1 | PWM Speed Controller |
| 1 | Power Supply – 48V 600W |

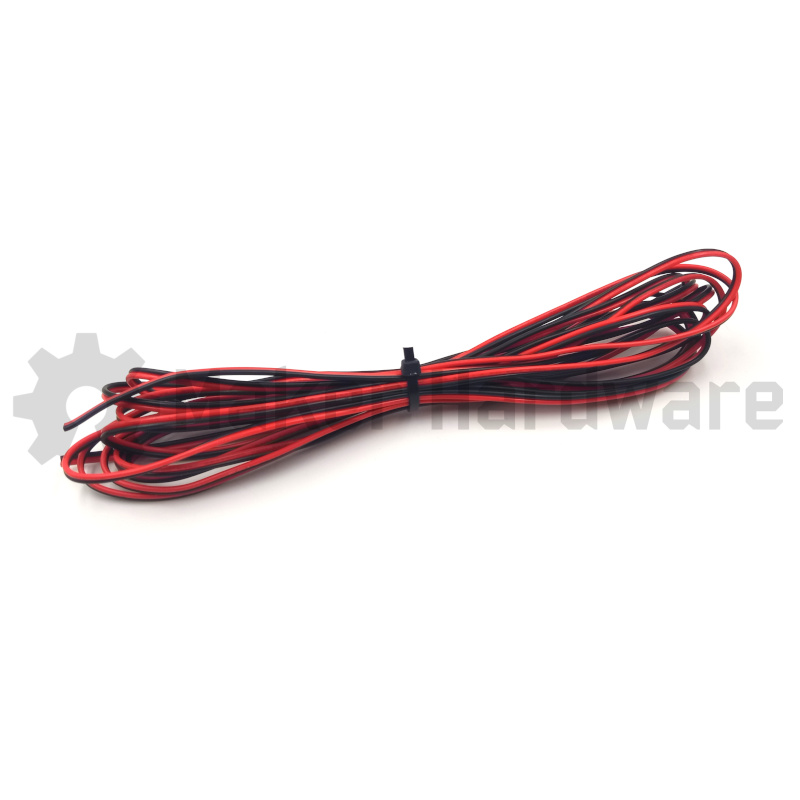

| 9 meters | DC Cable – 2 Core 3mm |

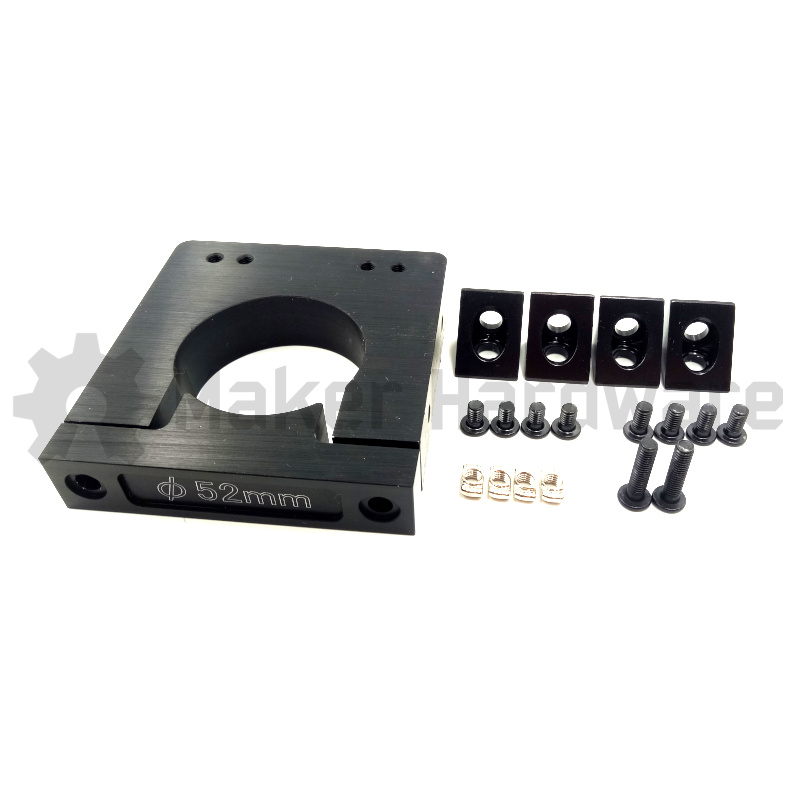

| 1 | Spindle Mount Kit – 52mm |
Spindle Specifications:
- Work voltage: 12-48VDC
- Rotation speed: 3000-12000 RPM
- Power: 400W
- Torque: 500 mN.m
- Insulation resistance: > 2Megohm
- Dielectric strength: 400V
- Motor Length : 186mm
- Diameter: 52mm
- Axis collet Length: 48mm
- Collet Size: ER11
- Repeat accuracy: 0.01-0.03mm

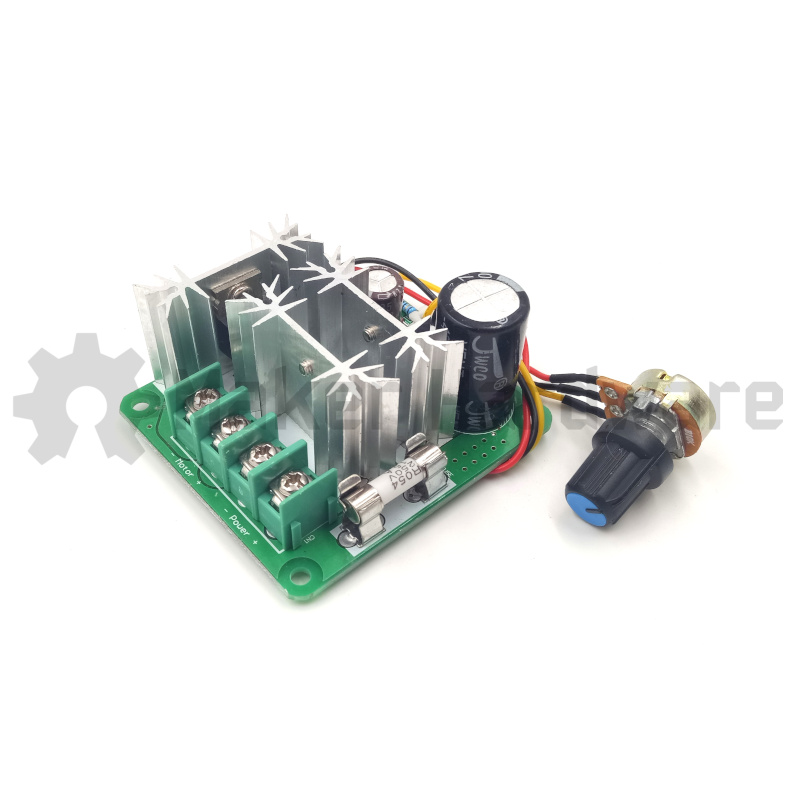

PWM Speed Controller Specifications:
- Applies to DC12-60V low voltage permanent magnet brushed DC motor
- Operating Voltage: DC12V-DC60V (Max 65V)
- Control mode:
- Default potentiometer control (5K-100K), defaults 10K;
- MACH3 PWM speed control signal input, external PWM input requirements:
- level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control. (We do not support this configuration)

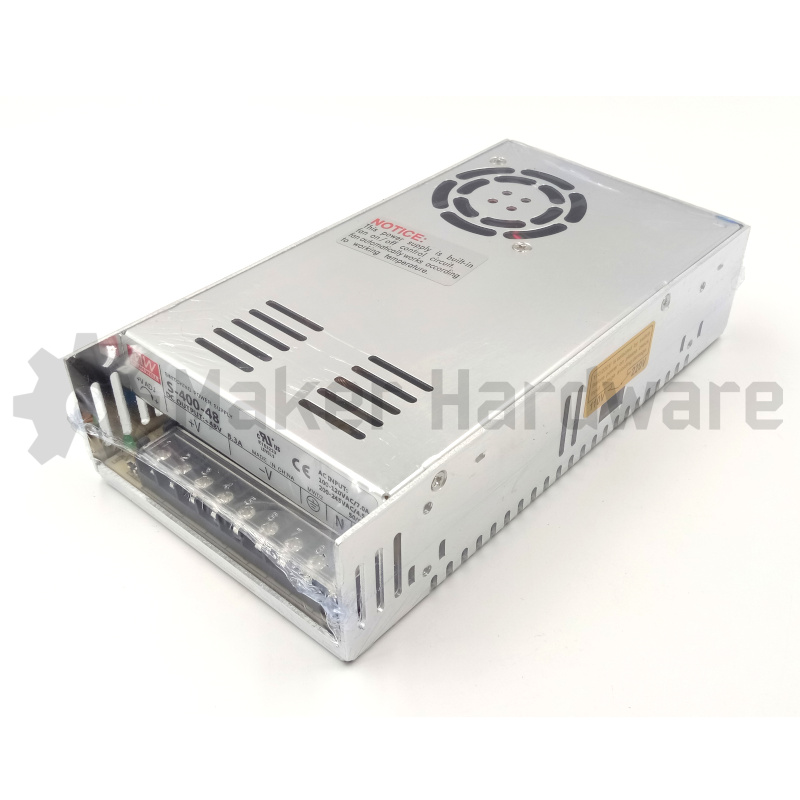

Power Supply Specifications:
- Manufacturer: Ming Weil
- Output Voltage-Channel: 48 V
- Output Power: 504W
- Open Frame/Enclosed: Enclosed
- Input Voltage: 100-120VAC /200-245VAC
- Output Current-Channel: 10A / 5.0 A
- Mounting Style: Chassis
- Input Frequency: 50Hz / 60Hz
Note: Any Mains power connections must be installed by a Licensed electrician or suitability qualified person.
