Description
Please Note:Our Nema24 Motors come with complimentary mounting bolts! Please make sure to select the correct length bolt for your application. |

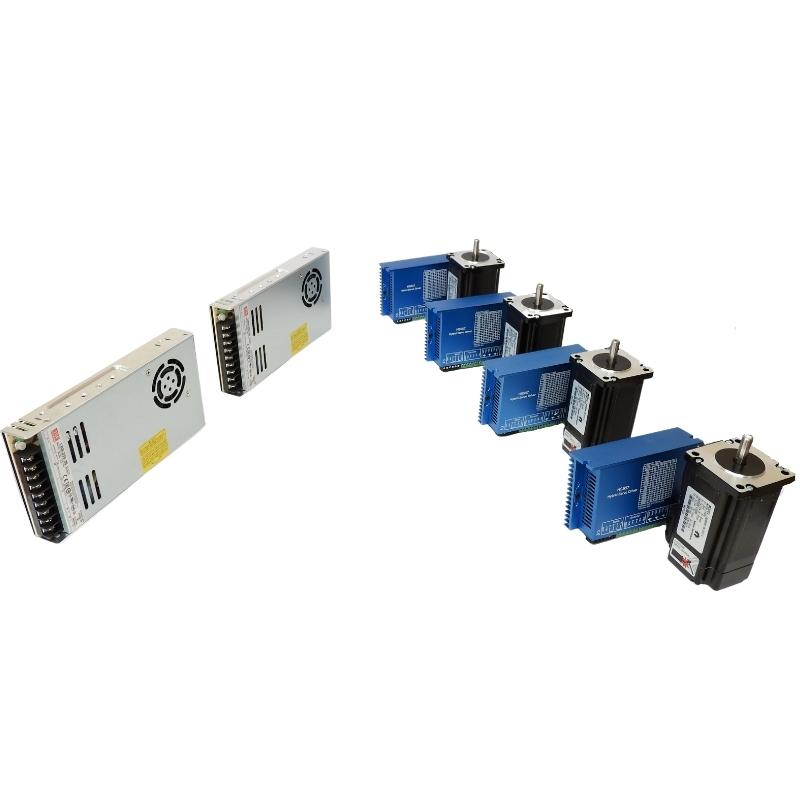

This Closed-loop stepper motor bundle contains the necessary hardware to retrofit an existing CNC machine’s motion system. Cables, power supply and drives are included with enough cable to enable you to fit machines that have up to a 1500 x 1500mm footprint. Please note that this bundle contains the HSS57 Closed-loop stepper motor driver.
Included in the bundle:
| Part Name | Quantity |
| 3.0Nm NEMA24 Closed Loop Stepper Motor | 4 |
| 5m long encoder cable | 4 |
| HSS57 Closed-loop Stepper Motor Driver | 4 |
| 1m 2 Core DC Power Cable. | 4m |
| 4 Core Shielded High Current Cable | 20m |
| Power Supply – 36V 350W
Speciality M5 Cap Head Bolts – Nema 24 |
2
4pcs per motor |
About Closed-loop Control Systems
Closed-loop stepper motors, unlike their standard contemporaries, can recover missed steps, are able to accelerate quicker, run faster, maintain torque at higher speeds and run quieter. This is due to the low inductance of the motors and advanced DSP control system when paired with the HSS57 closed-loop stepper motor driver in this bundle.
Built into the closed-loop stepper motor is an encoder that provides position feedback to the stepper motor driver which in turn provides error correction. This error correction is achieved by the driver comparing the commands given from an external source like a micro-controller to the rotation achieved by the motor and any loss of steps is compensated for.
By default, programing the closed-loop motors is not required and can be used right out of the box.
These motors have the NEMA23 footprint and are a drop-in replacement for most CNC systems. Please note that an 8x8mm coupling is required for systems using our Acme Lead Screws and 12mm ball screws.
Closed-loop Stepper Motor Specifications:
- Voltage: 2.25VDC
- Rated Current: 5A
- Motor Inductance: 1.8mH
- Holding Torque: 3.0Nm
- Encoder cable length: 5000m
- Motor cable length: 500mm
- Weight: 1.6kg

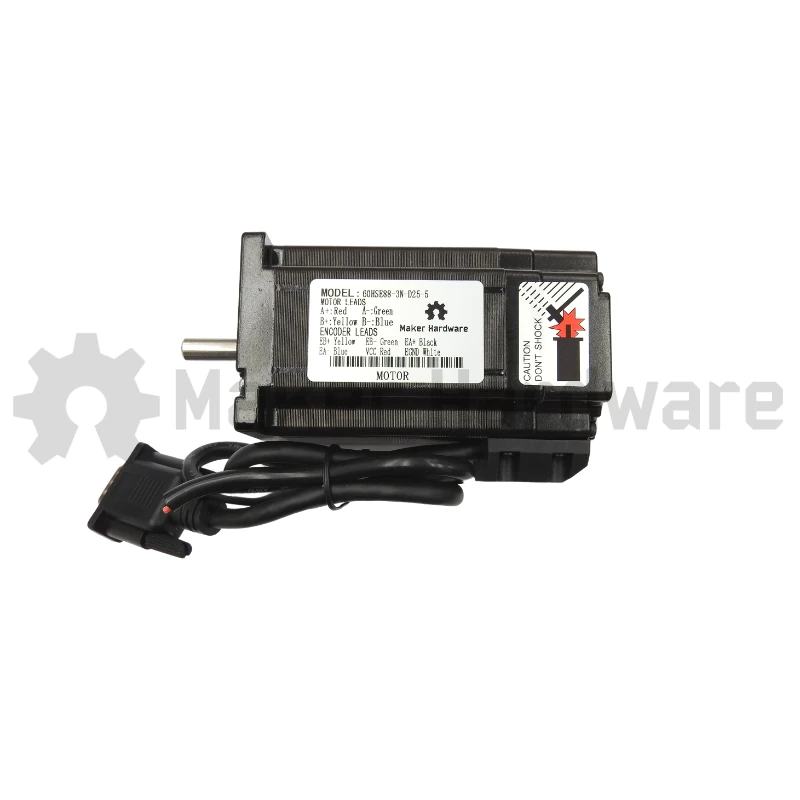

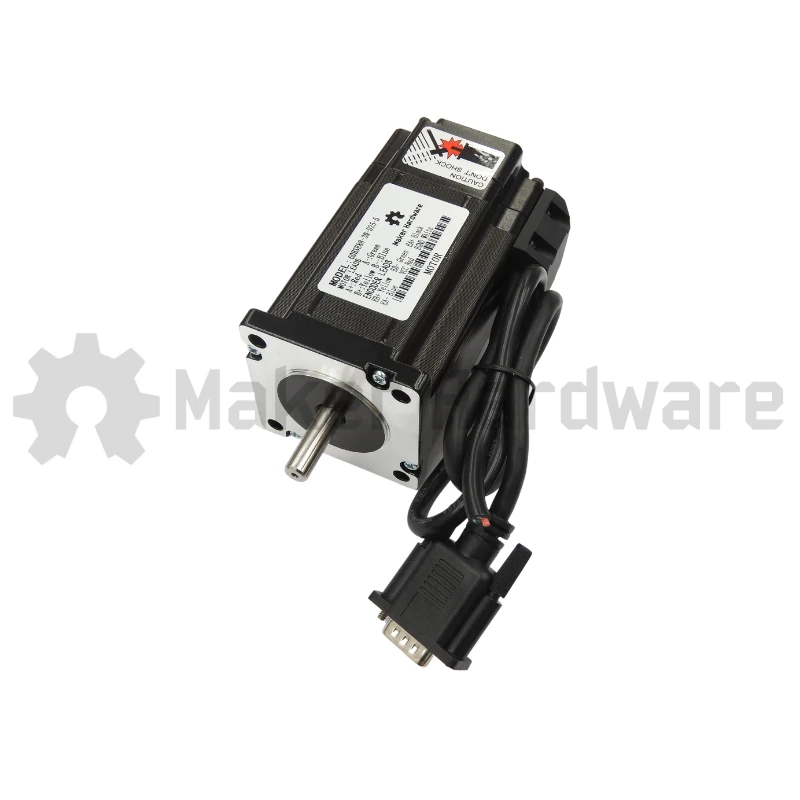

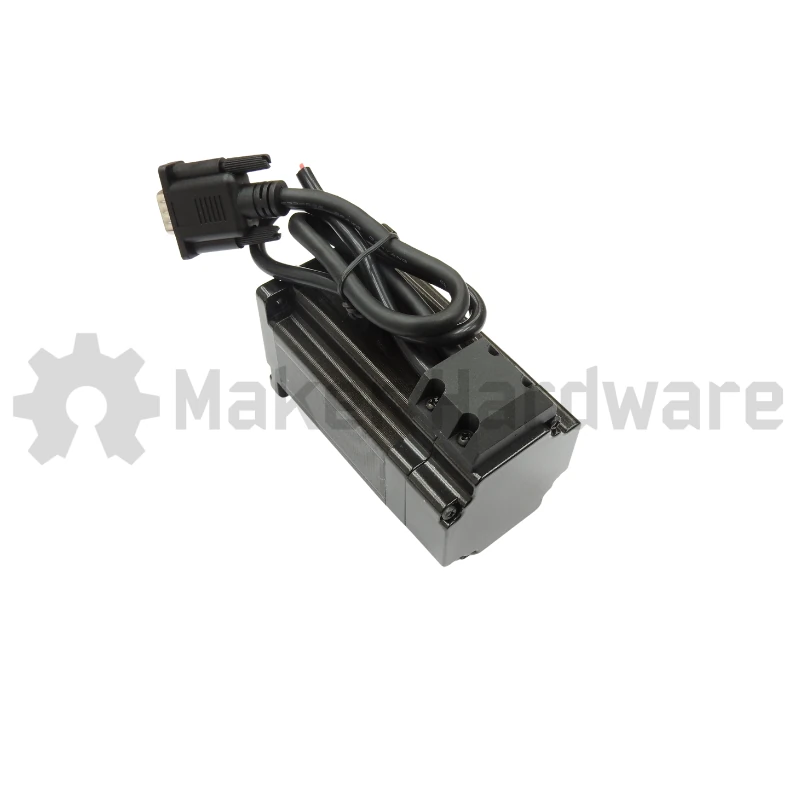

Features of the Closed-loop Stepper Motor:
- High-performance and low inductance Closed-Loop Hybrid Stepper Motor.
- Comes with a handy 5m long encoder cable for ease of wiring.
- Low vibration and high efficiency.
- Built-in quadrature encoder. (1000 line encoder)
- High precision ensures precise carving in CNC applications

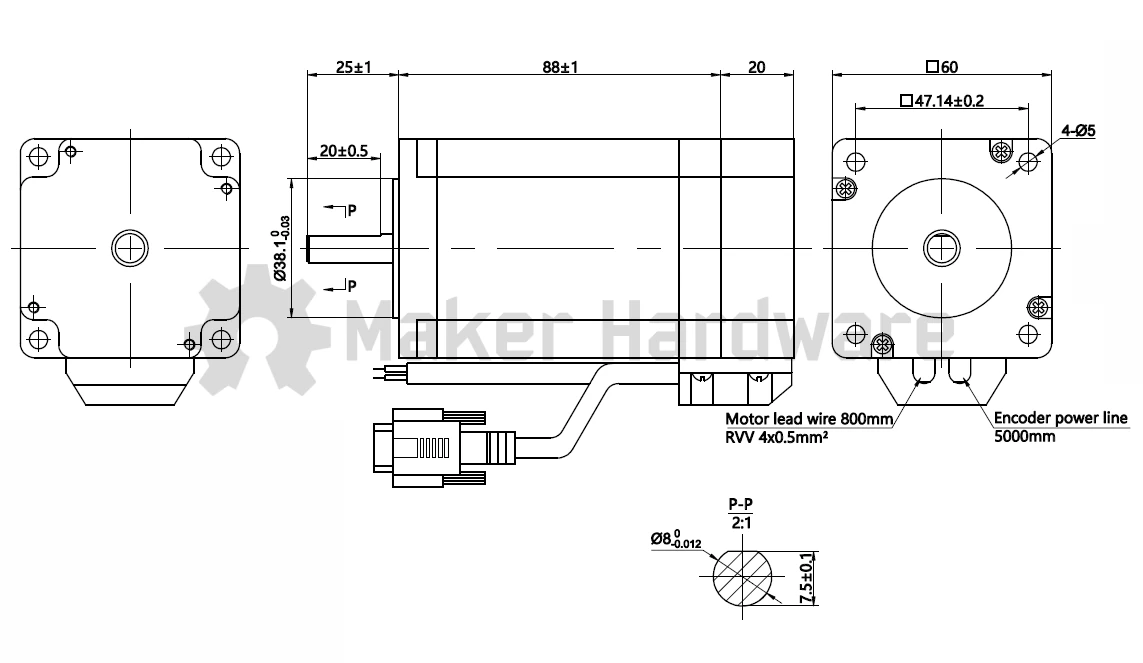

Motor Engineering Drawings:
Motor Coil Wiring Diagram
Encoder Lead Pinout
| Closed Loop Stepper Motor Driver Terminal | Lead Colour |
| EGND | WHITE |
| VCC | RED |
| EA- | BLUE |
| EA+ | BLACK |
| EB- | GREEN |
| EB+ | YELLOW |

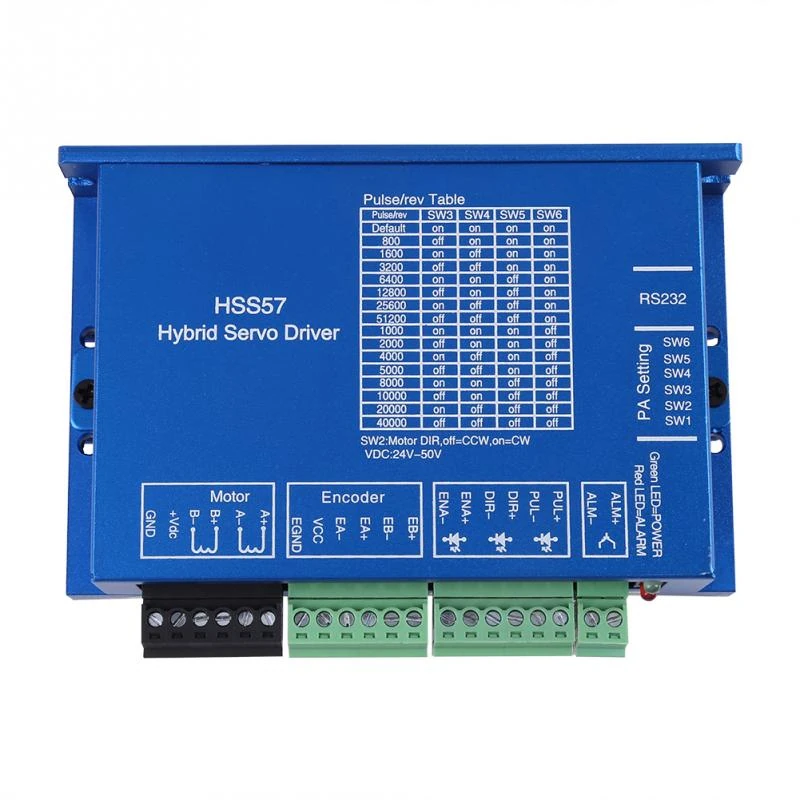

HSS57 Closed-loop Stepper Motor Driver Features:
- Anti-Resonance features provide smooth operation through the RPM range.
- Low noise and low vibration.
- 32bit processor and advanced DSP control.
- Closed-loop vector control technology.
- Multi-Stepping allows a low-resolution step input to produce a higher microstep output for smooth system performance.
- Microstep resolutions programmable via dip switch array, from full-step to 1/128 microstepping.
- Optically isolated inputs reduce noise.
- Alarm outputs for fault diagnosis. (Error codes available in the manual).
- Suitable for Nema23 and Nema24 sized closed-loop stepper motors.
- Support Pulse/Direction, CW/CCW or RS232 control modes. (Step/Dir control recommended)
- Overvoltage and overcurrent protection.
- Durable all-metal body.
HSS57 Closed-loop Stepper Motor Driver Specifications:
- Supply voltage: 24 to 50 VDC
- Output current: Up to 6.0A Peak (Load Dependent)
- Logic signal current: 7 to 20mA
- Pulse input frequency: 200 kHz
- Encoder Resolution (PPR): 1000
- Isolation resistance: 500 MΩ
- Operating temperature: 0 to 50 °C
- Operating Humidity: 40 to 90%RH
- Vibration: 5.9 m/s² Max
- Weight: Approx. 300 g
- Dimension: 118 x 75x 34 mm
HSS57 Stepper Motor Driver Engineering Drawings
Use the Closed-loop Stepper Motor and driver bundle to drive:
- Nema23 compatible CNC machines
- Laser Cutters
- Plasma Cutters
- Robotic Actuators
- Automated Linear Actuators
Tips and Tricks
- For existing CNC builds, use these motors with 8x8mm jaw couplings for an easy drop-in replacement.
Please note
- Depending on your application, you may need to extend your motor power cable.
- The mains power cord is not included, a licenced electrician or similarly qualified individual is required to wire the mains connections.
- Due to the non-standard body of this motor, special screws are included. Please make sure to select the correct length bolt for your application.
