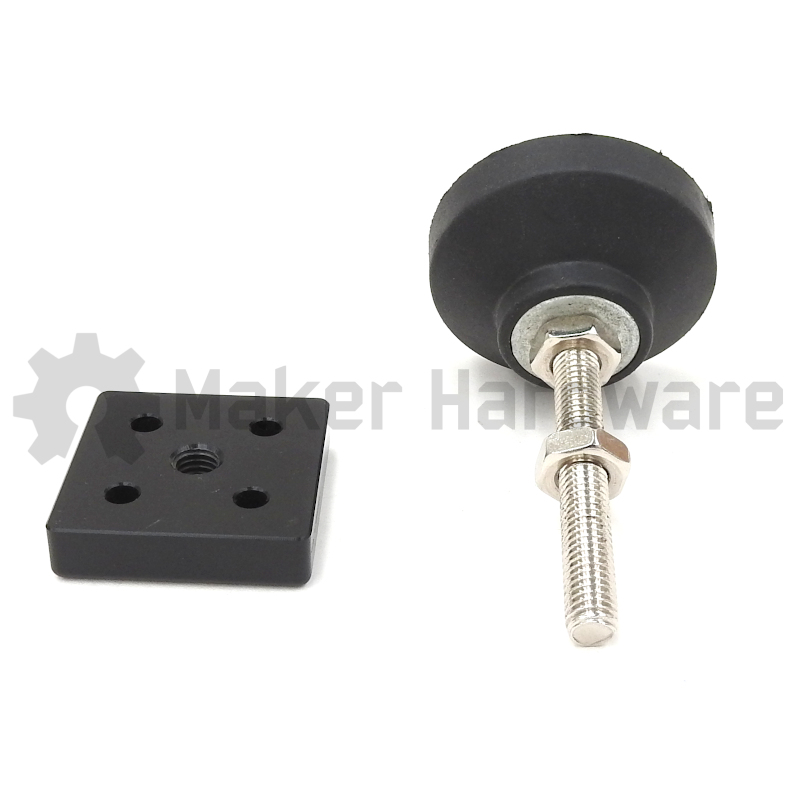

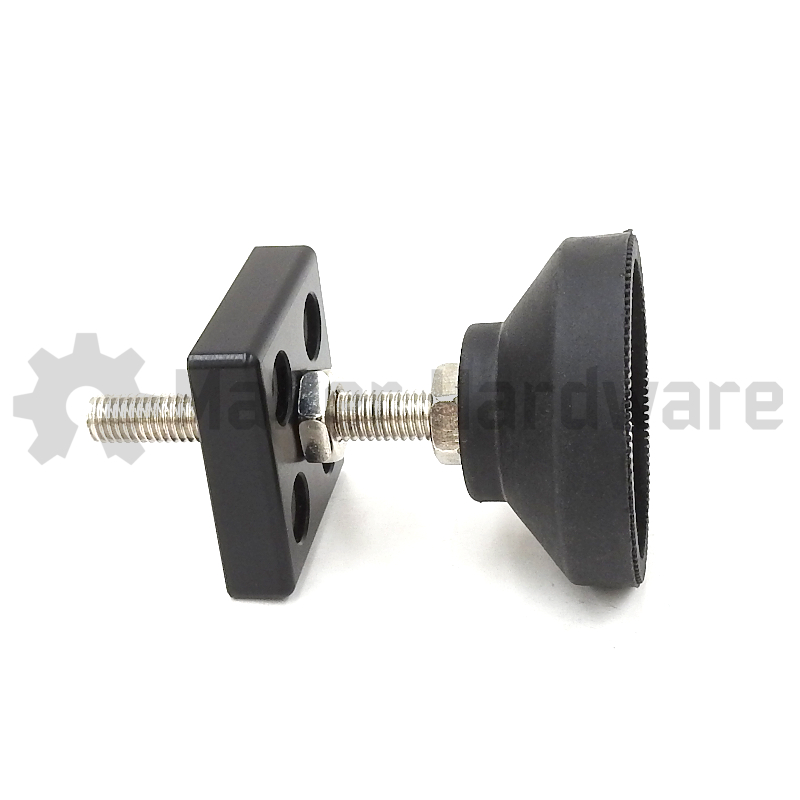

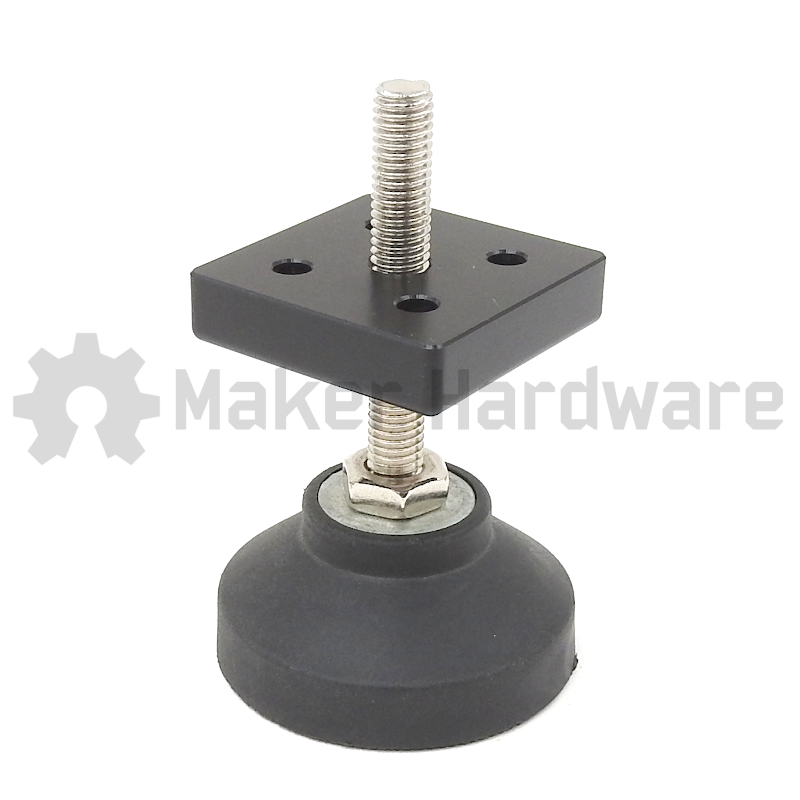

This Delrin polymer bracket functions as a structural end plate to enclose the raw ends of compatible aluminium extrusion profiles and establish a stable base foundation. It features an integrated centre M8 internal thread to accept an adjustable levelling foot, transforming an extrusion rail into an adjustable structural leg. Typical applications include custom workstations, industrial framing, laboratory enclosures, and furniture systems where it secures profile intersections. The plate clamps to the extrusion face using standard fasteners through outer mounting points, providing an interface for floor-levelling pads or surface anchoring.

Compatible With

This metric fastener features a reduced head height of 1.5mm or less, allowing it to sit nearly flush against surfaces to prevent interference with moving parts in tight clearances. Its primary function is to secure mechanical components together without obstructing adjacent motion paths. It is designed for precise mechanical builds and structural assemblies with limited overhead space, such as securing brackets, plates, and V-slot wheels in 3D printers and CNC machines to avoid gantry or belt collisions. Additionally, it integrates into aluminium extrusion T-slot profiles and compact electronic devices to maintain space efficiency.

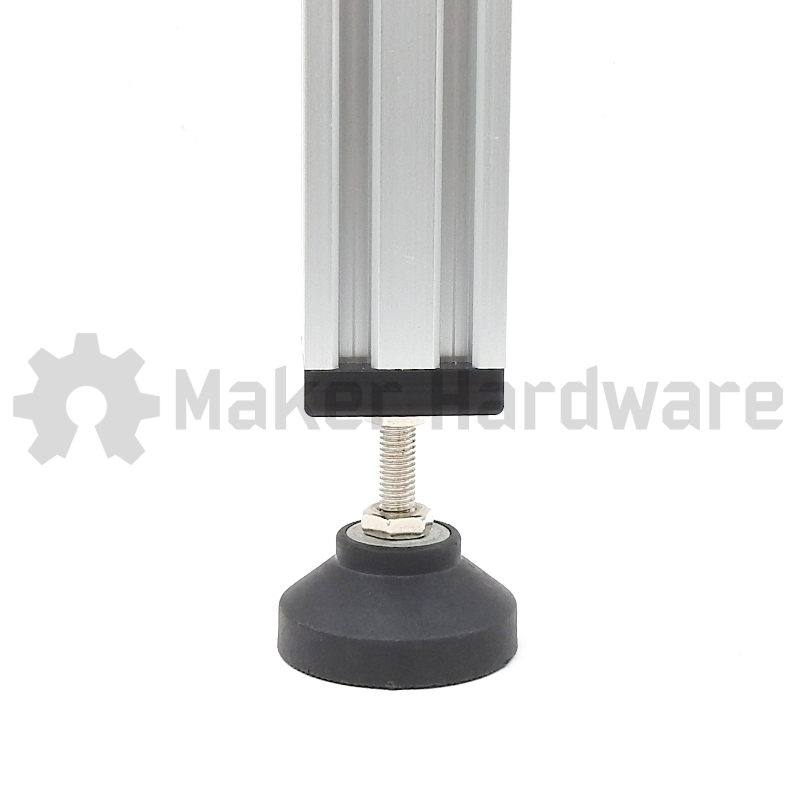

This adjustable levelling component mounts to 40 Series T-Slot aluminium profiles via an M8 bracket to provide precise vertical height regulation. Featuring an M8 threaded stud for rotational adjustments and a dynamic ball-joint base that tilts seamlessly, its primary function is to maintain flat floor contact and distribute vertical loads uniformly over uneven grounding. Typical applications include production equipment, automated frameworks, display structures, workbenches, and 40 Series enclosures requiring planar alignment, utilizing an integrated non-marking rubber pad to absorb vibrations and prevent sliding.

Compatible With
