Description

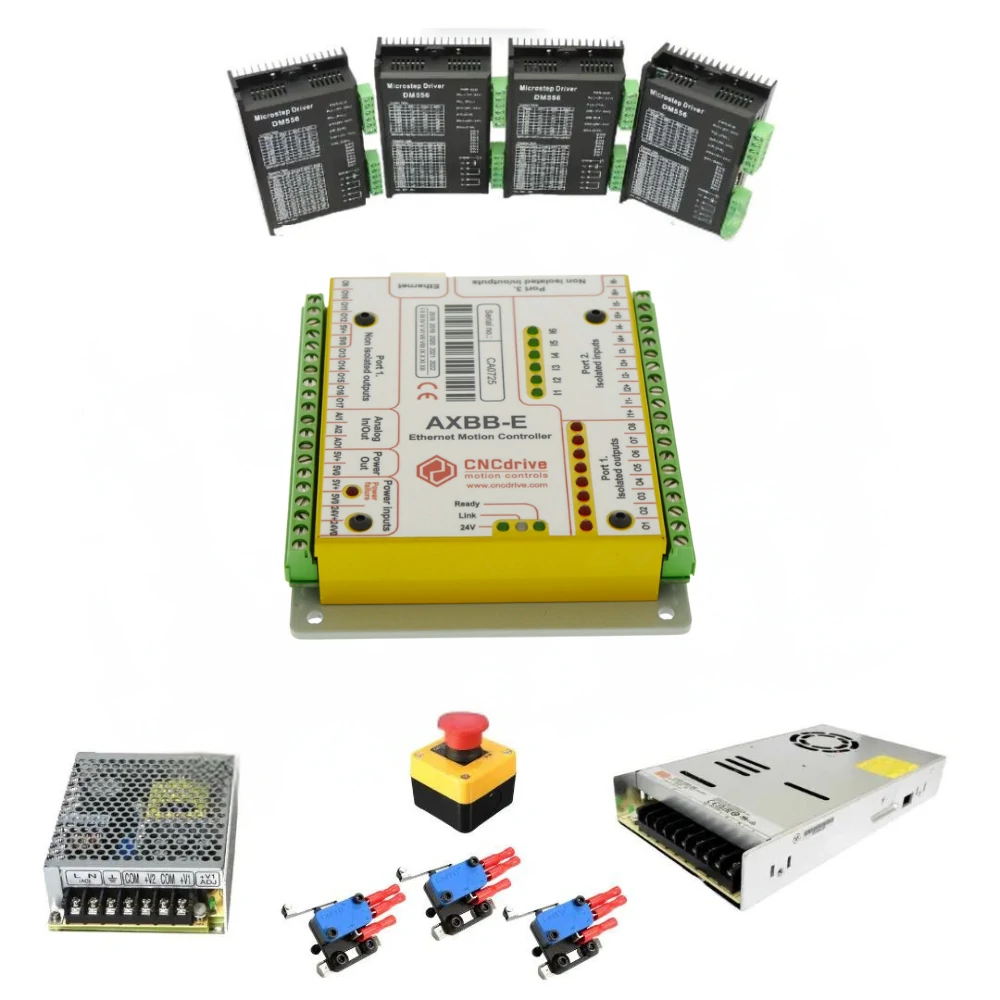

AXBB-E (LARGE) – 450W For Open-Loop Stepper Motors
THe AXBB-E (LARGE) – 450W For Open-Loop Stepper Motors contains all the hardware that will be required for powering and controlling your CNC Machine Kit.
The CNC controller, cables, power supply and drivers are included with enough cable to enable you to fit machines that have up to a 1500 x 1500mm footprint.
The cables on this “Large” Bundle are designed for machines of the following sizes:
- 1000mm x 1000mm
- 1000mm x 1500mm
- 1500mm x 1500mm
This controller bundle is designed to be paired with 4x 2.45 N.m NEMA 23 Open Loop Stepper Motors and contains the following components:
About the AXBB-E
The AXBB-E is a CNC controller that is very popular in the CNC industry due to its reliability and feature-rich interface. Moreover, its flexibility makes it popular among both hobbyists and professionals.
The controller can control up to 6 stepper motors or Integrated Servo Motors with an impressive stepping rate of 400kHZ and communicates via an ethernet interface, making the controller largely immune to Electromagnetic Interference (EMI).

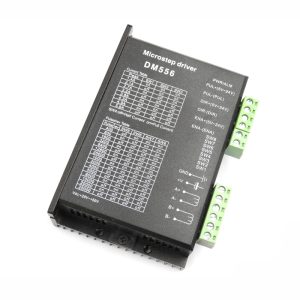

Digital Stepper Driver – DM556 – 5.6A – 20-50VDC
Our DM556 compatible stepper motor driver is an easy-to-use professional stepper motor driver, which can control a two-phase stepping motor. The driver is a digital stepper driver which utilizes DSP technology to get the best performance out of your stepper motor. Consequently, motors driven by this driver produce lower noise and better stability compared to their analog counterparts.
The DM556 stepper motor driver supports speed and direction control for ease of use in CNC, robotics and hobbyist applications. You can set its micro-step and output current via the 8 DIP switch array. All signal terminals are optoisolated, thereby reducing the chances of interference.
This stepper motor driver is NEMA17, NEMA23 and Nema34 compatible.
For best performance, we recommend a 36V power supply to use this driver with our NEMA23 stepper motors.
Features:
- Anti-Resonance features provide optimum torque and performance at high RPM.
- Multi-Stepping allows a low-resolution step input to produce a higher microstep output for smooth system performance.
- Microstep resolutions are programmable via dip switch array, from full-step to 1/128 microstepping.
- Optically isolated inputs reduce noise.
- Configurable stepper motor hold-current (Half Current or Full Current).
- Suitable for NEMA17, NEMA23 and some NEMA34-sized stepper motors.
- Support PULSE/DIRECTION and CW/CCW modes.
Specifications:
- Supply voltage: 20 to 50 VDC
- Output current: 1.4 to 5.6 A Peak
- Logic signal current: 7 to 16 mA
- Pulse input frequency: 200 kHz
- Isolation resistance: 500 MΩ
- Operating temperature: 0 to 60 °C
- Operating Humidity: 40 to 90%RH
- Vibration: 5.9 m/s² Max
- Weight: Approx. 300 g
- Dimension: 112 x 75.5 x 34 mm
Power Supply – 36V 450W
The Mean Well LRS-450 450W AC/DC Single Output is a single-output enclosed type power supply with 35mm of low profile design. Adopting an input of 115 VAC or 230 VAC (select by switch). The inbuilt long-life fan allows LRS-450 to work from -20ºC to +70ºC with a full load. Furthermore, the LRS-450 has complete protection functions and 5G anti-vibration capability.
Specifications:
- Manufacturer: Mean Well
- Output Voltage: 36V
- Output Power: 450W
- Output Current-Channel: 12.5 A
- Voltage Regulator: 34.2 ~ 39.6V
- Open Frame/Enclosed: Enclosed
- Input Voltage: 90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (switch on 230VAC)
- Input Current: 10A/115VAC 6A/230VAC
- Inrush Current: 35A/115VAC 60A/230VAC
- Protections: Short Circuit, Overload, Over Voltage and Over Temperature.
- Mounting Style: Chassis
- Length: 225 mm
- Width: 124 mm
- Height: 35 mm
- Input Frequency: 47 ~ 63Hz
- Unit Weight: 850 g
Note: Any Mains power connections must be installed by a Licensed Electrician or suitability qualified person.

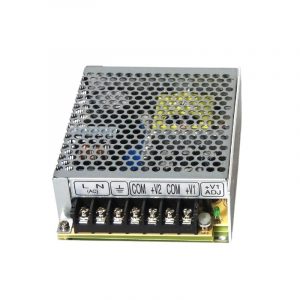

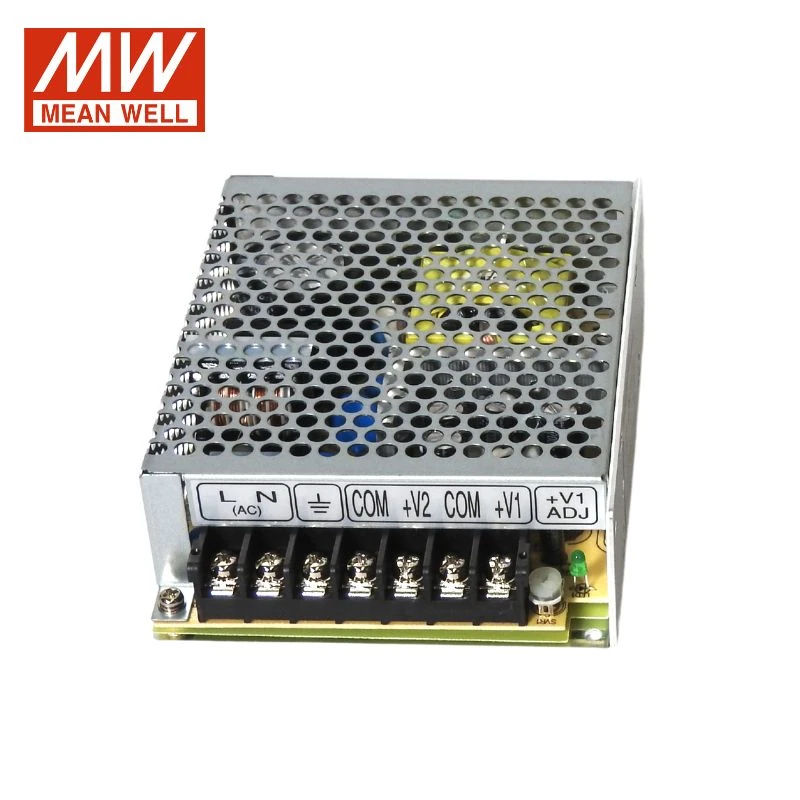

Dual Output Power Supply 5V and 24V – 65W – RD-65B
The Mean Well RD-65B series 66W dual outputs AC to DC enclosed switch mode power supply has an output current rating of 4A at 5VDC and 2A at 24VDC. It has a universal input supply voltage rating ranging from 88VAC to 264VAC/125VDC to 373VDC.
Specifications:
- Adjustable output voltage for dual output types on output 1, -5% to 10%
- Dual outputs have a minimum load requirement
- Easy installation
- High efficiency
- High operating temperature up to 70°C
- High reliability
- Long-life electrolytic capacitors 105°C
- Miniature size, high power density
- Output current data
- Overload and overvoltage protection
- Screw terminals
- Short circuit Protection
- The total load must not exceed the rated output power
Note: Any Mains power connections must be installed by a Licensed Electrician or suitability qualified person.
Emergency Stop Switch
Essential to all builds is a big red STOP switch. Easy to see and hit in an emergency. When pushed it will latch in the down position and must be rotated to be released. This helps prevent accidental re-activation.
Mechanical Specifications:
- Diameter of Red Mushroom: 40 mm
- Turn to release type (Emergency Lock)
- Dimension: 66mm X 66m
- Torque: 0.9 Nms
- Waterproof and Impermeable IP65
- Mechnical Life: 300,000
Electrical Specifications:
- Ith: 10A, UI AC 660V.
- Rated Load: 220VAC/6A 380VAC/4A 660VAC/2A 440VDC/0.3A 220VDC/0.5A 110VDC/1A
- TYPE: N/C
- Withstand Voltage: 2500V /60S
- Temperature: -25°~+55°
- Contact resistance: <25mΩ
Micro Limit Switch Kit with Mounting Plate
These Micro Limit Switch Kits are an excellent addition to your build. These kits feature a plate and mounting hardware to attach to our V-Slot Linear Rail.
Specifications
- AC Current Rating: 10A
- AC Voltage Rating: 250V
- DC Current Rating: 0.3A
- DC Voltage Rating: 220V
- Contact Type: 1 x Normally Closed 1 x Normally Open
- Switch Type: Rolling Lever
- Connection Type: Blade Terminal
- Mounting Type: M5
AXBB-E Wiring
DC Cable – 2 Core 3mm
This cable is perfect for DC Power Circuits in Robotics, CNC Machines and 3D Printers. We use this cable on all of our machines.
Hook Up Cable – 1 Core 0.5mm – Black
This cable can be used as a signal cable for connections between electronics. It is a great hook-up wire for internal connections in machines and electronic enclosures.
2 Core Cable 7/0.2
This cable can be used with our limit switches and limit switch kits. The shielding reduces the signal noise and helps eliminate false triggers.
Hook Up Cable – 1 Core 0.5mm – Black
This cable can be used as a signal cable for connections between electronics. It is a great hook-up wire for internal connections in machines and electronic enclosures.
Shielded 4 Core Cable 14/0.2
This cable can be used with NEMA23 stepper motors. The shielding reduces the signal noise and helps eliminate lost steps.
Shielded 4 Core Cable 7/0.5 – High Current
This cable can be used with our high-powered 2.45 Nm NEMA23 stepper motors and Closed Loop stepper motors which demand a higher working current. The shielding reduces the effects of Electro-Magnetic Interference (EMI) and helps eliminate lost steps.
DC Cable – 2 Core
This cable can be used to wire up DC power. Use it to wire from the DC Power Supply to the Power Input terminals on the controller.
Bill of Materials
| Item # | Part Description | SKU | QTY |
| 1 | AXBB-E Ethernet Motion Controller And Breakout Board Combined | ELEC-AXBBE | 1 |
| 2 | Micro Limit Switch Kit – SPDT | ELEC-MICRO-CMV-103-C-KIT | 3 |
| 3 | Power Supply – 36V 450W | ELEC-LRS-450-36 | 1 |
| 4 | Dual Output Power Supply 5V and 24V – 65W – RD-65B | ELEC-RD65B | 1 |
| 5 | Digital Stepper Driver – DM556 – 5.6A – 20-50VDC | ELEC-DM556 | 4 |
| 6 | DC Cable – 2 Core 3mm | ELEC-CABLE-DC-2C-3MM | 4 |
| 7 | DC Cable – 2 Core 2mm | ELEC-CABLE-DC-2C-2MM | 2 |
| 8 | Hook Up Cable – 1 Core 0.5mm – Black | ELEC-CABLE-1C-105-BK | 1 |
| 9 | 2 Core Cable 7/0.2 | ELEC-CABLE-2S-702 | 4 |
| 10 | 2 Core Cable 7/0.2 | ELEC-CABLE-2S-702 | 12 |
| 11 | Hook up Wire – Black | ELEC-CABLE-1C-105-BK | 4 |
| 12 | Shielded 4 Core Cable 14/0.2 | ELEC-CABLE-4S | 2 |
| 13 | Hook Up Cable – 1 Core 0.5mm – Blue | ELEC-CABLE-1C-105-BL | 1 |
| 14 | Shielded 4 Core Cable 7/0.5 – High Current | ELEC-CABLE-4S-705 | 18 |
| 15 | DC Cable – 2 Core | ELEC-CABLE-DC-22AWG | 2 |

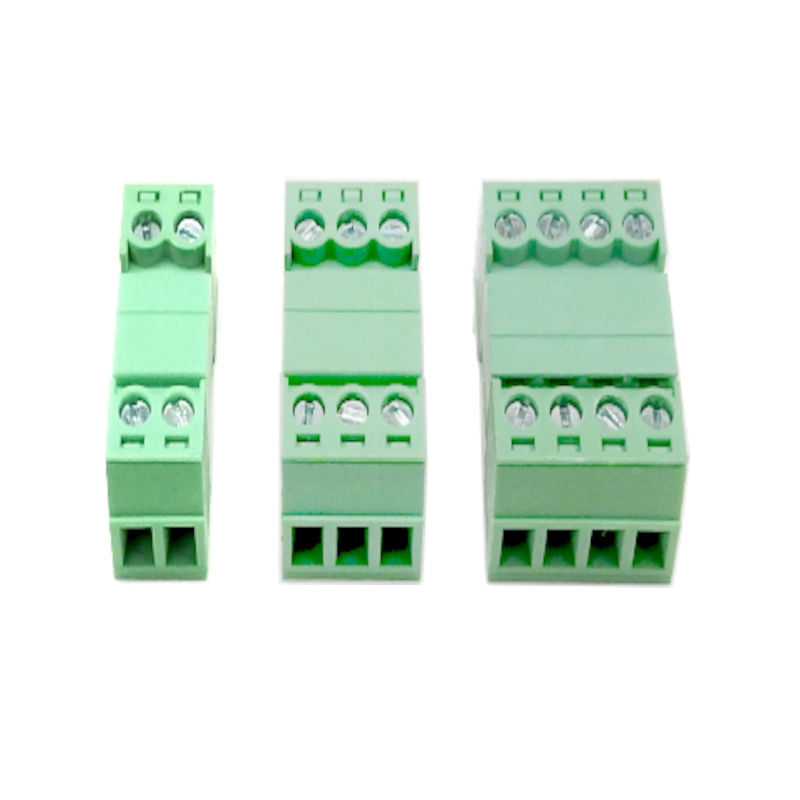

| 16 | Plug-in Connector Terminal Block – EDG 3.81mm | ELEC-EDG-P-381-2P | 1 |
| 17 | Power Supply Cover | 1 | |
| 18 | Emergency Stop Switch | ELEC-ESTOP | 1 |
