Technical Overview

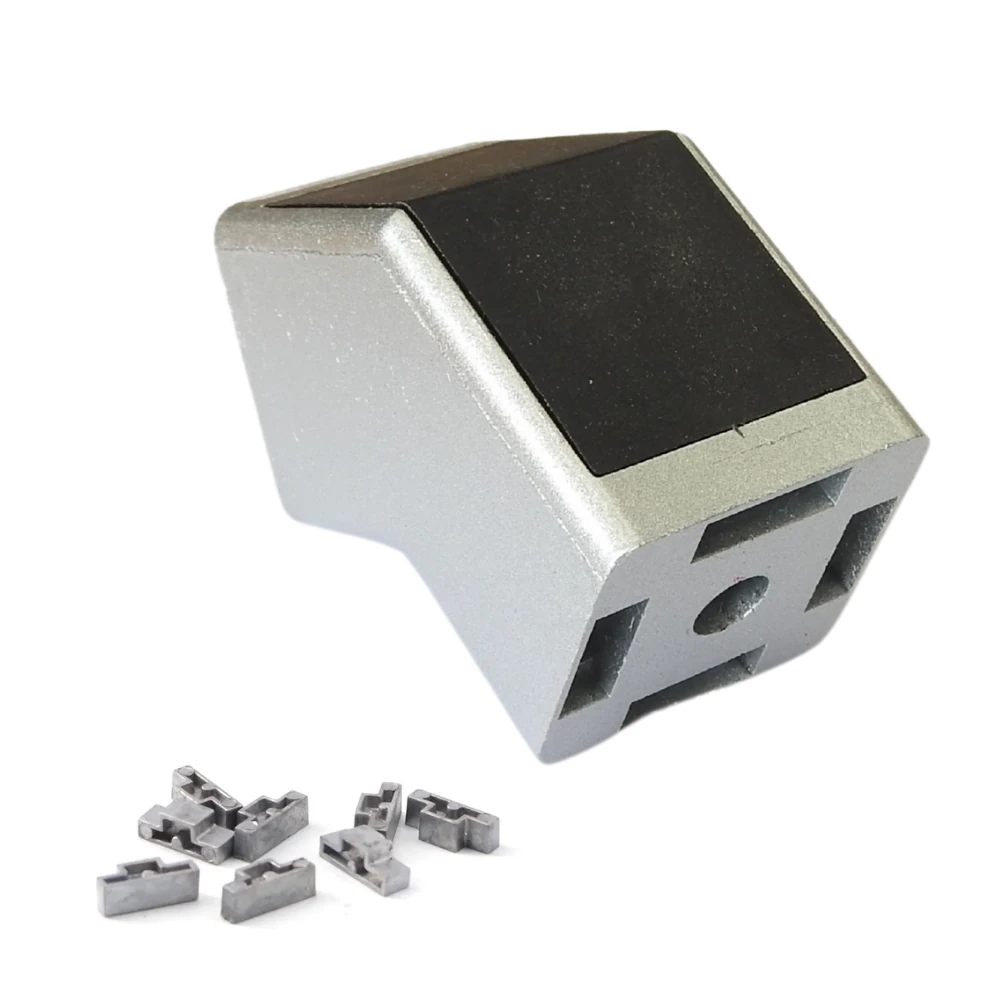

The 45 Degree Bracket functions efficiently as a structural reinforcing component. Meanwhile, engineers specifically design this hardware for 40 Series T-Slot aluminium extrusion profiles. To begin with, manufacturers construct this rigid adapter from die-cast zinc. Because of this robust material choice, the component provides structural reinforcement and frame stability across multi-axis framing configurations. To enhance surface durability, the factory applies a uniform silver powder coating to all exterior metallic surfaces. Consequently, this specialized protective barrier provides excellent resistance to surface corrosion. At the same time, it maintains a clean, professional appearance across the structural framework.

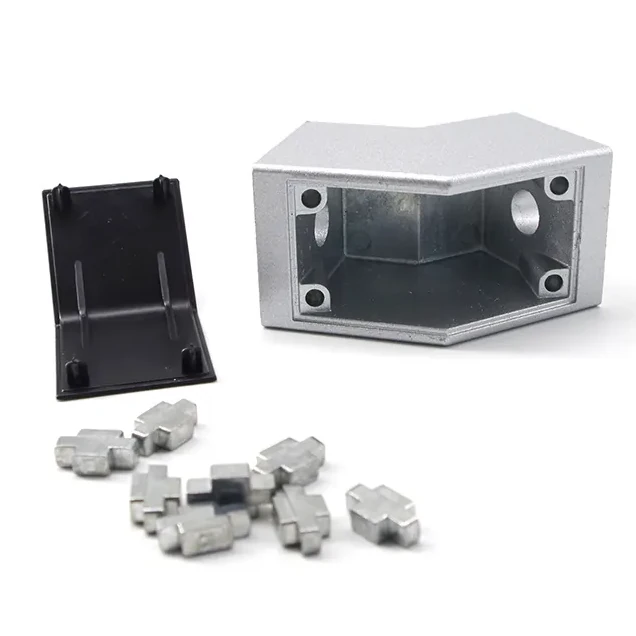

Furthermore, the unit incorporates a precision 45-degree angled mounting layout to bridge corner interfaces. During assembly, the bracket seats directly into the profile tracks to anchor adjacent segments firmly. Additionally, the unit includes a modular nylon end cap. Therefore, this specific cap seamlessly covers the exposed bracket face. As a result, the barrier shields users from sharp cut edges while preventing internal debris accumulation. Ultimately, the package provides eight alignment tabs. Thus, these tabs guide the block perfectly into the extrusion channels before final fastening.
Applications
Technicians regularly deploy the 45 Degree Bracket at joint intersections within various structural frameworks. Specifically, assembly teams utilize these compact support connectors to reinforce structural corners and angular sub-assemblies built from standard 40 Series T-Slot profiles. For example, operators install the zinc adapters on the corners of industrial workstations, automated machine enclosures, conveyor frames, and modular storage systems. Within these demanding manufacturing environments, custom frames require triangular reinforcement to resist shear forces and mechanical vibrations. Moreover, the structural block handles these physical loads flawlessly. It successfully distributes stress evenly across the intersecting channels.
Meanwhile, builders must note that the mounting channels and alignment tabs match 40 Series family constraints exactly. As a direct result of these exact dimensional tolerances, this hardware configuration does not interface with smaller 20 Series V-Slot extrusion framing profiles.

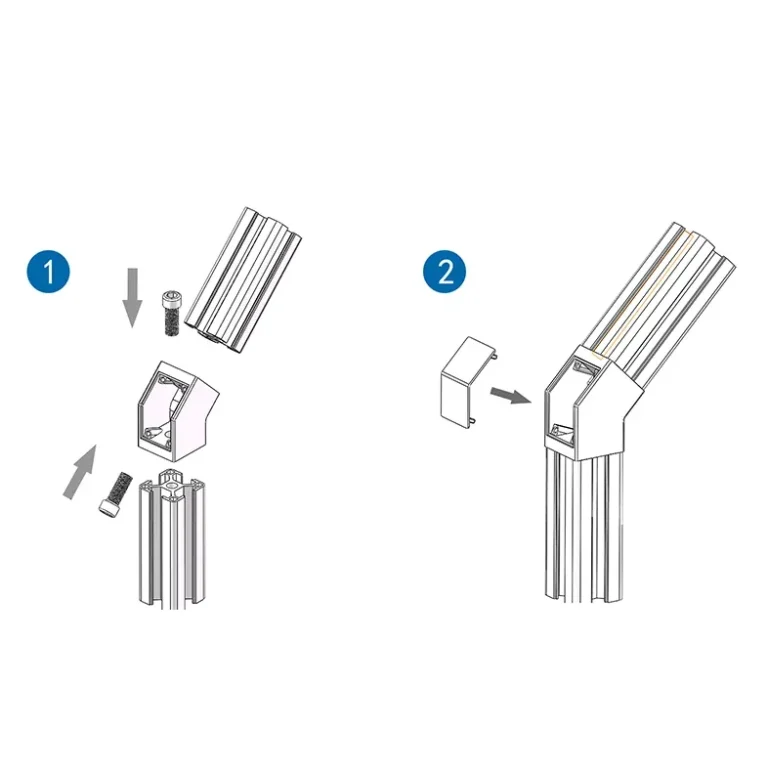

45 Degree Bracket Step-by-Step Instructions
- Tap the Extrusions – Ensure that both ends of the T-slot profiles being joined are tapped with an M8 thread to accommodate the M8 × 20mm Cap Head Bolts (sold separately)
- Position the Bracket – Align the 45 Degree Bracket at the desired 45° connection point on your 40 Series T-slot Profile.
- Attach to the First Extrusion – Secure the bracket to one of the profiles first using the M8 × 20mm Cap Head Bolts. This helps maintain alignment during installation.
- Attach to the Second Extrusion – Once the bracket is secured to the first profile, bring the second profile into position and fasten it to the bracket using the remaining bolts.
- Tighten the Bolts – Securely fasten the bracket using an Allen wrench.

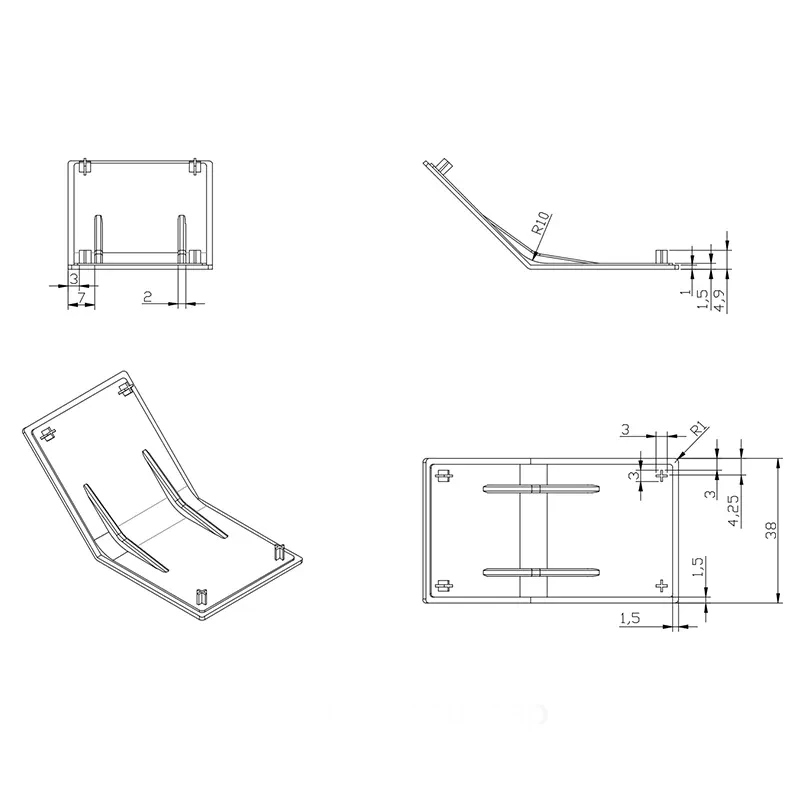

- Attach the Nylon End Caps – Snap on the included end caps for a polished look and additional protection.
- Check for Stability – Ensure all connections are tight before using the structure.

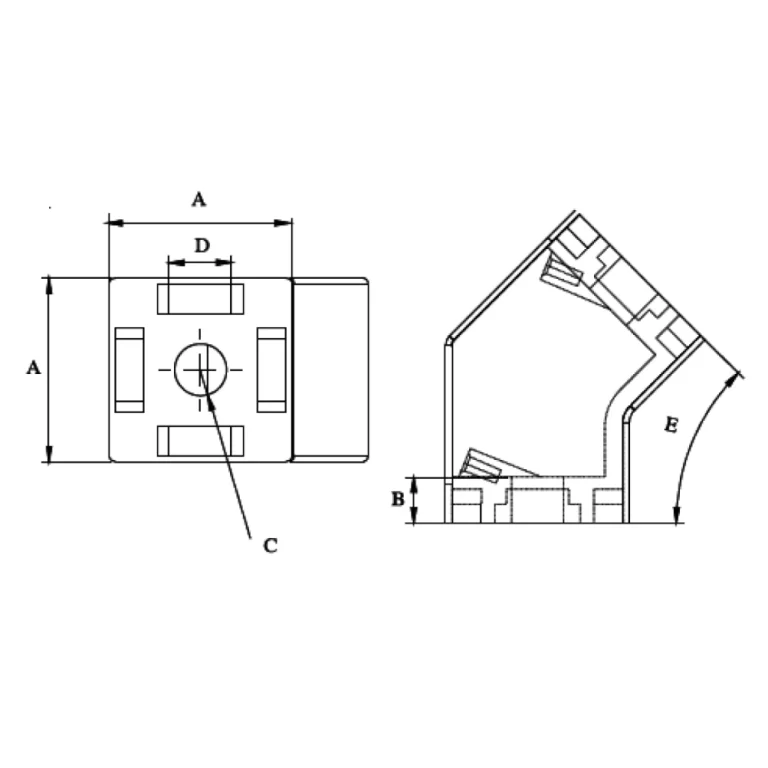

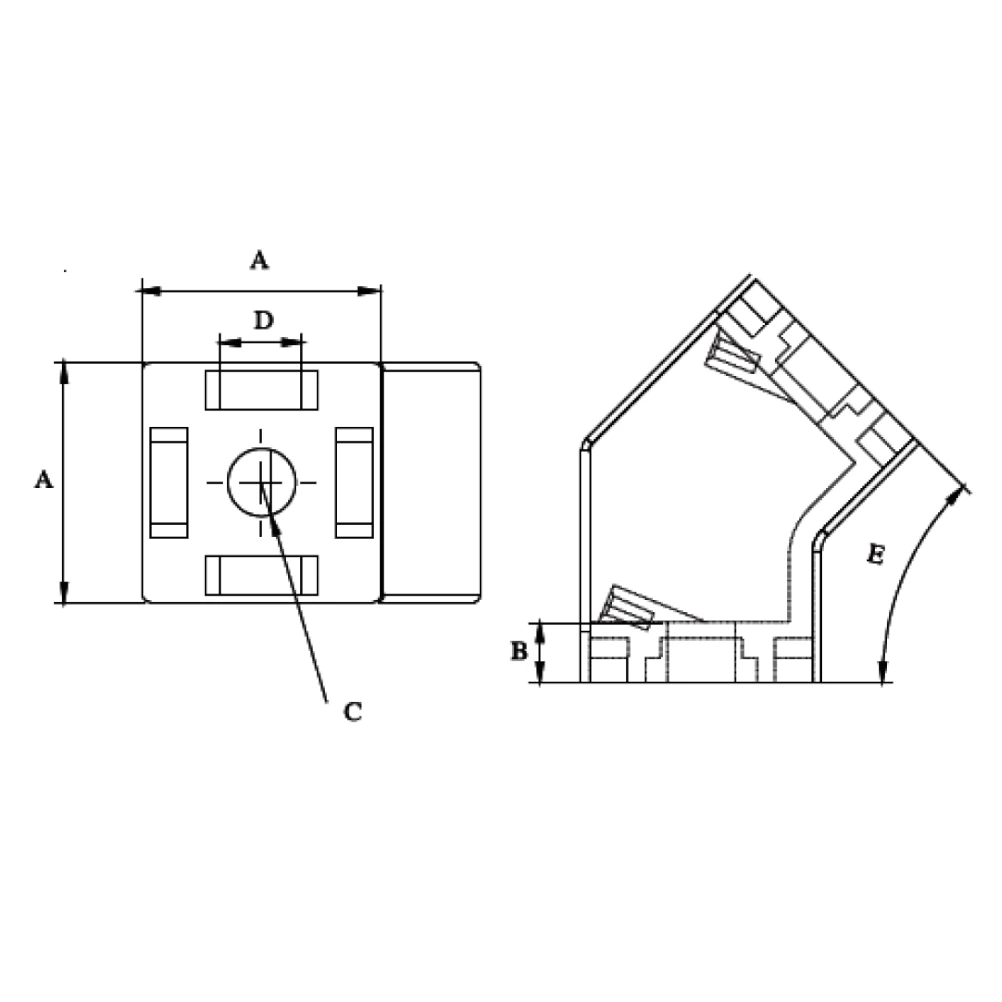

Technical Drawings:
| A | B | C | D | E | kg |
| 40 | 10mm | Ø8.5 | 8 | 45° | 0.309 |
Maker Store Tips and Tricks
-
Insert the provided alignment tabs into the bracket base slots before positioning to ensure precise, straight tracking inside the extrusion t-slots.
-
Press the nylon end cap firmly onto the bracket outer face after completing final bolt torque adjustments to establish a clean friction fit.
-
Verify that the intersecting 40 Series profile rails are cut square or at complementary angles to maximize structural contact under load.
