Description

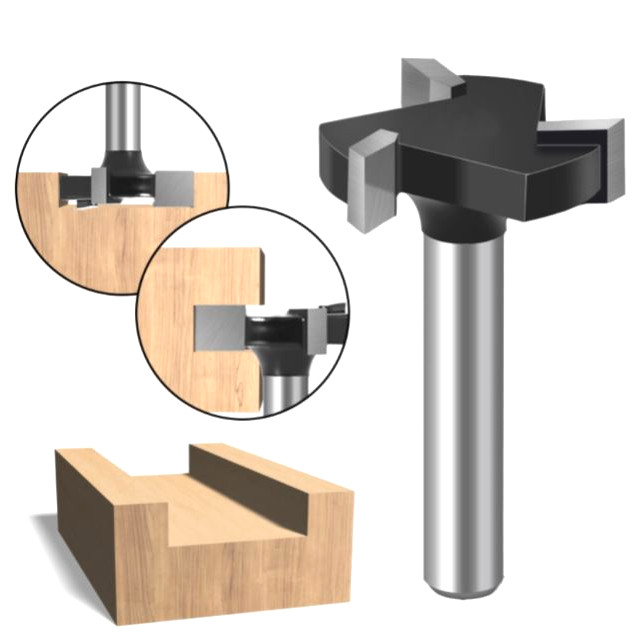

Flattening wooden slabs and slotting has never been made easier with our selection of slab flattening and slotting bits. Ranging from cut diameters of between 25 and 65mm, these will suit a variety of applications.
These versatile bits are suitable for CNC machines router sleds, table-mounted routers and custom woodworking machines.
Specifications
- Carbide tipped cutting edges.
- Carbon steel body.
|
QTY Of Cutting Edges |
Cutting Diameter | Shank Diameter |
Overall Length |
| 3 | 25.4mm | 6.35mm | 44mm |
| 4 | 50.8mm | 12.0mm | 65mm |
| 4 | 50.8mm | 12.7mm | 65mm |
| 6 | 65mm | 12.7mm | 55mm |
Suitable Materials
- All types of woods including hardwoods.
Tips and tricks
- Use a dust shoe with a dust extraction system to prevent the dust from going everywhere.
- As these bits are much wider than usual, it is recommended to insert as much of the bit into the collet as possible to reduce runout.
- If surfacing, please use a stepover of less than 50% to ensure a nice flat surface.
End Mill Library
Download our Fusion360 end mill library below!
Please Note
- Due to the fine dust produced by this bit, it is recommended to have adequate ventilation in your workspace.
- Sold individually. Please select the bit required and quantity.
- Please ensure that your collet will suit the shank size of the selected bit. Please refer to the above table for the specifications of each bit.
