Description

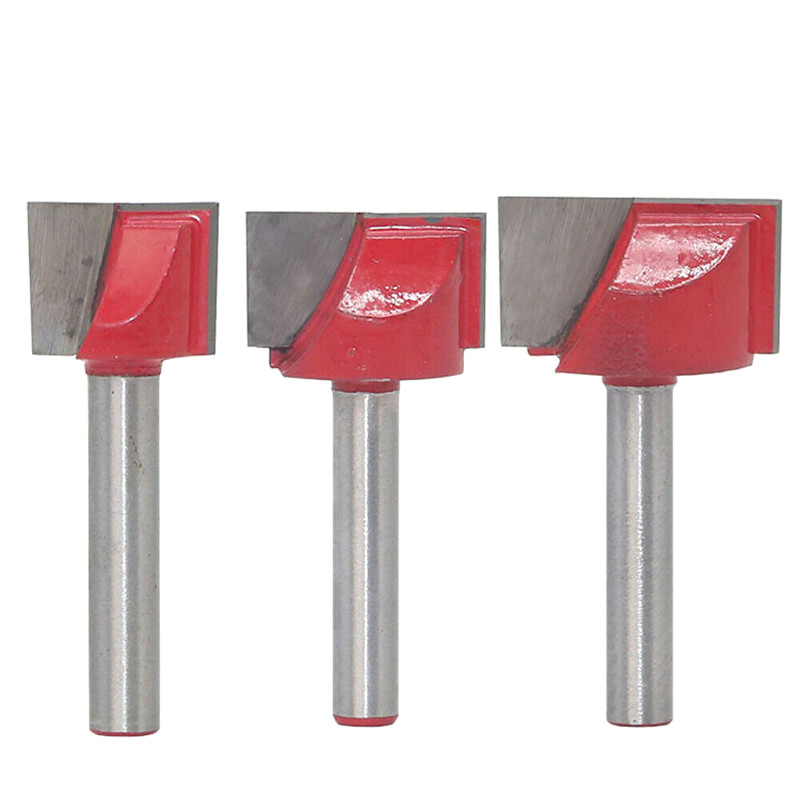

Before first use, the spoilboard must be levelled to ensure that your workpiece is cut or milled evenly. Our Bottom clearing bits are a must-have tool for setting up the spoilboard for your CNC and the wide diameter ensures reduced surfacing times. This bit can also be used to flatten wooden pieces before carving.
This bit is suitable for CNC machines router sleds and custom woodworking machines.
Specifications
- 2 Carbide tipped cutting edges
- Carbon steel body
| QTY of Cutting Edges | Cutting Diameter | Shank Diameter | Overall Length (OVL) |
| 2 | 25mm | 6mm | 46mm |
Suitable Materials
- All types of woods
End Mill Library
Download our Fusion360 end mill library below!
Tips and tricks
- Use a dust shoe with a dust extraction system to prevent the dust from going everywhere.
- As this bit is much wider than usual, it is recommended to insert as much of the bit into the collet as possible to reduce runout.
- Taking up to 1mm passes is recommended until you get a nice flat surface.
Please Note
- Due to the fine dust produced by this bit, it is recommended to have adequate ventilation in your workspace.
