Description

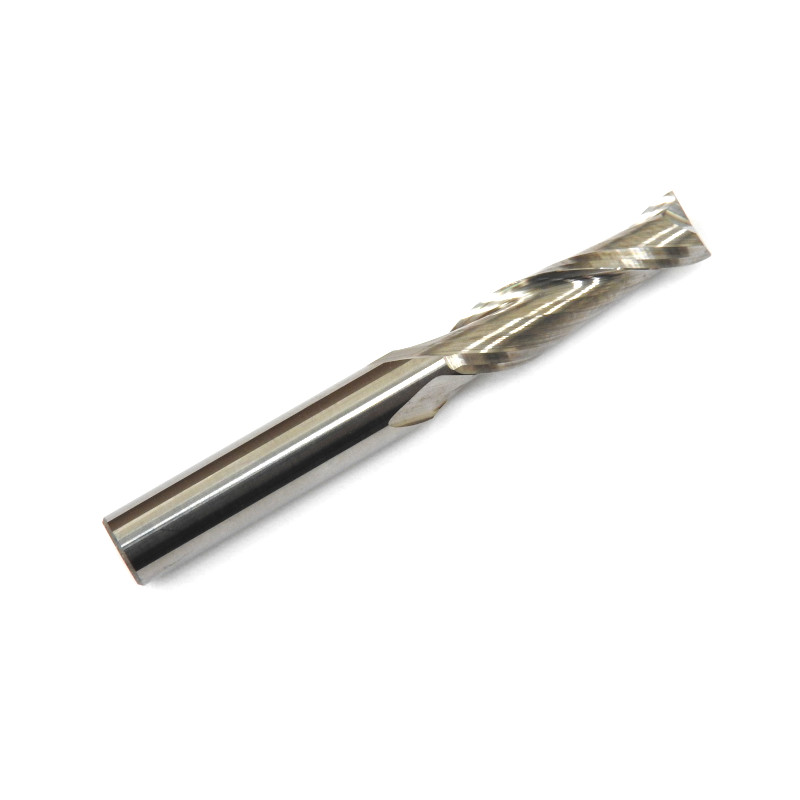

Our 2 flute end mills are excellent for machining soft metals such as Aluminium, Brass or Copper. 2 flute end mills allow you to go faster than single flute and give you a better side finish. This particular selection of 2 flute end mills are specifically designed to cut soft metals.
Use these endmills with our Aluminium sheet.
Specifications
- Material: Solid Carbide – Uncoated
| End mill Type | QTY Flutes | Cutting Edge Diameter (CED) | Cutting Edge Length (CEL) | Shank Diameter | Overall Length (OVL) |
| Up-Cut | 2 | 1mm | 4mm | 3.175mm | 38mm |
| Up-Cut | 2 | 2mm | 8mm | 3.175mm | 38mm |
| Up-Cut | 2 | 2.5mm | 8mm | 3.175mm | 38mm |
| Up-Cut | 2 | 3.175mm | 17mm | 3.175mm | 38mm |
| Up-Cut | 2 | 6mm | 25mm | 6mm | 50mm |
Suitable Materials
- Soft Metals: Aluminium, Brass, Copper
- Aluminium Composite boards
- Soft/Hard Woods: Balsa, pine, MDF, Ply
- Soft/Hard Plastics: Cast Acrylic, HDPE, ABS, PVC
End Mill Libraries.
Download our end mill libraries for Fusion360 and Vectric below!
Fusion360
Vectric:
Tips and tricks
- Due to the geometry of the up-cut end mills, please ensure that the workpiece is sufficiently clamped.
- When milling aluminium and other soft metals, cutting fluid is recommended. Kerosene in particular leaves a great finish.
- Sold individually. Please select the endmill required and quantity.
