Description

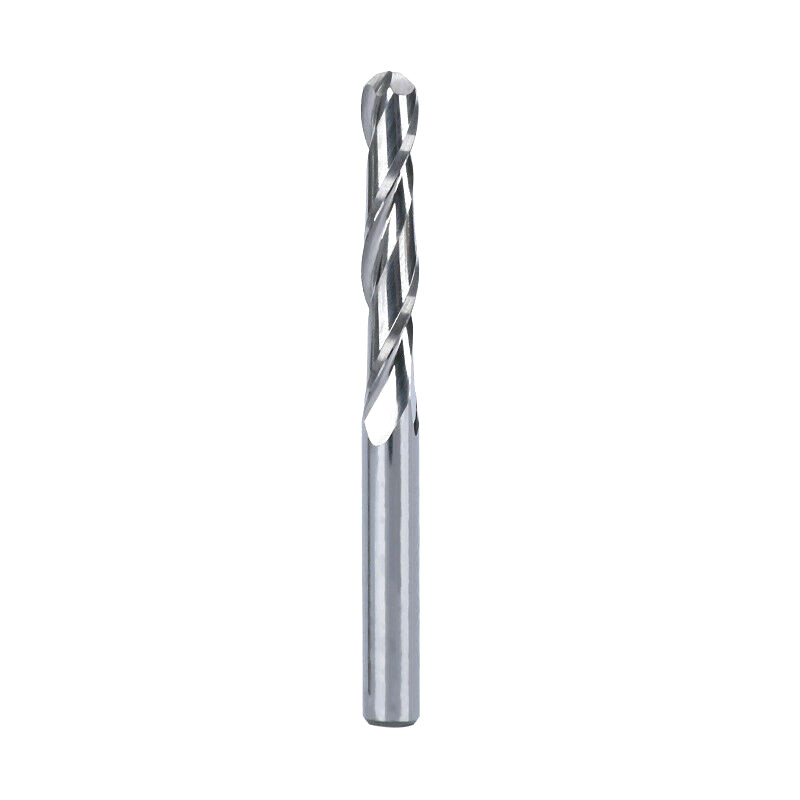

Our 2 flute ball nose end mills are excellent for 2D and 3D carving. These end mills are excellent for getting started with 3D carving and are a great alternative to their tapered ball nose cousins.

Specifications:

The specifications for each variation are shown below.

• Material: Solid Carbide – Uncoated



End mill Type	QTY Flutes	Cutting Edge Diameter (CED)	Cutting Edge Length (CEL)	Shank Diameter	Overall Length (OVL)
Up-Cut	2	1mm	4mm	3.175mm	38mm
Up-Cut	2	2mm	17mm	3.175mm	38mm
Up-Cut	2	2.5mm	22mm	3.175mm	45mm
Up-Cut	2	3.175mm	22mm	3.175mm	38mm
Up-Cut	2	6mm	17mm	6mm	50mm

Suitable Materials

• Soft/Hard Woods: Balsa, pine, MDF, Ply
• Soft/Hard Plastics: Cast Acrylic, HDPE, ABS, PVC

End Mill Libraries.

Download our end-mill libraries for Fusion and Vectric below!

Fusion360

Vectric:

Tips and tricks:

• For recommended feeds and speeds, please use the FSWizard Machinist Calculator here.
• These end mills feature Up-Cut geometry which tends to pull material upwards. Ensure that your workpiece is well secured.
• Non-tapered ball nose end mills generally require a roughing pass.
• If carving wood, use our Straight Cut End mills or Up-Cut end mills to do roughing passes before finishing with the ball nose end mill.

Please Note:

• Not recommended for soft metals such as aluminium, brass and copper
• Sold individually. Please select the endmill required and quantity.
• Depending on your application and the rigidity of your machine, a roughing pass may be required before performing a finishing pass with the tapered ball nose end mill.
