Description
Technical Overview

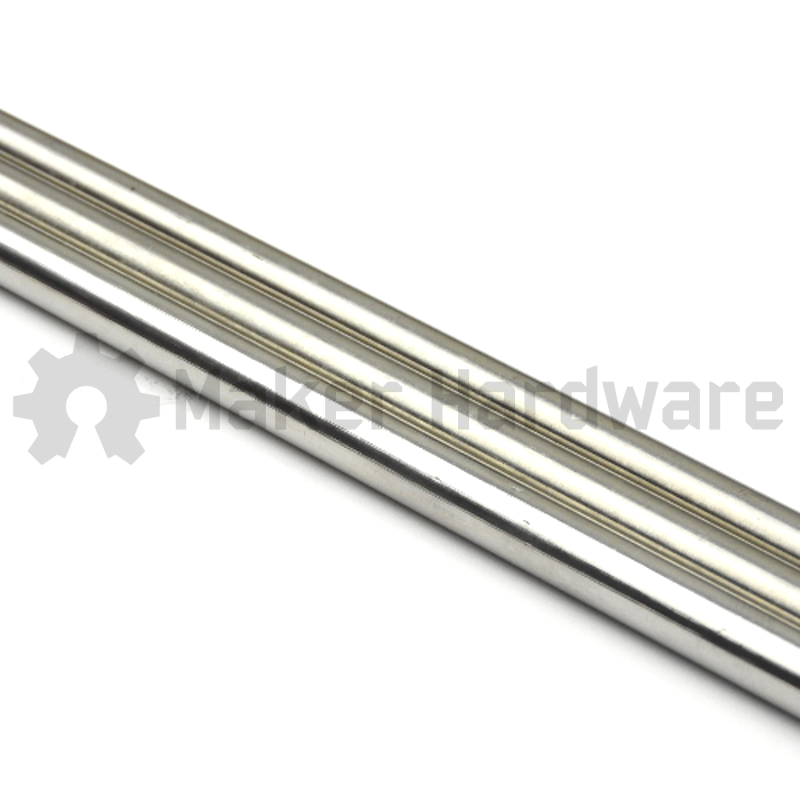

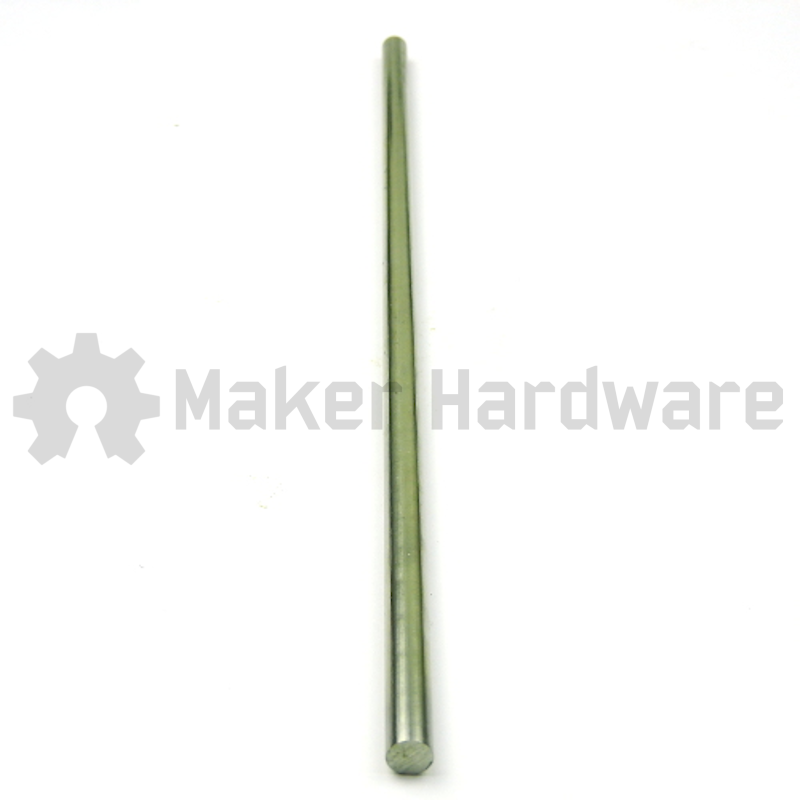

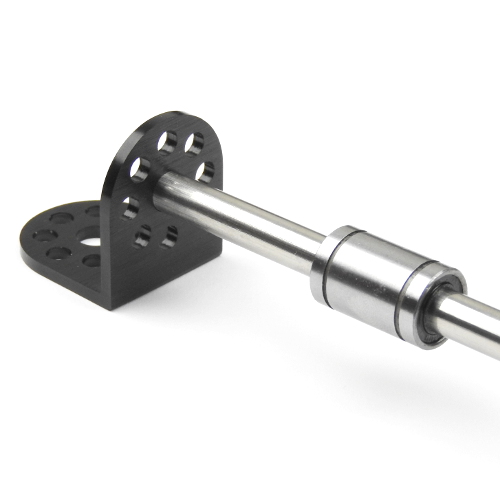

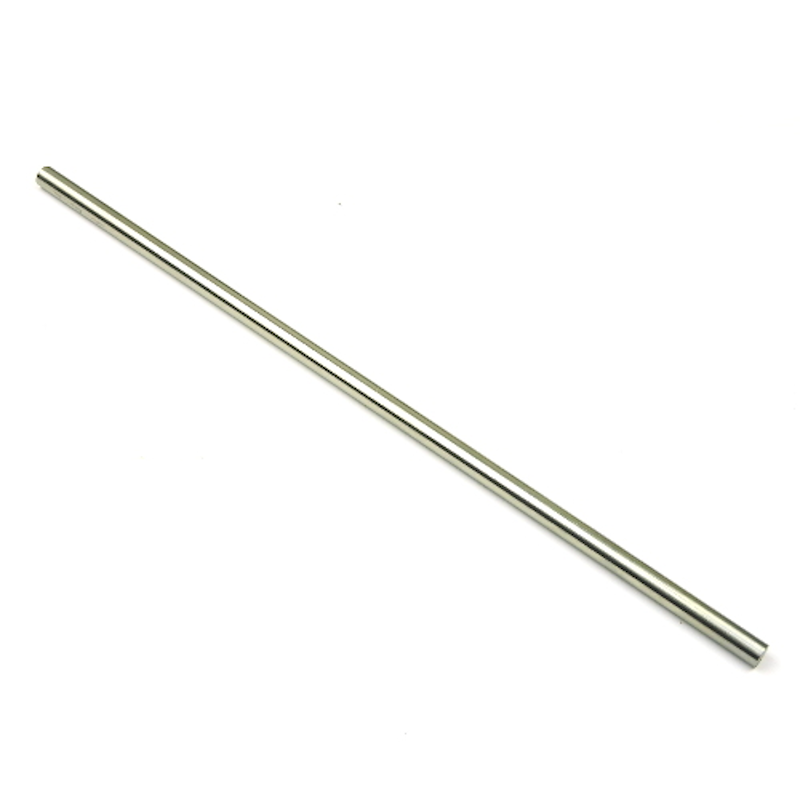

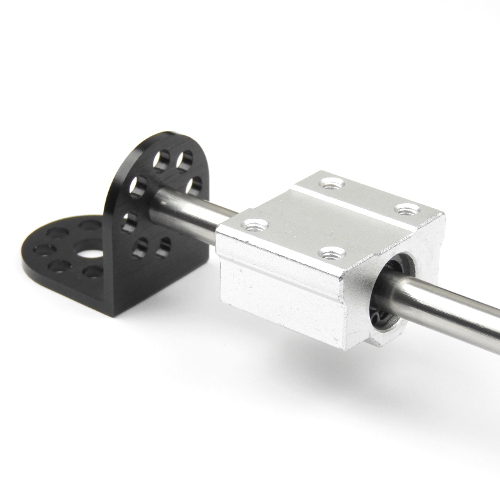

Engineers design this precision steel rod to provide structural linear guidance and shaft support in mechanical motion systems. First, manufacturers precisely grind the outer diameter so that it pairs perfectly with standard 8mm linear bearings, sliders, and support collars. Consequently, this rigid construction allows the rod to serve as a central structural track during operation. Ultimately, this sturdy setup maintains strict alignment and completely minimizes deflection during linear transit.
Applications
Technicians commonly integrate this linear shafting into CNC routers, automated 3D printers, and robotic assemblies that require repeatable linear movement. In these specific setups, the rod serves as the primary axis rail to guide gantry systems and tool heads smoothly. Furthermore, builders find it ideally suited for DIY mechanical projects, motion control test fixtures, and compact laboratory automation equipment. Therefore, this component ensures highly consistent alignment across a wide variety of critical mechanical applications.
Technical Specifications
Maker Store Tips and Tricks
-

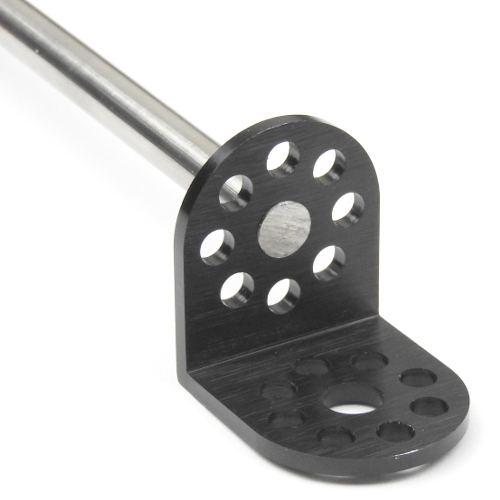

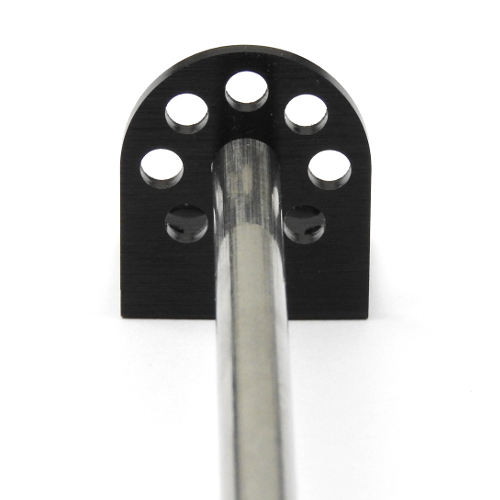

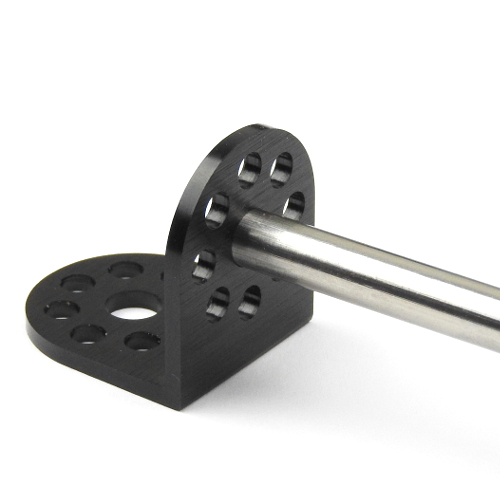

Check the cut edges for minor burrs if sliding a bearing or pushing the rod into a mounting collar feels tight.
-
Use a small piece of emery paper or sandpaper to gently deburr the ends for an easier fit.
-
Chuck the rod into a drill and spin it at a low speed while holding sandpaper against the edge to clean up the profile quickly.
