Description
Technical Overview

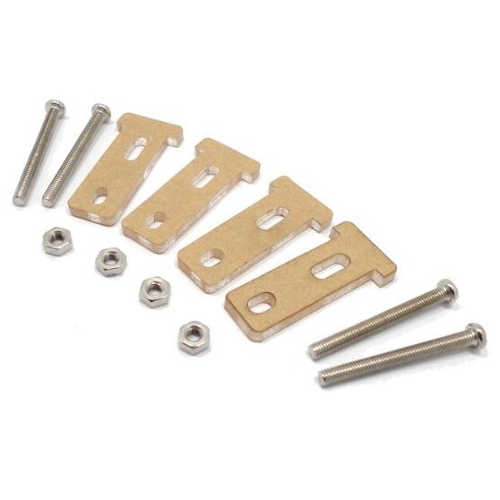

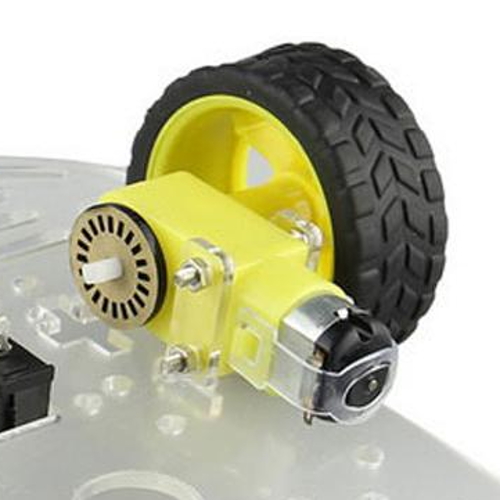

Engineers secure standard yellow TT geared motors onto mobile robotic platforms, smart car chassis, and custom mechanical structures using the Bracket and Screw Pack for mounting TT motors. Specifically, the brackets align precisely with the pre-molded mounting holes on TT-style motors. Consequently, this alignment provides a stable perpendicular mechanical interface to a flat baseplate. Furthermore, this hardware pack contains four T-shaped brackets along with the corresponding M3-threaded fastening hardware. As a result, it serves as a rigid mounting solution. This solution ensures robust integration within mechanical assemblies. Users do not need to rely on adhesives at all.
Applications

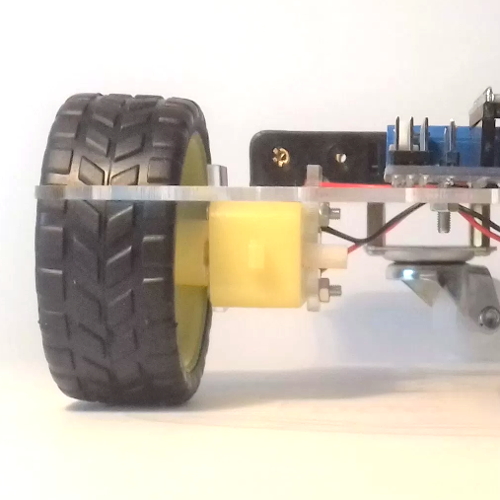

Builders primarily utilize this Bracket and Screw Pack for mounting TT motors hardware kit in DIY smart car assemblies, educational robotics, and custom robotic platform prototyping. Additionally, manufacturers design it for compatibility with acrylic, wooden, or 3D-printed chassis frames. These frames frequently utilize TT-style hobby gearboxes. For instance, typical applications include differential drive robots, line-following vehicles, and multi-wheeled obstacle avoidance platforms. Therefore, the kit ensures rigid alignment during active operation. It successfully prevents motor shifting, axial rotation, or mechanical slip.
Technical Specifications
Maker Store Tips and Tricks
-

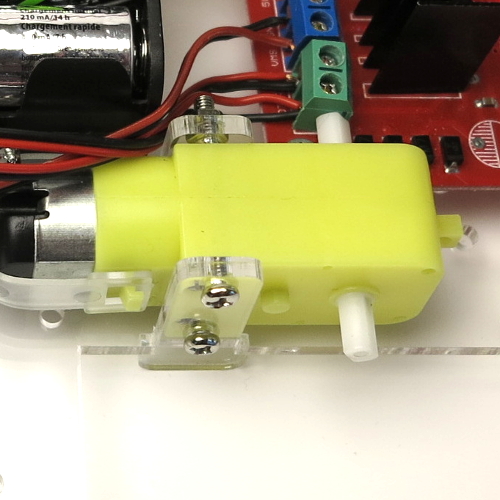

Align the T-bracket flat against the mounting channel of the TT motor housing before inserting and tightening the M3 screws.
-
Avoid over-tightening the M3 hardware when mounting to fragile acrylic or plastic chassis plates to prevent cracking the frame.
-
For high-vibration applications, consider pairing the kit with nylon-locking nuts or applying a drop of mild thread-locking compound.
