Description

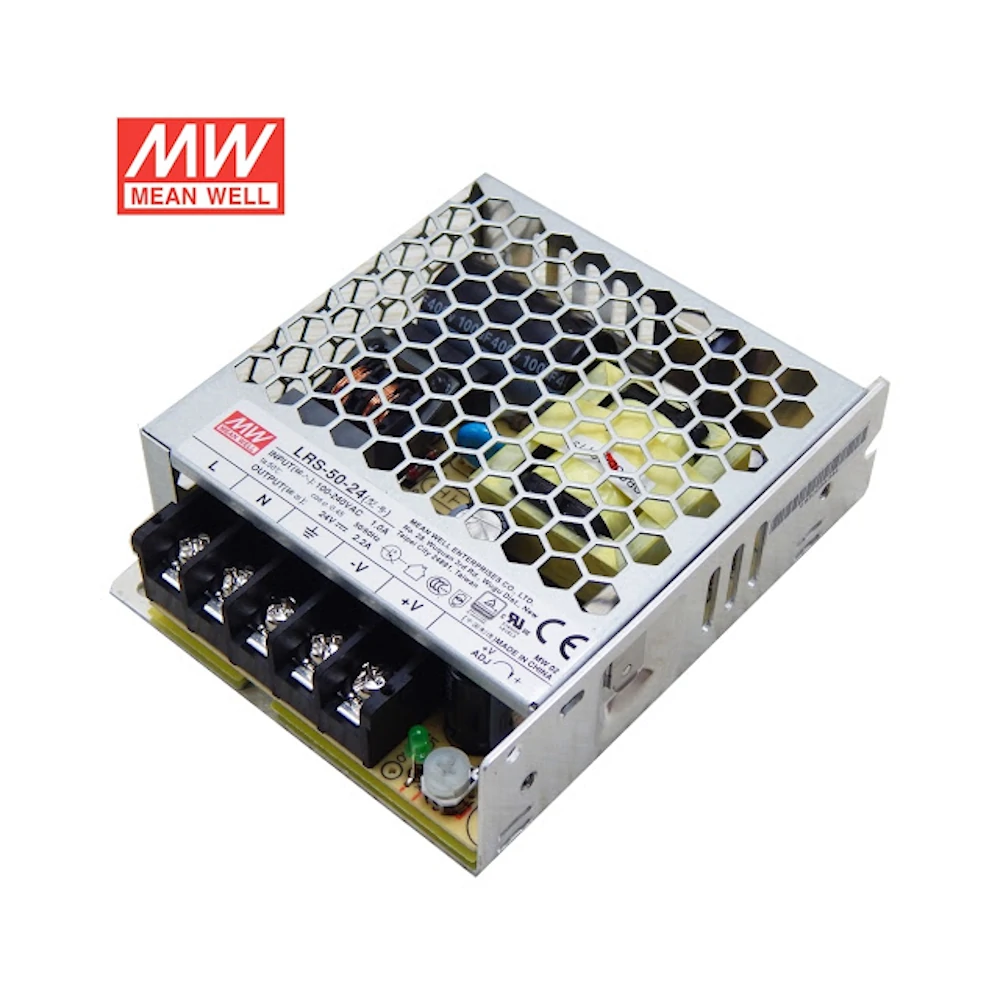

Mean Well LRS-50-24 50W AC/DC Single Output Power Supply is a single-output enclosed type power supply with 30mm of low profile design. Adopting an input of 115 VAC or 230 VAC (select by switch). The semi-open enclosure allows LRS-35 to work from -30ºC to +70ºC with a full load. Delivering an extremely low no-load power consumption (less than 0.2W), LRS-50 allows the end system to easily meet the worldwide energy requirement. LRS-50 has complete protection functions and 5G anti-vibration capability.
Specifications:
- Manufacturer: Mean Well
- Output Voltage-Channel 1: 24 V
- Output Power: 50 W
- Open Frame/Enclosed: Semi-Enclosed
- Input Voltage: 115VAC – 230VAC
- Output Current-Channel 1: 2.2 A
- Mounting Style: Chassis
- Length: 99 mm
- Width: 82 mm
- Height: 30 mm
- Input Frequency: 47 Hz to 63 Hz
- Unit Weight: 230 g
Note: Any Mains power connections must be installed by a Licensed electrician or suitability qualified person.
