Gear Rack Motor Mount Plate

Name: Gear Rack Motor Mount Plate
SKU: PLATE-MOTOR-RACK
Price: 23.63 AUD
Availability: InStock

$23.63 Inc. GST

It is not only a pretty shape, but It is also robust, versatile and modular.

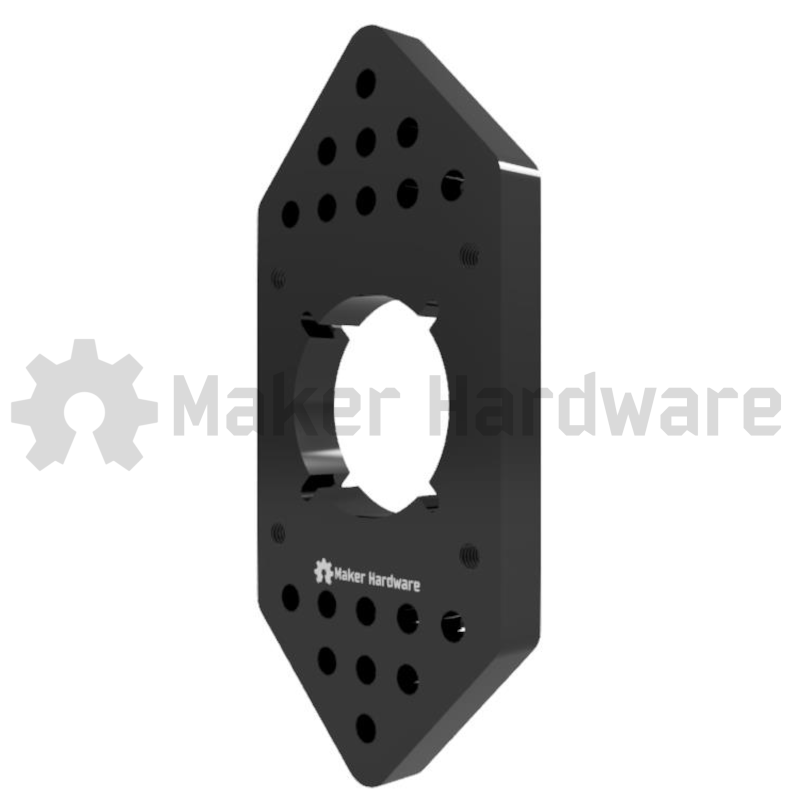

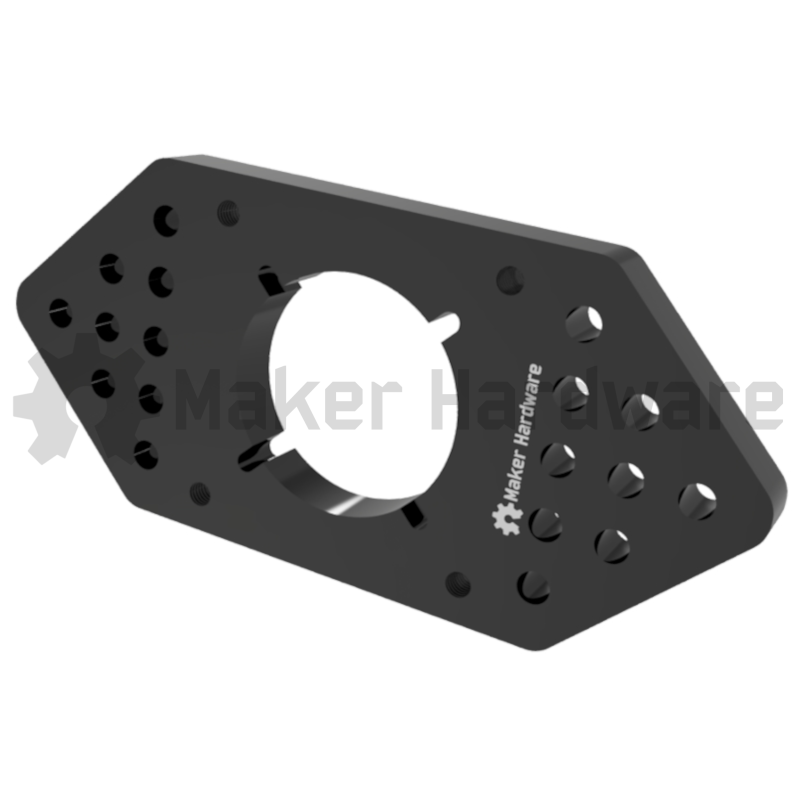

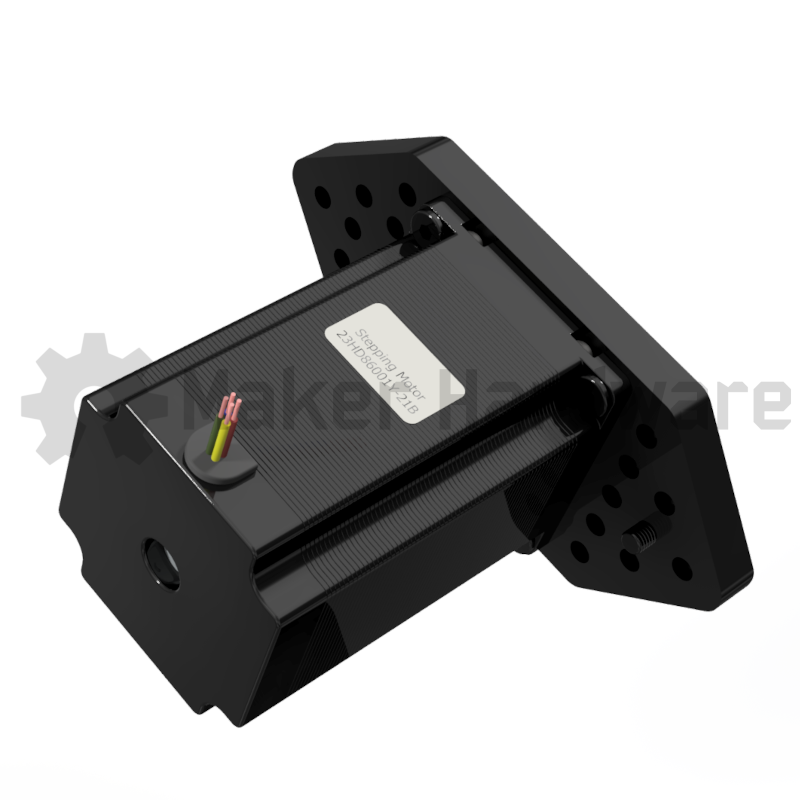

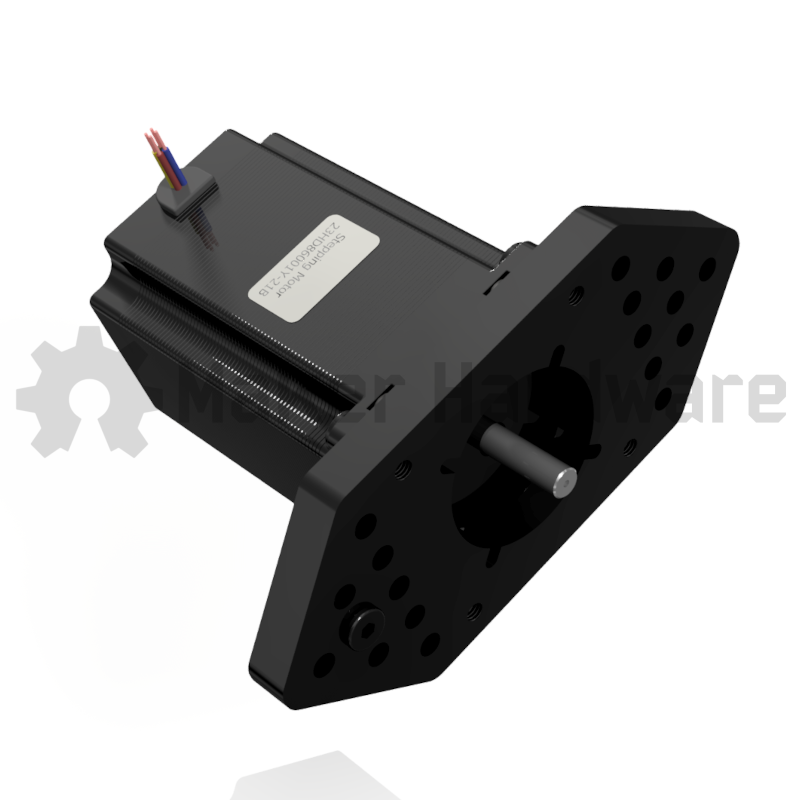

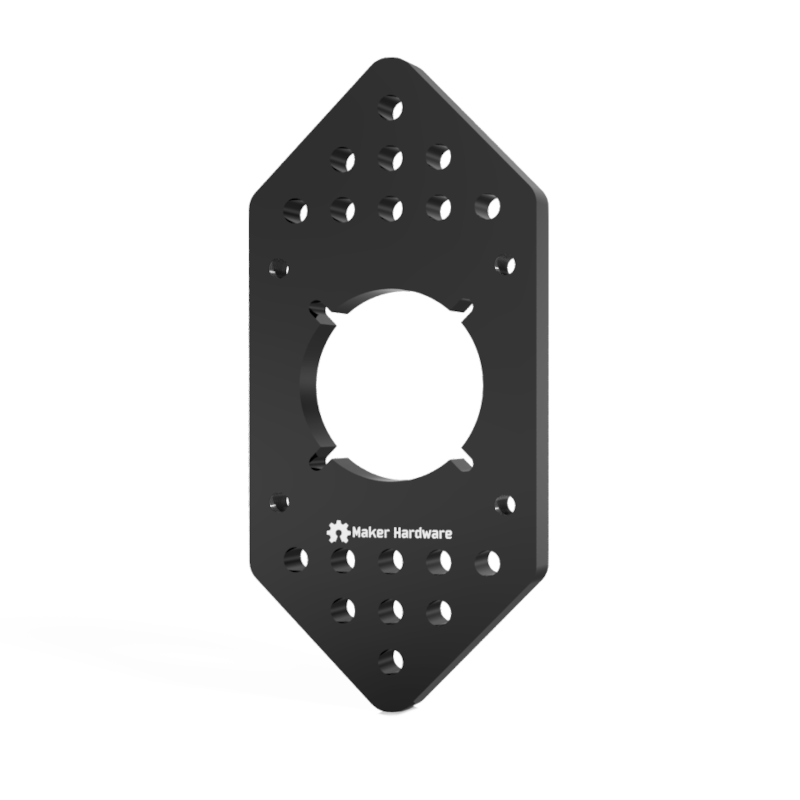

This Gear Rack Motor Mount Plate is a versatile motor plate compatible with our NEMA 23 standard torque and NEMA 23 High Torque motors.

This plate is fantastic because it outstands having a beautiful black anodized finish. It is also steady, showing stability when it is in motion. Above all, it has a modular design that opens up a new world of possibilities.

We currently use this model for our innovative Ox-Gear CNC machine, which allows long lengths travelling without “bumps”.

Only 12 left in stock

LCN: E-06-U / E-06-X SKU: PLATE-MOTOR-RACK Categories: Gears and Racks, Helical Gears and Racks, Motor Plates, Spur Gears and Racks Tags: Gear, Gear Rack, Motor Plate, Ox, Rack

Description
Additional information

Description

Robust, versatile and modular.

This Gear Rack Motor Mount Plate is a versatile motor plate compatible with our NEMA 23 standard torque and NEMA 23 High Torque motors.

We currently use this model for our innovative Ox-Gear CNC machine, which allows long lengths travelling without “bumps”.

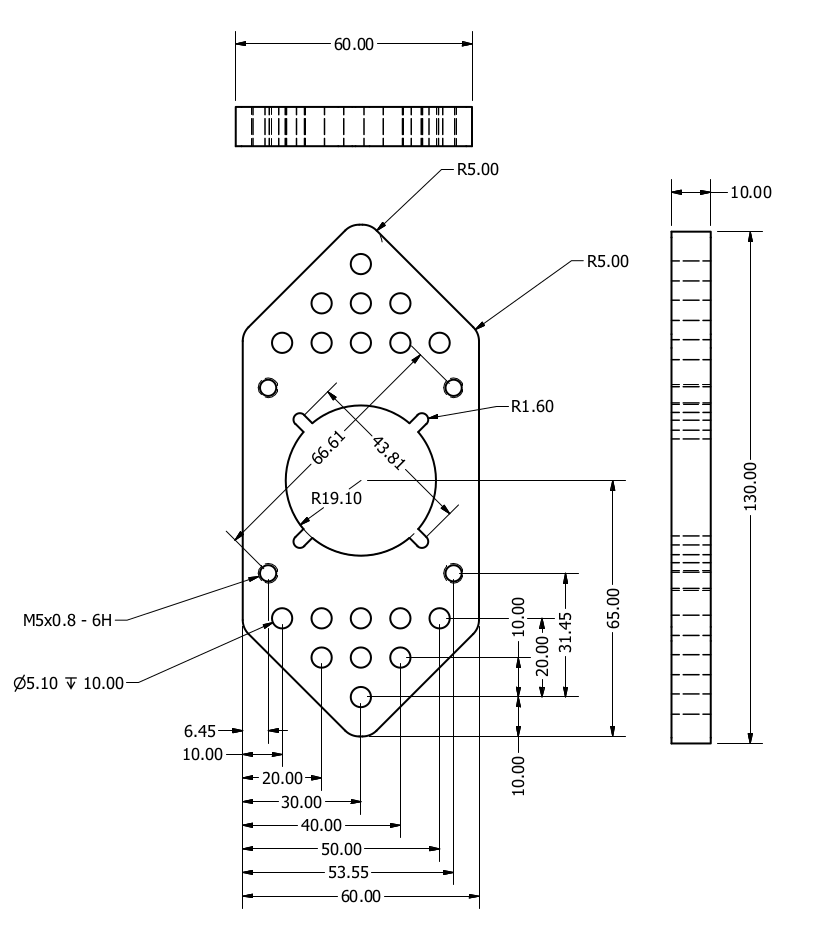

Specifications:

Material: 6063-T6 Aluminium
Finish: Black Anodized Finish
Thickness 10mm.

Pro Tips:

When you need a robust system where the motor shouldn’t be vibrating, use this plate with M5 screws and Sliding T-nuts to attach it to your V-Slot extrusion.
To use this plate as a pinion use a Thrust bearing with M5 screws.

Credits/Source:

The Gear Rack Motor Mount Plate was designed by Steven of Maker Store.

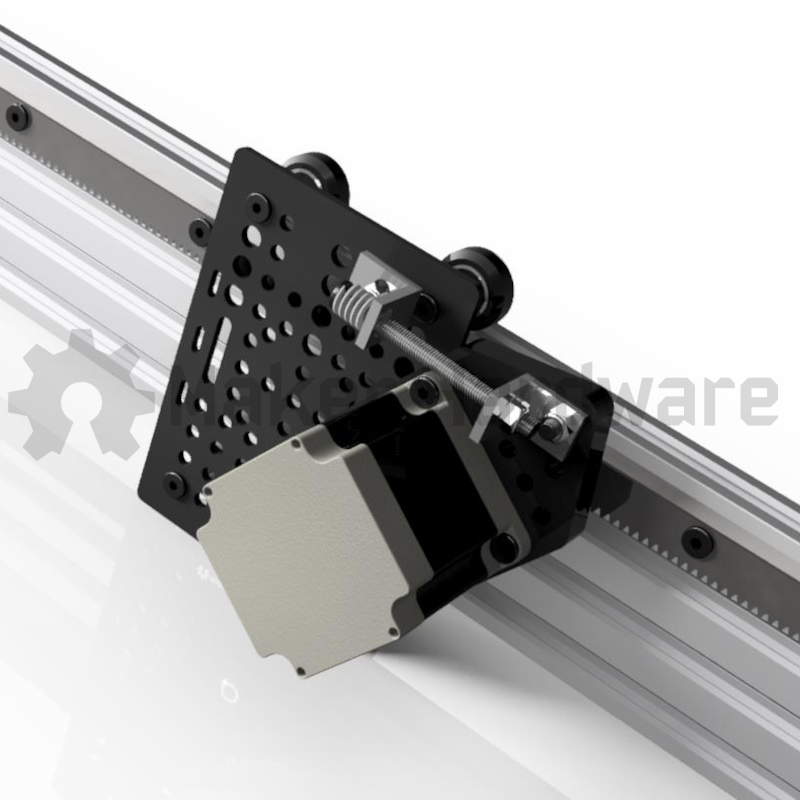

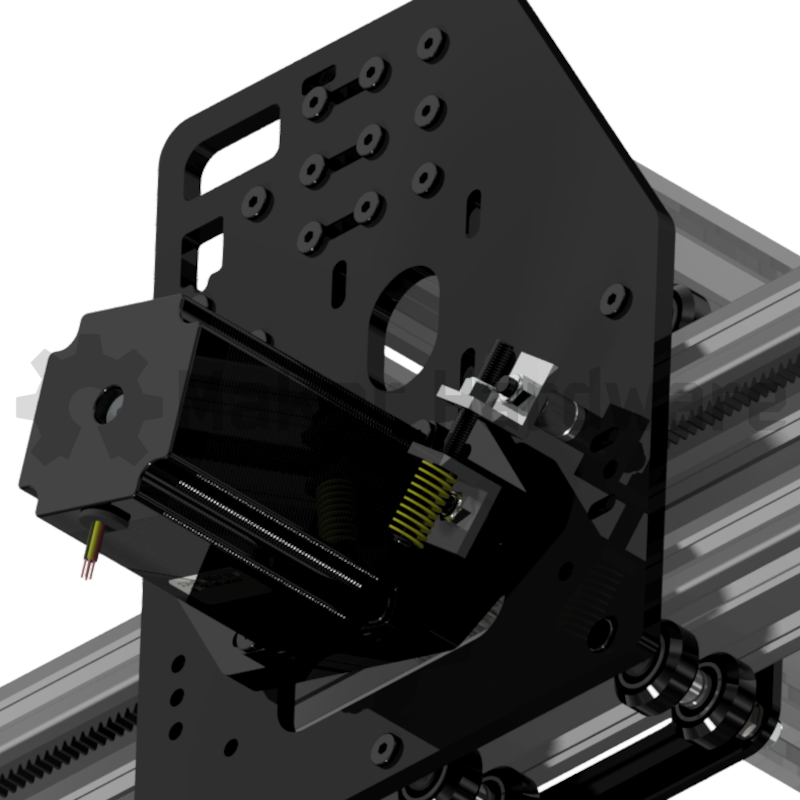

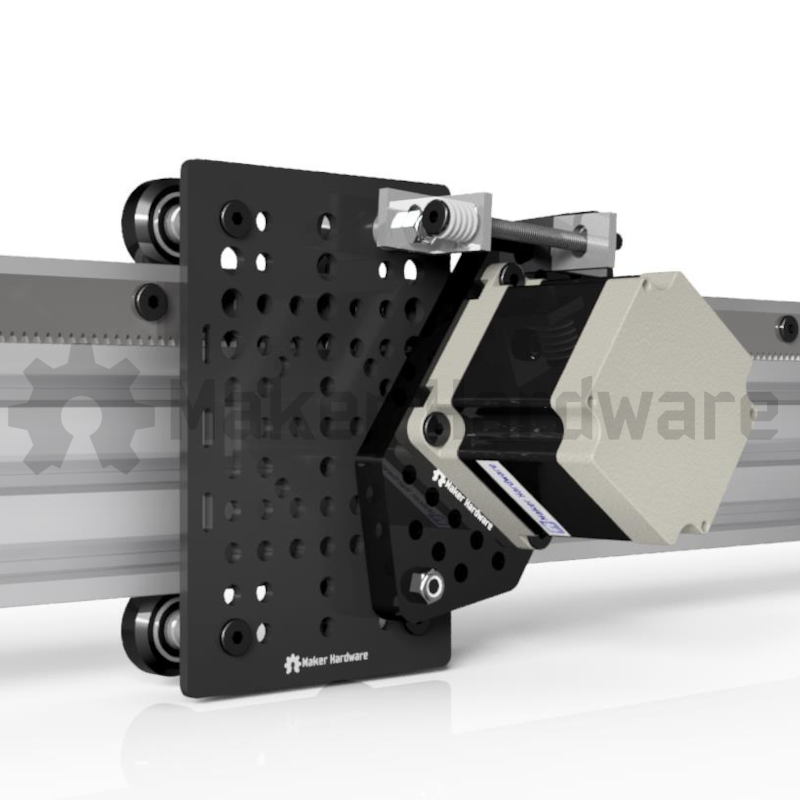

Steven originally designed this plate to allow for a gear rack and pinion transmission system on the Ox-Gear CNC machine on the Y-Axis. However, we have found many useful applications since it makes it possible to travel long lengths.
