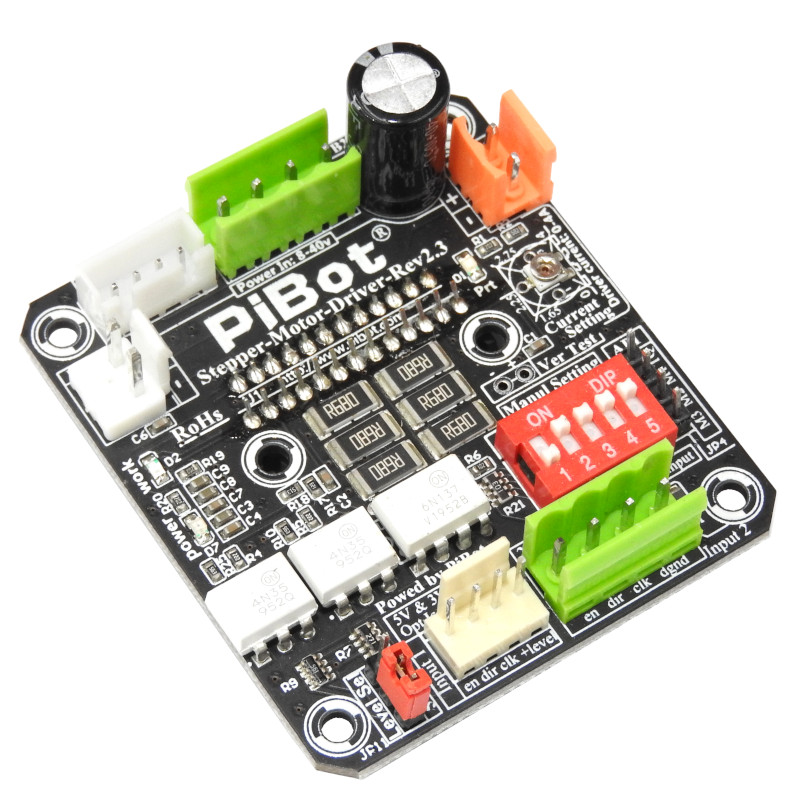

Description

The PiBot stepper motor driver module is an excellent module for driving our Nema23 stepper motors. With a maximum current output of 4.12A-4.5A, it can drive even the high-powered Nema23 motors.

The driver chip in these modules is the genuine Toshiba TB6600HG, designed for high-performance control of stepper motors.

This driver can be used with our PiBot controller which can be found here.

Specifications

• Quick access connections- No soldering required.
• Wide power input DC 8 – 40V. (24-36V recommended with appropriate cooling)
• Opto-Isolated signal inputs.
• Microstepping levels: 1/1, 1/2A, 1/2B, 1/4, 1/8, 1/16.
• Current output: 0-4.5A. Please use appropriate cooling
• Integrated status and diagnostic LED.
• Heatsink available.

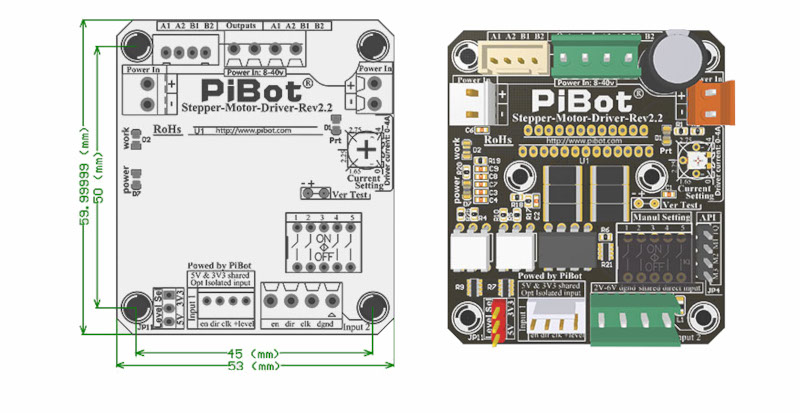

Physical dimensions

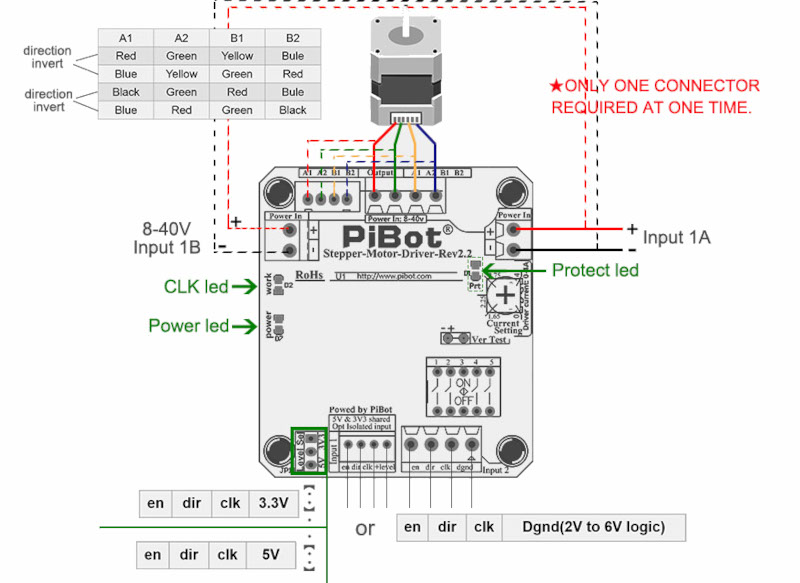

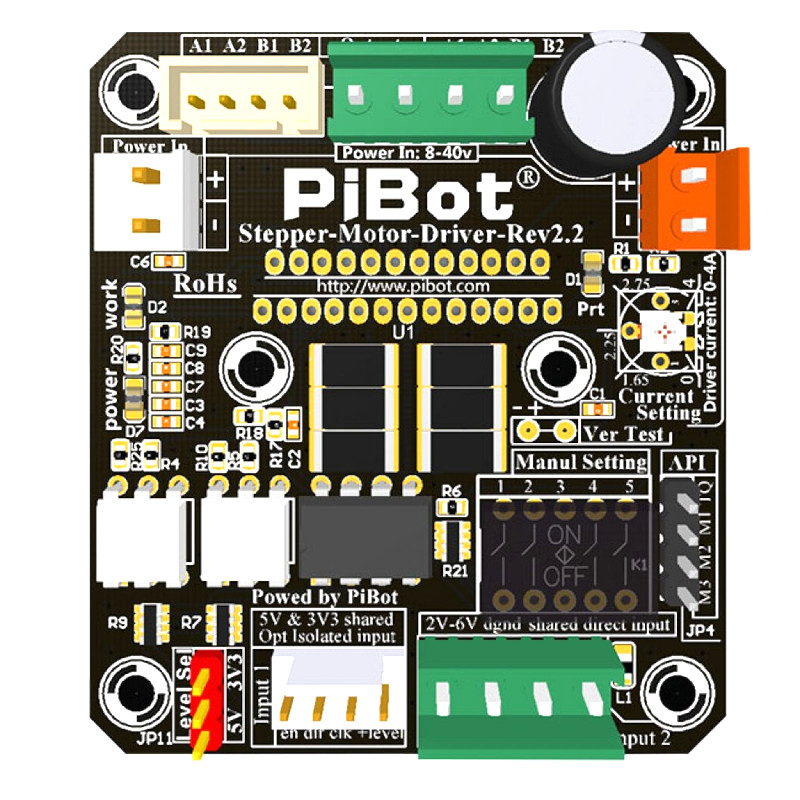

Wiring Diagram

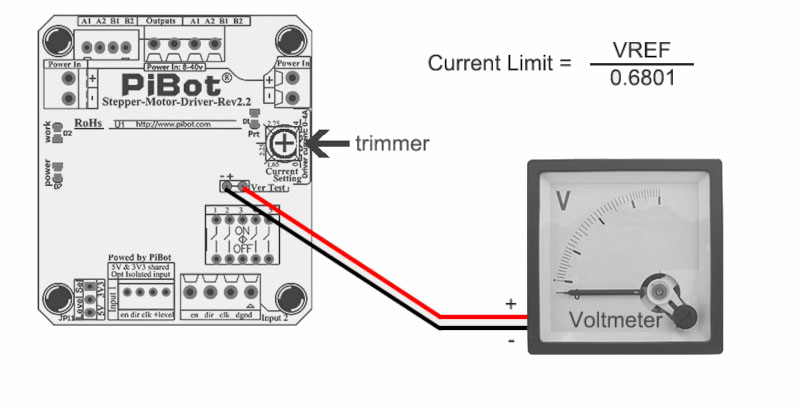

Current Adjustment

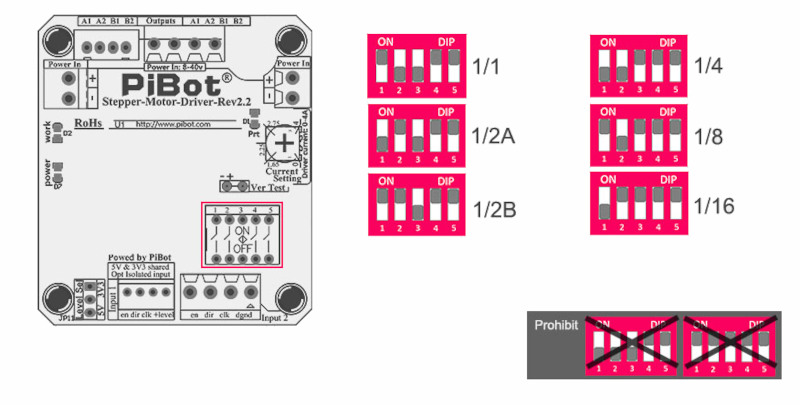

Micro-Stepping  Adjustments

Please refer to the micro-stepping diagram below. We recommend a maximum of 1/8th micro-stepping for CNC applications. This is to maintain a perfect balance between torque output and smoothness.

Please note

• Maximum current output depends on the cooling. We recommend adding a cooling fan to dissipate heat.
